Description

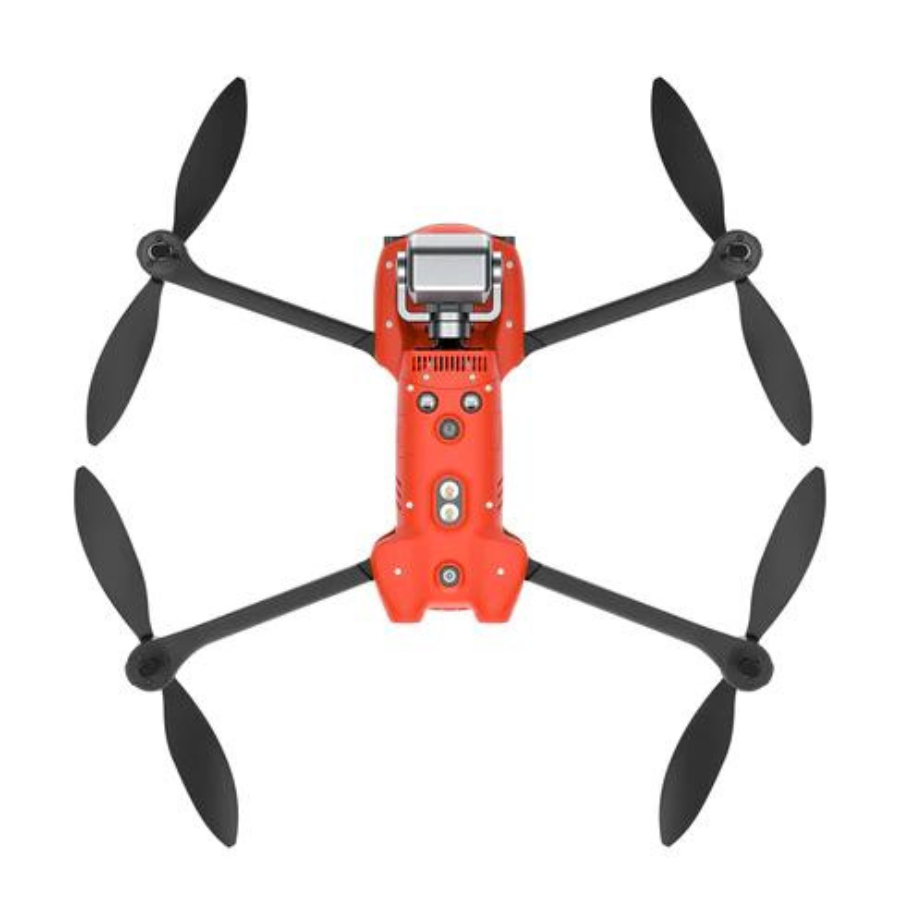

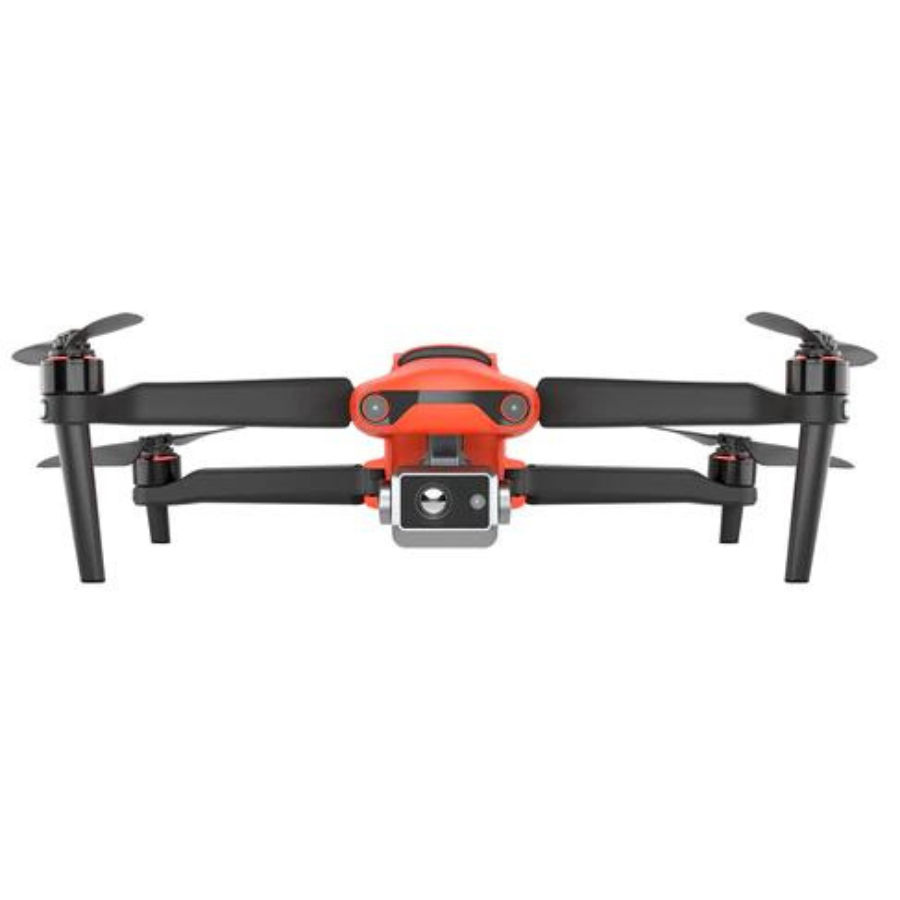

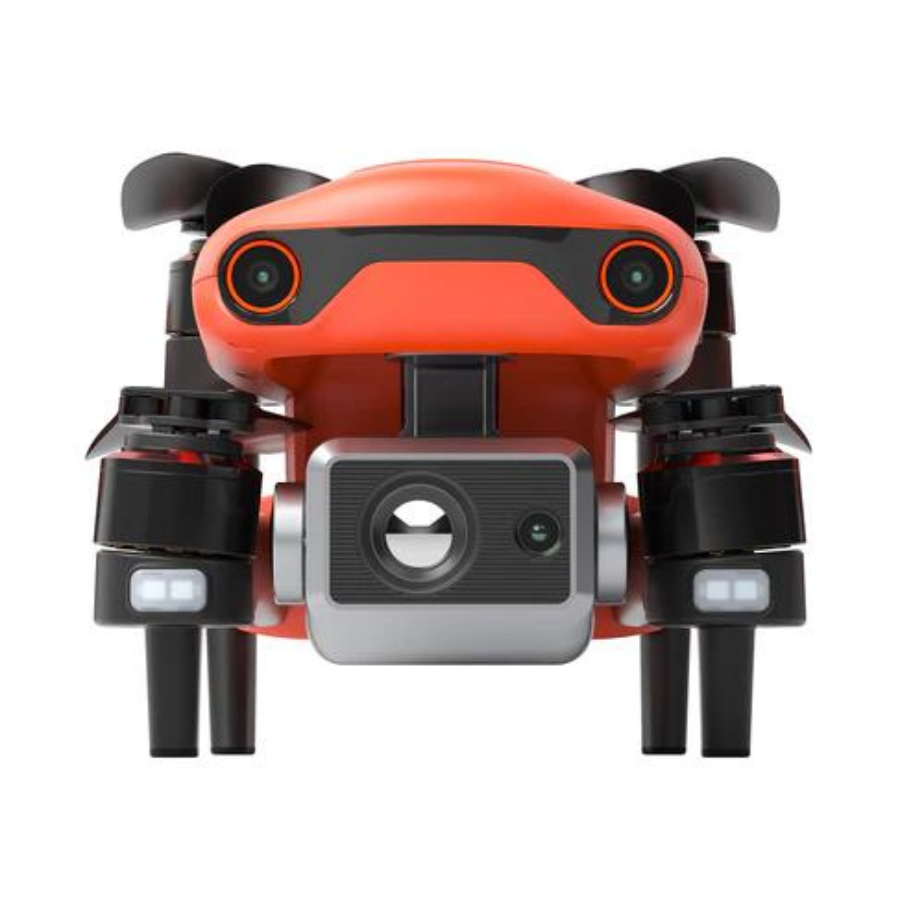

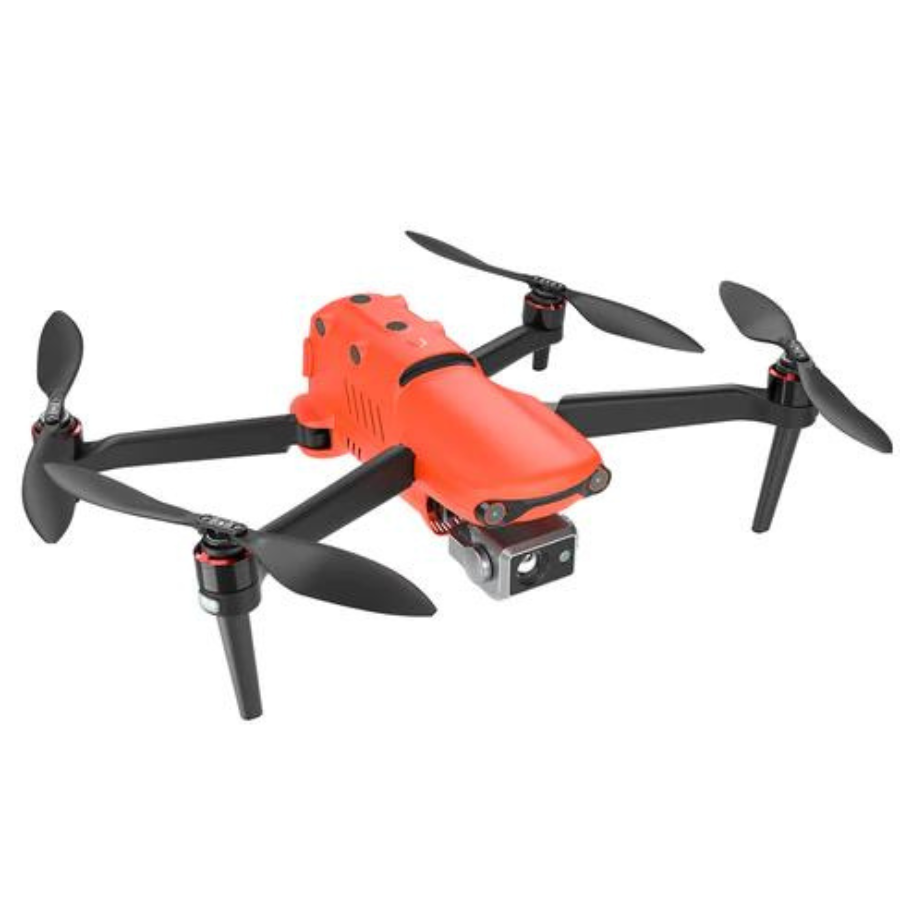

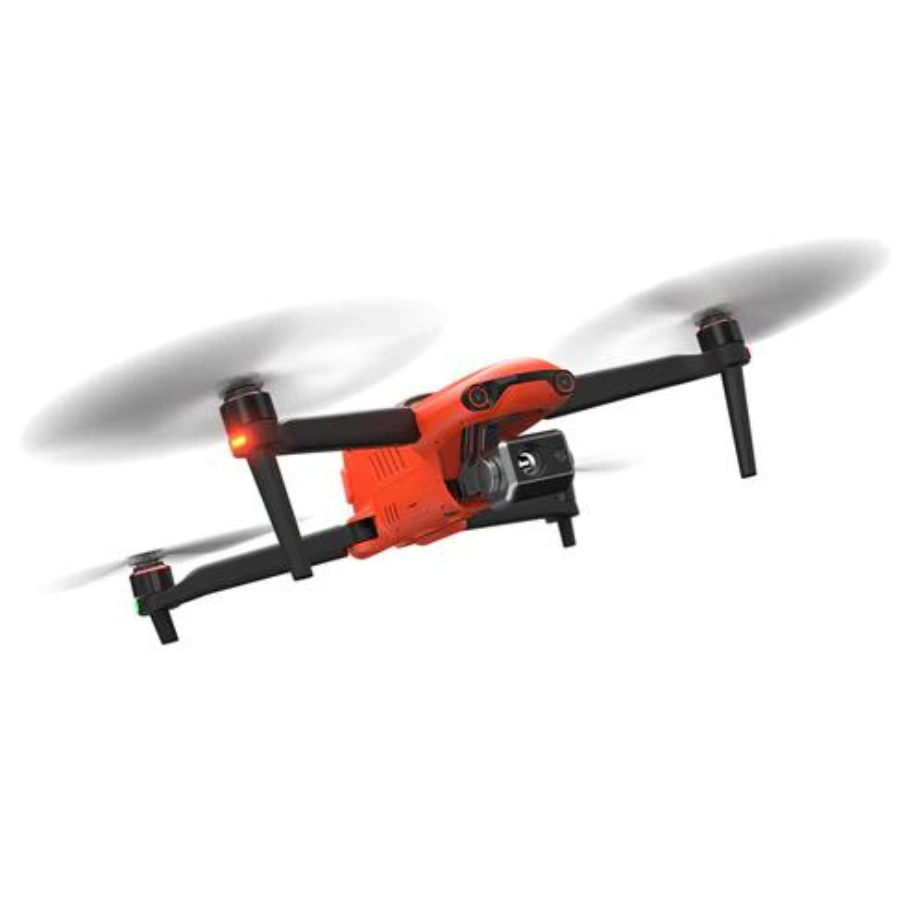

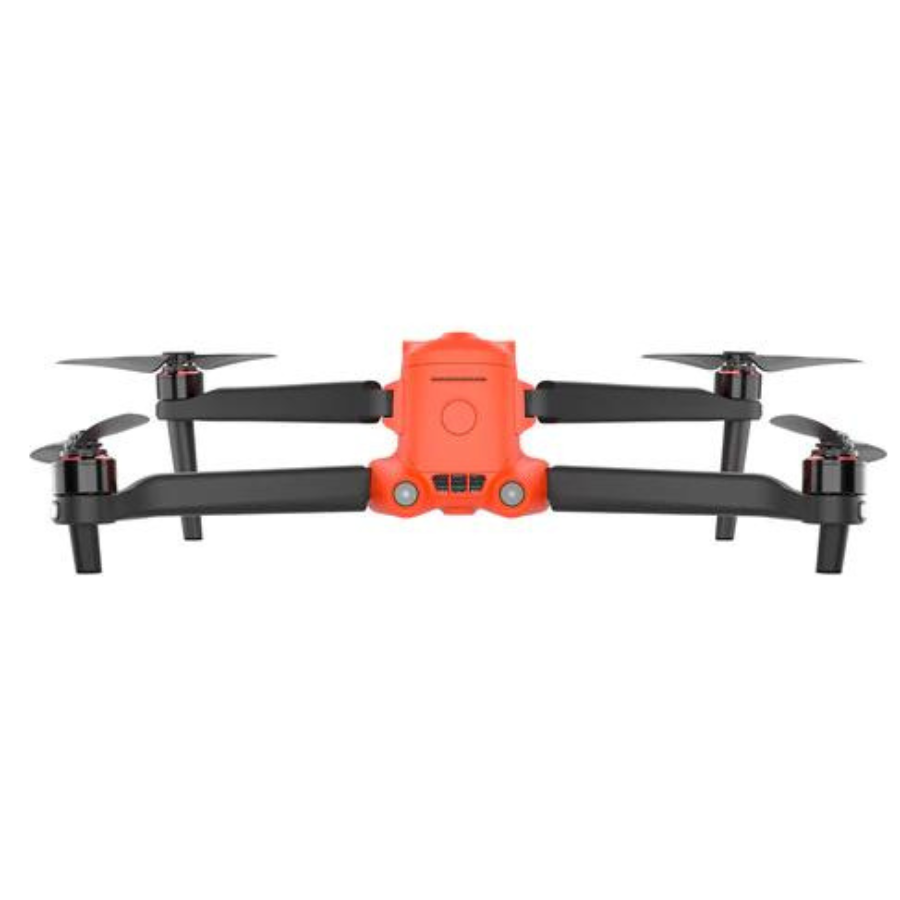

Autel Robotics EVO II Dual 640T V3
A cutting-edge option for expert thermal imaging and aerial data collecting is the Autel Robotics EVO II Dual 640T V3 Thermal Drone Enterprise Bundle. It guarantees precise positioning for industrial uses like inspections and agriculture thanks to dual cameras and RTK technology. The package includes all of the necessary extras for a thorough and effective encounter. Ideal for professionals seeking a complete solution with sophisticated thermal capabilities and high-quality aerial pictures.
A New Generation Of Thermal Sensor
The 640×512 sensor provides greater resolution than any camera in its class, enabling pilots to see deep detail in dark environments. The new generation of the Autel Robotics thermal imaging sensor has a resolution of up to 640×512@30 fps. It also comes standard with a 13mm lens, and 16x digital zoom, and can recognize subjects up to 100 m away.
Maximum Efficiency In All Viewing Conditions
EVO II Dual 640T supports up to 10 thermal palettes, enabling pilots to cope with a variety of complex shooting environments and mission scenarios.
Picture-in-Picture Mode (For Enhanced Situational Awareness)
Multiple Temperature Measurement Modes, Professional Analysis Tool
A Thermal Drone can do more that your expectation
For legal hunting: Thermal Drones allow hunters to easily verify the position of preys no matter daytime or at night. Hunters can quciky find animals and follow them ,keep a safty distance.
Capture And Preserve Even The Smallest Of Details
8K Video, Unmatched Clarity
EVO II Dual 640T records in resolutions up to 7680×4320. With 4 times more pixels than 4K (and 16 times more than HD), 8K videos redefine image clarity and depth.
48MP Camera
The 48MP sensor captures every forensic-relevant detail to assist in precise evidence capture. Both thermal and RGB images are provided with embedded metadata, making the EVO II Dual 640T the ultimate public safety tool.
4x Lossless Zoom
The high resolution provides the ability to zoom deep into a scene and crop an image or video to 4K without any loss in quality. Capture a scene, zoom in, and reframe your shots with ease.
4K HDR For Greater Dynamic Range
4K HDR offers greater detail in highlights and shadows, providing higher.
360° Obstacle Avoidance
Omnidirectional Obstacle Avoidance With 12 Visual Sensors
Equipped with 19 groups of sensors — including 12 visual sensors, the main camera, ultrasound, and dual IMUs — the EVO II Dual 640T can easily build three-dimensional maps and plan paths through complex terrain in real-time.
Dynamic Track 2.0
The EVO II Dual 640T can model the location and speed of targets simultaneously, predict their trajectory accurately, and track them continuously while identifying up to 64 objects at the same time.
In The Box
Specifications
Performance
| Maximum Takeoff Weight | 4.4 lb / 2000 g |
| Maximum Horizontal Speed | 44.7 mph / 20 m/s |
| Maximum Ascent Speed | 17.9 mph / 8 m/s |
| Maximum Descent Speed | 8.9 mph / 4 m/s |
| Flight Ceiling | 4.3 Miles / 7000 m |
| Maximum Flight Time | 38 Minutes |
| Maximum Hover Time | 33 Minutes |
| Maximum Tilt Angle | 33° |
| Hovering Accuracy | GNSS Horizontal: ±4.9′ / 1.5 m Vertical: ±1.6′ / 0.5 m Vision Positioning Horizontal: ±1.0′ / 0.3 m Vertical: ±0.3′ / 0.1 m |
| Maximum Angular Velocity | 120°/s (Pitch) |
Camera
| Sensor Type | 1/2″-Type CMOS Sensor |
| Sensor Resolution | Effective: 48 Megapixel |
| Focal Length | 25.6mm (35mm Equivalent) |
| Field of View | 79° |
| Maximum Aperture | f/1.8 |
| ISO Sensitivity | Photo 100 to 6400 Video 100 to 64,000 |
| Shutter Speed | 1/8000 to 8 Seconds |
| Video Format | 3840 x 2160p at 24/25/30/48/50/60 fps (120 Mb/s MOV/MP4) 2720 x 1528p at 24/25/30/48/50/60 fps (120 Mb/s MOV/MP4) 1920 x 1080p at 24/25/30/48/50/60 fps (120 Mb/s MOV/MP4) |
| Broadcast Resolution | None |
| Still Image Support | DNG / JPEG (8192 x 6144) (4096 x 3072) (3840 x 2160) |
| Internal Storage | 8 GB |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC (UHS-III) [256 GB Maximum / Class 10/U1/V10 or Faster Recommended] |
| Photo Modes | Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot |
Gimbal
| Number of Axes | 3-Axis (Pitch (Tilt), Roll, Yaw (Pan)) |
| Rotation Range | Mechanical Range Pitch (Tilt): 180° (-135 to 45°) Yaw (Pan): 200° (-100 to 100°) Controllable Range Pitch (Tilt): 120° (-90 to 30°) Yaw (Pan): 180° (-90 to 90°) |
| Follow Speed | Tilt: 300°/s |
| Stabilization Accuracy | ±0.005° |
Flight Control System
| GNSS Support | GPS, GLONASS, BeiDou, Galileo |
Vision/Sensing System
| Vision System | Downward / Upward / Forward / Backward / Left / Right |
| Vision System Capabilities | Forward Measurement Range: 1.6 to 59.1′ / 0.5 to 18 m Max Speed: 39.4 ft/s / 12 m/s Field of View: 60° (Horizontal) / 80° (Vertical) Backward Measurement Range: 1.6 to 52.5′ / 0.5 to 16 m Max Speed: 39.4 ft/s / 12 m/s Field of View: 60° (Horizontal) / 80° (Vertical) Lateral Measurement Range: 1.6 to 32.8′ / 0.5 to 10 m Max Speed: 16.4 ft/s / 5 m/s Field of View: 65° (Horizontal) / 50° (Vertical) Upward Measurement Range: 1.6 to 32.8′ / 0.5 to 10 m Max Speed: 16.4 ft/s / 5 m/s Field of View: 65° (Horizontal) / 50° (Vertical) Downward Measurement Range: 1.6 to 32.8′ / 0.5 to 10 m Max Speed: 16.4 ft/s / 5 m/s Field of View: 100° (Horizontal) / 80° (Vertical) |
| Operating Environment | Surface with Clear Patterns at >15 lux |
| Required Object Reflectivity | >20% |
Remote Controller / Transmitter
| Operating Frequency | 0.9 GHz (902.000 to 928.000) 2.4 GHz (2.400 to 2.483) 5.8 GHz (5.725 to 5.850) |
| Maximum Operating Distance | 9.3 Miles / 15 km |
| Transmitter Power | 20 dBm (2.4 G) 14 dBm (5.8 G) 20 dBm (2.4 G) 33 dBm (5.8 G) |
| Transmitter I/O | 1 x Micro-USB Input 1 x USB-A Output |
| Battery Capacity | 5800 mAh |
| Mobile App Compatible | No *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Built-In Display Size / Type | 7.9″ / |
| Display Resolution | 2048 x 1536 |
| Display Brightness | 2000 nits / cd/m2 |
Flight Battery
| Battery Chemistry | Lithium-Ion Polymer (LiPo) |
| Battery Capacity | 7100 mAh / 82 Wh |
| Battery Configuration | 3 S / 11.55 V |
| Maximum Charging Power | 93 W |
| Charging Temperature | 41 to 113°F / 5 to 45°C |
| Weight | 12.9 oz / 365 g |
Charger
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A |
| Output Voltage | 13.2 V, 5 A 12 V, 1.5 A 9 V, 2 A 5 V, 3 A |
| Power Rating | 66 W |
General
| Rotor Configuration | 4 |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Diagonal Size | 15.6″ / 397 mm |
| Overall Dimensions | 5.1 x 4.3 x 9.1″ / 130.0 x 108.0 x 230.0 mm (Folded) 22.0 x 4.3 x 18.0″ / 558.0 x 108.0 x 457.0 mm (Unfolded) |
| Weight | 2.5 lb / 1150 g (Including Propellers, Battery, Gimbal, Camera) |
