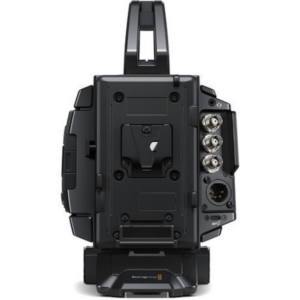

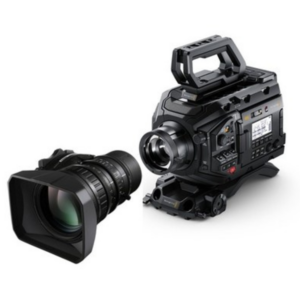

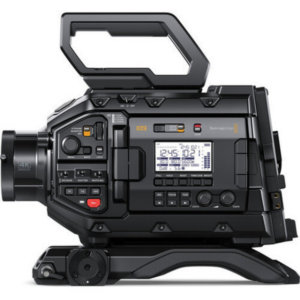

Blackmagic Design URSA Broadcast G2 Camera

503,892 inc. GST

  • 6K Super35 CMOS Sensor, Dual Native ISO
  • 2/3″ B4 Lens Mount & Active EF Mount
  • 6K Blackmagic RAW Recording
  • Records to ProRes, H.265/264
  • 12G-SDI Input & Output, Genlock/Timecode
  • 13 x Stops of Dynamic Range
  • 2 x UHS-II SD, 2 x CFast 2.0 Slots
  • Built-In 2/4/6-Stop ND Filters
  • XLR Inputs, 3.5mm Audio Output
  • ProRes Recording up to 1080p120

1-Year Warranty     7 days return policy     PAN India Fast Shipping

SKU: DUBGC5579XB Categories: , ,

Description

Blackmagic Design URSA Broadcast G2 Camera

Blackmagic Design Pocket Cinema Camera 4K

Update your broadcast studio or internet broadcast camera with a versatile 3-in-1 powerhouse using the Blackmagic Design URSA G2 Broadcast Camera. This updated G2 model features generation 5 color science and not only supports up to UHD 4K as its predecessor for production and studio work but can now be used as a 6K digital film camera that records in Blackmagic RAW format. The lens mount is compatible with 2/3″ B4 lenses, but it also includes an active EF mount adapter, allowing you to access a long line of professional cinema lenses. It allows you to apply 3D LUTs for cinema-like looks, has built-in optical ND filters, features 12G-SDI input and output, captures audio via two XLR inputs, and can record using Prores 422 and Blackmagic RAW onto CFast 2.0 or SD UHS-II cards.

Blackmagic Design URSA Broadcast G2 Camera

BlackmagicURSA Broadcast G2

The world’smost flexiblebroadcast camera!

The new Blackmagic URSA Broadcast G2 is an incredibly powerful camera designed for both traditional and online broadcasters. The 3 cameras in 1 design allows it to work as a 4K production camera, a 4K studio camera or a 6K digital film camera! It’s a perfect solution for broadcasters because it uses the lenses and batteries you already own! You can record to common SD cards, UHS-II cards, CFast 2.0 cards or external USB disks, using common file formats such as H.265, ProRes and Blackmagic RAW. This means it’s compatible with all video software and broadcast media management systems. You can even change the lens mount! No other broadcast camera is so flexible!

Blackmagic Design URSA Broadcast G2 Camera

Broadcast Production Camera

The perfect solution for broadcasters, URSA Broadcast G2 includes ENG camera controls positioned around the camera so you can locate them by feel. It also features a low light sensor so you get amazing images using natural light. That’s the perfect combination for broadcast news and programming.

LiveStudio Camera

URSA Broadcast includes an advanced YRGB color corrector built in and full remote camera control. You can use B4 ENG lenses, large studio box lenses, or even change the lens mount and use any lens! Plus the optional Blackmagic focus and zoom demands let you control the lens from the tripod handles.

DigitalCinema Camera

URSA Broadcast G2 includes an advanced 6K digital film sensor, and you can change the lens mount! Use a PL mount for digital film lenses or EF for photo lenses. Plus the high dynamic range, great low light performance and Blackmagic RAW means you get a true “Hollywood” quality digital film camera.

Blackmagic Design URSA Broadcast G2 Camera

Get Digital Film Quality for Broadcast

The large 6K sensor combined with Blackmagic generation 5 color science gives you the same imaging technology used in digital film cameras. This means broadcasters can now use digital cinema quality in broadcast! The 6K sensor features a resolution of 6144 x 3456 so it’s flexible enough for broadcast and digital film work. When using B4 lenses, you

get a 4K window of the sensor for Ultra HD broadcast use. Then if you change to a PL or EF lens mount, you can use the full 6K resolution of the sensor for digital film! With 13 stops of dynamic range, you get darker blacks and brighter whites, so it’s perfect for color correction. Using digital film in broadcast is a revolution in image quality!

Blackmagic Design URSA Broadcast G2 Camera

Exceptional Low Light Performance

The new URSA Broadcast features incredible low light performance so you can shoot using ambient light or even under moonlight! In advanced cameras, ISO is a measurement of the image sensor’s sensitivity to light. The Blackmagic URSA Broadcast G2 features gain from -12dB (100 ISO) up to +36dB (25,600 ISO) so it’s optimized to reduce grain and noise in

images, while maintaining the full dynamic range of the sensor. The primary native ISO is 400, which is ideal for use under studio lighting. Then the secondary high base ISO of 3200 is perfect when shooting in dimly lit environments. The gain can be set via a camera switch, the LCD menu or remotely using the SDI remote camera control protocol.

Blackmagic Design URSA Broadcast G2 Camera

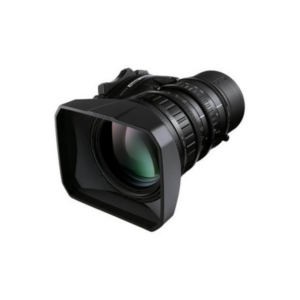

Compatible with B4 Broadcast Lenses

The URSA Broadcast G2 features a B4 broadcast lens mount that includes optics specifically designed to match the camera’s sensor. The B4 lens mount lets you use modern Ultra HD lenses or lower cost HD lenses. Older HD lenses often feature resolutions well beyond HD, so you get great quality at low cost! B4 lenses are fantastic because they are

par-focal, so the image stays in focus as you zoom in and out, so you don’t need to constantly chase focus as you shoot. That lets you work much faster! You also get full electronic lens control to adjust focus, iris and zoom using the camera’s controls, or remotely! Plus if you want to use alternative lenses, you can change the mount to PL, EF and more!

Blackmagic Design URSA Broadcast G2 Camera

Use CommonMedia and File Formats!

URSA Broadcast is designed to work with standard file formats that are used by all broadcast systems and editing software. You can record in ProRes 422 HQ and ProRes 422 into QuickTime files. The new Blackmagic URSA Broadcast G2 model can even record into H.265 for incredibly small files at

60:1 to 285:1 compression ratios, in 10-bit broadcast quality. Plus you can record to Blackmagic RAW files, a revolutionary new format designed to capture and preserve the quality of the sensor data from the camera. That means you get the perfect range of file formats designed for all types of workflows.

Blackmagic Design URSA Broadcast G2 Camera
Blackmagic Design URSA Broadcast G2 Camera
Blackmagic Design URSA Broadcast G2 Camera

Strong and Light weight Magnesium Design

URSA Broadcast G2 features a super strong, lightweight magnesium alloy body that’s perfectly balanced and designed to be comfortable to use all day! It features familiar externally mounted switches and controls that give you direct access to the most important camera settings. The controls are laid out logically, making them easy to locate by feel, so you can adjust

settings without having to look at the buttons. You also get a foldout touchscreen for monitoring, viewing camera status and changing settings using on screen menus. URSA Broadcast G2 also includes standard 12G-SDI connections, XLR audio inputs, USB-C and an industry standard 4 pin XLR broadcast 12V DC connection!

Blackmagic Design URSA Broadcast G2 Camera

Built in LCD with Touch Controls

With a built in LCD that folds out, you can both monitor and control the camera. While URSA Broadcast G2 features lots of physical buttons and knobs, using the LCD, you also get on screen status and touch screen controls. The built in touchscreen also includes a heads up display with the most important shooting information, as well as menus for all

camera settings, LUTs and custom presets. Plus behind the LCD there are extra buttons, as well as knobs for audio levels. There’s even programmable function buttons that can have functions assigned to them, such as zebra, false color, focus peaking, LUTs and more! Plus you can change the function assigned to each button in the on screen menus.

Blackmagic Design URSA Broadcast G2 Camera

Program Video Monitoring

If you’re doing live production, sometimes you need to monitor program video back from the switcher. Simply press the camera’s PGM button and the viewfinder will switch from the camera display to the program return feed from the switcher. A built in speaker also lets you monitor the switcher audio as well. Program return is a fantastic feature as

sometimes on large live shows, camera operators can be left waiting a long time for their camera to be used, so program return lets them watch the show while they wait. This means that even if the camera operator is a large distance away from the switcher, they can still keep up with what is happening and remain alert.

Blackmagic Design URSA Broadcast G2 Camera

Wireless Bluetooth Camera Remote Control

If you’re positioning the camera on the end of a boom, or in another hard to reach location, you can get full control via Bluetooth from up to 30 feet away. You can download the Blackmagic Camera Control app for your iPad or use third party apps such as Bluetooth+ or tRigger on your iOS and Android devices. There’s even a free developer SDK with. sample code available from the Blackmagic Design developer website, so you can create your own remote camera control and digital slate solutions! Imagine building an app that can jam sync timecode and trigger all cameras to record at the same time. The possibilities are endless!

Specifications

Imaging

Lens Mount B4
Lens Communication Yes
Sensor Resolution Not Specified by Manufacturer
Sensor Type 23.1 x 12.99 mm (Medium Format) CMOS
Image Stabilization None
Built-In ND Filter Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Capture Type Stills & Video

Exposure Control

Shutter Type Electronic Rolling Shutter
ISO Sensitivity 400 to 3200 (Extended: 100 to 25,600)
Gain -6 to 18 dB
Advertised Dynamic Range 13 Stops
Internal Recording Modes Blackmagic RAW 10-Bit
6144 x 3456 up to 50 fps [65 to 483 Mb/s]
6144 x 2560 up to 59.94 fps [49 to 359 Mb/s]
5376 x 3024 up to 59.94 fps [51 to 371 Mb/s]
3728 x 3104 up to 59.94 fps [36 to 265 Mb/s]
3840 x 2160 up to 59.94 fps [32 to 190 Mb/s]
1920 x 1080 up to 150 fps [5.2 to 47 Mb/s]
ProRes 422/ProRes 422 HQ
3840 x 2160 up to 59.94 fps [73.6 to 110 Mb/s]
1920 x 1080p up to 59.94 fps [18.4 to 27.5 Mb/s]
1920 x 1080p at fps [18.4 to 27.5 Mb/s]
H.265
3840 x 2160 up to 59.94 fps [3.2 to 7.8 Mb/s]
H.264
1920 x 1080p up to 59.94 fps [1.8 to 7 Mb/s]
Sensor Crop While Recording 4K (3840 x 2160) in 16:9 When Recording in Raw
Broadcast Output NTSC/PAL
Built-In Microphone Type Stereo
Audio Recording ProRes: 2-Channel 24-Bit 48 kHz
IP Streaming None

Interface

Media/Memory Card Slot Dual Slot: SD/SDHC/SDXC (UHS-II)
Dual Slot: CFast (CFast 2.0)
Video I/O 1 x BNC (12G-SDI) Output
1 x BNC (12G-SDI) Input
1 x BNC (12G-SDI) Output
Audio I/O 1 x 1/8″ / 3.5 mm TRRS Headphone/Mic Headphone Input/Output on Camera Body
2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input on Camera Body
Power I/O 1 x XLR 4-Pin Input
1 x XLR 4-Pin (12 to 20 VDC) Output
1 x Molex 12-Pin Input
Other I/O 1 x USB-C (USB 3.2 / 3.1 Gen 2) Video Output
1 x USB-C Data Input
1 x 2.5 mm Sub-Mini (LANC) Control Output
1 x BNC (Reference, Sync, Timecode) Data Input
1 x Hirose 12-Pin (Camera Interface) Control Output
Wireless Bluetooth Control

Monitor

Size 4.0″
Display Type Articulating Touchscreen LCD
Secondary Display Side: LCD Status Display

Viewfinder

Type Optional, Not Included

Focus

Focus Type Auto and Manual Focus
Focus Mode Automatic, Manual Focus

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Operating Humidity 0 to 90%

General

Battery Type V-Mount
Power Consumption 100 W
Tripod Mounting Thread 3 x 1/4″-20 Female (Bottom)
Accessory Mount 1 x ARRI/Hirth Rosette
Material of Construction Magnesium Alloy
Dimensions (W x H x D) 10.95 x 9.93 x 5.9″ / 27.81 x 25.22 x 15 cm
Weight 7.83 lb / 3.55 kg

Packaging Info

Package Weight 11.4 lb
Box Dimensions (LxWxH) 20.7 x 10.1 x 7.1″
