Description

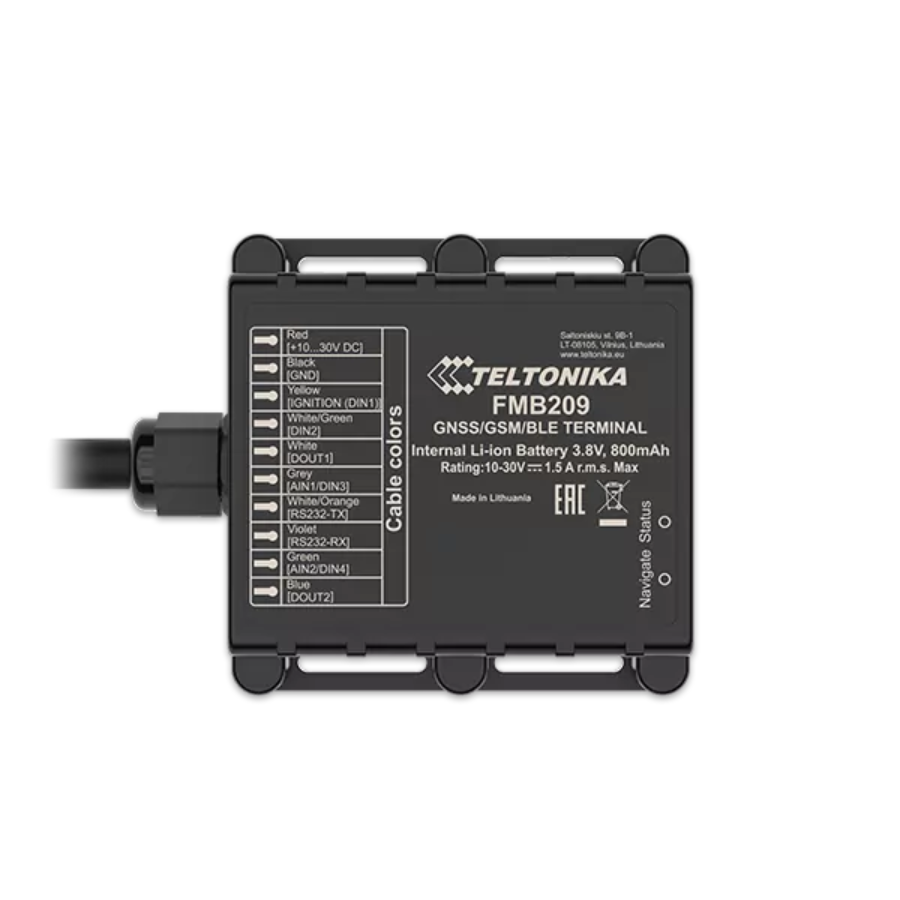

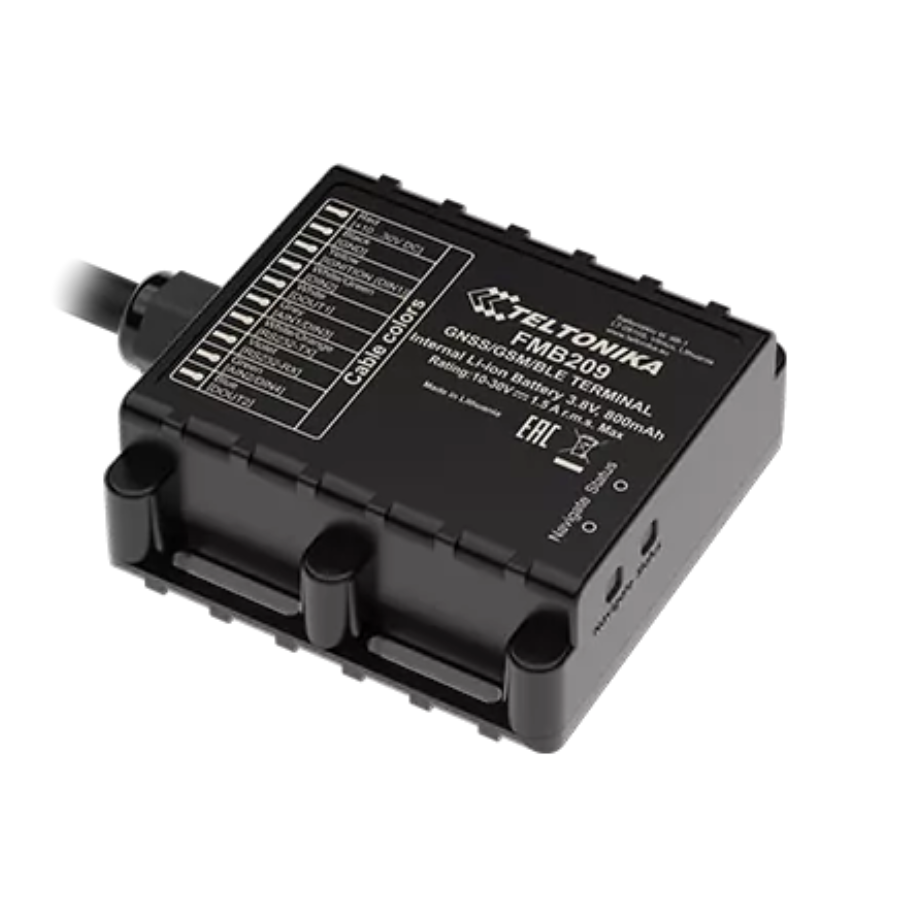

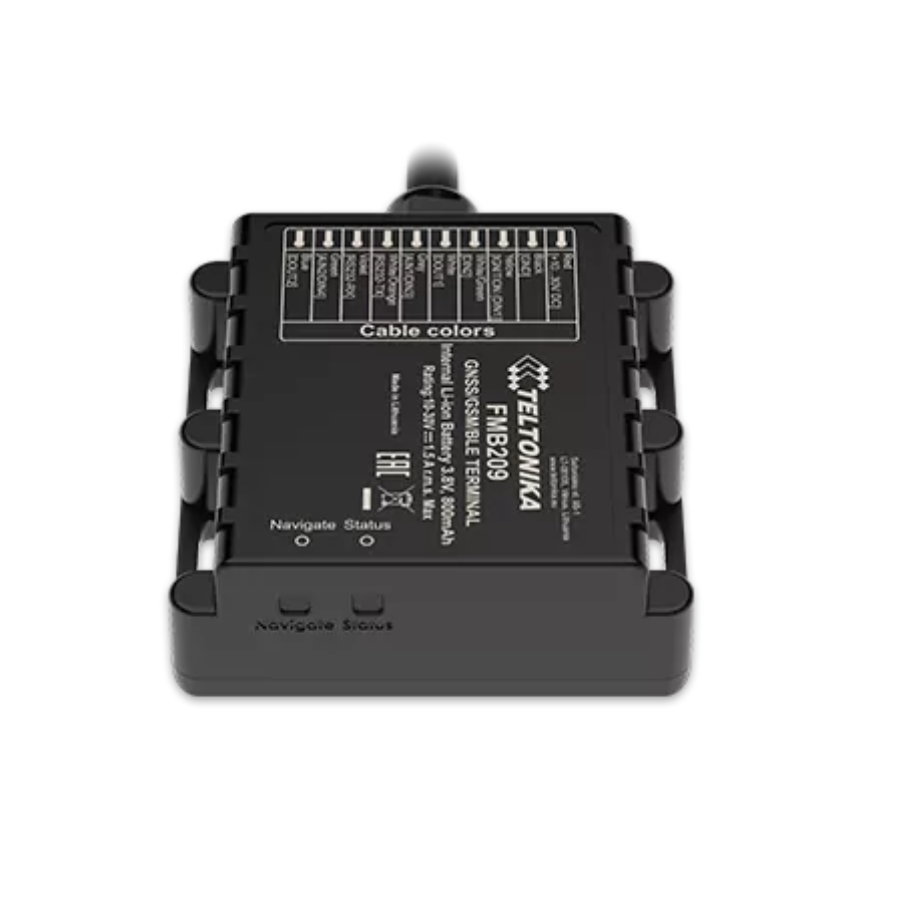

FMB209
Teltonika releases an updated FMB209 tracker for the Indian market that is AIS140-compliant and has next generation firmware capabilities that enable IRNSS.
In order to improve passenger safety and maintain the effectiveness of the transportation system, the Automotive Research Association of India (ARAI) has established the Automotive Industry Standard AIS 140. There is a need for government regulations that outline the emergency and safety standards that must be included in all types of public transport systems because the number of vehicles on the road is growing daily. The most reliable application and careful adherence to the AIS 140 standard rules will assist relieve traffic congestion, enhance traffic control, and lessen environmental effect.
CERTIFIED FOR TRANSPORT IN INDIA
AIS140-compliant tracker for all public transportation systems in India
PROTECTION AGAINST DUST AND WATER
Robust IP67-rated casing provides trusted protection against dust and resistance to water
FUEL MONITORING AND MORE
RS232 serial interface for fuel monitoring and other external data reading
EXTENDED PRODUCT USAGE SCENARIOS
Bluetooth LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement
Specifications
Module
Name
Airoha AG3335MN
GNSS
GPS, NavIC(IRNSS), GLONASS, GALILEO, BEIDOU, QZSS
Receiver
L1 and L5 dual-band GNSS receiver
Tracking sensitivity
-162 dBM
Position Accuracy
< 2.5 m CEP
Hot start
< 1.5 s
Warm start
< 25 s
Cold start
< 32 s
Cellular
Technology
GSM
2G bands
Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer
GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support
SMS (text/data)
Power
Input voltage range
10–30 V DC with overvoltage and reverse polarity protection
Back-up battery
800 mAh Li-Ion battery (0.49 Wh)
Power consumption
At 12V < 1.4 mA (Ultra Deep Sleep)
At 12V < 3.9 mA (Deep Sleep)
At 12V < 4.6 mA (Online Deep Sleep)
At 12V < 7.1 mA (GPS Sleep)
At 12V < 28.3 mA (nominal)
Bluetooth
Specification
4.0 + LE
Supported peripherals
Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
Interface
Digital Inputs
2
Digital Outputs
2
Analog inputs / Digital inputs
2
RS232
1
GNSS antenna
Internal High Gain
Cellular antenna
Internal GSM High Gain
USB
2.0 Micro-USB
LED indication
2 status LED lights
SIM
eSIM
Memory
128MB internal flash memory
