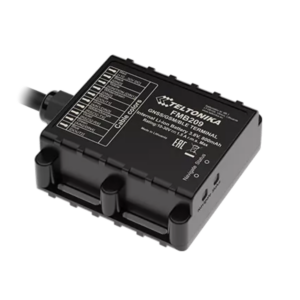

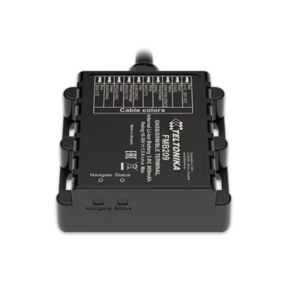

Teltonika FMB209 Vehicle GPS Tracker

5,338

  • 3rd server support for TSP service;
  • BLE sensors and beacons – expands business opportunities dramatically with new Teltonika EYE accessories;
  • Security features: jamming detection, unplug and towing detection;
  • Crash features – crash event and reconstruction of the crash.

1-Year Warranty     7 days return policy     PAN India Fast Shipping

SKU: FVGT4434XB Categories: ,

Description

FMB209

Teltonika releases an updated FMB209 tracker for the Indian market that is AIS140-compliant and has next generation firmware capabilities that enable IRNSS.

In order to improve passenger safety and maintain the effectiveness of the transportation system, the Automotive Research Association of India (ARAI) has established the Automotive Industry Standard AIS 140. There is a need for government regulations that outline the emergency and safety standards that must be included in all types of public transport systems because the number of vehicles on the road is growing daily. The most reliable application and careful adherence to the AIS 140 standard rules will assist relieve traffic congestion, enhance traffic control, and lessen environmental effect.

Dyson Vacuum Cleaners

CERTIFIED FOR TRANSPORT IN INDIA

AIS140-compliant tracker for all public transportation systems in India

PROTECTION AGAINST DUST AND WATER

Robust IP67-rated casing provides trusted protection against dust and resistance to water

Dyson Vacuum Cleaners
Dyson Vacuum Cleaners

FUEL MONITORING AND MORE

RS232 serial interface for fuel monitoring and other external data reading

EXTENDED PRODUCT USAGE SCENARIOS

Bluetooth LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement

Dyson Vacuum Cleaners

Specifications

Module

Name

Airoha AG3335MN

GNSS

GPS, NavIC(IRNSS), GLONASS, GALILEO, BEIDOU, QZSS

Receiver

L1 and L5 dual-band GNSS receiver

Tracking sensitivity

-162 dBM

Position Accuracy

< 2.5 m CEP

Hot start

< 1.5 s

Warm start

< 25 s

Cold start

< 32 s

Cellular

Technology

GSM

2G bands

Quad-band 850 / 900 / 1800 / 1900 MHz

Data transfer

GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B

Data support

SMS (text/data)

Power

Input voltage range

10–30 V DC with overvoltage and reverse polarity protection

Back-up battery

800 mAh Li-Ion battery (0.49 Wh)

Power consumption

At 12V < 1.4 mA (Ultra Deep Sleep)

At 12V < 3.9 mA (Deep Sleep)

At 12V < 4.6 mA (Online Deep Sleep)

At 12V < 7.1 mA (GPS Sleep)

At 12V < 28.3 mA (nominal)

Bluetooth

Specification

4.0 + LE

Supported peripherals

Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support

Interface

Digital Inputs

2

Digital Outputs

2

Analog inputs / Digital inputs

2

RS232

1

GNSS antenna

Internal High Gain

Cellular antenna

Internal GSM High Gain

USB

2.0 Micro-USB

LED indication

2 status LED lights

SIM

eSIM

Memory

128MB internal flash memory
