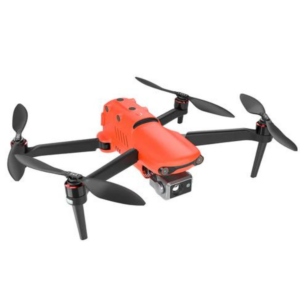

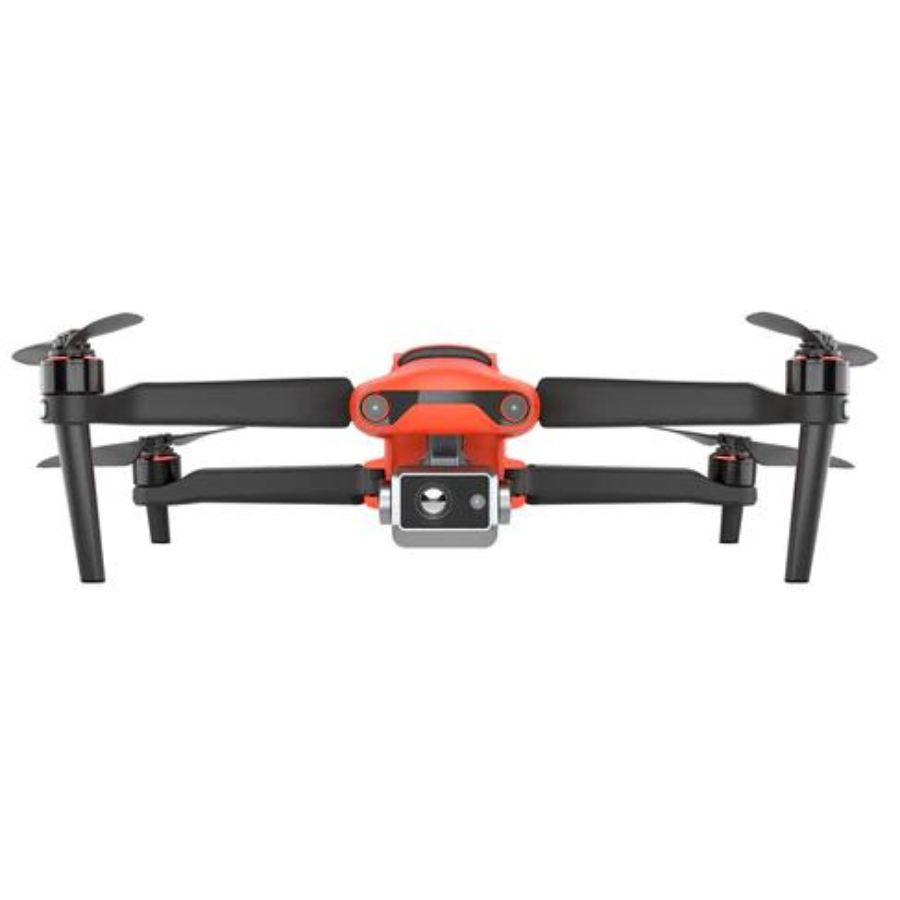

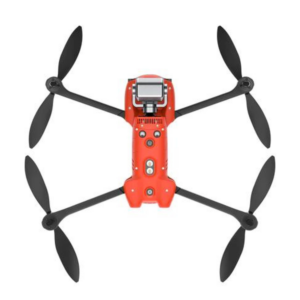

Autel Robotics EVO II Dual 640 V2 Enterprise Drone
The Autel Robotics EVO II Dual 640 V2 Enterprise Drone Bundle is a comprehensive solution for various applications such as industrial inspections and civil service emergencies. It comes equipped with a dual-camera system consisting of a thermal and visual camera capable of filming in high-quality 8K resolution, and a 2-axis gimbal for stability. With the ability to withstand level 8 winds and fly at speeds up to 45 mph, this rugged drone is built for durability. The package also includes a smart controller with a 7.9″ screen, enabling real-time video transmission up to 5.5 miles away. Moreover, the bundle comes with additional accessories to enhance flight time, conduct night searches, and communicate remotely with others.
Optimize your workflow with our toughest EVO II yet, bulked up with new accessories and camera features to meet the demands of professionals in every industry from firefighting to construction. With a foldable design that can be deployed in seconds and easy-to-use controls that can be operated with a single hand, the EVO II Enterprise provides a surefire way to increase efficiency without increasing stress.
360° Obstacle Avoidance
With 360° obstacle avoidance, the drone can navigate through challenging environments by easily avoiding obstacles and planning paths through complex terrains. This is made possible by the 19 sets of sensors located all around the airframe of the drone, allowing it to build three-dimensional maps and calculate safe flight paths. With this technology, the drone can avoid collisions and fly smoothly, making it an excellent choice for tasks such as mapping, inspection, and search and rescue operations.
Predictive Target Tracking
The drone is equipped with Predictive Target Tracking, which enables it to lock on to an object that is moving at high speed and predict its trajectory with ease. This technology allows the drone to accurately track the movement of the target, even when it is changing direction or speed. Additionally, the drone’s “eye in the sky” feature enables it to identify up to 64 objects at once, providing valuable information to the operator. With these advanced capabilities, a drone is an excellent tool for tracking moving targets and conducting surveillance operations.
Reliable Data Encryption
To ensure the security of sensitive information, the drone comes equipped with reliable data encryption. This encryption technology enables the drone to protect both its internal and external storage, ensuring that all data is stored securely. With encrypted storage, users can work with confidence, knowing that their data is protected from unauthorized access. This feature is particularly important for applications such as inspection and surveillance, where sensitive data may be collected during operations. With encrypted storage, the drone provides a high level of security, making it a trustworthy tool for professionals who demand privacy and confidentiality.
Superior Flight Performance
The Autel EVO II Enterprise drone boasts superior flight performance, which is made possible by its new power system and carbon fiber structural design. These features help to enhance the drone’s agility, speed, and overall stability in flight. Additionally, the drone is equipped with an industry-leading dual-frequency image transmission system, which enables stable transmission of high-definition images up to 1080p. This transmission system also provides stronger anti-interference capabilities, ensuring that the drone can fly smoothly and capture high-quality footage even in challenging environments. With its advanced flight performance capabilities, the Autel EVO II Enterprise drone is an excellent tool for a wide range of applications, including inspection, surveillance, and mapping..
Accessories
Applications
Traffic Supervision
Monitor traffic flow over a larger area and crack down on traffic violations to improve safety for everyone on the road.
Firefighting
Soar above the flames to identify hotspots, locate victims, and monitor changing conditions, reducing the risk for crew members on the ground
Mapping
Create cost-effective 3D maps of an area using high-resolution images captured during steady, consistent flight.
Public Safety
Assess threats from a safe distance or patrol an area during an investigation, freeing up manpower for other tasks.
Power Inspection
Zip between power lines to quickly spot structural damage or overheating electrical elements, saving time and labor costs.
Search and Rescue
Quickly locate missing persons by using automated mission modes to cover larger search areas in situations where every second counts.
Specifications

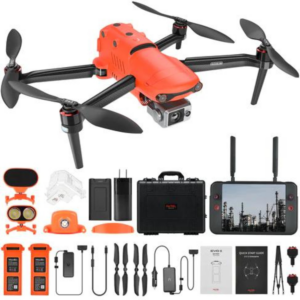

(1) Aircraft w/ InfiRay 640T Radiometric Thermal Camera
(3) Flight Batteries
(1) 7.9” Smart Controller
(1) 110V Wall Charger
(1) 12V Car Charger
(1) Battery Charging Hub
(1) Smart Controller Charger
(1) Smart Controller Charging Cable
(1) Speaker
(1) Search Light
(1) Strobe
(1) Chest Strap
(1) Attachment Port Cover
(4) Propeller Pairs
(1) Hard Rugged Case
Takeoff Weight (without Accessories) |
2.51 lbs (1,136.5 grams) |
Diagonal Length | 16.8 in (427 mm) |
Max Flight Time (no wind) | 42 minutes (without accessories) |
Max Hovering Time (no wind) | 38 minutes (with strobe) 29 minutes (with spotlight) 34 minutes (with loudspeaker) 36 minutes (with RTK module) |
Max Level Flight Speed | 45 mph (20 m/s) (Ludicrous) |
Max Ascent Speed | 18 mph (8 m/s (Ludicrous) |
Max Service Ceiling Altitude | 4.3 miles (7000 m) MSL |
Operating Temperature Range | 14°F to 104 °F (-10°C to 40°C) |
Max Wind Speed Resistance | 39-46 mph (17-20 m/s) |
Operating Frequency | 2.400 GHz – 2.4835 GHz 5.725GHz – 5.850 GHz |
Hovering Accuracy Range | Vertical: ± 0.1 m (with RTK) ± 0.1 m (with Vision Positioning) ± 0.5 m (with GPS Positioning) Horizontal: ± 0.1 m (with RTK) ± 0.3 m (with Vision Positioning) ± 1.5 m (with GPS Positioning) |
Operation Range | Pitch: -135° to +45° Yaw: -100° to +100° |
Stability | 3 Axis Stabilization |
Max Controller Speed (Tilt) | 300°/s |
Angular Vibration Range | ±0.005° |
Sensing System Type | Omnidirectional Binocular Sensing System |
Forward | Accurate Measuring Range: 0.5 – 20m Detection Range: 0.5 – 40m Effective Sensing Speed: < 15 m/s FOV: Horizontal: 60°, Vertical: 80° |
Backward | Accurate Measuring Range: 0.5 – 16m Detection Range: 0.5 – 32m Effective Sensing Speed: < 12 m/s FOV: Horizontal: 60°, Vertical: 80° |
Upward | Accurate Measuring Range: 0.5 – 12m Detection Range: 0.5 – 24m Effective Sensing Speed: < 6 m/s FOV: Horizontal: 65°, Vertical: 50° |
Downward | Accurate Measuring Range: 0.5 – 11m Detection Range: 0.5 – 22m Effective Sensing Speed: < 6 m/s FOV: Horizontal: 100°, Vertical: 80° |
Sides | Accurate Measuring Range: 0.5 – 12m Detection Range: 0.5 – 24m Effective Sensing Speed: < 10 m/s FOV: Horizontal: 65°, Vertical: 50° |
Service Environment | Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.) |
Camera | EVO II 640 V2 |
Sensor | Vanadium oxide uncooled infrared focal plane detector |
Viewing Angle | H33°V26° |
Sensor Resolution | 640×512 |
Pixel Pitch | 12μm |
Focal Length | 13mm |
Wavelength Range | 8~14μm |
Accurate Temperature Measurement Distance | 2-20 meters |
Temperature Measurement Accuracy | ±3℃ or ±3% of reading (whichever is greater) @ambient temperature -20℃~60℃ |
Temperature Range | High gain mode: -20° to +150°C Low gain mode: 0° to +550°C |
Zoom | 1-8x |
Photo Shooting Mode | Single shooting, continuous shooting, time-lapse shooting |
Camera Resolution | Infrared mode: 640*512 Picture in Picture: 1920*1080, 1280*720 |
Video Resolution | 640×512 30fps |
Video Format | MOV / MP4 (support H.264/H.265) |
Operating Frequency | 902-928 MHz; 2.400-2.4835 GHz; 5.725-5.850 GHz |
Max Transmission Distance (unobstructed, free of interference) | FCC: 13km; CE: 7km |
Transmitter Power (EIRP) | 902-928 MHz FCC:≤30dBm 2.400-2.4835 GHz FCC:≤30dBm CE:≤20dBm 5.725-5.850 GHz CE:≤14dBm |
Internal Storage | 128GB |
Video Output Port | HDMI |
Built-in Battery | Name: Intelligent Li-ion battery Capacity:5800mAh Voltage:11.55V Battery Type:Li-ion Battery Energy:67 Wh Charging time:120 min |
Battery Life | ~ 3hr (Max. intensity) ~ 4.5hr (50% intensity) |
Operating Temperature | -20℃ to 40℃ |
RC Size | 303 x 190 x 87 mm (Ant. folded) 303 x 273 x 87 mm (Ant. unfolded) |
Weight | 1150g (Without protective case) 1250g (With protective case) |
Satellite Positioning Module | GPS + GLONASS + Galileo |
Strobe | Dimensions:39*72*34 mm Weight:19.5 g Connections:Floating Connectors Power:Avg. 1.6W Controllable Range:5000 m Light intensity:Min 50cd;Max 486cd;Avg. 290cd |
Loudspeaker | Dimensions:46*80*77 mm Weight:98.5 g Connections:Floating Connectors Power:Max 18W Decibel:120dB @ 1m;88dB @ 60m;70dB @ 110m Max Bitrate:36kbps Adjustable Angle Range:0°~45° |
Spotlight | Dimensions:48.5*72*63 mm Weight:77 g Connections:Floating Connectors Power:Max 35W Controllable Range:30 m Adjustable Angle Range:0°~90° Illuminance:FOV14°, Max:11lux @ 30m Straight |
RTK Module (Optional) | Dimensions:55.5*72.5*57 mm Weight:59.5 g Connections:Floating Connectors Power:~ 3W RTK Positioning Precision:1.5 cm + 1 ppm((Vertical); 1 cm + 1 ppm(Horizontal) |
Capacity | 7100 mAh |
Voltage | 11.55 V |
Battery Type | LiPo 3S |
Energy | 82Wh |
Net Weight | 365g |
Charging Temperature | 5~45℃ |
Storage Temperature & Humidity | -10~30℃,65±20%RH |
Recommended Storage Temperature | 22~28℃ |
Max Charging Power | 93 W |
Charging Time | 90 minutes |
Input | 100-240 V, 50/60 Hz, 1.5A |
Output | 13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A |
Voltage | 13.2 ± 0.1 V |
Rated Power | 66 W |
