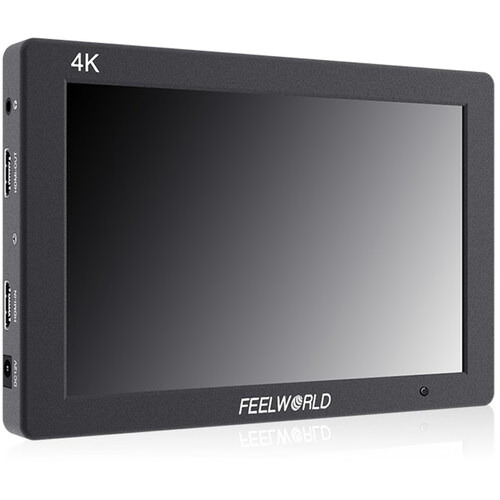

FeelWorld T7 Plus 7

Upgrade your on-camera viewing experience while shooting in the field to a Full HD monitor with the lightweight FeelWorld T7 Plus from Xboom, a lightweight 7″ IPS monitor outfitted with simultaneous vectorscope, histogram, and both audio phase and level monitoring. The T7 Plus supports 4K HDMI in and out, and it uses Rec. 709 color standard with color calibration for accurate color reproduction and vivid image viewing. The 1/4″-20 threads on the top and bottom of the monitor allow you to mount it on the included mini hot shoe mount adapter and secure it to the top of your camera.

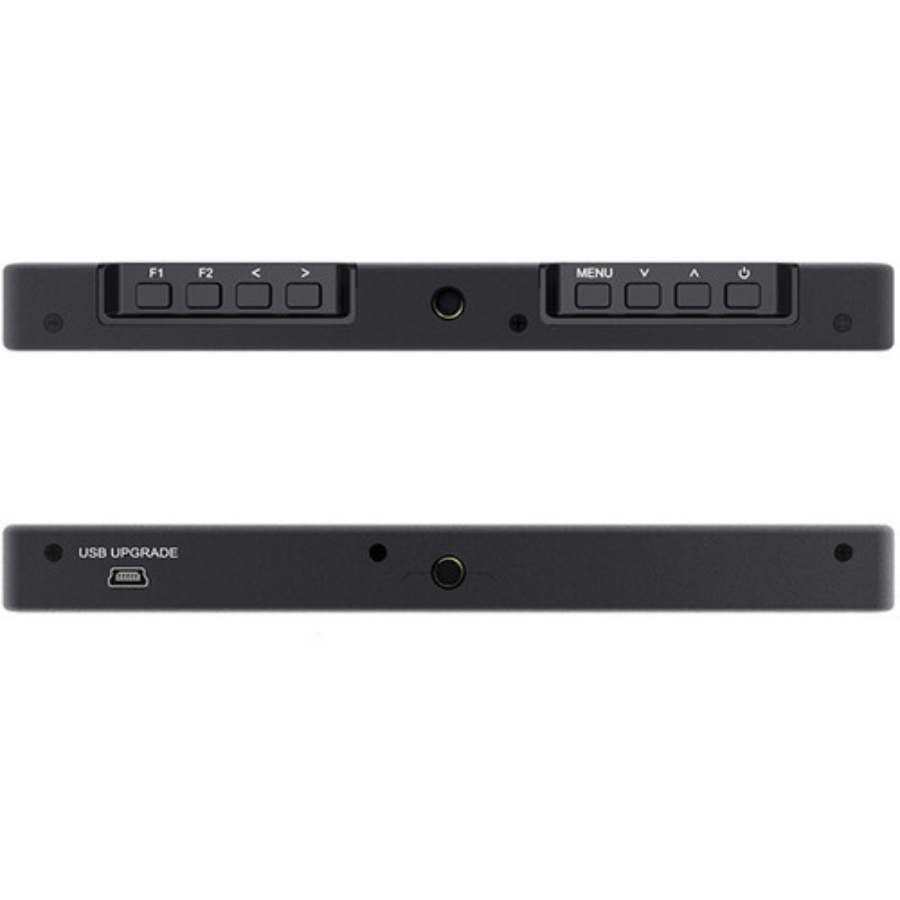

The T7 Plus monitor features a 1200:1 contrast ratio and 450 cd/m² brightness, along with a F970 battery plate located on its back panel. Its operating system includes several tools for framing, focus, and exposure, including image flip, zoom, and anamorphic modes. You can calibrate up to 32 custom 3D LUTs using the USB adapter for color calibration. Additionally, you can program the onboard button controls to serve as shortcuts to these various modes for added convenience on location.

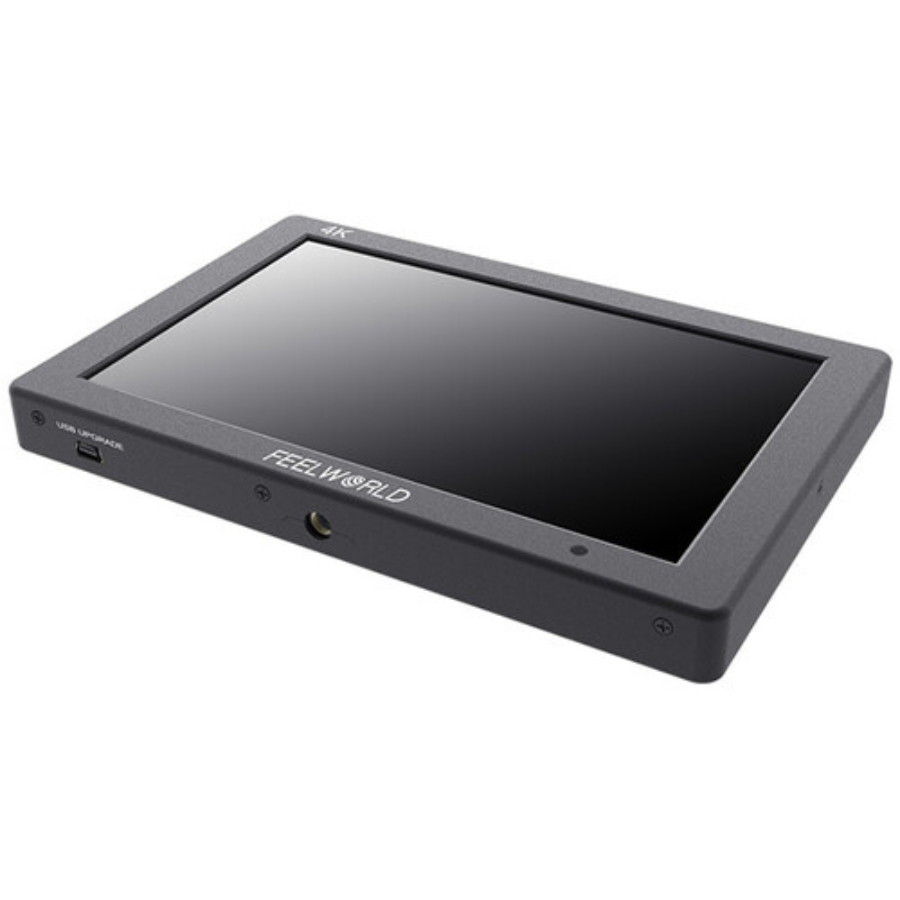

FEELWORLD T7 7″ 4K On-Camera Monitor
The FEELWORLD T7 monitor’s aluminum frame provides durability and a lightweight design, making it an ideal choice for professional color calibration to achieve accurate color reproduction while shooting videos. This feature is helpful for photographers to ensure proper framing and composition during the shoot and for placing titles during post-editing. The use of aircraft-grade aluminum ensures that the monitor is sturdy, yet lightweight, making it easy to brace the mounting points.

Full HD 1920×1200
The FEELWORLD T7 monitor offers a vivid visual experience with Full HD 1920×1200 high resolution and precise color, boasting an impressive 323 PPI (Pixels Per Inch). This provides sharper images, ensuring a richer, brighter, and most colorful display.

IPS Wider View Angle 160°
The viewing angle of a monitor becomes crucial as the camera operator may shift their position relative to the monitor during a shot. The FEELWORLD T7 monitor addresses this issue with its IPS panel, providing a wide 160° viewing angle. This allows the operator to maintain a clear and easy-to-see image, regardless of their position relative to the monitor.

True Color · Professional Color Calibration
Use Rec.709 color standard
Accurate color reproduction

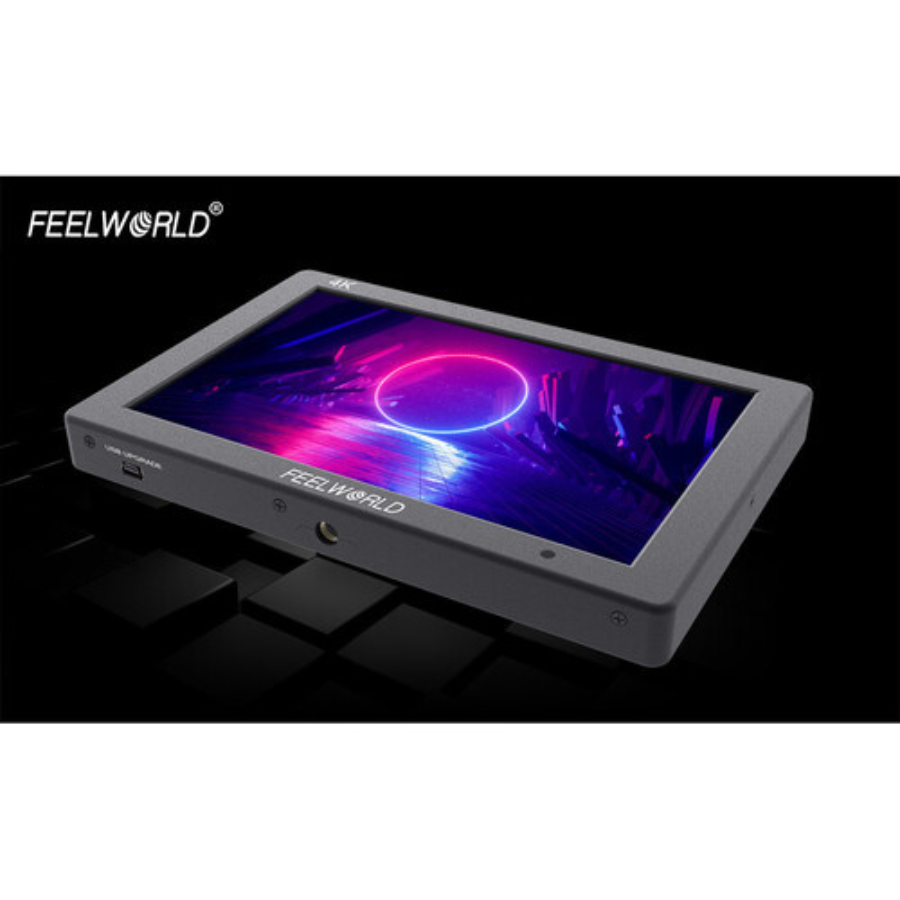

Ultra-thin Lightweight Design
Specially designed to merge portability, and functionality, 18mm thickness 320g the T7 gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.

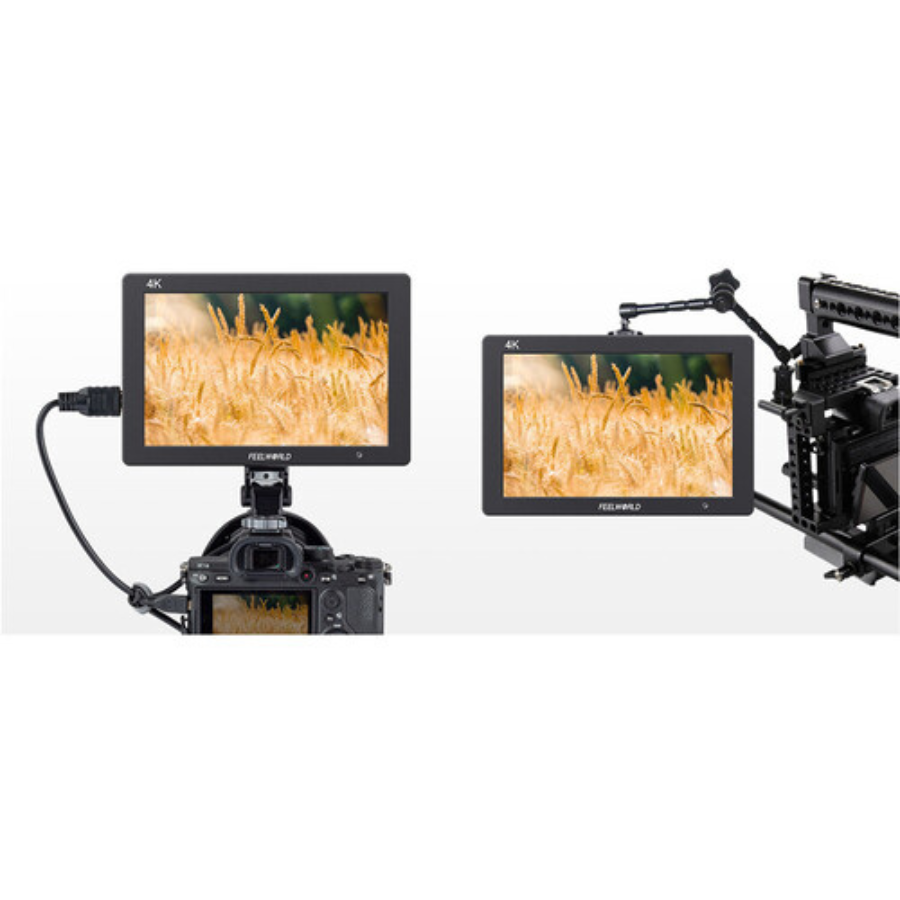

Standard Hot Shoe Mount 360 ° Rotation
Hot Shoe Mount can be connected with the DSLR, Slide and other shooting components to facilitate the shooting and monitoring of different scenes, can also be connect to tripod.

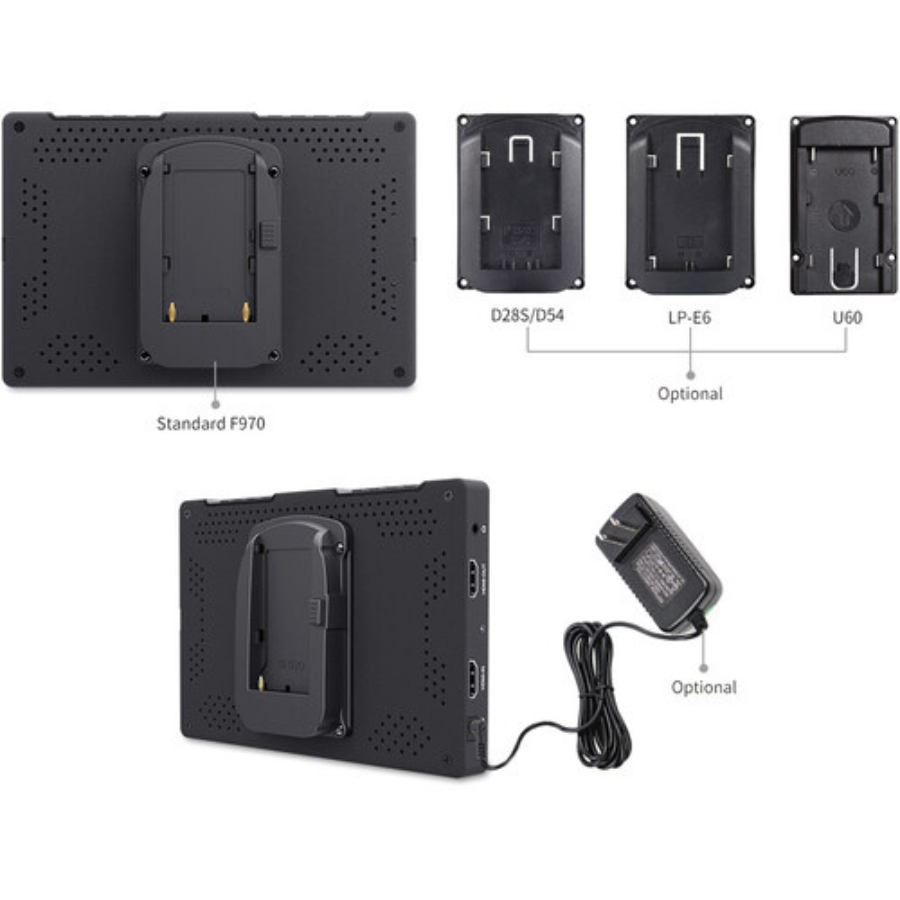

Flexible Battery System

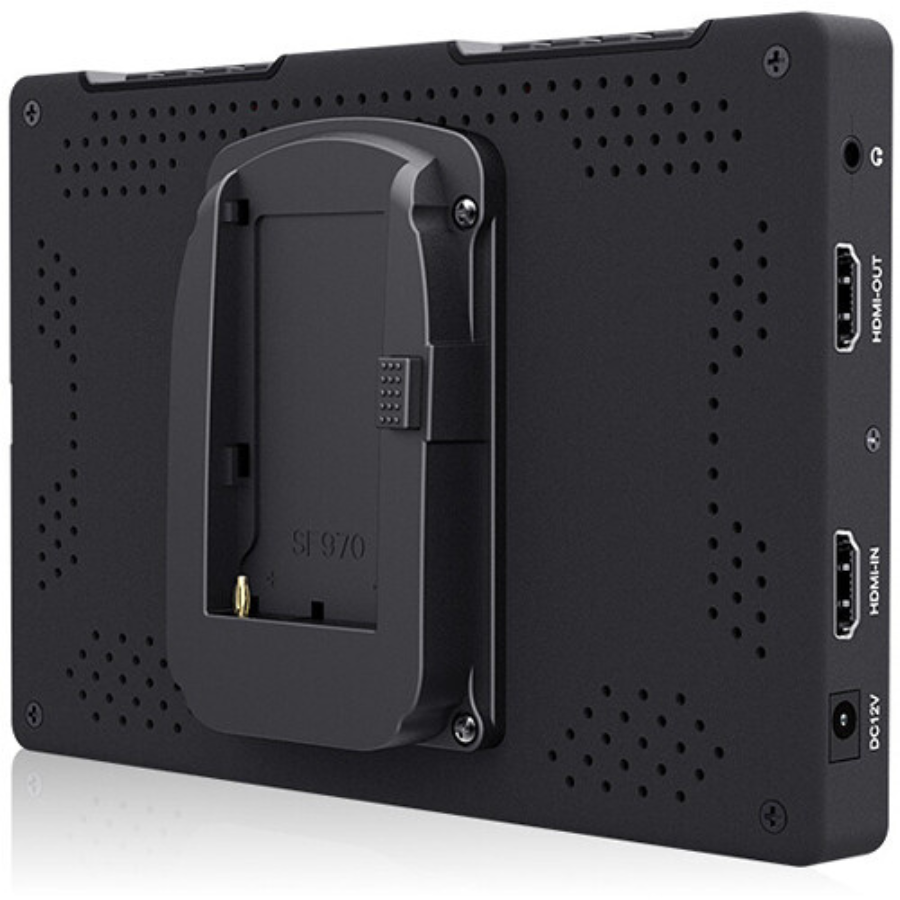

The T7 has a flexible battery system that supports F970 battery plate (standard), D28S/D54, LP-E6 and U60 battery plate (optional), and also can powered by power adapter (optional). Note: When you turn off the monitor, you need to press the power button, and you can’t pull out the power cable directly.

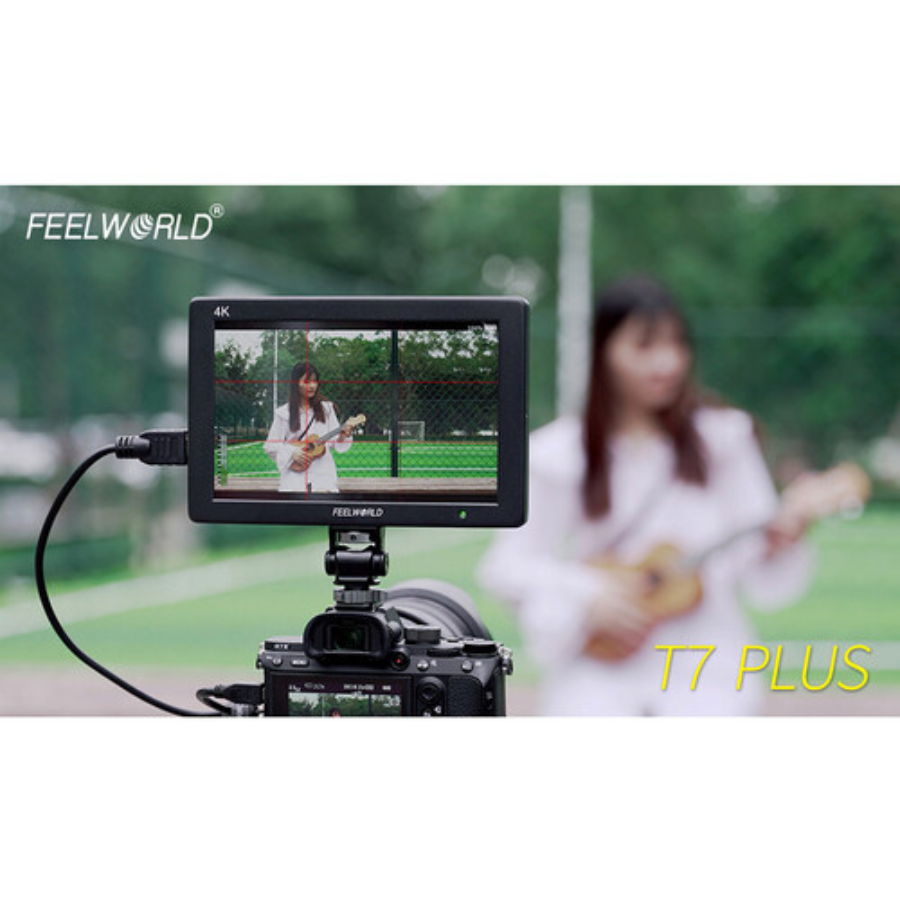

Shoot Better Video
Add FEELWORLD monitor to your studio camera
FEELWORLD T7 portable design with professional features, easy to set up and check your shots, widely use for shooting movies, field photography, broadcast, fashion, micro-film, wedding records, party pictures, television advertising, etc.

Specification

• Screen Size: 7″ IPS
• Resolution: 1920×1200 pixels
• Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
• Aspect Ratio: 16:10
• Brightness: 450cd/m²
• Contrast Ratio: 1200:1
• Backlight: LED
• Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)

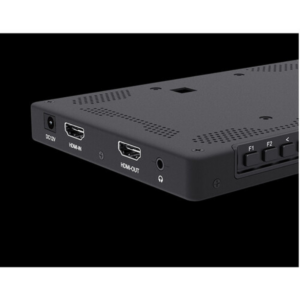

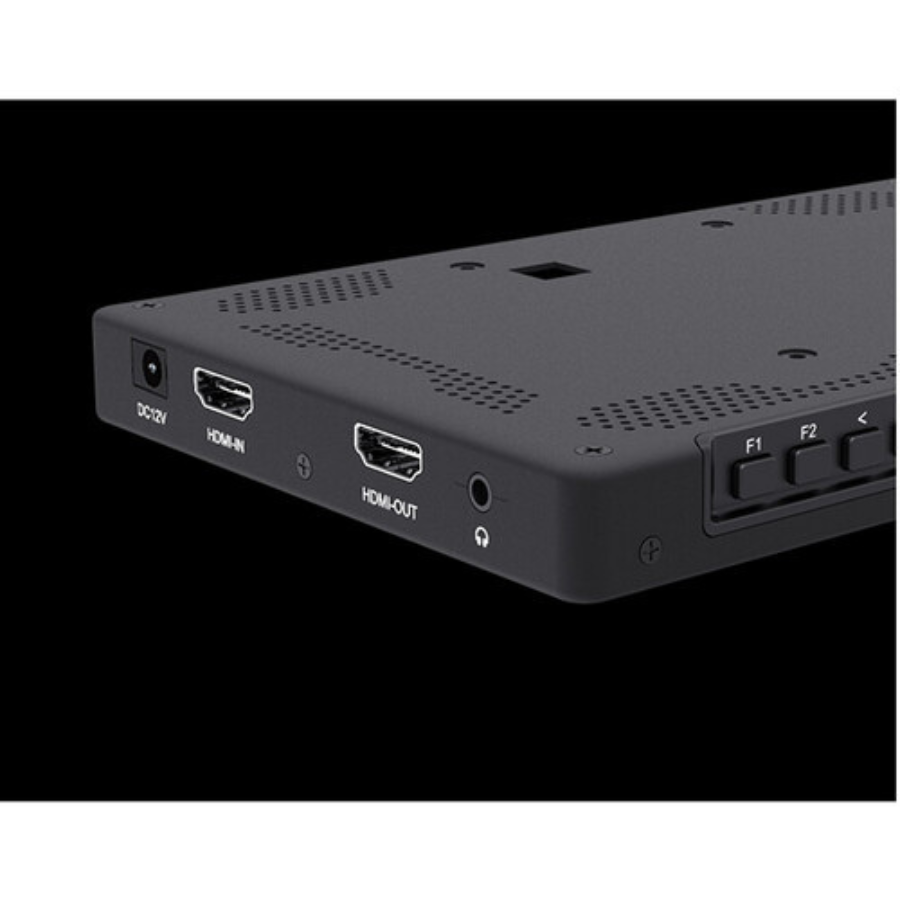

• Input: 1 X 4K HDMI
• Output: 1 X 4K HDMI
• Audio: 3.5mm Stereo Headphone, Speaker
• HDMI Input/ Output Support Format: 480i/576i/480p/576p; 1080i (60/59.94/50); 720p (60/59.94/50/30/29/25/24/23.98); 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF); 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

• Input Voltage: DC7～24V
• Consumption: ≤8W
• Connector: DC
• Working Temperature: -20°C~55°C
• Storage Temperature: -30°C~65°C
• Install Way: 1/4″-20 Thread Socket (top, bottom)
• Battery Plate: F970 (Standard); D28S/D54, LP-E6, U60 (Optional)
• Unit Size: 180Lx120Hx18D (mm)
• Unit Weight: 320g/350g (With F970 Plate)

• Compatible Battery：Sony F970, F960, F950,F930, F770, F750, F730, F570, F550, F530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, FM71, FM70 series.
• (Note battery not include, need purchase sperate)
