D-RTK 3 Multifunctional Station

237,622

Hurry! Deals Disappear In -
  • Supports global satellite navigation systems for precise positioning.
  • Functions as a base station for centimeter-level accuracy for multiple drones.
  • Relay station mode extends operational range significantly.
  • Integrated inertial measurement unit enhances position and orientation accuracy.
  • IP67-rated design ensures durability in challenging environments.
1 Year Warranty
After Sales Service

Description

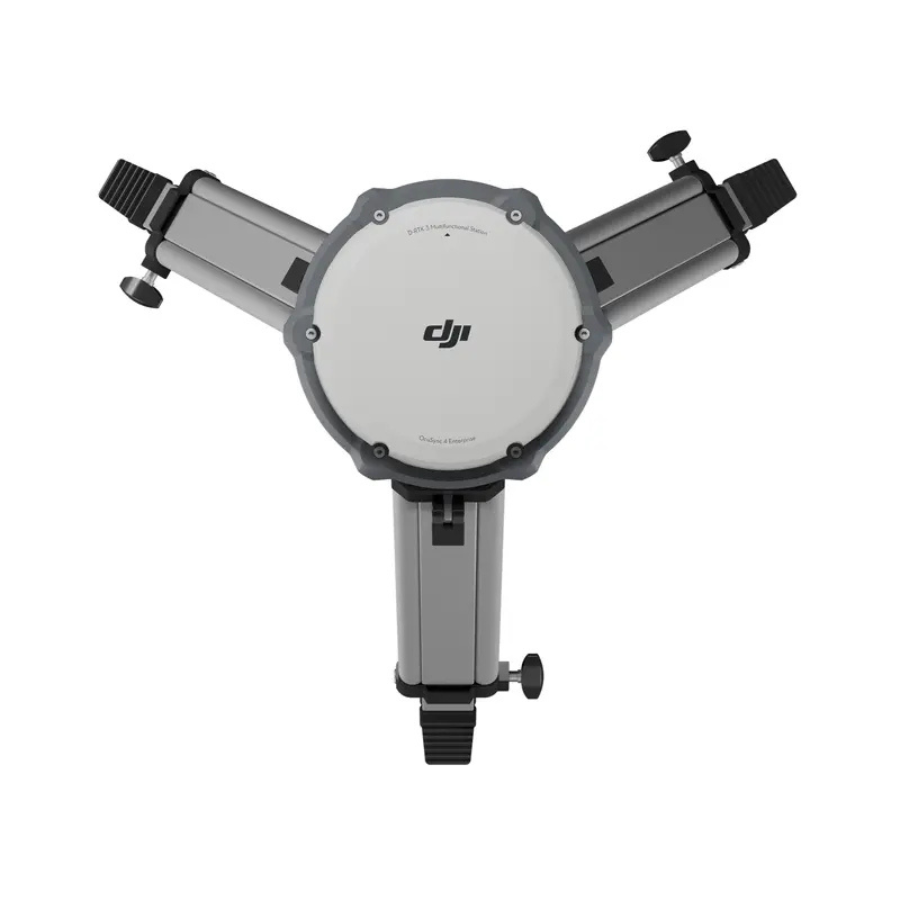

Take a Closer Look at the D-RTK 3 Multifunctional Station

Overview

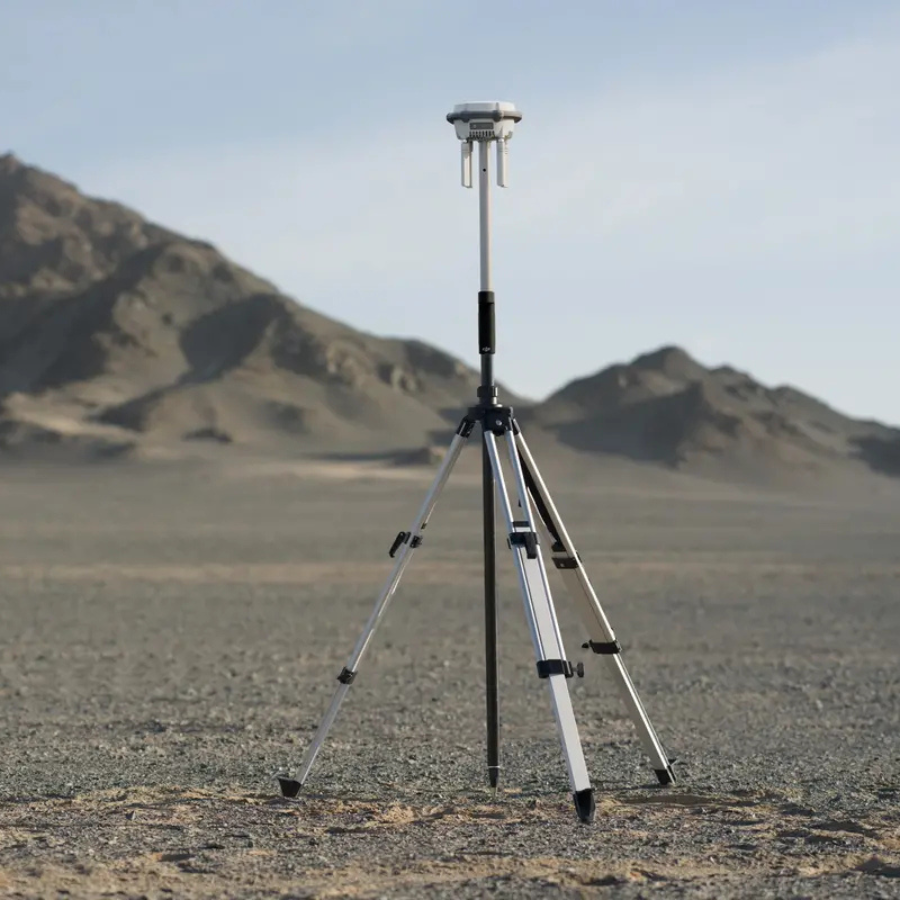

The D-RTK 3 Multifunctional Station combines advanced antennas and receiver modules to support data from major global satellite navigation systems. It offers multiple data transmission links and leverages a built-in high-performance inertial measurement unit to determine position and orientation with precision. This versatile station can function as a base station for providing centimeter-level positioning to multiple drones simultaneously or as a relay station to extend operational range. Additionally, its rover station mode, integrated with the DJI ENTERPRISE app and DJI Terra, delivers an all-in-one solution for high-precision aerial surveying tasks.

Highlights

The station provides centimeter-level positioning for multiple drones or extends range in relay mode, with seamless integration into DJI Enterprise systems.

Tips

  • Measurement accuracy may vary based on environmental conditions, including satellite visibility and electromagnetic interference.
  • Vibrations and rapid movements can impact inertial measurement accuracy.
  • Ensure the relay station is placed in a high, unobstructed area for optimal communication.
  • Transmission range data reflects performance in interference-free outdoor environments. Monitor the app for RTH alerts during flights.
  • Confirm all rubber plugs are securely installed to protect interfaces.

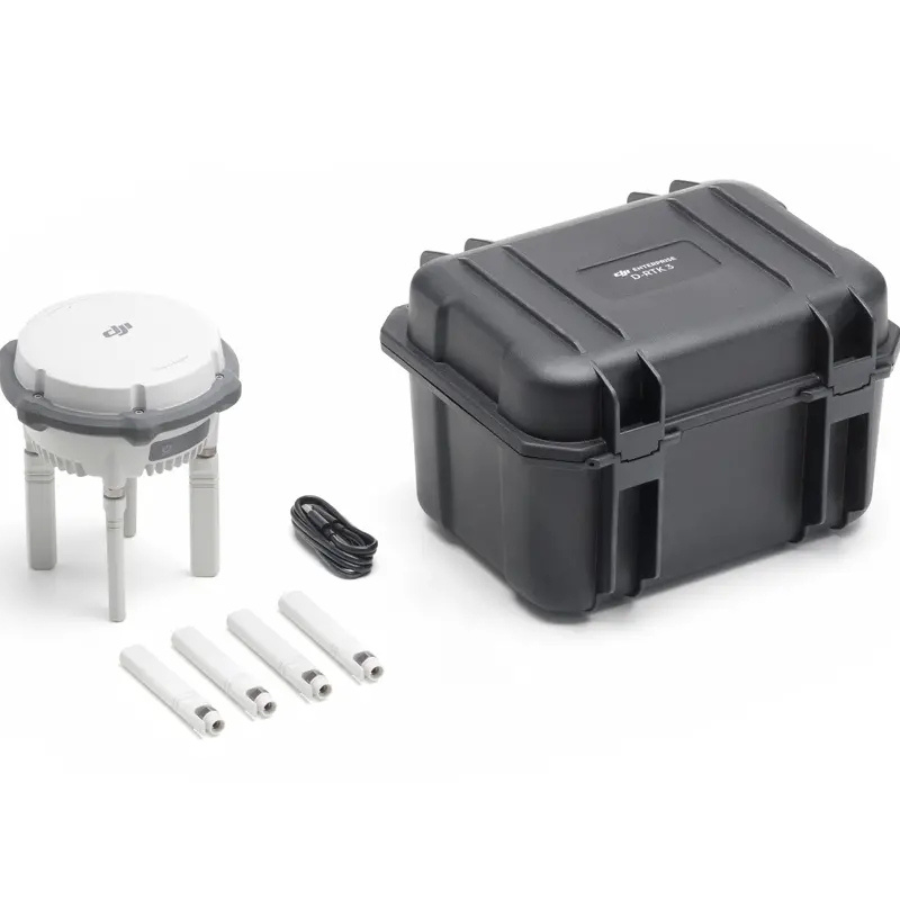

In The Box

  • D-RTK 3 Multifunctional Station × 1
  • Spare OcuSync Directional Antennas × 4
  • USB-A to USB-C Cable × 1

Specifications

  • GNSS Frequency:
    • GPS: L1C/A, L2C, L5
    • BDS: B1I, B2I, B3I, B1C, B2a, B2b
    • Galileo: E1, E5a, E5b, E6
    • GLONASS: L1, L2
    • QZSS: L1C/A, L2C, L5
    • L-Band
  • Rover Station Mode Accuracy:
    • Static Measurement:
      • Horizontal: 0.8 cm + 1 ppm (RMS)
      • Vertical: 1.5 cm + 1 ppm (RMS)
    • Tilt Measurement:
      • Angle Range: 0° to 60°
      • Horizontal: 8 mm + 0.7 mm/° tilt (accuracy <2 cm within 30°)
  • Max Transmission Distance (Relay Station Mode):
    • FCC:
      • Aircraft ↔ Relay Station: 15 km
      • Relay Station ↔ Remote Controller: 1 km
    • SRRC:
      • Aircraft ↔ Relay Station: 12 km
      • Relay Station ↔ Remote Controller: 1 km
    • CE:
      • Aircraft ↔ Relay Station: 8 km
      • Relay Station ↔ Remote Controller: 300 m
  • Protection Rating: IP67 (station only)
  • Dimensions: 163 × 89 mm (without OcuSync Directional Antennas)
  • Weight: 1.26 kg
