DJI Agras T40 One for All

The DJI Agras T40 Sprayer Drone is a cutting-edge agricultural solution that revolutionizes crop spraying and treatment. Designed specifically for precision agriculture, this drone is equipped with advanced spraying technology and intelligent flight systems.

The Agras T40 drone offers efficient and accurate spraying capabilities with its powerful and adjustable spraying system. It features a large-capacity tank that can hold up to 16 liters of liquid, allowing for extended flight time and increased coverage. The sprayer is equipped with four nozzles that provide a wide spray width, ensuring thorough and uniform distribution of pesticides, fertilizers, or other agricultural inputs.

Advanced Spraying System: The T40 is equipped with an intelligent spraying system capable of adjusting the flow rate in real-time, ensuring even distribution of liquids with minimized waste. This system allows for precise application of pesticides, fertilizers, and herbicides, enhancing crop health and yield.

Wide Coverage and High Efficiency: With its powerful propulsion system and large payload capacity, the Agras T40 can cover an extensive area quickly, significantly reducing the time and labor required for crop treatment. Its efficiency is unmatched, capable of covering up to 40 acres per hour, making it ideal for large-scale farming operations.

Smart Operation and Autonomous Flight: DJI’s intelligent flight modes, including automated planning and terrain-following, allow the T40 to navigate complex agricultural landscapes autonomously. Farmers can set flight paths, avoid obstacles, and ensure thorough coverage without manual intervention, saving time and reducing the risk of human error.

RTK Precision Positioning: The inclusion of Real-Time Kinematic (RTK) positioning technology grants the T40 centimeter-level accuracy. This precision is crucial for targeted spraying, reducing chemical usage, and protecting the surrounding environment from unintended exposure.

Omni-Directional Digital Radar: Equipped with an omni-directional digital radar system, the T40 is aware of its surroundings in all directions. This capability enhances flight safety by detecting and avoiding obstacles, even in complex environments or adverse weather conditions.

Swappable Payloads and Modular Design: Flexibility is at the core of the Agras T40, featuring a modular design that allows for quick payload swaps. This versatility means it can perform various tasks beyond spraying, including spreading seeds or granular fertilizers, adapting to different agricultural needs throughout the season.

Integrated Management Platform: The T40 seamlessly integrates with DJI’s agricultural management platform, facilitating the monitoring of flight records, planning of operations, and analysis of treatment data. This comprehensive ecosystem enables farmers to make informed decisions, optimize their practices, and increase operational efficiency.

Durable and Weather-Resistant Build: Designed to withstand the rigors of agricultural work, the T40 features a durable, weather-resistant construction. It can operate in diverse weather conditions, ensuring reliability and longevity even in challenging environments.

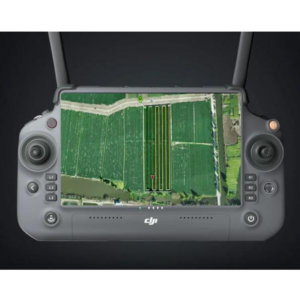

Remote Control with High-Definition Display: The included remote control comes with a high-definition display, providing real-time flight data, video feed, and operational status at a glance. This feature ensures operators can monitor and control the drone’s spraying activities with ease and precision.

Energy Efficiency and Sustainable Operation: The T40 is not only powerful but also energy efficient, thanks to its optimized power management system. By reducing reliance on traditional, more labor-intensive, and potentially harmful agricultural practices, it supports more sustainable farming methodologies.

Incorporating these features, the DJI Agras T40 Sprayer Drone is tailored to meet the evolving needs of modern agriculture, offering a blend of technological sophistication and practical utility. Its capabilities extend far beyond traditional methods, providing farmers with a powerful tool to increase yield, reduce costs, and contribute to sustainable agricultural practices.

The AGRAS T40 is equipped with the revolutionary Coaxial Twin Rotor design, enabling it to carry a spray load of 40 kg^[1]and a spread load of 50 kg (70 L)^[1]. The aircraft is built in with a Dual Atomized Spraying System, DJI Terra, Active Phased array Radar and Binocular Vision. It supports multiple missions from surveying, mapping, to spraying and spreading, helping you achieve ultimate precision in your agricultural operations.

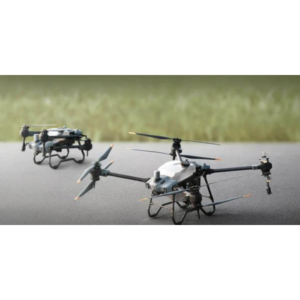

The AGRAS T40 features a coaxial twin rotor design that increases the payload capacity by 30% with a maximum payload of 50 kg^[1]. Its foldable design reduces the aircraft size by 70% for greater portability.

Magnetic Drive Impeller Pump

The new magnetic transmission design completely isolates the pesticide from the motor, making the aircraft corrosion-proof and ultra-durable. Quick disassembly by hand for easy cleaning.

Dual Atomized Centrifugal Sprinkler

The dual atomized spray disc ensures even droplets and more efficient pesticide usage. The proprietary centrifugal valve prevents leakage, avoids over-fertilization, and reduces pesticide use while protecting the environment.

The Active Phased Array Radar is incorporated with a binocular vision sensor system to provide 360-degree horizontal omnidirectional obstacle sensing, offering optimal security. The detection distance of up to 50 m^[8] allows for intelligent terrain following, smooth scaling and bypassing of multiple obstacles^[9].

The AGRAS T40 combines mapping, spraying and spreading functions, while its UHD camera and adjustable gimbal enable easy capture of your desired view. Farmland and orchard images can be captured in real time, and local maps can be generated using the remote controller with the D-RTK 2 Mobile Station. The system detects land boundaries and obstacles automatically, for quicker planning of flight routes over farmland and hilly orchards.

50kg spreading payload

40kg spraying payload

Per hour 21.3 hectare

Supports flight spraying/spreading and RC mapping

Active Phased Array Radar +

Binocular Vision

Core Modules IPX6K

Per hour 4 hectare

Dual Atomized
Spraying System

EFI Generator
15% fuel saving

Per hour 1.5 tonnes of fertilizer

Notes:
1. Data was measured at sea level. The payload weight is greatly affected by the ambient temperature and altitude. The payload weight needs to be reduced by 10 kg for every 1,000m increase in altitude. The DJI Agras app will recommend the payload weight according to the current status and surroundings of the aircraft. When adding materials, the maximum weight should not exceed the recommended value, otherwise flight safety may be compromised.
2. The core modules include: the avionics module, radio frequency module, breakout board, power distribution board, Electronic Speed Controller, Magnetic Drive Impeller Pump, Dual Atomized Centrifugal Sprinkler, Active Phased Array Omnidirectional/Backward and Downward Radar, Binocular Vision System, UHD FPV camera, and LED supplement light. The IPX6K rating is not permanent and may reduce over time after long-term use due to aging and wear.
3. When charging at 9 kW, an EFI generator consumes 15% less fuel compared to a carburetor generator.
4. Data was subject to the operating environment and parameters. T40 flight parameters: consumption rate 15 L/ha, spray width 11 m, flight speed 7 m/s, flight altitude 3 m
5. Data was subject to the operating environment and parameters. T40 flight parameters: consumption rate 75 L/ha, spray width 4 m, flight speed 3 m/s, flight altitude 2 m
6. Data was measured with urea and subject to the operating environment and parameters. Actual data may vary in operation. T40 flight parameters: consumption rate 149 kg/ha, spread width 7 m, flight speed 7 m/s, flight altitude 3 m, spreading disc rotation speed 1,000 rpm. The area is free of obstructions and in a regular terrain shape. The fertilizers are prepared in advance and can be loaded quickly.
7. Urea, seeds, and feed have small bulk density. The volume of their particles weighing 50 kg will exceed 50 L.
8. The effective sensing range varies depending on the material, position, shape, and other properties of the obstacle. Pilots are responsible for flight safety at all times. The obstacle avoidance system is only an assisting tool.
9. The Bypass function should preferably be used in environments with sufficient daylight, an incline of less than 20 degrees, small obstacles, and few electrical wires. The function is not recommended for use at night, on a rainy day, or around many electrical wires.
10. The remote controller’s mapping time, which can be affected by the firmware version, survey type, and other relevant factors.
11. Charging from 30% to 95%, with the number of batteries chargeable depending on the battery level, idle time, altitude, temperature, and other factors.
12. Charging from 30% to 95%. Factors impacting charging time: the altitude of the charging station; and the battery cell’s temperature is in the range of 15° to 70°C.
13. Batteries are covered by warranty for up to 1,500 charging cycles or 12 months, whichever ends first.
