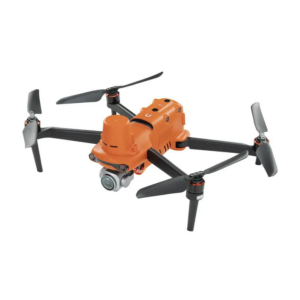

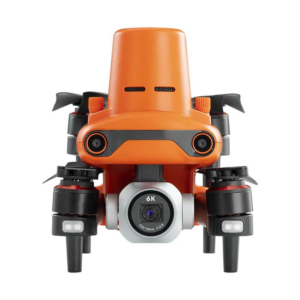

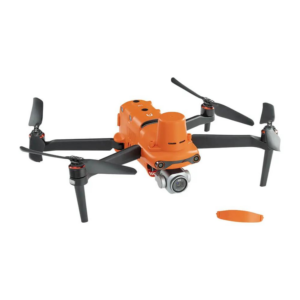

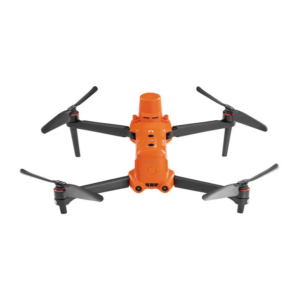

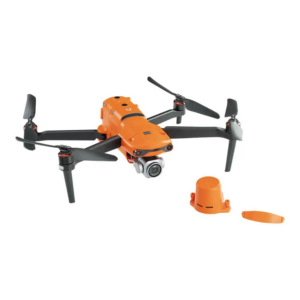

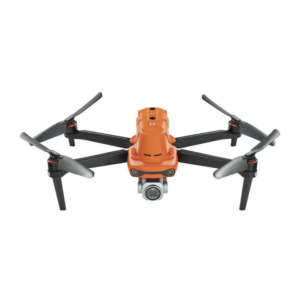

Autel Robotic EVO II Pro RTK V3

  • Centimeter-Level Positioning
  • Support PPK
  • RTK Base Station
  • NTRIP RTK Network
  • Flight Profiles Save
  • Rectangular or Polygon Missions
  • 1″ CMOS Sensor Gimbal Camera
  • 360° Obstacle Avoidance
  • 38 Minutes Flight Time
  • 15km Video Transmission Range


  • 1 Year warranty
  • 14-Days Return & Refund
  • Free Delivery


A modern drone created for expert aerial photography and surveying is the EVO II Pro RTK V3. It boasts centimeter-level positioning accuracy thanks to Real-Time Kinematic (RTK) technology, which is perfect for accurate mapping and 3D modelling. Its 20MP still image and 6K video capabilities guarantee excellent visual quality. For safety and convenience, the drone has a 360-degree obstacle avoidance system. The EVO II Pro RTK V3 is ideal for sectors including construction, agriculture, and filmmaking and raises the bar for aerial data collecting and photography.

The EVO II RTK V3 introduces a brand-new RTK module that supports Post-Processing Kinematic (PPK) and offers real-time centimeter-level location data. The plane has the ability to save camera exposure settings, original satellite observation data, and more. The positioning system works with the NTRIP RTK network and RTK base station, which makes it easier to get precise and stable data in challenging operational settings.

No GCP Required

For centimeter-grade accuracy, the EVO II RTK Series V3 does not require GCPs and can connect to an NTRIP network.

3rd Party Base Station Support

The EVO II RTK Series V3 is compatible with all base stations that are NTRIP-ready.

360° Obstacle Avoidance

Built with 19 different sets of sensors, including 12 vision sensors, the main camera, ultrasound, inertial measurement units, and other sensors enable the construction of three-dimensional maps and real-time course planning.

Mission Planner

Mission planners that are both rectangular and polygonal will be of great use to anyone who is engaged in photogrammetry. Therefore, anyone who needs to be able to acquire a large number of photographs during a rectangular operation or a polygon mission will be able to do it in a manner that is completely autonomous. After that, you will be able to take the photos produced by the EVO II Pro RTK V3 and submit them to your 3D mapping software.

Rectangular Mission
Polygon Mission

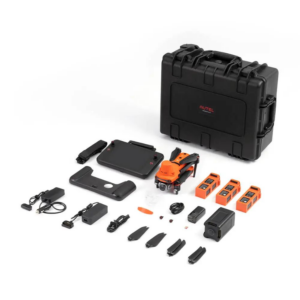

In The Box


Sensor 1″ CMOS
Effective Pixels: 20 MP
Lens FOV: 82°
Equivalent focal length: 29 mm
Aperture: f/2.8 – f/11
Focus range: 0.5 m to infinity
ISO Range Video: 100-44000
Photo: 100-6400
Shutter Speed Photo mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame rates
Zoom 1 ~ 16x (Max. 3x lossless zoom)
Photo mode Single shot/Burst shooting/AEB/Time Lapse/HDR
Maximum photo size 5472*3648 (3:2)
5472*3076 (16:9)
3840*2160 (16:9)
Image Format JPG (default) / DNG / JPG+DNG
Photo mode 5472x3076P30/P25/P24
Video format MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Max bitrate 80Mbps
Supported file system FAT32/exFAT
Gimbal 3-axis stabilization
Mechanical range Tilt: -135° to +45°;
Pan: -100° to +100°
Controllable rotation range Tilt: -90° to +30°;
Pan: -90° to +90°
Max control speed (Tilt) 300°/s
Angular Vibration Range ±0.005°
Takeoff Weight 1237g±0.5g(EVO II Pro RTK V3)
Max takeoff weight 4.41 lbs (1999 g)
Size(L*W*H) 9.1*5.1*5.6 inches; 230*130*143mm(folded);
18*22*4.3 inches 457*558*143 mm(unfolded)
Wheelbase 15.63 inches (397 mm)
Maximum Takeoff Altitude 7000 m
Max ascent speed 8 m/s (Ludicrous)
Max descent speed 4 m/s (Ludicrous)
Max horizontal flight speed 20m/s (Ludicrous)
Max flight distance (no wind) 21 km
Max tilt angle 33° (Ludicrous)
Max angular velocity 120°/s
Max flight time (no wind) 36 min
Max hovering time (no wind) 32 min
Operating temperature range 14°F to 104°F (-10℃ ~ 40℃)
Maximum resistance to wind 27mph, 12 m/s (Take-off and landing)
Operating frequency 902-928MHz (FCC Only)
Transmission power 900M FCC/ ISED:≤31dBm 2.4G
FCC/ ISED:≤32dBm
SRRC/CE/MIC/RCM:≤20dBm 5.8G (non-Japan) ; 5.7G (Japan)
CE/ RCM:≤14dBm
Hovering accuracy When RTK is enabled and working normally:
Vertical: ±0.1 m; Horizontal: ±0.1 m Vertical: ±0.1 m (when the visual positioning is working normally);±0.5 m (when GNSS works normally)
Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally)
Image position compensation The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively.
Internal storage 8GB
SD storage max. support 256GB (UHS-3 or Class 10)
Single frequency high sensitivity GNSS GPS+BeiDou+Galileo(Asia)
GPS+GLONASS+Galileo(Other areas)
Multi-frequency multi-system high-precision RTK GNSS Frequency points used:
First positioning time:<50 s
Positioning accuracy:
vertical 1.5 cm + 1 ppm (RMS);
Horizontal 1 cm + 1 ppm (RMS)
1 ppm means that the error increases by 1 mm for every 1 km the aircraft moves
Sensing System Omnidirectional Obstacle Sensing
Forward Precision Measurement Range: 0.5-20 m
Detectable Range: 0.5-40m
Effective Sensing Speed: <15m/s
FOV: Horizontal: 60°, Vertical: 80°
Backward Precision Measurement Range: 0.5-16 m
Detectable Range: 0.5-32m
Effective Sensing Speed: <12m/s
FOV: Horizontal: 60°, Vertical: 80°
Upward Precision Measurement Range: 0.5-12 m
Detectable Range: 0.5-24m
Effective Sensing Speed: <6m/s
FOV: Horizontal: 60°, Vertical: 50°
Downward Precision Measurement Range: 0.5-11 m
Detectable Range: 0.5-22m
Effective Sensing Speed: <6m/s
FOV: Horizontal: 90°, Vertical: 70°
Sides Precision Measurement Range: 0.5-12 m
Detectable Range: 0.5-24m
Effective Sensing Speed: <10m/s
FOV: Horizontal: 60°, Vertical: 50°
Operating Environment Above: The surface has rich textures and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment); the surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.) Below: The ground has rich textures and sufficient lighting conditions (> 15 lux, indoor fluorescent lamp is normally irradiated by the environment); the surface is made of diffuse reflective material and the reflectivity is> 20% (such as walls, trees, people, etc.)
Operating Frequency 902-928MHz (FCC Only)
2.400-2.4835GHz 5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only)
Transmission power(E.I.R.P) FCC:≤33dBm
Max Transmission Distance (unobstructed, free of interference) FCC:15km CE:8km
Display screen 2048×1536 60fps
Battery 5800mAh
Operating time ~3 hours (Max. Brightness) ~4.5 hours (50% Brightness)
Charging time 120 minutes
Internal Storage ROM 128GB
Capacity 7100 mAh
Voltage 11.55 V
Max Charging Voltage 13.2 V
Battery Type LiPo 3S
Energy 82 Wh
Net Weight 0.81 lbs (365 grams)
Charging Temperature Range 41°F to 104°F (5°C to 40°C)
Storage Temperature and Humidity -10~30℃,65±20%RH
Recommended Storage Temperature 22-28℃
Max Charging Power 93W
Charging Time 90 minutes
Input 100-240 V, 50/60 Hz, 1.5A
Output 13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
Voltage 13.2±0.1V
Rated power 66W
