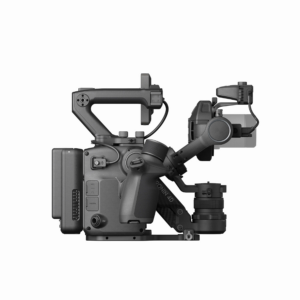

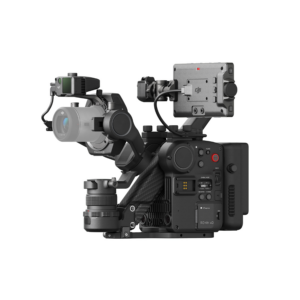

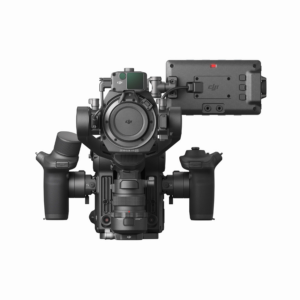

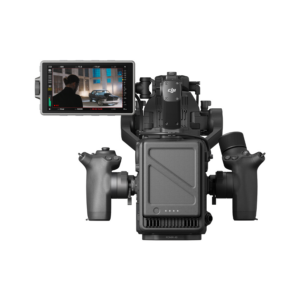

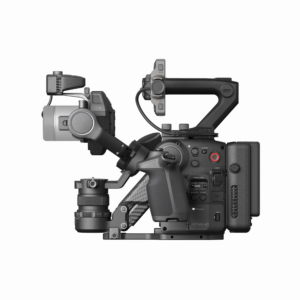

DJI Ronin 4D-6K/8K

650,0001,220,000

  • Highly Integrated Modular Design
  • Full-Frame Gimbal Camera
  • 8K/75fps Internal ProRes Recording
  • 4-Axis Active Stabilization
  • LiDAR Focusing
  • Wireless Transmission and Control System
1 Year Warranty
After Sales Service
Add accessories usually bought together, Save more when you buy them together
DJI PROSSD 1TB
100,000

Description

DJI Ronin 4D-6K/8K

The DJI Ronin 4D-6K/8K is an advanced camera system designed for professional filmmakers and content creators who demand the highest level of image quality and versatility. This cutting-edge camera combines a state-of-the-art 4D stabilization system with an 6K/8K resolution sensor, delivering stunningly detailed and smooth footage.

Integrated and Modular Design, Both Realized in One Camera

DJI Ronin 4D integrates cinematic imaging, a 4-axis gimbal, LiDAR focusing, and wireless video transmission and control, [1] making it incredibly convenient for you to start shooting quickly. Its modular design supports expansion accessories, offering more creative possibilities.

Full-Frame Gimbal Camera for Cinematic Footage

The full-frame X9 gimbal camera can internally record in Apple ProRes RAW, and supports 14+ stops of dynamic range, dual native ISO, built-in 9-stop ND filters, and interchangeable lens mounts to put cinematic imagery within your reach.

Precise and Intuitive LiDAR Focusing

Autofocus is fast, accurate, and reliable even in low-lit environments, and is now available on manual lenses. LiDAR Waveform makes manual focusing more intuitive and convenient. Automated Manual Focus delivers an unrivaled focusing experience.

4-Axis Active Stabilization on Par with a Dolly

The Z-Axis effectively eliminates vertical camera shake and works with visual sensors and Active Track Pro to let you create smooth, stable footage effortlessly.

Up to 20,000-foot Wireless Transmission and Control Range [2]

O3 Pro Video Transmission Technology adds DFS frequency bands and enables 1080p/60fps video transmission. It supports one transmitter with multiple receivers and can remotely control gimbal, focusing, and camera settings.

In The Box

DJI Ronin 4D-8K

Specifications

Imaging

Lens Mount DJI DL
Sensor Resolution Effective: 35.4 Megapixel
Image Sensor Full-Frame CMOS
Image Stabilization Digital, 4-Axis
Built-In ND Filter Mechanical Filter Wheel with Clear, 1-Stop (1/2), 2-Stop (1/4), 3-Stop (1/8), 4-Stop (1/16), 5-Stop (1/32), 6-Stop (1/64), 7-Stop (1/128), 8-Stop (1/256), 9-Stop (1/512) ND Filters
Internal Filter Holder Yes
Capture Type Video Only

Exposure Control

Shutter Type Electronic Rolling Shutter
Shutter Speed 1/8000 to 1/24 Second
ISO Sensitivity 800 to 5000
200 to 12,800
Advertised Dynamic Range 14 Stops
White Balance 2000 to 11,000K
Presets: Manual

Gimbal

Rotation Range Controllable Range
Yaw (Pan): 285°
Pitch (Tilt): 210° (-55 to 155°)
Roll: 70° (-35 to 35°)
Mechanical Range
Yaw (Pan): 330°
Pitch (Tilt): 250° (-75 to 175°)
Roll: 320° (-90 to 230°)
Z-Axis Adjustment Range 5.1″ / 130 mm
Follow Speed Using DJI Master Wheels or Pro Force:
Pan/Tilt/Roll: 360°/s
Using Ronin 4D Handgrip:
Pan/Tilt/Roll: 120°/s
Load Capacity 2.1 lb / 960 g

Video Capture

Internal Recording Modes ProRes 422 HQ
8192 x 4320 at 23.98/24.00/25/29.97 fps
4096 x 2160 at 23.98/24.00/25/29.97/48.00/50/59.94/120 fps
H.264 4:2:0 10-Bit
4096 x 2160 at 23.98/24.00/25/29.97/48.00/50/59.94 fps
External Recording Modes SDI/BNC / USB
8192 x 4320 at 23.98/24.00/25/29.97 fps
4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
Gamma Curve HDR-HLG, Rec709
Built-In Microphone Type Stereo
Audio Recording 2-Channel 48-Bit LPCM Audio
IP Streaming None

Interface

Media/Memory Card Slot Single Slot: CFexpress Type B (Supports Optional DJI ProSSD Module) [1 TB Maximum]
Internal Memory 1 TB
Video I/O 1 x BNC (3G-SDI) Output
1 x HDMI Output
Audio I/O 1 x 1/8″ / 3.5 mm TRS Stereo Mic/Line Input
1 x 1/8″ / 3.5 mm TRS Stereo Headphone Output
Power I/O 1 x Barrel (12 to 30VDC) Input
Other I/O 1 x USB-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output
1 x Proprietary Monitor Output
1 x BNC (Timecode)
Wireless Wi-Fi Video Output
Global Positioning (GPS, GLONASS, etc.) None

Monitor

Size 5.5″
Resolution 1920 x 1080
Display Type Tilting Touchscreen LCD

General

Battery Type DJI TB50
Accessory Mount 2 x 1/4″-20 Female
1 x 3/8″-16 Female
2 x Cold Shoe Mount
Material of Construction Aluminum, Carbon Fiber, Magnesium Alloy
Dimensions (W x H x D) 12.2 x 11.4 x 10.9″ / 309 x 290 x 277 mm (With Protrusions)
9.3 x 6.3 x 4.5″ / 235 x 160 x 115 mm (Without Protrusions)
Weight 10.3 lb / 4.67 kg (With Battery, Grip, Handle, Monitor, Recording Media, Viewfinder)
3.2 lb / 1.45 kg (Body Only)
2.29 lb / 1.04 kg (Gimbal)
