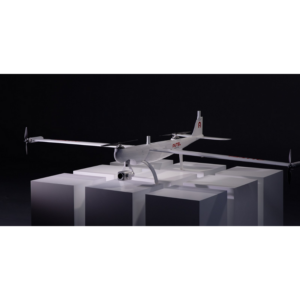

AUTEL DRAGONFISH LITE
Operate in the Future
Powerful drone for business and industrial use is the Autel 7KG Dragonfish Standard with T3 Payload Camera. It can carry the T3 payload camera, which offers remarkable aerial photography and data collection capabilities, thanks to its impressive 7KG payload capacity. The drone has intelligent flight modes, precise GPS positioning, and obstacle avoidance to provide safe and effective operations in a variety of conditions. The Dragonfish Standard with T3 Payload Camera is ideal for demanding jobs like surveys, inspections, and mapping and produces dependable and high-performance results for a variety of aerial applications.
SUPER LONG TENACITY
The innovative tilt rotor design of the Dragonfish makes operating simple and increases productivity and efficiency. The dragonfish is modular, waterproof, intelligent, and dependable because it has no complicated moving parts. The Dragonfish has a wide range of modular payload options, strong AI tracking capabilities, and is mission ready right out of the box. The Dragonfish’s strong mission capabilities are further strengthened by an endurance period of up to 75 minutes (with cargo), which puts it far ahead of other VTOL rivals.
IDENTITY AND AUTONOMY
The Dragonfish has a number of automated features that make mission tasks more efficient and straightforward. The user workflow is further enhanced by advanced algorithms in terms of consistency and simplicity.
1-BUTTON TAKE-OFF AND LANDING
AI HIGH-SPEED TRACKING
POINT OF INTEREST
ADVANCED MISSION PLANNING
SAFETY AND REDUNDANCY
Smart, easy, and effective.
The innovative tilt-rotor design of the Dragonfish makes operation simple while maximising performance and effectiveness. The Dragonfish is modular, waterproof, intelligent, and dependable because it has no complicated moving parts. The Dragonfish has a wide range of modular payload options, strong AI tracking capabilities, and is mission ready right out of the box. The Dragonfish’s strong mission capabilities are further strengthened by an endurance of up to 180 minutes (with payload), which puts it far ahead of the competitors.
UP TO 180 MINUTES FLIGHT TIME
3 MINUTES QUICK ASSEMBLY
4K / 50X OPTICAL ZOOM
UP TO 108KM/H MAX SPEED
18.6 MILES TRANSMISSION RANGE
5SECOND SYSTEM BOOT AND SELF CHECK
Two RTK modules are installed in the Dragonfish for added redundancy. The Dragonfish may achieve centimetre accuracy, exact headings, and powerful anti-magnetic interference capabilities by integrating the GNSS Base Station with the RTK modules. These modules complement one another and significantly raise the standard of image metadata for photogrammetry, which also promotes flight safety and precision.

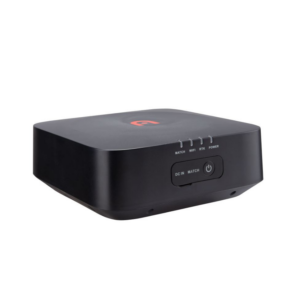

The GNSS Base Station from Autel Robotics supports all 4 major satellite systems and offers centimeter-level precision.
QUALIFIED SOFTWARE SOLUTIONS
For applications particular to the dragonfish business, Autel Voyager was created. Advanced mission planning, perceptive tracking, tracking of past flights, and other autonomous characteristics are all provided by the software. Autel Voyager is the one-stop shop for all missions because it is so easy to use while also being highly powerful.

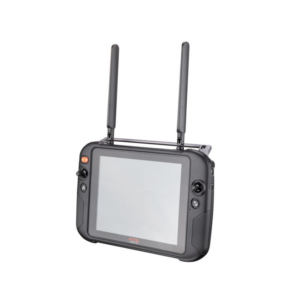

ULTRA-BRIGHT 9.7″1000NIT GROUND CONTROL STATION
The 9.7-inch, ultra-bright (1000 nits), high quality (2048*1536) TFT-LCD touchscreen offers optimal visibility and usefulness in all circumstances. The Autel Ground Control Station is resistant to water, dust, and water. With the new antenna design from Autel Robotics, video transmission can go up to 18.6 miles (30 km) away. With a remote power source, the Autel Robotics ground station controller can run continuously for up to 4.5 hours on a single charge.
SMALL AND TRANSPORTABLE
A one-man team can simply disassemble the Dragonfish, and it will fit in the back of most standard car trunks. In less than five minutes, the entire system may be put together without any tools and is ready to fly.

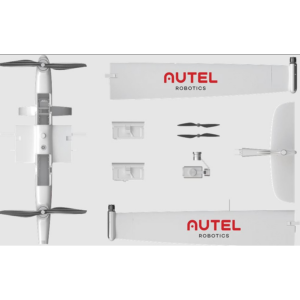

In The Box
- Aircraft body 1
- Base station 1
- Charger + AC line 1
- Base station antenna 2
- Base station tray 1
- Base station charger 1
- Repair tool kit 1
- Wing set 1
- Tail 1
- Airspeed indicator cover 1
- 9.7 inch ground station 1
- Battery x4 (the actual quantity is subject to the purchased set)
- Propeller blades 2
- Base station feeder 2
- Base station tripod 1
- USB Type-C cable 1
- Gimbal Camera (T3 Payload)
- Ground station lanyard 1
- Propeller holder 1
- TF card 1
- Documentation x 1 set (includes Dragonfish Standard, Base station, Charger, Battery quick guide, Disclaimer)
|Video Transmission||Operating frequency：
Max Transmitting Distance (unobstructed, free of interference)：
CE / MIC：5 km
|Data Transmission||Operating frequency：
5.725 – 5.755 GHz
Wi-Fi with 2×2 MIMO
2.400 – 2.4835 GHz
5.150 – 5.250GHz
5.650 – 5.755GHz
5.725 – 5.850 GHzBatteryType: Li-Po
Charging time：120 minRun Time~3 hrs (Max brightness)
~4.5 hrs (Half brightness)Storage CapacityROM 256GB + scalable (TF)Video Output PortHDMI PortPower Supply Current / Voltage (USB-A port)5V / 500mAOperating Temperature Range-20℃ ~ 40℃Charging Temperature Range0℃ ~ 45℃Storage Temperature Range< 1 month: -4° to 140° F (-20° to 60° C)
1-3 months: -4° to 113° F (-20° to 45° C)
3-12 months: -4° to 86° F (-20° to 30° C)GNSSGPS+GLONASS+GalileoDimensions319×233×74 mm（antennas folded）
319×398×74 mm（antennas unfolded）Weight1987gNote: Operating frequency varies by countries and regions, please refer to local laws and regulations.
|GNSS receiver||Satellite receiving frequency (Simultaneously receive):
Horizontal: 1.5 m (RMS)
Vertical: 3.0 m (RMS)
Horizontal: 1 cm+1 ppm (RMS)
Vertical: 1.5 cm+ 1 ppm (RMS)
1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.
Positioning update rate：1Hz，2 Hz，5 Hz，10 Hz and 20Hz
Cold start：< 40s
Hot start：< 10s
Initialization reliability：> 99.9%
Differential data transmission format：RTCM 2.X/3.XCommunicationData link：Image transmission, Wi-FiImage transmissionOperating frequency：2.4000-2.4835 GHz；902-928 MHz
EIRP (Equivalent radiated power)：
FCC：< 30 dBm
FCC：< 30 dBm
SRRC/CE/MIC：< 20 dBmWi-Fi
EIRP (Equivalent radiated power)
MIC：< 20 dBm
SRRC/FCC：< 26 dBm；CE： < 14 dBm
SRRC/CE/MIC：< 20 dBm
Mobile station and aircraft: 30 km (FCC)
Mobile station and remote control: 200 m (FCC)
(Unobstructed and free of interference, when the mobile station is used as a base station and the distance from the mobile station antenna to the bottom of the tripod is 2 m; and when the difference in height between the remote controller and mobile station is less than 10 m, and when the remote controller is 1.2 m from ground level)
Electrical characteristicsPower consumption：7.5 W
Power supply：5 ~ 20V DC（supports USB PD charging protocol）
Type: lithium ion polymer battery
Capacity: 4950 mAh
Energy: 57.1 WHPhysical propertiesSize(Base station body + extension rod)：193 mm×177 mm×73 mm
Dustproof and waterproof：IP64
Operating temperature：-20℃ ~ 50℃Note: Operating frequency varies by countries and regions, please refer to local laws and regulations.
