Introducing VFLYX SERIES Q1

The VFLYX Series Q1, a groundbreaking line of drones that redefine the skies with unparalleled performance and cutting-edge technology. Designed with precision engineering and innovation at its core, the Series 1 drones boast an exceptional flight time of 90 minutes, setting a new standard for extended aerial exploration.

Features

Behind the scenes, the Series 1 drones incorporate a host of cutting-edge features, including precision navigation systems, intelligent obstacle avoidance, and high-resolution cameras for capturing stunning aerial footage. The innovative design ensures both stability and agility, providing users with a seamless and enjoyable piloting experience.

Product Highlights

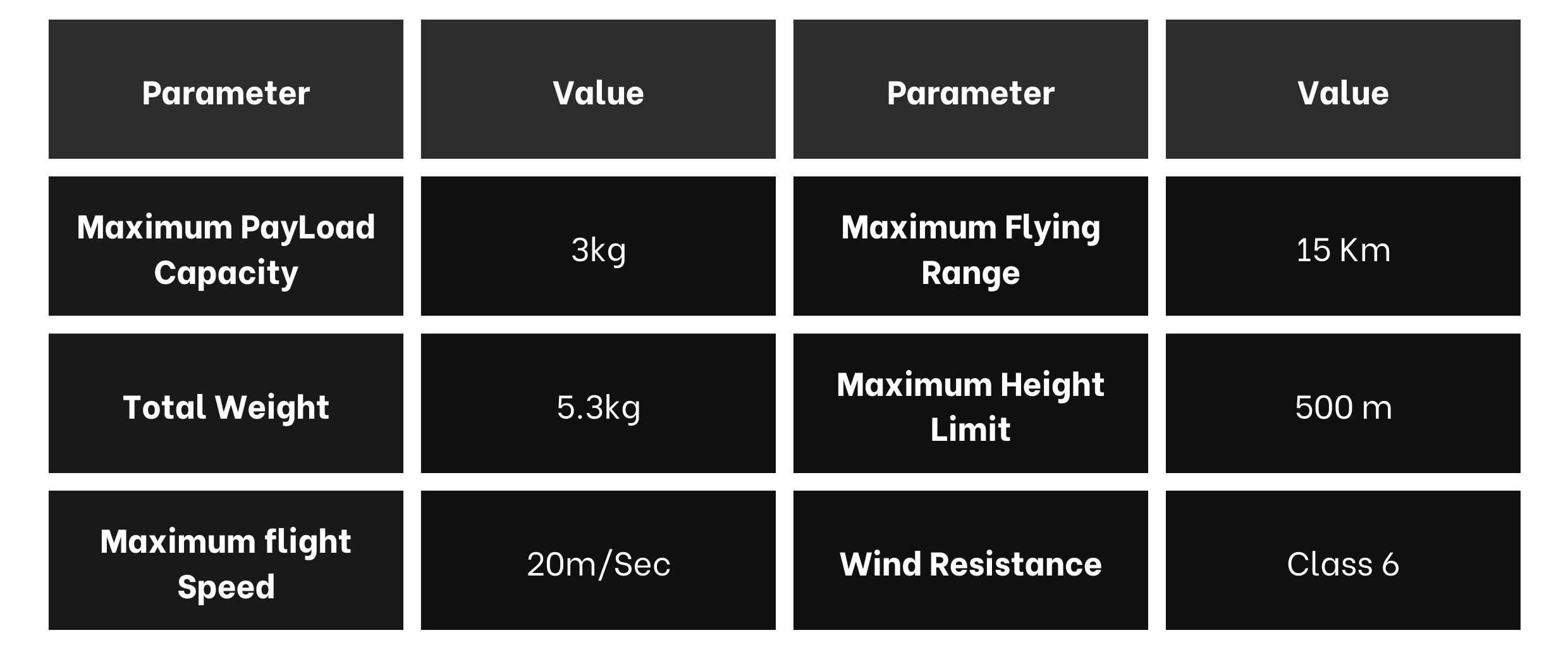

Specifications

Specifications
Dimension when folded 430 X 230 X 190
Dimension with spread 650 X 645 X 320
Rotor Distance 810 mm
Ingress Protection Dust and water resistance
Operation Modes Full autonomous, Semi-autonomous, and Manual.
Fail Safety RTH on Law Battery Alert, RTH on signal loss, RTH on signal Jammimg etc
Max Launch Altitude Up to 5000m AMSL
Battery Capacity 30000mAh
Battery Type semi- solid
Working environment temperature -20 ℃ to+55 ℃
Flight altitude: ≥ 6000 meters
IP Rate IP 45
Take off weight 15 Kg
Propulsion System Electric BLDC
Communication Data Uplink, Telemetry and video Downlink
Operating Modes Manual & Autonomous
Take off time  <1 min
Satellite positioning module GPS/GLONASS or BDSS/GLONASS dual mode GPS Beidou satellite (triple positioning)
Hover accuracy Vertical: ± 0.5 m (when GPS positioning is working normally) Horizontal: ± 0.5 m (when GPS positioning is working normally)

Camera Specifications

Cam 1

10 X Zoom

4 Mp ( 2688 x 1520)

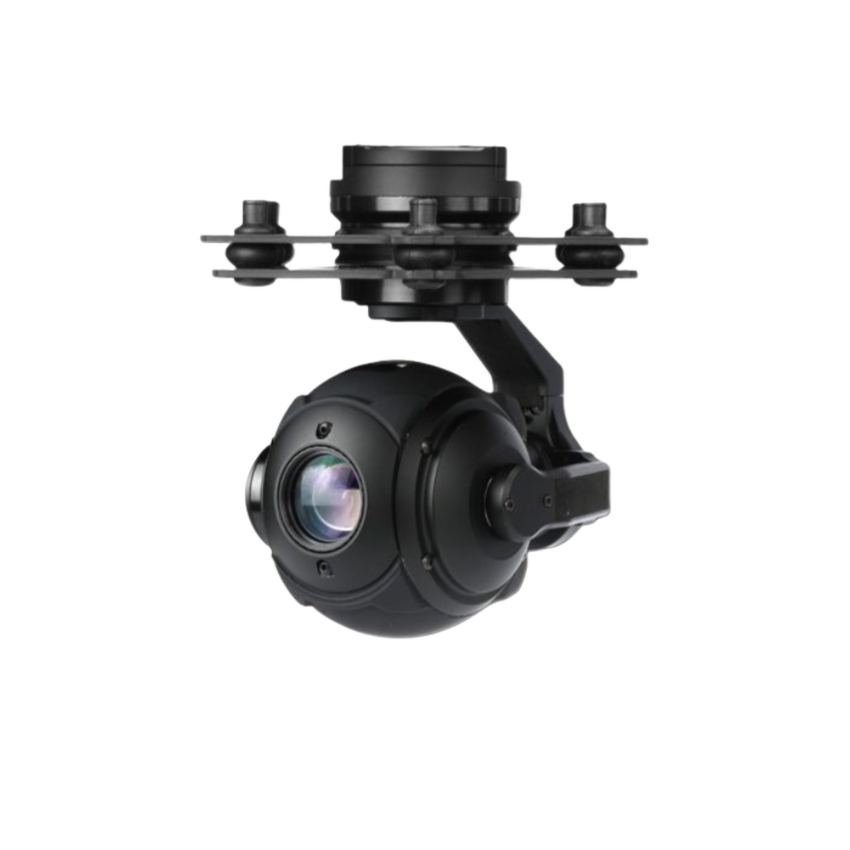

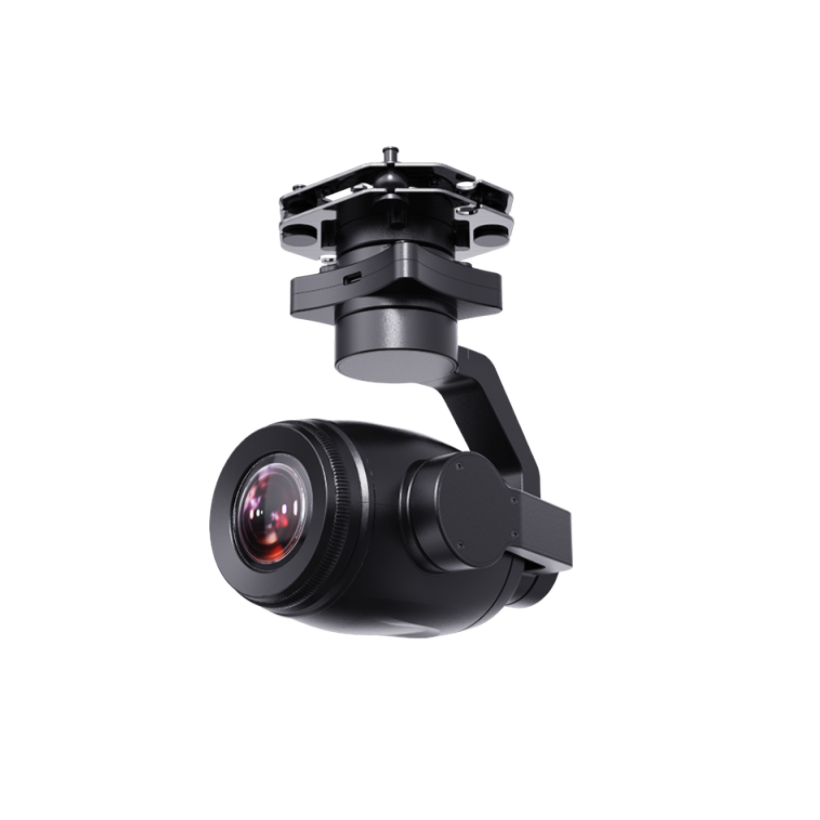

Cam 2

180X Hybrid Zoom

30X Optical Zoom

4K 8MP Ultra HD

AI Smart Identify Tracking

Starlight Night Vision Camera

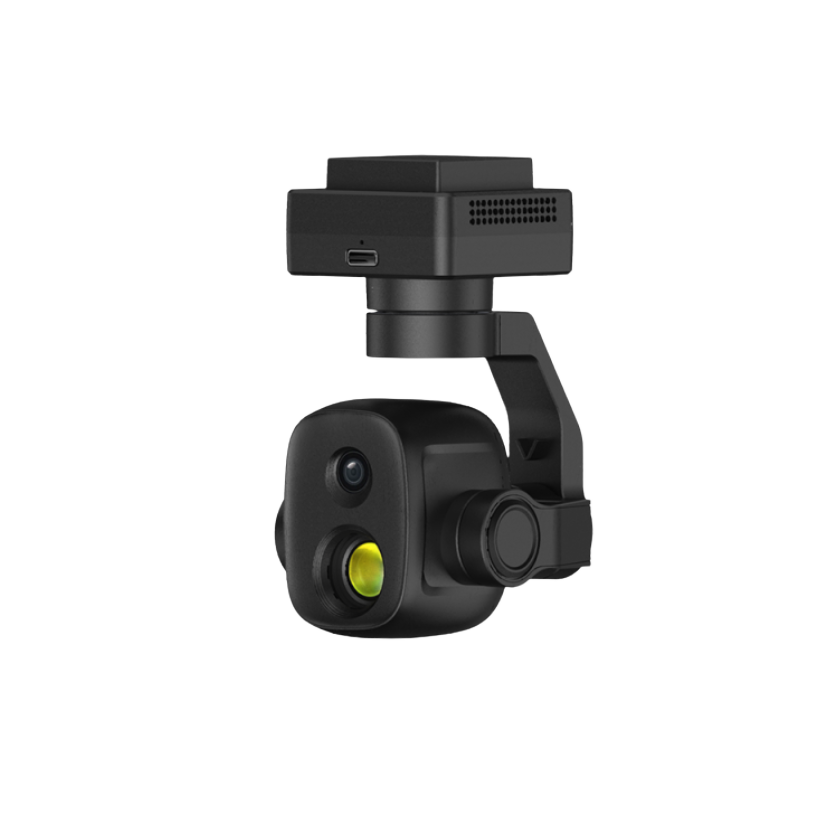

Cam 3

Thermal Camera

640 x 512 P

Zoom : 2X

Zoom Camera

Day Cam : 4K

6X digital Zoom

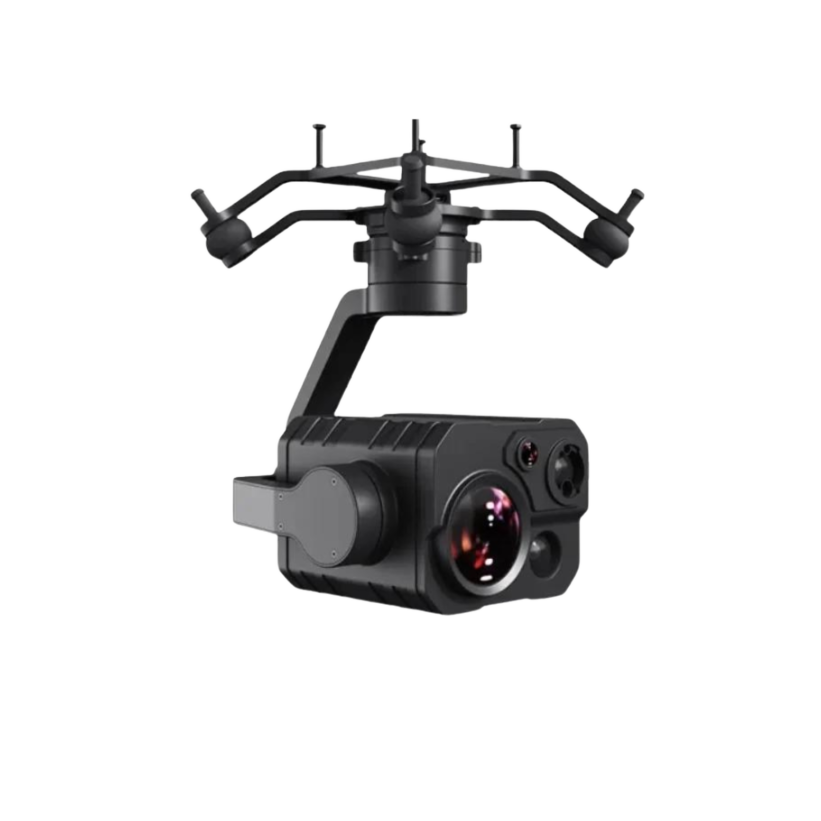

Cam 4

Thermal Camera

640 x 512 P

Zoom : 2X

Zoom Camera

30X Optical Zoom

(180X Hybrid Zoom)

Range Finder

Range: 5 ~ 1200 m

Survey Camera

  • 10 X Zoom
  • 4 Mp ( 2688 x 1520)
  • Camera format: APS-C
  • Sensor type: CMOS
  • Camera Effective Megapixels: 24.3MP/20 MP

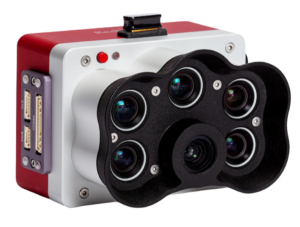

Multispectral Camera

  • RedEdge-P sensor
  • DLS 2 light sensor with embedded GPS
  • CRP2 Calibrated Reflectance Panel
  • USB Wi-Fi dongle
  • 10 spectral bands for enhanced data comparison with satellites

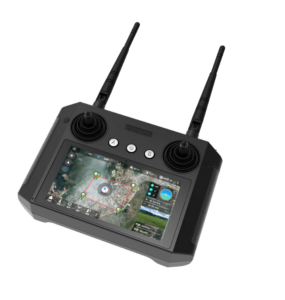

Remote Controllers

RC 1

  • 6-20 hours battery life
  • Comes with receiver and camera
  • Up to 30 km range
  • Number of channels: 12

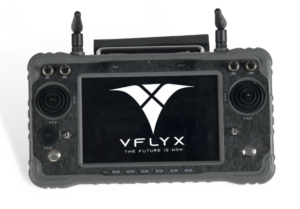

RC 2

  • 6-20 Hours
  • 16 Channels
  • 10km Video Transmission
  • 7 inch screen
  • Dust free & waterproff
  • RJ 45 & HDMI Supported

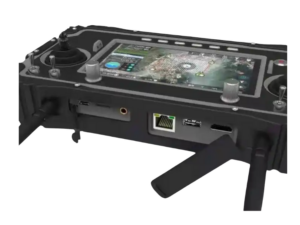

RC 3

  • Link Method : Transmitter + Datalink + Videolink
  • and wireless
  • RTSP video streaming sharing
  • Telecontrol Distance : 1 Km
  • Upto 30 Km Video Transmission
  • RJ 45 & HDMI Supported

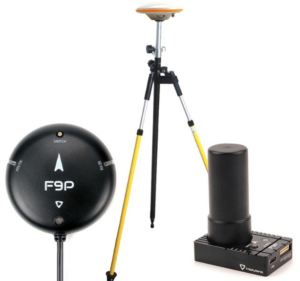

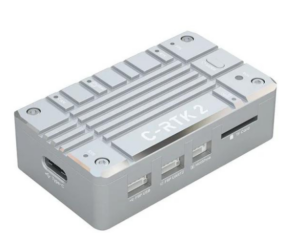

RTK and PPK Units

RTK With Base Station

  • Concurrent reception of GPS, GLONASS, Galileo and BeiDou.
  • It uses a UBLOX F9P module, a IST8310 compass, and a tri-colored LED indicator

RTK and PPK Both

  • Support RTK and save RAW raw data (PPK) at the same time
  • Multi-satellite and multi-frequency receivers
  • Support hotshoe and shutter trigger
  • RTSP video streaming sharing.
  • High-performance H7 processor
  • High precision industrial grade IMU

Fail Safe Features

Return to Home in following situations

  • Rotor failure
  • Above Wind speed Level 5 (17 to 21 Knots)
  • In case of Controller – UAV Link failure
  • Low Battery

Parachute deployment – Optional

Automatic parachute deployment in case of tech failure or accident.

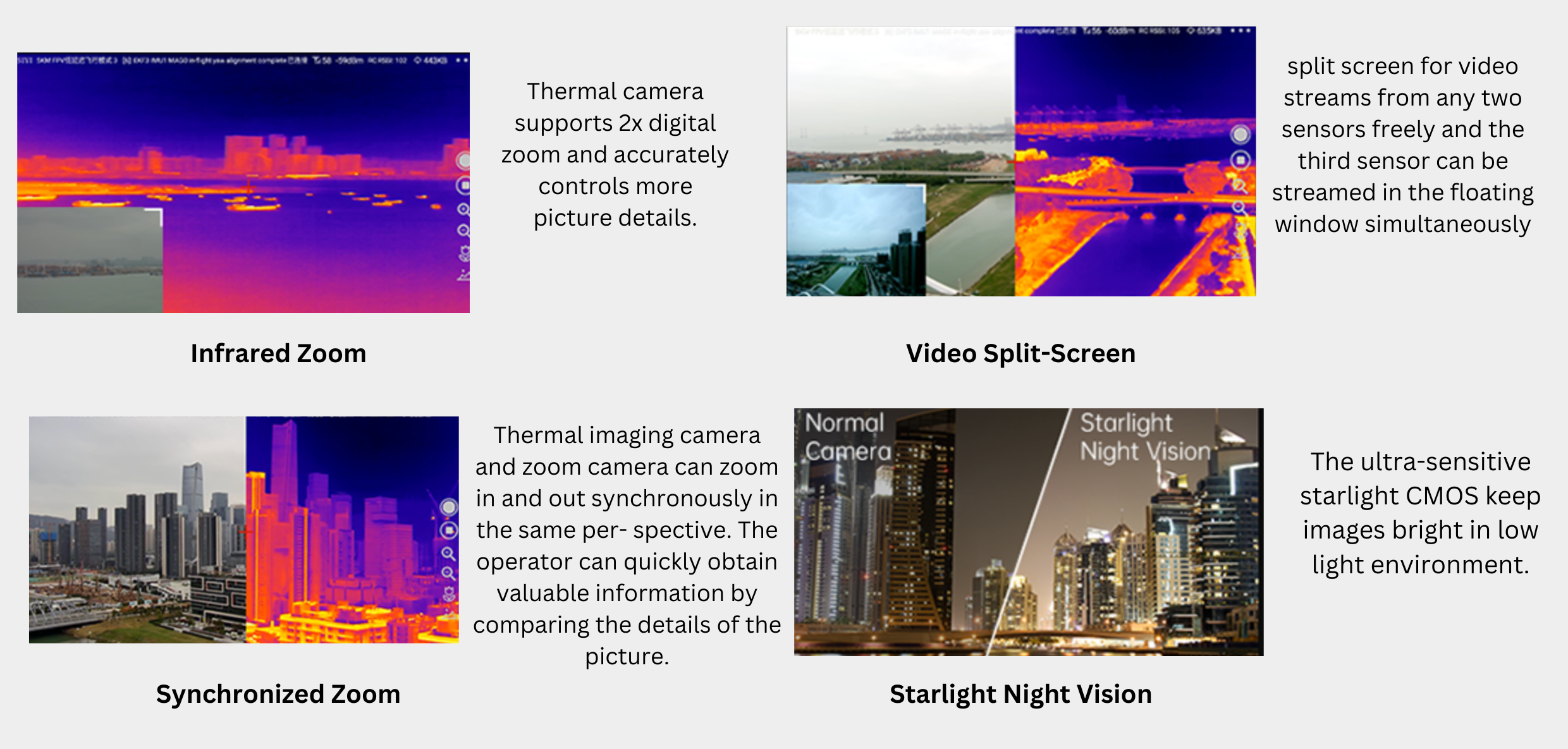

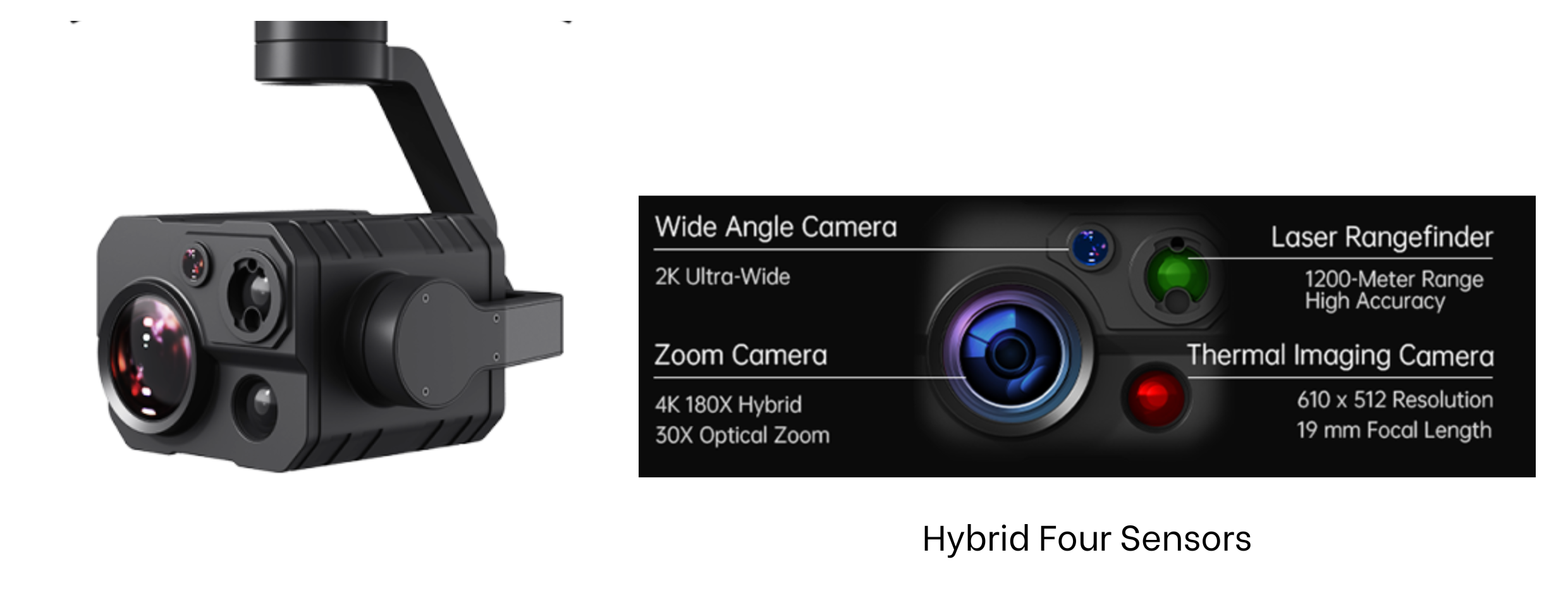

Thermal Camera – Cam 4

Hybrid Four Sensors

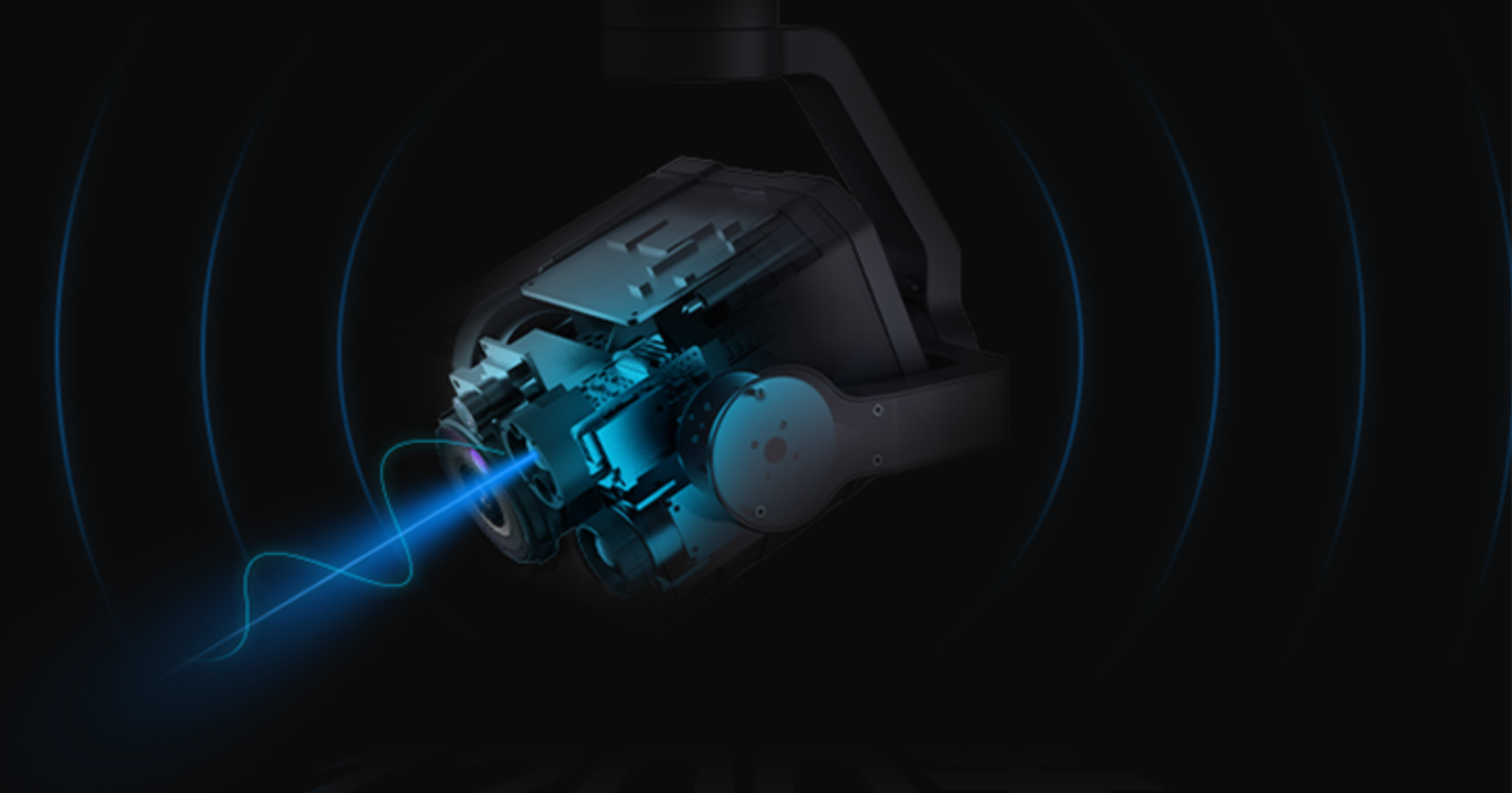

High-Accuracy Laser Rangefinder

Its optical pod is equipped with a rangefinder boasting a range of 1200 meters and a measuring accuracy of 0.1 meters. Known for its sensitivity and reliability, the ZT30 excels in acquiring precise coordinates in real-time, particularly in high-risk operational scenarios. This capability proves invaluable in supporting command decision-making and guaranteeing a secure operational space.

Professional Comprehensive UAV Imaging System

The captured images will include GPS location details and timestamps. Alongside the 180x hybrid zoom (30× optical zoom) 1/2.7-inch Sony 4K image sensor camera, the ZT30 features a wide-angle camera with 2K resolution, delivering an unparalleled expansive view and the ability for panoramic shots. The images are crisp, the algorithm operates swiftly and precisely, and the viewpoint is automatically focused, facilitating the creation of impressive photographs. With seamless motion, fluid zooming, and distant landscapes now easily attainable.

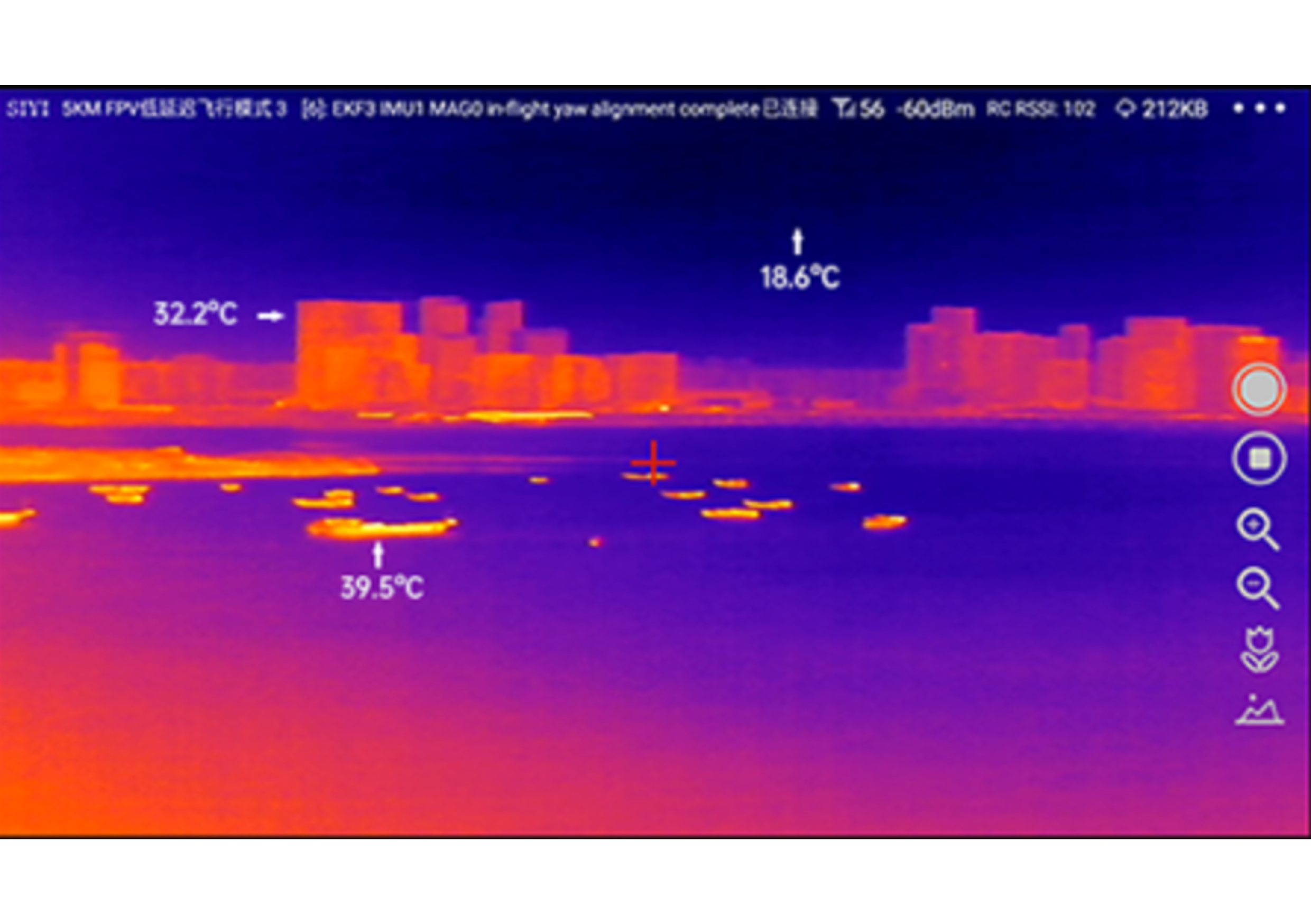

High Resolution Thermal Imaging Full-Screen / Point-Anywhere Temperature Measuring

The optical pod incorporates a thermal imaging sensor with a resolution of 640 × 512, a focal length of 19 mm, and a frame rate of 30 fps, utilizing a four-sensor configuration. It offers expansive and distant vision, ensuring smooth and clear video footage. Swift and precise responses are possible upon detecting abnormal heat sources, and temperature measurements can be obtained by touching the infrared images.

Al Enhanced Smart Identify and Tracking

Equipped with a built-in NPU (neural processing unit) and powerednewly developed AI algorithm, the optical pod can autonomously recognize individuals, vehicles, ships, and other moving targets. Through seamless collaboration between the gimbal attitude control and flight control system, it achieves independent identification, positioning, and continuous tracking. The automatic zoom feature of the visible light camera ensures that the target remains centered on the screen, maintaining a clear and visible aspect ratio.

What’s In The Box & Extended Services

  • Drone
  • Controller
  • Batteries – 2 Qty
  • Battery Charger
  • Camera
  • Loudspeaker
  • 1 set of extra propellors
  • Carry Box
  • User Manual/ SOP

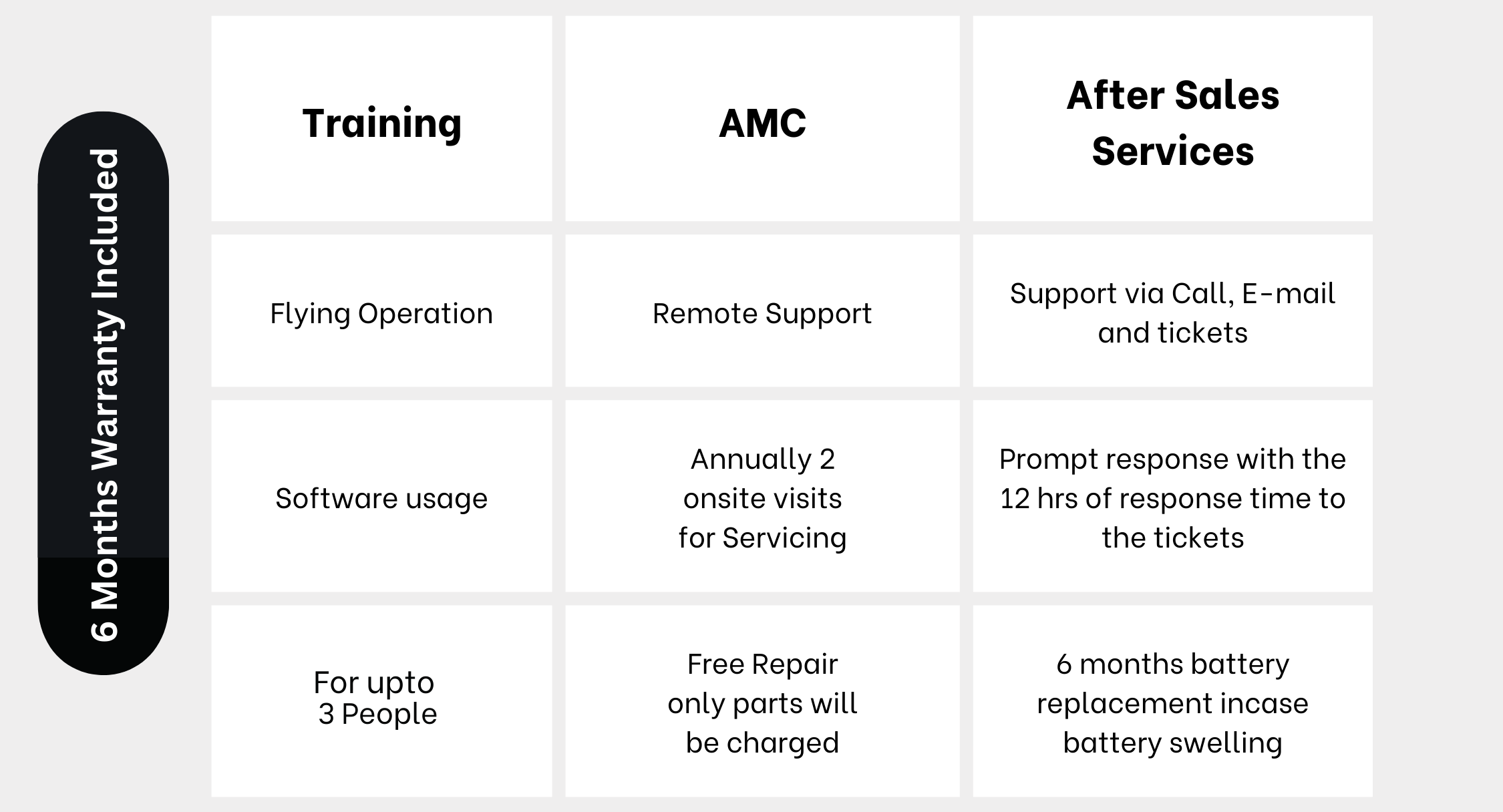

Exclusive Offerings

Training, AMC, After Sales, Drone Pilot Development

Customized Applications

At Xboom , we understand that every client has unique needs and requirements when it comes to drones. That’s why we offer complete customisation of our drones to ensure that they meet your specific needs. Our team of experienced engineers can customise various aspects of our drones, including flight time, camera quality, payload capacity, deployment mechanism, and flight range. By working with us, you can get a drone that is tailored to your specific applications and requirements.

Xboom provides drones for a wide range of applications, including agriculture, surveillance, mapping, and more. Our customised drones are designed to meet the specific needs and requirements of our clients and are equipped with advanced sensors and technology to perform tasks with precision and efficiency. Whether you need a drone for a specific industry or purpose, Xboom has a solution that can meet your needs.
