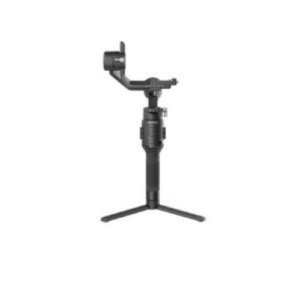

DJI Ronin SC
With a lightweight design and prevalent adjustment, DJI Ronin-SC is a 3-axis stabilizer for mirrorless cameras, permitting clients to make proficient film easily.
Lightweight & Compact
Opening opportunities for movie producers and content makers in practically any circumstance, Ronin-SC was worked to go anyplace. Magnesium and aluminum development, alongside high-strength composite materials give powerful execution at simply 1.1 kg. With a secluded, fast arrangement plan, Ronin-SC can pack conveniently in restricted spaces and be conveyed easily.
Ronin-SC upholds a wide scope of cameras and focal points while fulfilling severe execution guidelines. It has been thoroughly tried to help a payload of 2.0 kg while as yet accomplishing a smooth, true to life shot. Natural and easy to use controls for shade and center are likewise accessible for most camera brands.
Even in action-packed scenes, Ronin-SC gives a perfectly stable shot. Sport mode improves the sensitivity of each axis while continuing to maintain stabilization, making Ronin-SC more effective in fast follows, sudden motions, and even complete changes in direction.
Ronin-SC offers a suite of advanced capturing features to unleash your imagination with features such as Panorama, Time-Lapse, Motion-Lapse and Motion Control.
ActiveTrack technology arrives for the first time in the Ronin series. A smartphone mounted above the camera, the Ronin app, and Ronin-SC work together seamlessly to achieve smooth, precise gimbal movement at all times, allowing you to focus more on creating the shot that matches your vision.
Ronin-SC introduces Force Mobile, an app-based version of the Force Pro camera movement control system. By tilting and rotating your smartphone, users can control the gimbal with ultra-low latency, delivering a fluid, expressive shot with an instinctive feel.
The Ronin app has also been improved for an even better user experience making Ronin-SC professional and easy to use. The layout has been refined to offer quicker access to preset scenarios, and we’ve also included a camera balancing guide, along with tutorials to help users master their handheld gimbal. The app also minimizes hardware tuning, setting filmmakers free to produce great footage.
- Accessory Connections: 1/4” Mounting Hole, 3/8” Mounting Hole, Camera Control Port, Accessory Port, USB-C Port, RSA Port
- Intelligent Battery Model: RB2-2450mAh-7.2V
- Type: 18650 LiPo
- Capacity: 2450 mAh
- Power: 17.64 Wh
- Max. Battery Life: 11 h
- Charging Time: 2.5 h (5 V/2 A)
- Charging Temperature: 5° to 40°C (41° to 104°F)
- Connections Bluetooth: 5.0; USB-C
- Mobile Assistant Software Requirements: iOS 9 or above; Android 5.0 or above
Mechanical & Electrical Characteristics:-
- Working Current Static current: 0.2 A
- Working Frequency: 2.400 GHz to 2.4835 GHz
- Transmission Power: ≤ 8 dBm
- Operating Temperature: -20° to 45°C (-4° to 113°F)
- Weight Gimbal: Approx: 830 g
- BG18 Grip: Approx: 258 g
- Tripod: Approx: 160 g
- Gimbal Dimensions Folded: 220×200×75 mm
- Gimbal Dimensions Unfolded: 370×165×150 mm
Tested Payload: ≤ 2.0 kg
Angular Vibration Range: ±0.02°
Maximum Controlled Rotation Speed:-
- Pan axis control: 180°/s
- Tilt axis control: 180°/s
- Roll axis control: 180°/s
Mechanical Endpoint Range:-
- Pan axis control: 360° continuous rotation
- Tilt axis control: -202.5° to +112.5°
- Roll axis control: -95° to +220
Controlled Rotation Range:-
- Pan axis control: 360° continuous rotation
- Tilt axis control: -90° to 145°
- Roll axis control: ±30°
1.What’s the difference between Ronin-SC and Ronin-S?
Ronin-SC is built for mirrorless cameras, while Ronin-S is a professional handheld stabilizer designed for large and heavy cameras such as DSLRs and larger mirrorless cameras. Compared to Ronin-S, Ronin-SC is lighter, easier to carry, and more flexible when moving quickly while filming. In addition, a wide range of auxiliary shooting functions and hardware designs have been optimized for better performance.
2.How do I upgrade the firmware for Ronin-SC?
You can upgrade the firmware for Ronin-SC through the Ronin app via Bluetooth. Users do not need to connect their Ronin-SC to a computer.
3.What versions of Ronin-SC are available?
Ronin-SC comes in two versions: Ronin-SC and Ronin-SC Pro Combo.
4.What is the optimal payload that should be mounted to Ronin-SC?
As tested, Ronin-SC performs the best when mounted with a payload of 2.0 kg or less.
5.How good is the stabilization of Ronin-SC?
The stabilization of Ronin-SC has passed rigorous testing to meet DJI’s standards. For more information, you can refer to the Ronin-SC Stabilization Technical Standards guide.
6.What is the battery life of Ronin-SC?
Ronin-SC can be used up to 11 hours when the battery is fully charged and the gimbal is well balanced.
7.What is Sport Mode, and how can I enable it?
In Sport mode, the gimbal follows your movements more quickly and efficiently, which is perfect for shooting fast-moving objects. To enable Sport mode, press and hold the M button and wait until the LED indicator turns yellow. You can lock the gimbal in Sport mode by pressing and holding the M button, then double tapping the trigger.
