Description

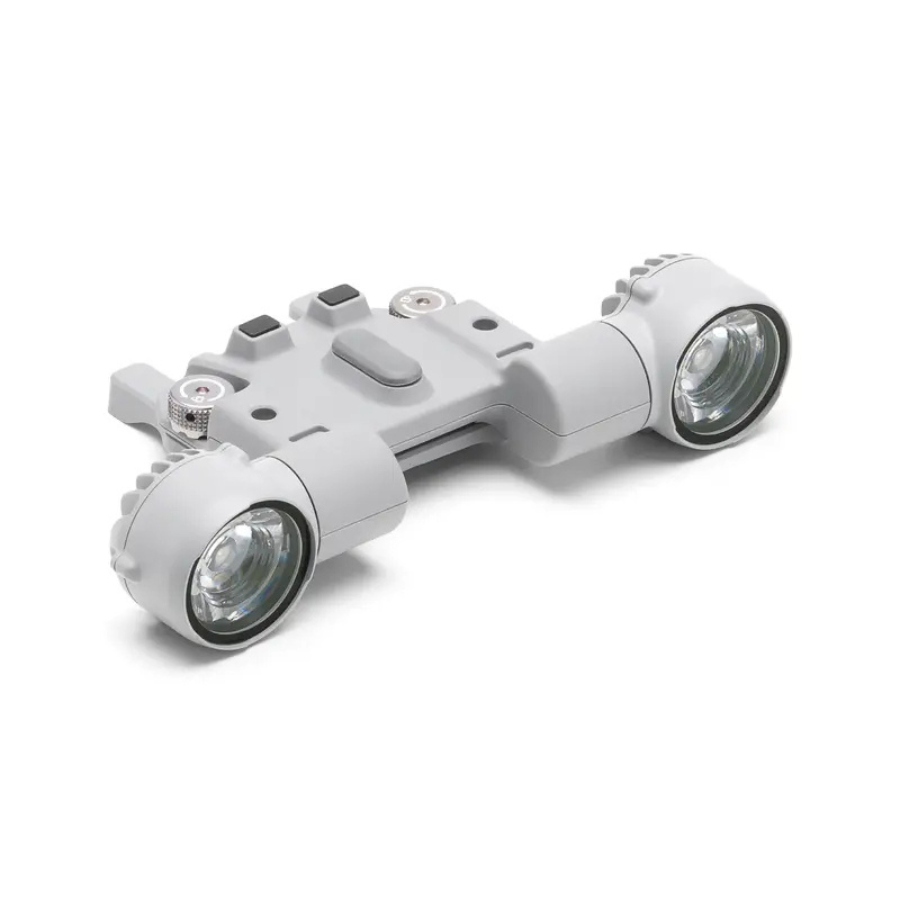

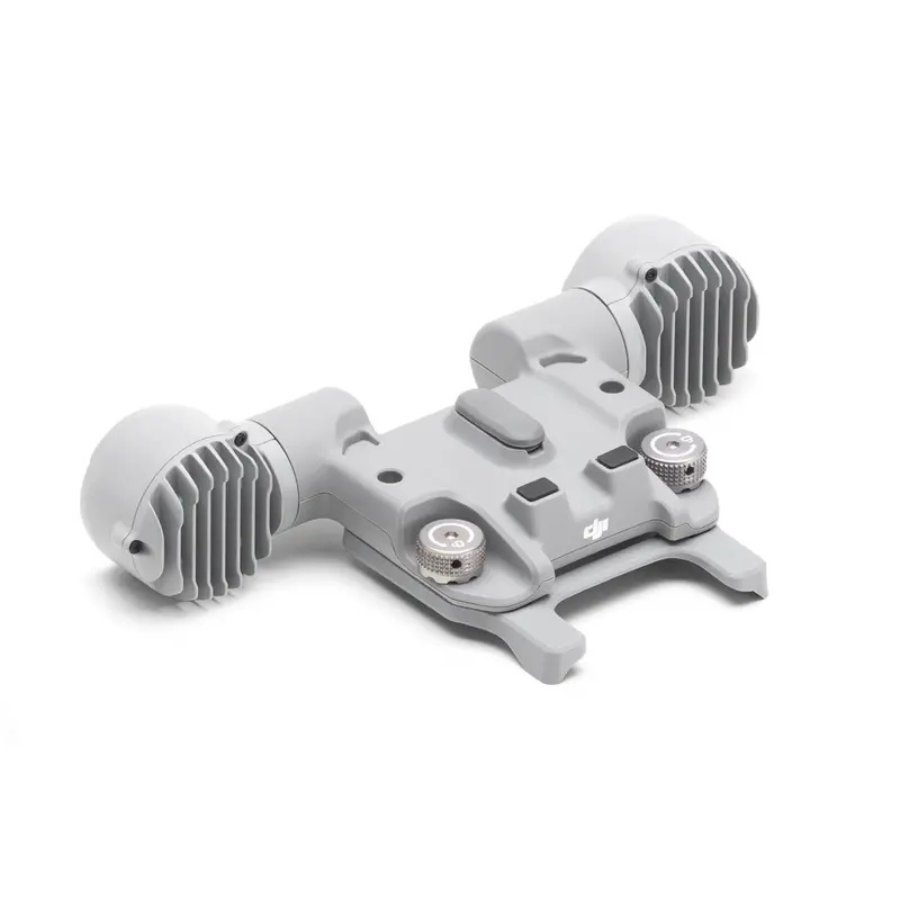

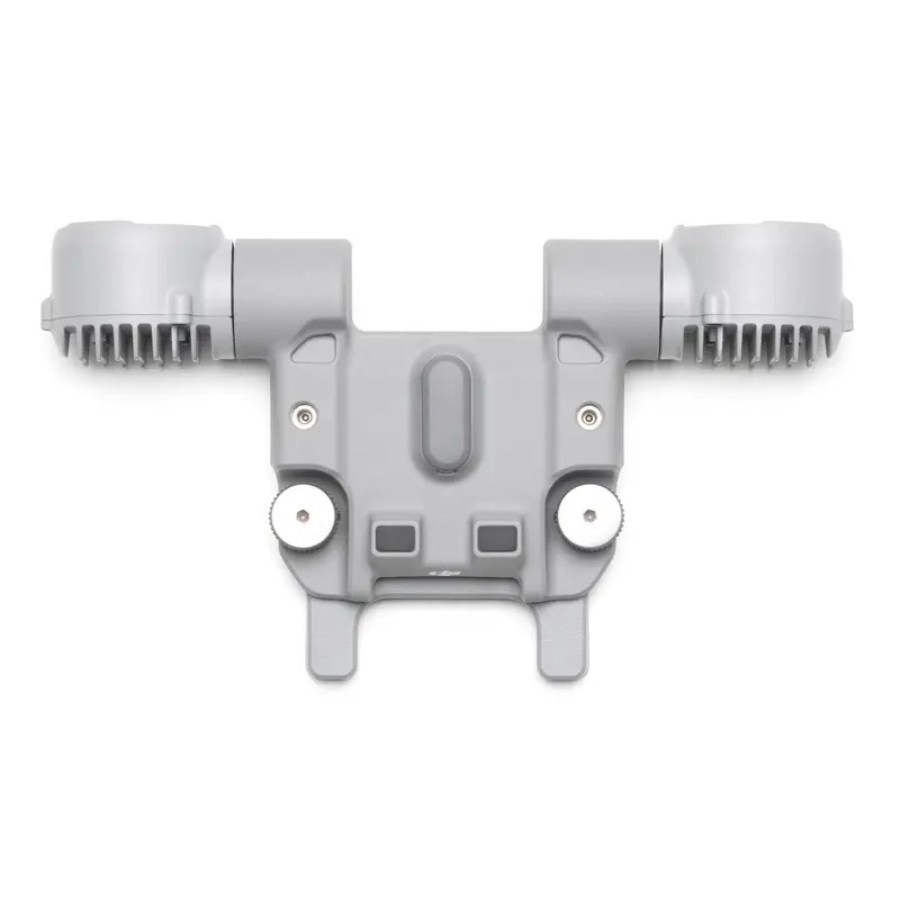

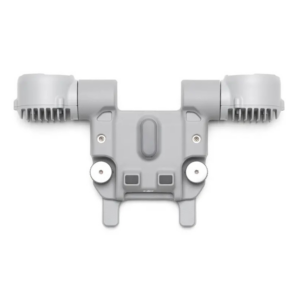

Take a Closer Look at the DJI AL1 Spotlight
Overview
The DJI AL1 Spotlight features two lighting modes: always-on and strobe, providing clear illumination even at distances up to 100 meters. It intelligently synchronizes with the gimbal, aligning the spotlight with the camera’s view for precise illumination. Additionally, its wide field-of-view lighting mode enables broader area coverage in wide-angle settings. Designed for flexibility, the spotlight can operate independently or in combination with other accessories to meet various operational demands.
Highlights
Equipped with always-on and strobe modes, the DJI AL1 Spotlight provides versatile illumination and seamless gimbal integration for dynamic lighting control.
Tips
- Securely tighten the screws during installation using the included hex key, especially for long-term use.
- Follow the app prompts to activate the spotlight after installation and update firmware as needed.

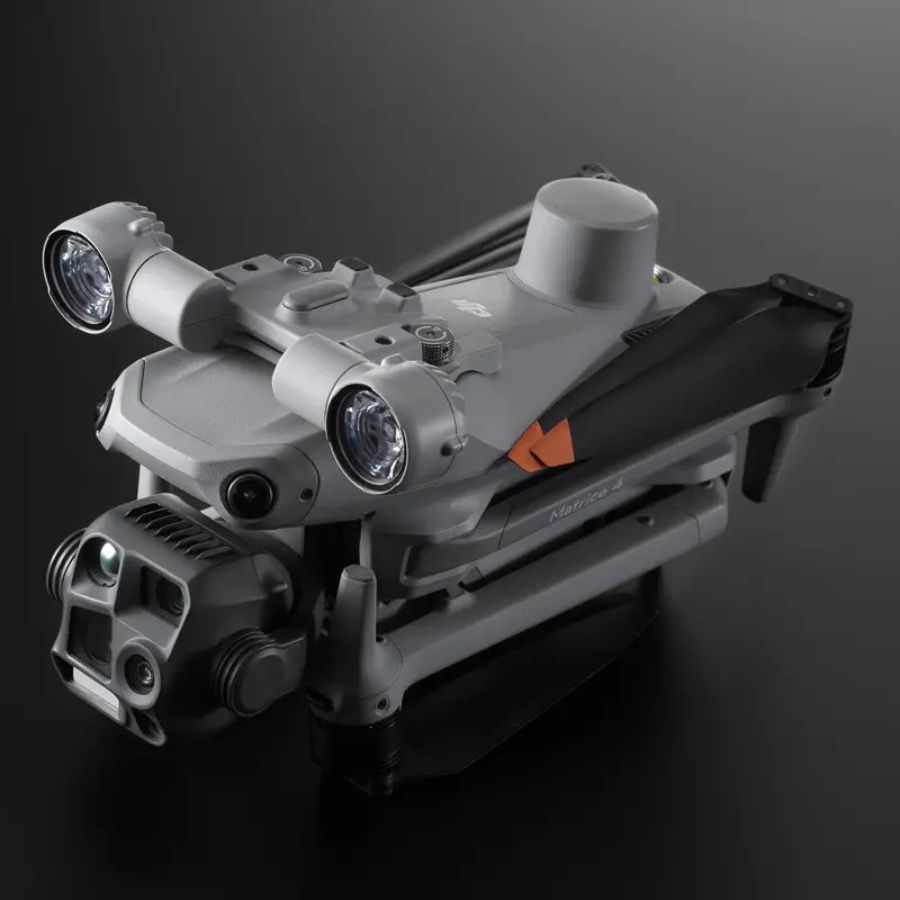

- Be cautious when flying, as mounting the spotlight may impact the Matrice 4 Series aircraft’s propulsion and vision system.
- Avoid directing the spotlight toward people’s eyes to prevent discomfort or injury.
- After extended use, the spotlight may heat up; handle it carefully to avoid burns.
In The Box
- DJI AL1 Spotlight × 1
- Spare Screws × 2
- Hex Key × 1
Specifications
- Weight: 99 g (with bracket); approx. 91 g (without bracket)
- Dimensions: 95×164×30 mm (with bracket); 79×164×28 mm (without bracket)
- Max Power: 32 W
- Illuminance: 4.3±0.2 lux at 100 meters; 17±0.2 lux at 50 meters
- Illumination Angle: 23° (10% relative illuminance)
- Illumination Area: 1,300 sq. m at 100 meters (normal mode); 2,200 sq. m at 100 meters (wide field-of-view mode)
- Modes: Always-on and strobe
- Gimbal Tilt Range: Mechanical: -135° to 45°; Controllable: -90° to 35°
- Max Control Speed: 120°/s (tilt)
- Alignment Accuracy: ±0.1°
- Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Compatibility
Compatible with DJI Matrice 4 Series drones.
