Autel Robotics EVO II Pro V3 Enterprise


  • Moonlight Algorithm 2.0
  • 1″ CMOS Sensor Gimbal Camera
  • 15KM Image Transmission
  • SkyLink 2.0
  • 12-bit DNG
  • 360° Obstacle Avoidance
  • Dynamic Track 2.1
  • 40 Mins Flight Time

368,000.00

  • 1 Year warranty
  • 14-Days Return & Refund
  • Free Delivery

Autel EVO II Pro Enterprise

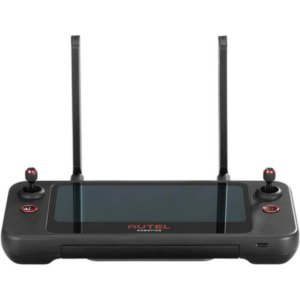

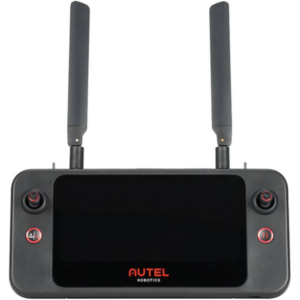

The most recent model in the EVO II family is the Autel Robotics EVO II Pro 6K Enterprise Bundle. The 6K Pro Model has a 6K 1″ CMOS sensor that can capture still images with up to 20MP resolution. The maximum flight time of the Enterprise version is 42 minutes thanks to its larger carbon fibre arms, bigger, more powerful motors, and larger propellers, which contribute an additional 5-7 minutes of flight time. Along with secured internal and external storage, the EVO II Enterprise V3 also incorporates an ADS-B receiver for improved awareness of the operators’ airspace. For optimal viewing while operating, Autel’s 7.9″ 2000-nit Smart Controller is included with every EVO II Enterprise V3 Bundle.

Moonlight Algorithm 2.0

With Autel’s Moonlight Algorithm 2.0, the EVO II Pro V3 offers more noise reduction for better image quality. With the help of its improved CMOS sensor, this drone can take clear pictures and videos at night or in low light.

Excel in Low Light

The Autel Moonlight Algorithm 2.0 is included in EVO II Pro V3 along with enhanced noise reduction processing. Succeed in operations with little lighting or in challenging lighting conditions at night when combined with the improved CaMOS in the EVO II Pro V3.

4K HDR Video

The EVO II Pro V3 combines HDR’s brightness, colour, and detail with 4K clarity’s brilliance. Areas of heavy shade and sunlight that had previously been concealed are now crystal clear and detailed.

Post-Production Flexibility with 12-bit DNG

With 64 times the colour rendering power of 10-bit, the EVO II Pro V3 can record up to 68.6 billion colours and capture 12-bit DNG images, giving post-production specialists more options.

360° Obstacle Avoidance

The main camera, ultrasonic wave, and IMU are just a few of the 19 sets of sensors integrated inside the EVO II Pro V3’s 12 visible optical sensors, which work together to create a three-dimensional map of the drone and its surroundings in real time.

Specifications

Maximum Takeoff Weight 4.4 lb / 1999 g
Maximum Horizontal Speed 44.7 mph / 20 m/s
Maximum Ascent Speed 17.9 mph / 8 m/s
Maximum Descent Speed 8.9 mph / 4 m/s
Flight Ceiling 4.3 Miles / 7000 m
Maximum Flight Time 42 Minutes
Maximum Hover Time 35 Minutes
Maximum Tilt Angle 33°
Hovering Accuracy GNSS
Horizontal: ±4.9′ / 1.5 m
Vertical: ±1.6′ / 0.5 m
Vision Positioning
Horizontal: ±1.0′ / 0.3 m
Vertical: ±0.3′ / 0.1 m
Maximum Angular Velocity 120°/s (Pitch)
Image Sensor 1″-Type CMOS
Sensor Resolution Effective: 20 Megapixel
Focal Length 29mm (35mm Equivalent)
Field of View 82°
Maximum Aperture f/11
Minimum Aperture f/2.8
ISO Sensitivity Photo
100 to 6400
Video
100 to 44,000
Shutter Speed 1/8000 to 8 Seconds
Video Format 6144 x 3160p (120 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC, MPEG-4)
3840 x 2160p (120 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC, MPEG-4)
Broadcast Resolution None
Still Image Support DNG / JPEG
(5472 x 3076)
(3840 x 2160)
(2720 x 1528)
(1920 x 1080)
Internal Storage 8 GB
Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC (UHS-III)
Photo Modes Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot
Number of Axes 3-Axis (Pitch (Tilt), Roll, Yaw (Pan))
Rotation Range Mechanical Range
Pitch (Tilt): 180° (-135 to 45°)
Yaw (Pan): 200° (-100 to 100°)
Controllable Range
Pitch (Tilt): 120° (-90 to 30°)
Yaw (Pan): 180° (-90 to 90°)
Follow Speed Tilt: 300°/s
Stabilization Accuracy ±0.005°
Flight Control System
GNSS Support GPS, GLONASS, BeiDou, Galileo
Vision/Sensing System
Vision System Downward / Upward / Forward / Backward / Left / Right
Vision System Capabilities Forward
Measurement Range: 1.6 to 59.1′ / 0.5 to 18 m
Max Speed: 39.4 ft/s / 12 m/s
Field of View: 60° (Horizontal) / 80° (Vertical)
Backward
Measurement Range: 1.6 to 52.5′ / 0.5 to 16 m
Max Speed: 39.4 ft/s / 12 m/s
Field of View: 60° (Horizontal) / 80° (Vertical)
Lateral
Measurement Range: 1.6 to 32.8′ / 0.5 to 10 m
Max Speed: 16.4 ft/s / 5 m/s
Field of View: 65° (Horizontal) / 50° (Vertical)
Upward
Measurement Range: 1.6 to 32.8′ / 0.5 to 10 m
Max Speed: 16.4 ft/s / 5 m/s
Field of View: 65° (Horizontal) / 50° (Vertical)
Downward
Measurement Range: 1.6 to 32.8′ / 0.5 to 10 m
Max Speed: 16.4 ft/s / 5 m/s
Field of View: 100° (Horizontal) / 80° (Vertical)
Operating Environment Surface with Clear Patterns at >15 lux
Required Object Reflectivity >20%
Operating Frequency 0.9 GHz (902.000 to 928.000)
2.4 GHz (2.400 to 2.483)
5.8 GHz (5.725 to 5.850)
Maximum Operating Distance 9.3 Miles / 15 km
Transmitter Power 20 dBm (2.4 G)
14 dBm (5.8 G)
Battery Type 1 x Built-In
Battery Capacity 1900 mAh
Mobile App Compatible Yes: iOS & watchOS
App Name: Autel Explorer
Functionality: Remote Control, View Live Feed
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Built-In Display Size / Type 7.9″ /
Display Resolution 2340 x 1080
Display Brightness 2000 nits / cd/m2
Operating Temperature -4 to 104°F / -20 to 40°C
Battery Chemistry Lithium-Ion Polymer (LiPo)
Battery Capacity 7100 mAh / 82 Wh
Battery Configuration 3 S / 11.55 V
Maximum Charging Power 93 W
Charging Temperature 41 to 113°F / 5 to 45°C
Weight 12.9 oz / 365 g
SKU: Autel_EVO2_Pro_V3 Enterprise Categories: , , , ,
Weight 11 g
Dimensions 4.3 × 9.1 × 5.1 in
