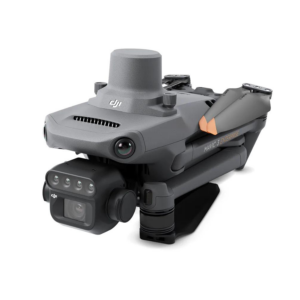

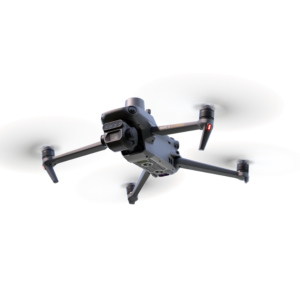

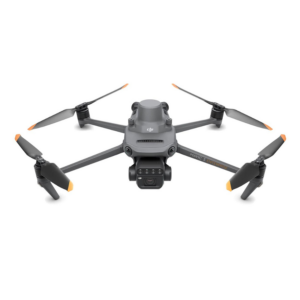

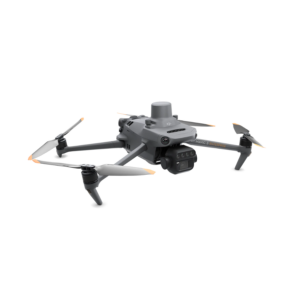

DJI Mavic 3 Multispectral Agriculture Drone With Shoulder Bag Kit

  • Mavic 3E Aircraft x1
  • Mavic 3 Intelligent Flight Battery x3
  • Gimbal Protector
  • Propellers x6 Pair
  • RC Pro Multispectral x1
  • Screwdriver x1
  • USB-C Power Adapter x2
  • AC Cable x1
  • USB-C Cable x1
  • USB-C to USB-C Cable x1
  • Protector Case x1
  • Convertible Carry Bag x1
  • DJI 100W Battery Charging Hub for Mavic 3 Intelligent Flight Batteries

₹625,999.00

  • 1 Year warranty
  • 14-Days Return & Refund
  • Free Delivery

DJI Mavic 3 Multispectral

The DJI Mavic 3 Multispectral Agriculture Drone With Shoulder Bag Kit is an advanced and versatile aerial solution designed specifically for agricultural applications. This comprehensive kit includes the DJI Mavic 3 drone, equipped with a high-resolution multispectral camera, and a convenient shoulder bag for easy transportation.

The Mavic 3 Multispectral Agriculture Drone features a powerful flight performance, enabling precise and efficient data collection over large agricultural areas. Its multispectral camera captures imagery in multiple spectral bands, providing valuable insights into crop health, irrigation management, and nutrient levels. This data can help farmers make informed decisions and optimize their agricultural practices.

Introducing DJI Mavic 3 Multispectral

How to use DJI Mavic 3 Multispectral

Multispectral Cameras

The DJI Mavic 3 Multispectral is designed for precision agriculture and environmental monitoring.

It is equipped with a multispectral imaging system that quickly captures crop growth information to achieve more effective crop production.

The Mavic 3M includes an RTK module that achieves centimetre-level positioning.

The Mavic 3 Multispectral is a highly-portable drone: It’s foldable design and 951g weight means it can be carried in a bag to enable farmers to carry out operations at anytime.

It has 43 minutes of flight time and can complete the surveying and mapping operations of an area as vast as 2 square kilometers in a single flight.

RTK Module Included

The Mavic 3M comes with an RTK module, allowing agricultural professionals to conduct high-precision aerial surveys with care, efficiency and – crucially – without the need for Ground Control Points.

The RTK module enables centimeter-level positioning. Flight control, the camera, and the RTK module sync in microseconds to accurately capture the location of each camera’s imaging centre.

Enhanced Safety Features

The Mavic 3M has an advanced suite of safety features.

Advanced Pilot Assistance System (APAS 5.0): State-of-the-art obstacle sensing and navigation. Data from six vision and two wide-angle sensors are assessed in real-time to detect obstacles in every direction and – when using Avoid mode – reroute your flight path accordingly.

Advanced Return To Home: This smart feature optimises your flight path to preserve battery and get your aircraft home safe and sound at the touch of a button.

AirSense: The built-in AirSense system provides an early warning of nearby crewed aircraft transmitting ADS-B signals.

Smart Terrain Follow

The Mavic 3M offers Terrain Follow, helping you maintain an even altitude as you fly a survey mission across varying terrain.

By smoothly adjusting according to the terrain, you can secure the integrity of your data while it’s gathered, without having to account for any differences in post-processing.

For situations when you weren’t able to import a DSM or local elevation data pre-flight, the Mavic 3M’s collision avoidance sensors can take over by detecting the ground below and automatically adjusting flight height accordingly.

Intelligent Field Scouting

The Mavic 3M can carry out automatic field scouting. The field scout images can be uploaded to the DJI SmartFarm Platform in real time through a 4G network.

It can find abnormalities, such as emergence deficiencies, weed pressure, and crop lodging in a timely manner.

It can also conduct intelligent analyses, such as cotton seedling identification and rice production testing, using AI identification for real-time sharing of crop growth information, guidance of agronomic activities, and easy management of 70 hectares of farmland by one person.

Mavic 3E Customisation

Build a solution tailored to your needs with Cloud API and MSDK.

Cloud API
The Mavic 3M can be directly connected to a third-party cloud platform via Pilot 2’s built-in DJI Cloud API based on the MQTT protocol. There is no need to develop an app separately to enable the transmission of UAV equipment information, live streaming, photo data, and other information.

MSDK
The Mavic 3M supports Mobile SDK 5 (MSDK5) with a fully open-source production code sample. The MSDK5 makes it possible to develop a proprietary control app for UAV field patrol, smart surveying, and other scenarios, making it more user-friendly.

Full Software Suite

The Mavic 3 Multispectral is fully compatible with the DJI SmartFarm app, allowing agriculture professionals to coordinate any data gathered with spraying and spreading operations.

SmartFarm comes with a range of features for streamlined workflows, including intuitive mission planning, a full fleet overview, field management, data assessment, and effortless collaboration between teams.

Data captured by Mavic 3M is also fully compatible with DJI Terra, so you can easily and efficiently create maps and models of your targets.

The Mavic 3M comes with a three-month DJI Terra Full licence (one device) and one-year access to the DJI SmartFarm Platform.

Specifications of DJI Mavic 3 Multispectral

Net Weight (with propellers and RTK module)

951 g

Max Takeoff Weight

1,050 g

Dimensions (Folded/Unfolded)

Folded (without propellers): 223×96.3×122.2 mm (Length×Width×Height)
Unfolded (without propellers): 347.5×283×139.6 mm (Length×Width×Height)

Diagonal Length

Diagonal: 380.1 mm

Max Ascent Speed

6 m/s (Normal Mode)
8 m/s (Sport Mode)

Max Descent Speed

6 m/s (Normal Mode)
6 m/s (Sport Mode)

Max Flight Speed (at sea level, no wind)

15 m/s (Normal Mode)
Flying forward: 21 m/s, flying sideways: 20 m/s, flying backwards: 19 m/s (Sport mode)

Max Wind Speed Resistance

12 m/s

Max Take-off Altitude Above Sea Level

6000 m (without a payload)

Max Flight Time (without wind)

43 minutes

Max Hover Time (without wind)

37 minutes

Max Flight Distance

32 km

Max Tilt Angle

30° (Normal Mode)
35° (Sport Mode)

Max Angular Velocity

200°/s

GNSS

GPS + Galileo + BeiDou + GLONASS (GLONASS is supported only when RTK module is enabled)

Hovering Accuracy Range

Vertical: ±0.1 m (Vision Positioning enabled); ±0.5 m (GNSS Positioning enabled); ±0.1 m (D-RTK enabled)
Horizontal: ±0.3 m (Vision Positioning enabled); ±0.5 m (HD Positioning enabled); ±0.1 m (RTK enabled)

Operating Temperature

-10° to 40° C (14° to 104° F)

Internal Storage

N/A

Motor Model Number

2008

Propeller Model Number

9453F Enterprise Edition

Light Sensor

Built-in module

Image Sensor

4/3 CMOS
Effective Pixels: 20 MP

Lens

FOV: 84°
Equivalent focal length: 24 mm
Aperture: f/2.8 to f/11
Focus: 1 m to ∞

ISO Range

100-6400

Shutter speed

Electronic shutter: 8-1/8000 s
Mechanical shutter: 8-1/2000 s

Max Image Size

5280×3956

Photo Shooting Mode

Single shot: 20 MP
Timelapse: 20 MP
JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
JPEG + RAW: 3/5/7/10/15/20/30/60 s
Panorama: 20 MP (original material)

Video Resolution

H.264:
4K: 3840×2160@30fps
FHD: 1920×1080@30fps

Max Video Bitrate

4K: 130Mbps
FHD: 70Mbps

Supported File System

exFAT

Image Format

JPEG/DNG (RAW)

Video Format

MP4 (MPEG-4 AVC/H.264)

Image Sensor

1/2.8-inch CMOS, effective pixels: 5 MP

Lens

FOV: 73.91° (61.2° x 48.10°)
Equivalent focal length: 25 mm
Aperture: f/2.0
Focus: Fixed Focus

Multispectral Camera Band

Green (G): 560 ± 16 nm;
Red (R): 650 ± 16 nm;
Red Edge (RE): 730 ± 16 nm;
Near infrared (NIR): 860 ± 26 nm;

Gain Range

1x-32x

Shutter Speed

Electronic Shutter: 1/30~1/12800 s

Max Image Size

2592×1944

Image Format

TIFF

Video Format

MP4 (MPEG-4 AVC/H.264)

Photo Shooting Mode

Single shot: 5 MP
Timelapse: 5 MP
TIFF: 2/3/5/7/10/15/20/30/60 s

Video Resolution

H.264
FHD: 1920 x 1080@30fps
Video content: NDVI/GNDVI/NDRE

Max Video Bitrate

Stream: 60 Mbps

Stabilization System

3-axis mechanical gimbal (tilt, roll, pan)

Mechanical Range

Tilt: -135° to 45°
Roll: -45° to 45°
Pan: -27° to 27°

Controllable Range

Tilt: -90° to 35°
Pan: Uncontrollable

Max Control Speed (tilt)

100°/s

Angular Vibration Range

±0.007°

Sensing System Type

Omnidirectional binocular vision system, with an infrared sensor at the bottom of the aircraft

Forward

Distance Measuring Range: 0.5 m to 20 m
Detection Range: 0.5 m to 200 m
Effective Obstacle Avoidance Speed: Flight Speed ≤15 m/s
FOV: Horizontal 90°, vertical 103°

Backward

Distance Measuring Range: 0.5 m to 16 m
Effective Obstacle Avoidance Speed: Flight speed ≤12 m/s
FOV: Horizontal 90°, vertical 103°

Lateral

Distance Measuring Range: 0.5 m to 25 m
Effective Obstacle Avoidance Speed: Flight speed ≤15 m/s
FOV: Horizontal 90°, vertical 85°

Upward

Distance Measuring Range: 0.2 m to 10 m
Effective Obstacle Avoidance Speed: Flight Speed ≤6 m/s
FOV: Front and rear 100°, left and right 90°

Downward

Distance Measuring Range: 0.3 m to 18 m
Effective Obstacle Avoidance Speed: Flight speed ≤6 m/s
FOV: Front and rear 130°, left and right 160°

Operating Environment

Front, Rear, Left, Right, Above: Surfaces with clear patterns and adequate lighting (> 15 lux, environments with normal indoor fluorescent light exposure)
Below: Surfaces with diffuse reflection material and a reflectivity of >20% (such as walls, trees, people, etc.); Adequate lighting (>15 lux, environments with normal indoor fluorescent light exposure)

Video Transmission System

DJI O3 Image Transmission Industry Edition

Live View Quality

Remote Controller: 1080p/30fps

Operating Band

2.400-2.4835 GHz
5.725-5.850 GHz

Max Effective Signal Distance (Unobstructed, No interference)

FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km

Max Transmission Distance (Obstructed)

Strong Interference (urban landscapes, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)
Medium Interference (suburban landscapes, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)
Weak Interference (remote fields, open farmland, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)

Max Download Speed

15 MB/s (with DJI RC Pro Industry Edition)

Latency (depending on environment and mobile device)

Approximately 200 milliseconds

Antennas

4 antennas, 2 transmitting and 4 receiving

Transmitter Power (EIRP)

2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)

Other

Supports the DJI Cellular module

Image Transmission System

DJI O3 Image Transmission Industry Edition

Max Effective Signal Distance (Unobstructed, No interference)

FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km

Operating Band of Image Transmission

2.400-2.4835 GHz
5.725-5.850 GHz

Antennas

4 antennas, 2 transmitting and 4 receiving

Operating Band of Image Transmission and Transmitter Power (EIRP)

2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)

Wi-Fi Protocol

802.11 a/b/g/n/ac/ax
Support 2×2 MIMO Wi-Fi

Wi-Fi Operating Band

2.400-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz

Wi-Fi Operating Band and Transmitter Power (EIRP)

2.4 GHz: <26 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.1 GHz: <26 dBm (FCC); <23 dBm (CE/SRRC/MIC)
5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm (CE)

Bluetooth Protocol

Bluetooth 5.1

Bluetooth Operating Band

2.400-2.4835 GHz

Bluetooth Transmitter Power (EIRP)

<10 dBm

Screen Resolution

1920×1080

Screen Size

5.5 inches

Screen Frame Rate

60 fps

Screen Brightness

1,000 nits

Touch-Screen

10-point multi-touch

Battery

Lithium-ion battery (5000 mAh, 7.2 V)

Charging Type

100W Battery Charging Hub or USB charger with 12V or 15V specifications is recommended

Rated Power

12 Watts

Storage Capacity

Internal Memory (ROM): 64 GB
Supports microSD card usage to increase storage capacity

Charging Time

Approx. 1.5 hours (measured when only using the 100W Battery Charging Hub to charge the remote control, or when using a 15V USB charger)
Approximately 2 hours (measured using a 12V USB charger)
Approximately 2 hours and 50 minutes (measured using the 100W Battery Charging Hub to charge the aircraft and remote control at the same time)

Operating Time

Approx. 3 hours

Video Output Port

Mini-HDMI Port

Operating Temperature

-10° to 40° C (14° to 104°F)

Storage Temperature Range

<1 month: -30° to 60° C (-22° to 140° F)
One to three months: -30° to 45° C (-22° to 113° F)
Three to six months: -30° to 35° C (-22° to 95° F)
More than six months: -30° to 25° C (-22° to 77° F)

Charging Temperature

5° to 40° C (41° to 104° F)

Supported DJI Aircraft

DJI Mavic 3E
DJI Mavic 3T
DJI Mavic 3M

GNSS

GPS + Galileo + GLONASS

Dimensions

Antenna is folded and no control sticks are installed:
183.27×137.41×47.6 mm (Length×Width×Height)
Antenna unfolded and control sticks are installed:
183.27×203.35×59.84 mm (Length×Width×Height)

Weight

Approx. 680 g

Model Number

RM510B

Supported microSD Cards

Aircraft:
Please use a memory card with a speed rating of V30 or higher, or use a memory card from the recommended list

Recommended microSD Cards

Remote Controller:
SanDisk Extreme PRO 64GB V30 A2 microSDXC
SanDisk High Endurance 64GB V30 microSDXC
SanDisk Extreme 128GB V30 A2 microSDXC
SanDisk Extreme 256GB V30 A2 microSDXC
SanDisk Extreme 512GB V30 A2 microSDXC
Lexar 667x 64GB V30 A2 microSDXC
Lexar High-Endurance 64GB V30 microSDXC
Lexar High-Endurance 128GB V30 microSDXC
Lexar 667x 256GB V30 A2 microSDXC
Lexar 512GB V30 A2 microSDXC
Samsung EVO Plus 64GB V30 microSDXC
Samsung EVO Plus 128GB V30 microSDXC
Samsung EVO Plus 256GB V30 microSDXC
Samsung EVO Plus 512GB V30 microSDXC
Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
Kingston Canvas React Plus 128GB V90 A1 microSDXC

Aircraft:
SanDisk Extreme 32GB V30 A1 microSDHC
SanDisk Extreme PRO 32GB V30 A1 microSDHC
SanDisk Extreme 512GB V30 A2 microSDXC
Lexar 1066x 64GB V30 A2 microSDXC
Kingston Canvas Go! Plus 64GB V30 A2 microSDXC
Kingston Canvas React Plus 64GB V90 A1 microSDXC
Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
Kingston Canvas React Plus 128GB V90 A1 microSDXC
Kingston Canvas React Plus 256GB V90 A2 microSDXC
Samsung PRO Plus 256GB V30 A2 microSDXC

Capacity

5000 mAh

Standard Voltage

15.4 V

Max Charging Voltage

17.6 V

Battery Type

LiPo 4S

Chemical System

Lithium Cobalt

Energy

77 watt-hours

Weight

335.5 g

Charging Temperature

5° to 40° C (41° to 104° F)

Input

100V to 240V (AC), 50Hz to 60Hz, 2.5A

Output Power

100 Watts

Output

Maximum output power of 100 Watts (total)
When both the ports are used, the maximum output power of one interface is 82 W, and the charger will dynamically allocate the output power of the two interfaces according to load power.

Input

USB-C: 5V to 20V, 5.0A

Output

Battery Port: 12V to 17.6V, 8.0A

Rated Power

100 Watts

Charging Type

3 batteries on charging rotation

Charging Temperature

5° to 40° C (41° to 104° F)

Dimensions

50.2×40.2×66.2 mm (Length×Width×Height)

Weight

24±2 g

Interface

USB-C

Power

Approximately 1.2 watts

RTK Position Accuracy

Fixed RTK:
Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm

DJI Introduces the New Mavic 3 Multispectral Drone: Transforming Precision Agriculture Worldwide

Precision agricultural practitioners worldwide now have access to cutting-edge productivity solutions thanks to the DJI Mavic 3 Multispectral.

DJI, the global leader in drone technology, designed this exciting model which has revolutionary features such as a multispectral imaging system that can instantly record data on crop growth for more efficient crop production.

✓  Compact and portable; weighing just 951 grams to easily fold and fit into an ordinary bag.
✓  Two-in-one RGB and Multispectral camera to monitor and collect a wide range of data.
✓  4 5MP sensors that scan in the green, red, red edge, and near infrared wavelengths.
✓  RGB camera with 4/3-inch CMOS, 20MP image sensor, and 1/2000 maximum speed mechanical shutter
✓  43 minutes total flight time.

The DJI Mavic 3 Multispectral is a small, portable precision agriculture system that combines an RGB camera with a multispectral sensor to scan and analyse crop growth in detail.

Read More

Home

DJI Mavic 3 Multispectral Agriculture Drone specifications, DJI Mavic 3 Multispectral Agriculture Drone review, DJI Mavic 3 Multispectral Agriculture Drone price in India, DJI Mavic 3 Multispectral Agriculture Drone features

Categories: , , ,

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “DJI Mavic 3 Multispectral Agriculture Drone With Shoulder Bag Kit”

There are no reviews yet.

Related products
