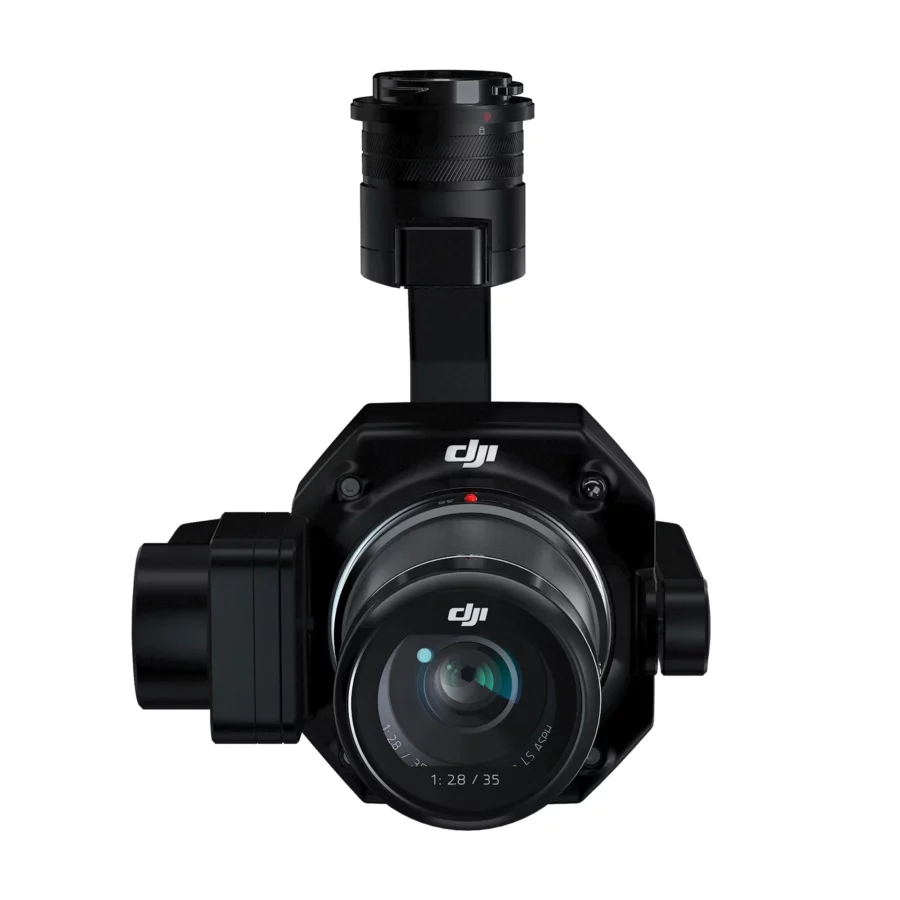

DJI Zenmuse P1 – Full-Frame Aerial Camera
The DJI Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level
Efficiency to Cover It All
Full-frame Camera
– 45MP Full-frame Sensor
– 4.4μm Pixel Size
– Low-noise, high sensitivity imaging extends daily operational time
– Take a photo every 0.7 s during the flight
– TimeSync 2.0 aligns the camera, flight controller, RTK module, and gimbal at the microsecond level
Smart Oblique Capture
Cover 7.5 km2 [4] in a single workday with the DJI Zenmuse P1. Elevate the efficiency of your oblique photography mission using Smart Oblique Capture, where the gimbal automatically rotates to take photos at the different angles needed. Only photos essential to the reconstruction will be taken at the edge of the flight area, increasing the efficiency of post-processing by 20%[5] to 50%[6].
Fieldwork Report
Verify data quality immediately post-flight by checking the position data and number of images acquired, as well as RTK status and positioning accuracy
Applications
Specifications
General
Product Name
-
ZENMUSE P1
Dimensions
-
198×166×129 mm
Weight
-
Approx. 800 g
Power
-
20W
IP Rating
-
IP4X

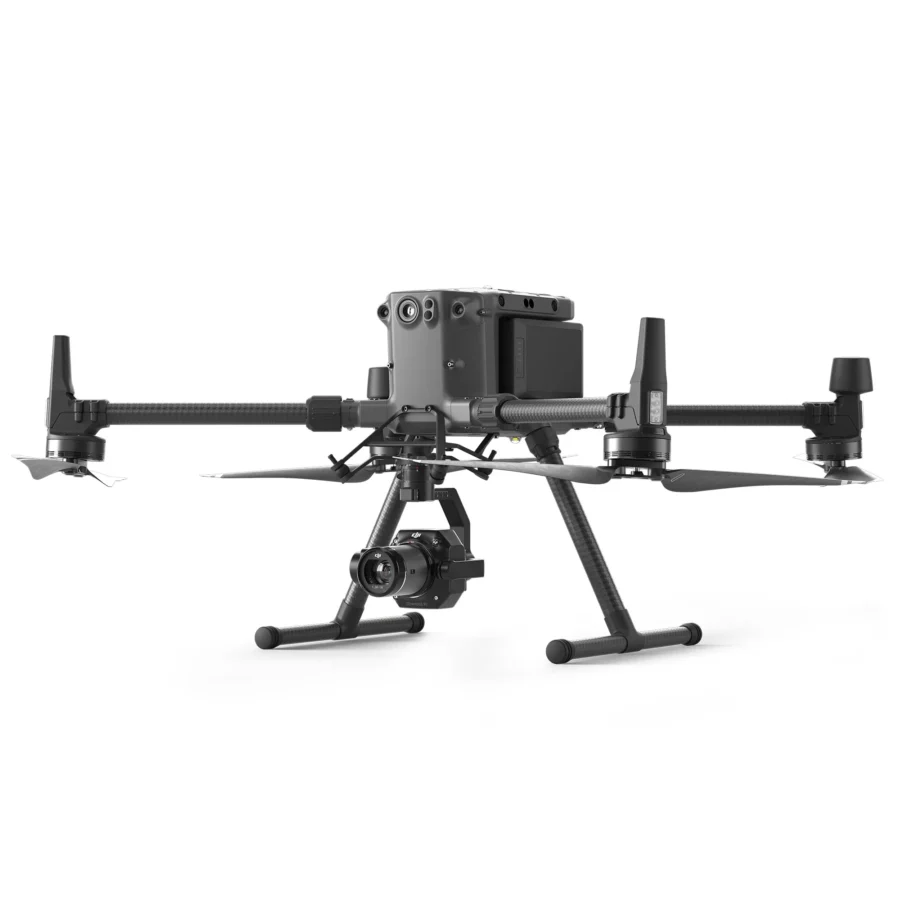

Supported Aircraft
-
Matrice 300 RTK
Operating Temperature Range
-
-20° to 50° C (-4° to 122° F)
Storage Temperature Range
-
-20° to 60° C (-4° to 140° F)
Absolute Accuracy
-
Horizontal: 3 cm, Vertical: 5 cm *
* Using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with an 75% front overlap rate and a 55% side overlap rate.
Camera
Sensor
-
Sensor size (Still): 35.9×24 mm (Full frame)
Sensor size (Max video recording area): 34×19 mm
Effective Pixels: 45MP
Pixel size: 4.4 μm
-
Supported Lenses
-
DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 84°
DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5°
DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 46.8°
Supported SD Cards
-
SD: UHS-I rating or above; Max capacity: 512 GB
Storage Files
-
Photo / GNSS Raw Observation Data/ Image Log File
Photo Size
-
3:2 (8192×5460)
Operation Modes
-
Photo, Video, Playback
Minimum photo interval
-
0.7 s
Shutter Speed
-
Mechanical Shutter Speed: 1/2000*-1 s
Electronic Shutter Speed: 1/8000-1 s
*Aperature value no larger than f/5.6
Aperture Range
-
f/2.8-f/16
ISO Range
-
Photo: 100-25600
Video: 100-25600
Video
Video Format
-
MP4,MOV
Video Resolution
-
16:9 (1920×1080)
16:9 (3840×2160)*
*Only 35mm lens supported
Frame Rate
-
60fps
Gimbal
Stabilized System
-
3-axis (tilt, roll, pan)
Angular Vibration Range
-
±0.01°
Mount
-
Detachable DJI SKYPORT
Mechanical Range
-
Tilt: -130° to +40°;
Roll: -55° to +55°;
Pan: ±320°
