Description
GREATER PIXEL CLARITY
Shooting with the Zenmuse X5’s M4/3 sensor results in images that are crisper and more detailed than any previous aerial camera. When compared with the X3 camera with the original Inspire 1, the difference is clear in images that truly come to life.
ZENMUSE X5 REVOLUTIONARY SENSOR
Built inside the Zenmuse X5 is a powerful Micro Four Thirds sensor that’s absolutely revolutionary for an aerial camera. With a sensor eight times, the size of that in the previous X3 camera included with the Inspire 1, this new MFT sensor enables high quality, high sensitivity image recording at an ISO range of 100-25600. With a sophisticated balance of high resolving power, accurate gradation, and low noise, you are realizing your artistic and creative vision as never before.
READY TO FLY
Say goodbye to frustratingly long setups. The Zenmuse X5 is perfectly compatible with the Inspire 1, DJI’s professional, ready-to-fly aerial platform. Instantly ready and bringing a level of control and convenience that only a fully integrated system can provide, you have a combination of imaging prowess and ease-of-use that is unprecedented in any aerial imaging system.
TAKE CONTROL
With the Zenmuse X5, you have an unprecedented level of control right at your fingertips. In the intuitive auto-focus mode, simply tap on the screen of your mobile device to tell the camera to focus on a specific area. You can also easily manually change settings such as focus, shutter, and aperture through the user-friendly DJI GO app. With the Zenmuse X5, you are always ready to take control.
PROFESSIONAL AERIAL VIDEO
Despite its compact size, the Zenmuse X5 is a powerful video camera that’s capable of recording 4K (3840 x 2160) at up to 30 fps, 2.7K (2704×1520) at up to 30 fps, and Full HD (1920 x 1080) at up to 60 fps in MP4/MOV format. The Zenmuse X5 enables you to record professional-level footage with stunning clarity and detail. A higher speed signal readout suppresses the rolling shutter effect when recording, resulting in beautiful footage even when flying at high speeds. The Zenmuse X5 also comes equipped with convenient features such as Zebra Pattern and Focus Peaking making it a camera that’s truly fit for any job.
CAPTURE MEMORIES
With an M4/3 sensor that’s capable of capturing photos at 16MP, the Zenmuse X5 produces print-ready images that look as good in a frame as they do
on your screen. The extra pixels represent a 25% increase over the original Inspire 1 camera. With the shutter speed increased to as quick as
1/8000 of a second, and the power of the new imaging processor enabling burst capture of up to 7 full-size photos per second, the Zenmuse X5 helps
you relish every memorable moment.
UNPARALLELED STABILIZATION
Thanks to DJI’s unparalleled expertise in stabilization systems, the Zenmuse X5 is equipped with a highly reliable 3-axis gimbal that automatically stabilizes your camera in flight. The gimbal constantly communicates with the aircraft, and quickly compensates for every minor movement. With a precision accuracy of 0.02°, sub-pixel stabilization is occurring and as a result, the Zenmuse X5 produces silky smooth footage and sharp photos even with long exposure no matter how you fly.
INTERCHANGEABLE LENS MOUNT
As the world’s first Micro Four Thirds camera made specifically for aerial photography and videography, the Zenmuse X5 gives you the freedom to choose your lens. By utilizing the standard MFT mount, one of the most popular lens systems in the camera industry, the Zenmuse X5 is well-positioned to benefit from new products and innovations from major lens manufacturers.
Currently, a range of lenses are compatible with the Zenmuse X5. With different specifications but the same top-notch quality, these three
lenses provide you with flexibility on set.
DJI GO APP
Control the Zenmuse X5 remotely with the same DJI GO app that is used with the Inspire 1. With a live HD view powered by DJI Lightbridge, you see exactly what the camera is capturing and can adjust every setting on the fly.
- One-tap autofocus, or precise manual focus pulling
- Full 360-degree camera control
- Manual settings including aperture, white balance,
shutter speed, and more. - Ability to upload or Livestream your flights to YouTube
- All at a range of over 1 mile
Zenmuse X5 – BUILT TO LAST
The Zenmuse X5 is precisely manufactured with high-grade magnesium alloys and aluminum alloys, enabling it to withstand heavy field use. Compact and lightweight to allow easy transportation and long flight times, the Zenmuse X5 is built to last.
PRECISE FOCUS CONTROL

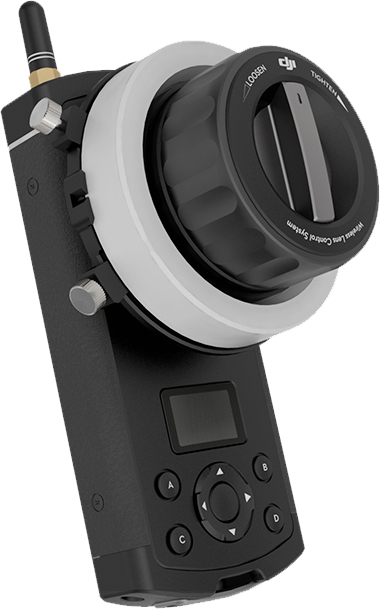

As you fly, focus can be remotely adjusted using the GO app or the DJI Focus system. Simply plug this new follow focus controller into the Inspire 1 remote to have an accurate, familiar physical focus wheel that controls the way your shots look.
*You need to connect the Focus Remote Controller and the X5 Adapter using the DJI Focus – Osmo Pro/RAW Adaptor Cable.
Zenmuse X5 Specs
SENSOR:-
| Size | 4/3″ |
|---|---|
| Type | CMOS |
| 16.0M | Effective Pixels |
| ISO Range | 100~25600 |
MAX-PIXELS:-
| Max-Pixels | 16.0M |
|---|---|
| Burst Shooting | Full pixels 7fps |
| Shutter Speed | 8~1/8000 sec |
| EV Range | -3~+3, 1/3 |
| AEB | Support |
| Interval | Support |
| Time Lapsed | Support, 5/7/10/20/30 sec |
| DNG | Support |
MISC:-
| Exposure | P/S/A/M |
|---|---|
| AE Metering | Auto/spot metering |
| AE Lock | Support |
| WB | auto/manual/spot |
| Focus Mode | AFS/AFF/MFT |
| Focus Mode | 256-zone / Pinpoint/(Touch focus is available) |
| AF AUX | Support |
| AE Lock | Yes (AF/AE LOCK button) |
| Focus Peaking | Support |
| Zebra | Support |
| Adjustment | Support |
| Style | sRGB,Color looks, LOG, Cine-D |
| Enhancement | HDR/Video DR |
| Software | N/A |
LENS:-
| Optics | User Selectable (default DJI MFT 15mm F/1.7 ASPH) |
|---|---|
| Iris | F/1.7-F/16 (default DJI lens) |
| Diagonal FOV | 72 degree (default DJI lens) |
| Equivalent | 30mm (default DJI lens) |
| Distortion | 0.40% |
| Focus Range | 20cm-infinite (default DJI lens) |
| Auto-Focus | Support (default DJI lens) |
VIDEO:-
| Resolution | 4096×2160(23.98p) 3840×2160(29.97/23.98p) 2704×1520(30/25P) 1920×1080(59.94/29.97p) |
|---|---|
| Encoder | MPEG4/AVC/H.264 |
| Max-Bitrate | 60Mbps@4096×2160(23.98p） 60Mbps@3840×2160(29.97/23.98p) 45Mbps@2704×1520(30/25p) 40Mbps@1920×1080(59.94p) 25Mbps@1920×1080(29.97p) |
| Format | MP4/MOV |
| Storage | Micro-SD Class 10 |
| Video NR | Support |
| Stabilizer | Support |
ZENMUSE X5 FAQ
1. What is the advantage of the ZENMUSE X5 Series, compared to other M4/3 cameras in the market?
The ZENMUSE X5 Series are the first M4/3 cameras designed specifically for aerial photography. The cameras come with an integrated 3-axis gimbal stabilization system, and are designed for use with the Inspire 1. The camera shoots 16 Megapixel photos and 4K video, and can be fully controlled via the new DJI GO app.
2. Can I use the ZENMUSE X5 Series separately as a stand-alone camera?
No. The ZENMUSE X5 Series cameras must be used together with the Inspire 1 or future supported DJI products.
3. What is the difference between the X3 and ZENMUSE X5 Series?
The X3 gimbal and camera system is included with Inspire 1 and has 1/2.3” sensor, enabling it to shoot 4K video and capture 12 Megapixel photos, with an ISO range of 100-3200. The new ZENMUSE X5 Series camera and gimbal systems are the world’s first Micro Four Thirds (M4/3) cameras made specifically for aerial photography and videography. The M4/3 sensor is eight times the size of X3 camera and enables high quality, high sensitivity image recording at an ISO range of 100-25600. The ZENMUSE X5 cameras capture 16 Megapixel images with stunning details and records 4K video. With 12.8 stops of dynamic range, shadows and highlights in everything you capture is brought out in perfect clarity.The ZENMUSE X5 has a M4/3 lens mount which gives your photography flexibility by letting you change lenses. Currently, there are three lenses for the ZENMUSE X5 M4/3 lens mount: the Panasonic Lumix 15mm, Olympus M.Zuiko Digital 12mm and DJI MFT 15mm.
4. What’s the difference between ZENMUSE X5 and ZENMUSE X5R?
The biggest difference between them is in video recording capabilities, storage media, and workflow. The ZENMUSE X5R shoots video in lossless format to preserve maximum detail and enable precise editing and post-processing, giving cinematographers full control over the look of their footage. The ZENMUSE X5R has an integrated 512GB SSD drive for storing the lossless video recorded. DJI has designed an editing software specifically for lossless videos, enabling high-end filmmakers to easily edit and process the videos according to their own needs.
5. How do I use auto focus on the ZENMUSE X5 Series?
To focus on a specific area, all you have to do is to tap on the screen of your mobile device just like the way you are using it on a smartphone.
