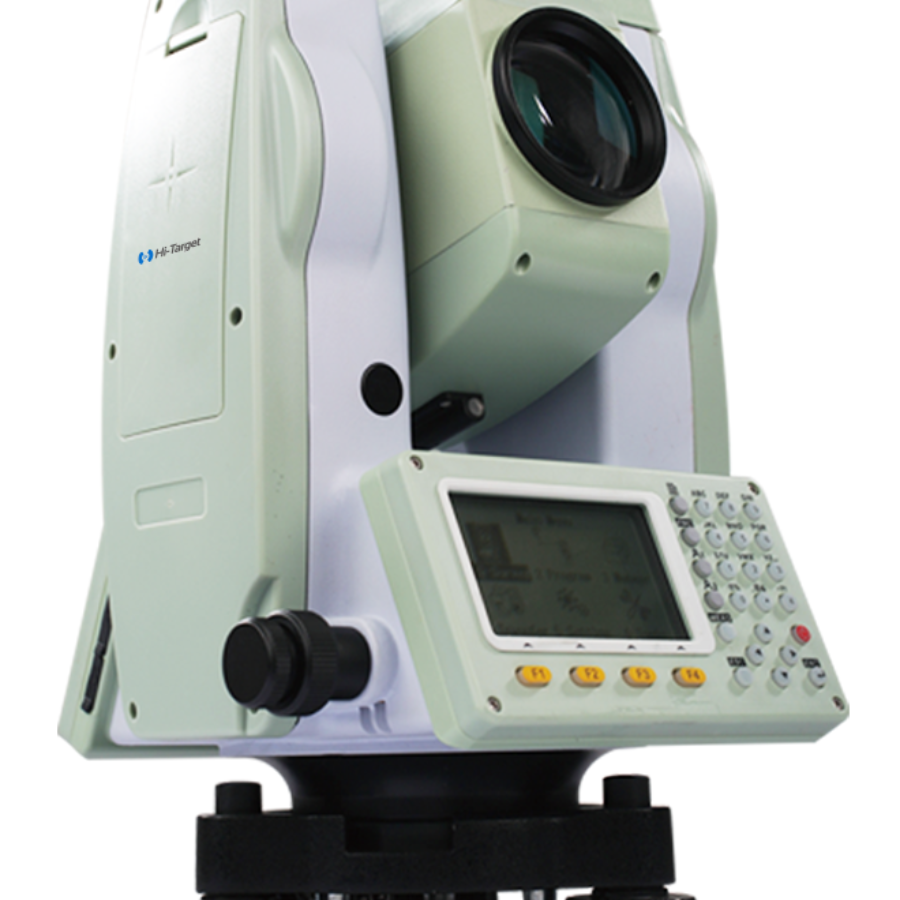

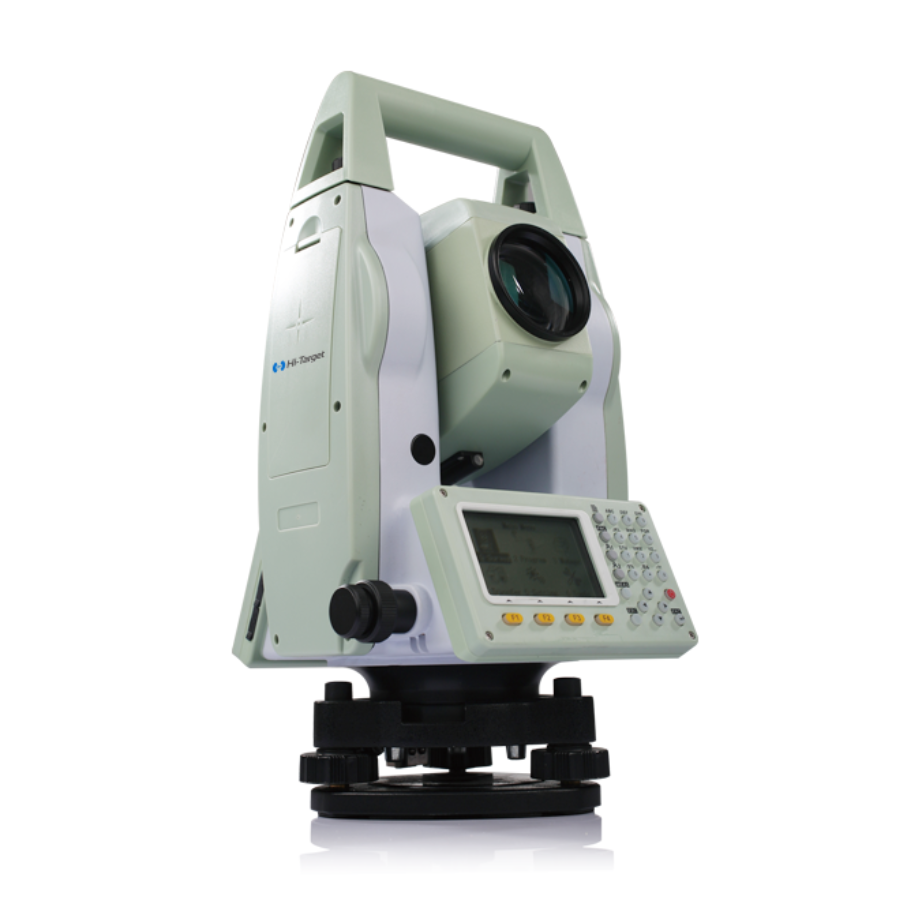

Hi-Target HTS-420R Total Station

  • Total Station-6000M Range NP
  • Dual Axis
  • Bluetooth
  • Black & White Screen

1-Year Warranty     7 days return policy     PAN India Fast Shipping


Hi-Target HTS-420R Total Station

A dual-axis reflectorless total station revolutionizes the measurement process by providing an efficient and streamlined experience. This advanced surveying instrument combines precision with ease of use, allowing for accurate data collection without the need for physical reflectors. Its dual-axis compensation ensures reliability and accuracy in diverse conditions, enhancing productivity in the field. By eliminating the need for direct contact with the survey point, it significantly reduces measurement time, making it an indispensable tool for professionals seeking to optimize their workflow and achieve high-quality results.

Hi-Target HTS-420R Total Station
Hi-Target HTS-420R Total Station

Dual-axis compensation

Equipped with an advanced dual-axis compensator, this tool automatically eliminates errors and compensates for accuracy, ensuring precise measurements. Its sophisticated technology detects and corrects any tilt or misalignment, providing users with confidence in their data’s reliability. This feature not only enhances the precision of each measurement but also streamlines the workflow by reducing the need for manual adjustments. Ideal for professionals demanding high accuracy, it sets a new standard in measurement efficiency and reliability.

Hi-Target HTS-420R Total Station

Temperature and Air Pressure Sensor

The incorporation of a built-in temperature and air pressure sensor in the device guarantees the delivery of precise Parts Per Million (PPM) adjustments for on-demand accurate measurements. This advanced feature enhances the device’s ability to adapt to environmental conditions by automatically compensating for variations in temperature and air pressure, ensuring the highest level of measurement accuracy at all times. Tailored for professionals who require reliable and immediate precision, this device stands out by seamlessly integrating environmental responsiveness into its operation, thus setting a new benchmark in measurement technology.



Year of introduction:2017

Height [m]: 0.185

Width [m]: 0.19

Depth [m]: 0.345

Weight [kg]: 5.5

User Interface

No. faces: 2

Color display: N

Screen size: length of diagonal [“]: 3.2

Touchscreen: N

Number of rows: 6

Characters per row: 25

No. keys:  28

Operating System: Real-time Operating System

Note recording capability: N

Distance Measurement with Prism

Standard deviation: constant part [mm]: 2

Standard deviation: variable part [ppm}: 2

Maximum range with 1 standard prism [m]: 3000

Maximum range with combined prisms [m]: 6000

No. prisms for maximum range: 350

Measuring Time [s]: Fine/Quick/Tracking: 1.5s/1s/ 0.5s

Integrated camera

Integrated camera available [Y/N]: N

Data Storage & Connectivity

Bluetooth {Y/N}: Y

Internal memory [GB]: 0.001953

SD Card [Y/N]: Y

USB [Y/N]: Y

RS-232 /422 Serial [Y/N]: Y

Compact Flash [Y/N]: N

WiFi {Y/N}: N

Radio [Y/N]: N


Laser plummet: Y

Guiding light: Y

Integration with GNSS receiver possible [Y/N]: N


Maximum working temperature [degC]: 50

IP dust/water protection class [IPxx]: 65

Distance Measurement without Prism

Standard deviation: constant part [mm]: 3

Standard deviation: variable part [ppm]: 2

Power Supply

Capacity: 3000mAh

Max. operation time on one battery [hr]: 16

Batteries hot-swappable: N

Battery: Y

Angle Measurement

Standard deviation [arcsec]: 1

Division [arcsec]: 2

Compensation: Dual-axis liquid tilt sensor

FAQs for Hi-Target HTS-420R Total Station

  1. What is the Hi-Target HTS-420R Total Station?
    • The Hi-Target HTS-420R is a precise electronic instrument used in surveying and construction to measure distances, angles, and elevations with high accuracy. It integrates electronic distance measurement (EDM) technology and optical capabilities for data collection and positioning tasks.
  2. What are the key features of the HTS-420R?
    • Key features include its ability to measure distances up to 5,000 meters with a single prism, an angular accuracy of 2″, a dual-axis compensator for stable measurements, a large internal memory, and support for Bluetooth connectivity for data transfer.
  3. How accurate is the HTS-420R?
    • The HTS-420R boasts an angular accuracy of 2 seconds and a distance measurement accuracy of ±(2mm + 2ppm x D) for precise measurements, ensuring high reliability for demanding surveying tasks.
  4. Can the HTS-420R be used for remote measurements?
    • Yes, it supports remote measurements through its EDM technology, allowing users to take measurements to hard-to-reach or unsafe areas from a distance.
  5. Does the HTS-420R support data transfer?
    • Yes, it supports data transfer via Bluetooth and USB, facilitating the easy transfer of data to computers and other devices for further analysis or processing.
  6. Is the HTS-420R suitable for all weather conditions?
    • The HTS-420R is designed to be rugged and durable, with a weatherproof construction that makes it suitable for use in various environmental conditions, including rain and dust.
  7. What type of battery does the HTS-420R use, and how long does it last?
    • It uses a rechargeable Li-ion battery, which typically provides up to 8 hours of continuous operation, making it suitable for a full day’s work on the field without needing a recharge.
  8. Can the HTS-420R be used for 3D mapping?
    • Yes, with its precise measurement capabilities and compatibility with various software, it can contribute to 3D mapping and modeling projects by providing accurate data for elevation, distance, and angles.
  9. What kind of support and training are available for new users of the HTS-420R?
    • Hi-Target offers comprehensive support and training for the HTS-420R, including online tutorials, user manuals, and customer service support to ensure users can maximize the use of the instrument.
  10. Where can I purchase the HTS-420R, and what does it come with?
    • The HTS-420R can be purchased from authorized Hi-Target distributors and dealers worldwide. It typically comes with the total station unit, a battery, a charger, a data cable, a user manual, and a carrying case for transportation and storage.
