Description
Aircraft
| Item | Spec |
|---|---|
| Dimensions (unfolded arms/props) | 3220 × 3224 × 975 mm |
| Dimensions (arms unfolded, props folded) | 1820 × 1840 × 975 mm |
| Dimensions (folded) | 1105 × 1265 × 975 mm |
| Max diagonal wheelbase | 2330 mm |
| Weight (spray, 2 nozzles / 4 nozzles) | 75 kg / 77 kg |
| Weight (spread / lift / dual-battery lift) | 75 kg / 65 kg / 90 kg |
| Max takeoff weight (spray 2 / 4) | 175 kg / 177 kg |
| Max takeoff weight (spread / lift / dual-battery lift) | 175 kg / 165 kg / 170 kg |
| Hovering accuracy (RTK on / off) | ±10 cm H, ±10 cm V / ±0.6 m H, ±0.3 m V |
| Max configurable flight radius | 2 km |
| Max wind resistance | < 6 m/s |
| Operating temperature | 0 – 40 °C |
Propulsion
| Item | Spec |
|---|---|
| Motor stator size / KV | 155 × 16 mm / 60 rpm·V⁻¹ |
| Propellers | 62-inch carbon-fiber composite, 8 pairs |
Spraying system
| Item | Spec |
|---|---|
| System / Tank | LS100 / 100 L HDPE (100 kg operating payload) |
| Delivery pumps | Dual magnetic-drive impeller pumps |
| Flow rate | 30 L/min (2 nozzles), 40 L/min (4-nozzle option) |
| Sprinklers (std / opt) | LX07550SX (std) / LX09550SX (mist) |
| Nozzles (qty) | 2 standard / 4 optional |
| Nozzle spacing | 1834 mm (two nozzles / outermost of four) |
| Droplet size | 50 – 500 µm |
| Effective spray width | 5 – 13 m |
Spreading system 4.0
| Item | Spec |
|---|---|
| Tank volume | 150 L |
| Feeder / spreader | Screw Feeder 4.0 / centrifugal disc |
| Max discharge rate | 400 kg/min (compound fertilizer) |
| Effective spread width | 3 – 10 m |
| Compatible granule sizes (augers) | XL: 0.5–10 mm; Medium: 4–6 mm; (Optional) Large: 4–10 mm; Small: 0.5–4 mm |
| Max load in spread box | 100 kg |
Lifting system
| Item | Spec |
|---|---|
| Standard lifting load | 100 kg |
| Dual-battery lifting load | 80 kg |
| Cable length (std / recommended) | 10 m / 10–15 m |
| Emergency escape | Cable-fuse disconnection (dual-battery module) |
| Operating temperature | 0 – 40 °C |
Safety System 3.0 (perception & OA)
| Item | Spec |
|---|---|
| Sensors & views | LiDAR, millimeter-wave radar (front/down/rear), Quad Vision + FPV (Penta-Vision) |
| FOV (selected) | LiDAR V 272°, H 60°; Front radar H 360°, V ±45°; Vision H 360°, V 180° |
| Measurement range | ≤ 60 m |
| Safe OA speed / OA height | ≤ 13.8 m/s / ≥ 1.5 m |
Remote controller (DJI RC Plus 2, model TKPL 2)
| Item | Spec |
|---|---|
| Display | 7″ LCD, 1920×1200, 1400 nits |
| Internal / external battery runtime | 3.8 h / 3.2 h |
| Charging | USB-C fast charge (≤ 65 W); ≈ 2 h (RC off) |
| Storage temp (guidance) | −30 – 45 °C (≤ 1 mo); −30 – 35 °C (1–3 mo); −30 – 30 °C (3–12 mo) |
Power & turnaround
| Item | Spec |
|---|---|
| Flight battery | DB2160, 41,000 mAh, 52 V, 14.7 ± 0.3 kg |
| Smart charger | C12000 (12 kW 3-phase / 3 kW single-phase), 62 V, 194 A |
| Generator | D14000iE multi-function inverter, 30 L tank |
| Typical recharge time | ≈ 8–9 min (DB2160 from 30→95%) |
| Generator outputs | 42–61.6 V/11.5 kW DC; 12 V/6 A; 220 V/1500 W AC |
Connectivity / Relay (O4)
| Item | Spec |
|---|---|
| Bands | 2.4 / 5.1 / 5.8 GHz |
| Effective range (relay) | FCC 8 km; SRRC 5 km; CE/MIC/KCC 4 km (LoS) |
| Battery / runtime | 6500 mAh / 5 h |
| IP rating (relay) | IP55 |
Performance note
| Item | Spec |
|---|---|
| Max operation speed | 20 m/s (varies by region/regulation) |

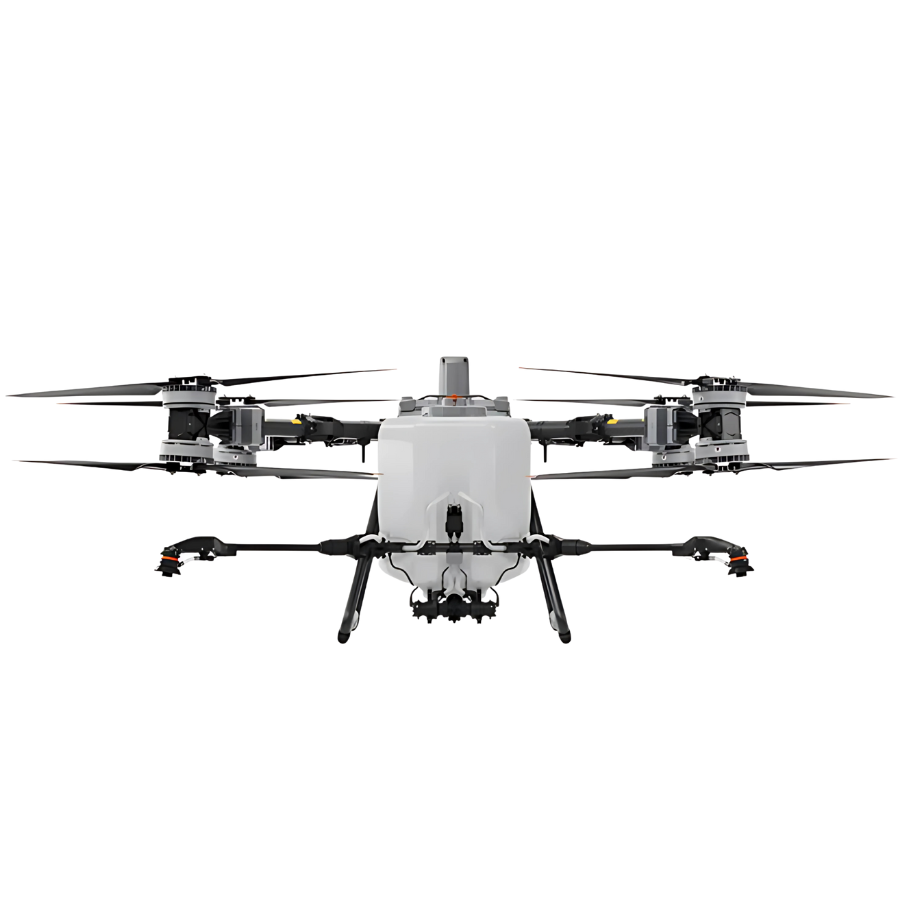

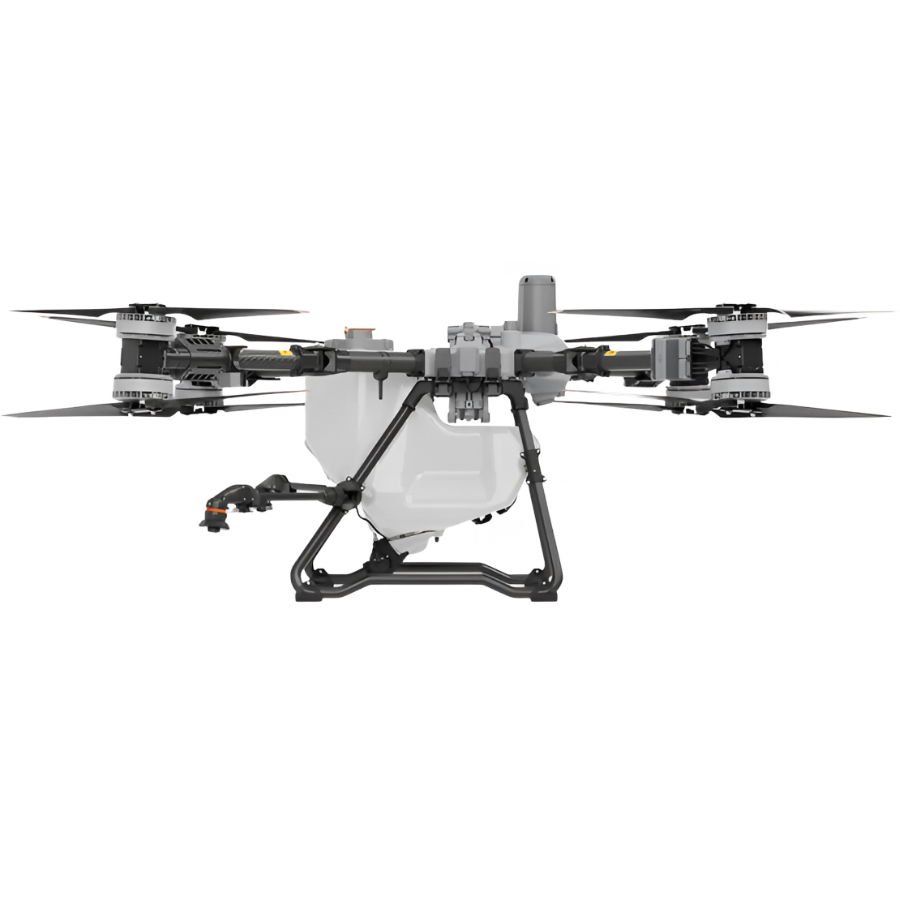

DJI AGRAS T100 is a flagship agricultural drone built for large-scale farm work—spraying, spreading, and lifting. It combines a 100 L spray tank (up to 40 L/min) and a 150 L spreader (up to 400 kg/min) with Safety System 3.0 (LiDAR, millimeter-wave radar, multi-directional vision) for precise terrain following and obstacle avoidance. O4 transmission and the RC Plus 2 controller support reliable, long-range operations, while the DB2160 high-capacity battery and C12000/D14000iE power ecosystem enable rapid turnarounds. With 62-inch carbon-fiber props and a rugged frame, it’s engineered to cover big acres quickly and accurately.
