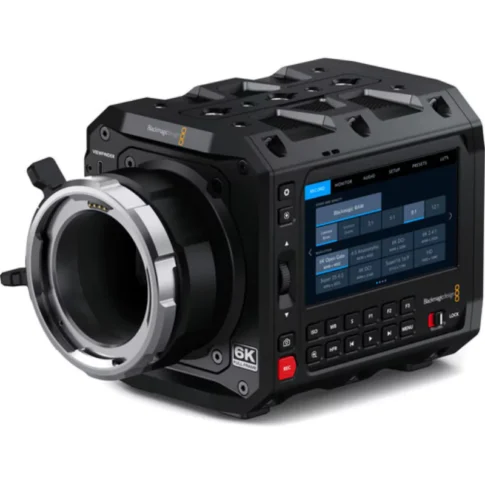

Blackmagic Design PYXIS 6K Cinema Box Camera (ARRI PL)

Full-frame 6K sensor (6048 × 4032) in an “open gate” 3:2 format
ARRI PL mount with /i lens metadata support, for use with cinema prime and zoom PL lenses
13 stops of dynamic range; dual native ISO (400 / 3200) for low noise imaging under varying light
Multiple recording formats: Blackmagic RAW + H.264 proxy recording, simultaneous if desired
Multiple output / connectivity options: 12G-SDI, USB-C, 10G Ethernet (for streaming / remote control)
Compact, riggable box design with multiple mounting threads and customizable side plates for accessories

Description

Product Overview

Specification	Detail
Model / Mount	Blackmagic PYXIS 6K (ARRI PL)
Sensor / Format	CMOS, full frame, 36 × 24 mm effective (open gate)
Resolution / Pixel Count	6048 × 4032 (open gate)
Lens Mount	ARRI PL with /i metadata support
Dynamic Range	13 stops
Dual Native ISO	ISO 400 / ISO 3200
Recording Formats / Codecs	Blackmagic RAW (3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3, Q5) + H.264 proxy
Media / Storage	Dual CFexpress Type B card slots + optional USB-C expansion port
Max Data Rates (approx)	For 6K open gate, BRAW 3:1 ≈ 370 MB/s, 5:1 ≈ 223 MB/s, etc.
Selectable Resolutions & Frame Rates	6048×4032 up to 36 fps; 4832×4032 anamorphic up to 36 fps; 6048×2520 up to 60 fps; 4096×2160 up to 60 fps; 2112×1184 (Super16) up to 100 fps; 1920×1080 up to 120 fps
Display / Monitor	Built-in 4″ HDR LCD touchscreen (approx. 1500 nits)
Outputs / Interfaces	12G-SDI (video output & monitoring) USB-C for media expansion 10G Ethernet (streaming, remote file access, control) via network functions (FTP, SMB, web)
Lens Control	Iris & focus control (for compatible lenses) via PL /i metadata interface
External Control / Networking	REST API, web media manager, FTP, SMB, NTP support, iPad or Bluetooth control
Audio	Integrated stereo mic; 3.5mm TRS input; mini XLR (with +48V phantom)
Power	Lemo 2-pin (12V DC input) typical; uses high-capacity BP-U style batteries
Cooling	Active cooling (fan) to support continuous recording
Rig / Mounting Options	Multiple 1/4″-20 and 3/8″-16 threads, side plates, customizable mounting zones
Dimensions	Approx. 151 mm (length) × 106 mm (width) × 119 mm (height)
Weight (body only)	~1.50 kg
Operating Temperature	0 °C to 40 °C (approx)
Storage Temperature	–20 °C to 45 °C (approx)

Blackmagic Design PYXIS 6K Cinema Box Camera (ARRI PL) – Overview

The Blackmagic Design PYXIS 6K Cinema Box Camera combines the power of the Cinema Camera 6K with a rugged box-style design, making it perfect for high-end film, broadcast, and live production. With its lockable ARRI PL lens mount and customizable side plates, the PYXIS 6K is built for professional rigs while offering unmatched creative flexibility.

Equipped with a full-frame 6K sensor (36 x 24mm), the camera captures breathtaking cinematic images with true-to-life colors, natural skin tones, and a wide 13-stop dynamic range. Record in Blackmagic RAW and H.265 proxy simultaneously, upload directly to the cloud, or even live stream straight to YouTube, Facebook, or X via Ethernet or 4G/5G connectivity.

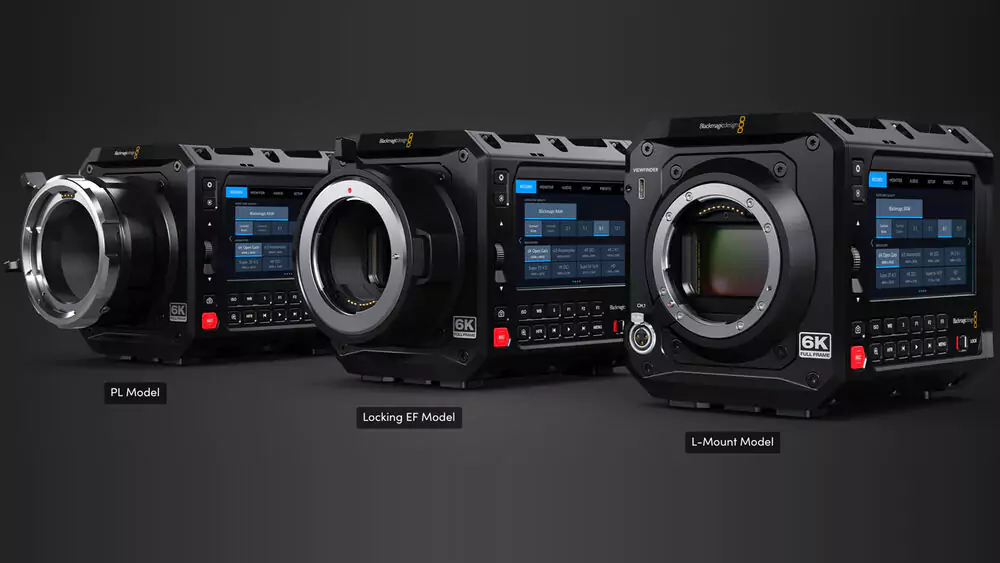

Blackmagic Design PYXIS 6K Cinema Box Camera (ARRI PL)

Blackmagic Design PYXIS 6K Cinema Box Camera (Canon EF)

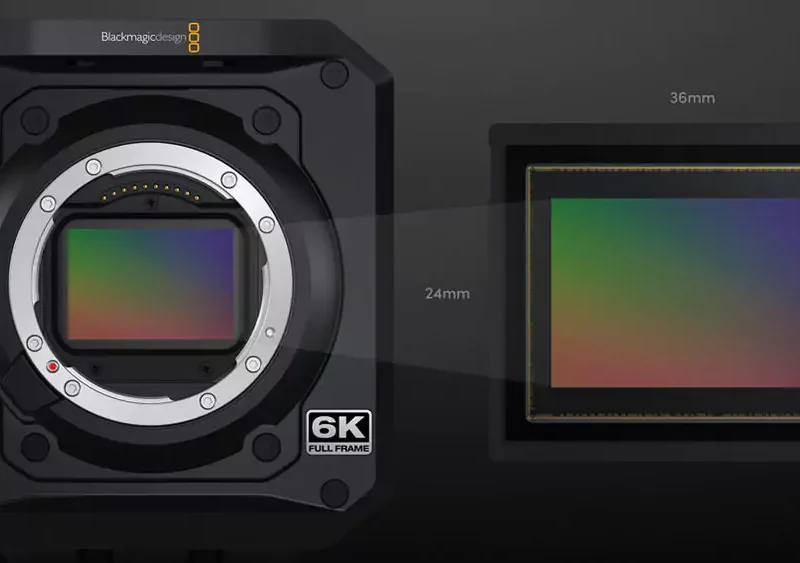

Large-Format Full-Frame Sensor

Step up your production with a 24 x 36mm full-frame sensor delivering an impressive 6048 × 4032 native resolution—three times larger than a Super35 sensor. This allows stunning shallow depth of field shots and uncompromised anamorphic cinematography. With dual native ISO up to 25,600, the PYXIS produces clean, low-noise images whether you’re shooting in bright sunlight or low-light environments.

Film up to 6K Open Gate 3:2 at 36 fps or push the creative limits with 120 fps in windowed mode for dynamic slow motion.

Flexible Film Formats & Frame Rates

Whether you need Open Gate 3:2, true anamorphic 6:5, Super35, or Super16 crops, the PYXIS 6K lets you adapt instantly without sacrificing quality. Shoot cinematic 6K, capture HD to 6K resolutions, or even snap 24.6 MP stills. From 6K Anamorphic at 60 fps to Full HD at 120 fps, the camera covers every production demand.

HDR, Dynamic Range & ISO

With 13 stops of dynamic range, the PYXIS preserves shadow and highlight detail even in extreme contrast scenes. The expanded color gamut works seamlessly with DaVinci Resolve Studio (included), giving you complete freedom in grading. ISO 400 is ideal for controlled sets, while ISO 3200 handles low-light environments effortlessly. The dual-native ISO system ensures sharp, cinematic images at any exposure.

Customizable Rigging & Expandability

The PYXIS was designed to integrate into any rig. Multiple mounting threads and customizable side plates let you attach microphones, articulating arms, SSDs, or mobile devices with ease. Use the included plate with 1/4″-20 and 3/8″-16 threads, or expand with optional Rosette plates. An SSD plate with Velcro straps allows direct USB-C drive recording or live streaming on the move.

Built-In LCD & Intuitive Controls

Frame and focus with the 4″ HDR LCD touchscreen (1500 nits), visible even under bright sunlight. On-screen overlays display histograms, frame guides, levels, and LUTs, while tactile buttons, scroll wheel, and 3 custom function keys ensure fast, on-set adjustments. A lock control mode prevents accidental settings changes during shooting.

Recording Formats & Workflow

The PYXIS 6K captures in Blackmagic RAW for maximum flexibility in post while simultaneously creating H.265 proxies for quick turnaround. Share files instantly using Blackmagic Cloud, Ethernet, or mobile tethering via USB-C. Media is universally compatible, making collaboration easy across platforms.

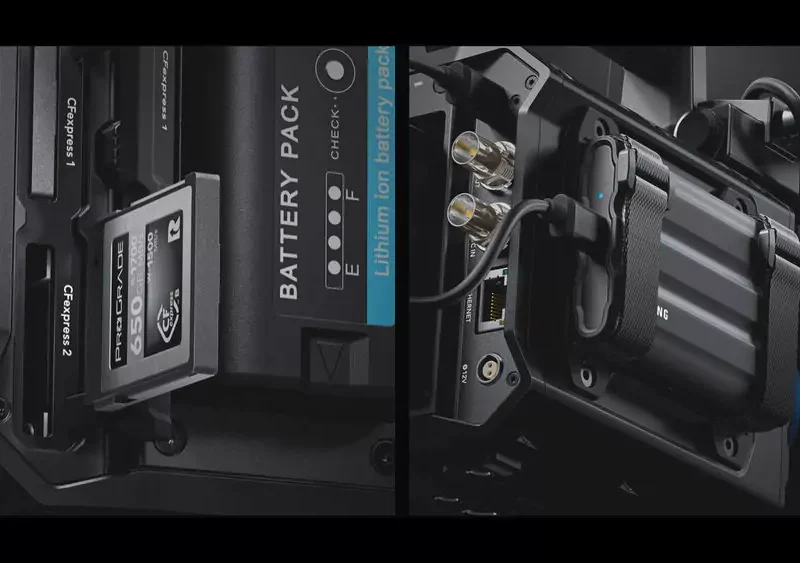

Storage options include dual CFexpress Type-B slots and a USB-C expansion port for SSD or external flash recording.

Live Streaming & Connectivity

Go live directly from the camera with SRT and RTMP streaming protocols, compatible with platforms like YouTube, Facebook, and X. For professional workflows, integrate via ATEM Streaming Bridge to send feeds back to the studio in real time.

Connectivity highlights:

Front USB-C for Blackmagic URSA Cine EVF
Mini XLR input with +48V phantom power
Headphone & 3.5mm mic inputs
12G-SDI output for external monitoring
Reference/Timecode input for multi-cam sync
10G Ethernet for remote uploads and camera control

Power with the locking 2-pin DC input or via Sony BP-U batteries for on-set mobility.

Why Choose the Blackmagic PYXIS 6K?

The PYXIS 6K Cinema Box Camera is more than a camera—it’s a modular production powerhouse. From cinematic features and commercials to live streaming and documentaries, it offers full-frame 6K image quality, robust connectivity, and professional rigging options in a compact, customizable design.
