Description

FS1X Series Hyperspectral camera (line scanning)

The FS-1X Series Hyperspectral Camera is an advanced line-scanning imaging solution developed by CHNSpec Technology, designed to deliver precise spectral analysis for a wide range of applications. Utilizing hyperspectral imaging (HSI) technology, it captures detailed spectral and spatial information across hundreds of narrow bands, making it ideal for industries that demand accurate material identification and classification.The FS-1X system employs a pushbroom (line-scanning) method, enabling high-speed and high-resolution data capture, which is essential in dynamic environments such as production lines, agriculture, pharmaceuticals, and geospatial mapping. With its compact form, integrated spectral calibration, and robust data acquisition system, the FS-1X is a powerful tool for non-destructive and real-time analysis.It supports visible to near-infrared (VNIR) ranges, enabling differentiation of materials based on their unique spectral fingerprints. The camera is equipped with intuitive software, SDK support, and high-speed interfaces for seamless integration into existing systems. Whether used in laboratory research or industrial monitoring, the FS-1X Series offers flexibility, precision, and reliable performance.

Feature

Description

Imaging Type Line-scanning (pushbroom)
Spectral Range VNIR: 400–1000 nm
High Spectral Resolution Fine detail in spectral bands (up to 5 nm)
Compact & Lightweight Ideal for integration on conveyor belts or UAVs
Data Accuracy Integrated radiometric and geometric calibration
Software Integration Includes analysis software & SDK support for custom applications
Fast Acquisition Suitable for real-time inspection tasks
Multifunctional Use Research, industry, agriculture, forensics, food safety

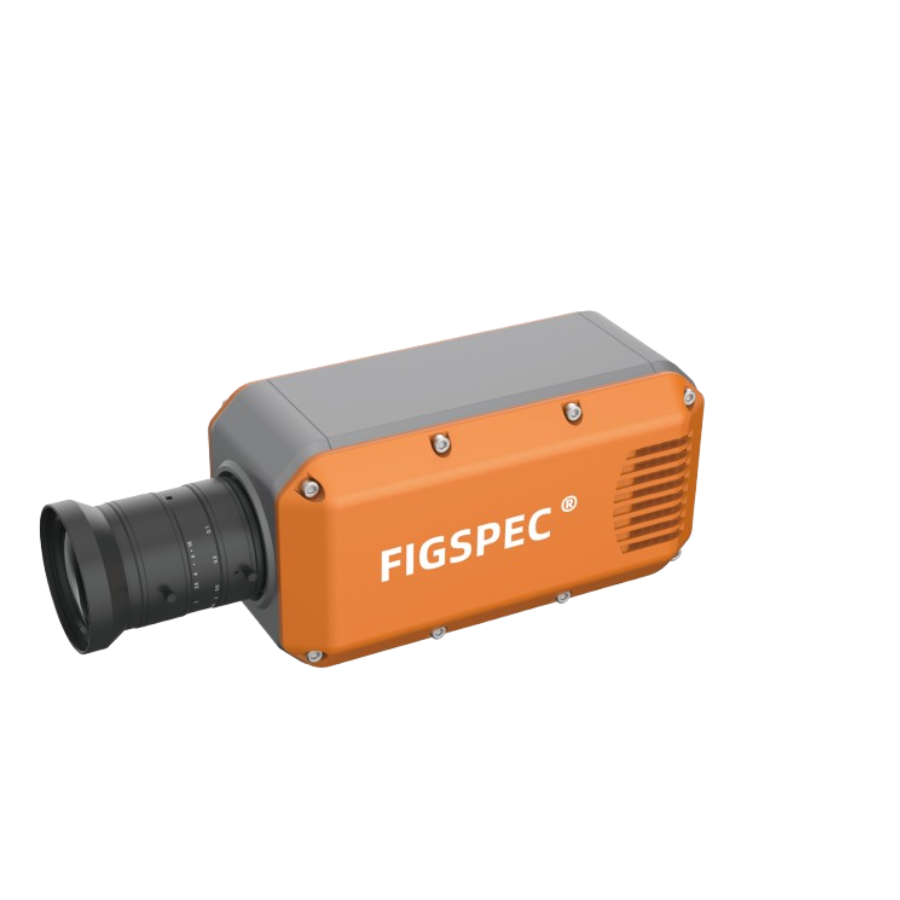

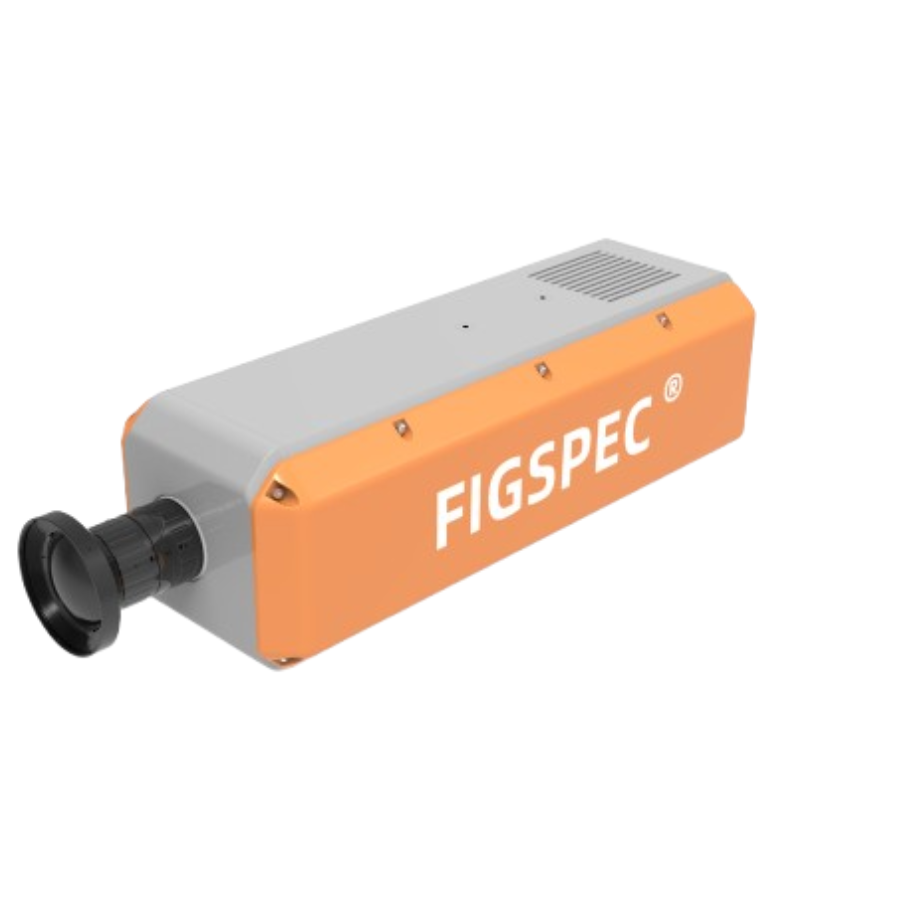

FS1X Series Hyperspectral camera (line scanning) images

Model

FS-10

FS-12

FS-13

FS-14

FS-15

FS-17

FS-18

FS-1A

Spectroscopic Mode

Transmission grating Transmission grating Transmission grating Transmission grating Transmission grating Transmission grating Transmission grating Transmission grating

Spectral Range

400-700nm 400-1000nm 400-1000nm 400-1700nm 900-1700nm 900-1700nm 900-1700nm 1400-2500nm

Spectral Band

600 1200 1200 680 254 1024 512 210

Spectral FWHM

2.5nm 2.5nm 2.5nm 13nm 8nm 6nm 6nm 12nm

Slit Width

25um 25um 25um 25um 25um 25um 25um 25um

Transmission Efficiency

>50% >60% >60% >60% >60% >60% >60% >60%

Stray Light

<0.5% <0.5% <0.5% <1% <0.5% <0.5% <0.5% <0.5%

Number of Spatial Pixels

1920 1920 1920 1280 320 1280 640 320

Pixel Size

5.86um 5.86um 5.86um 5um x 5um 30um 5um 15um 20um x 20um
Imaging Speed Full band 41Hz, 390Hz after ROI Full band 41Hz, 390Hz after ROI Full band 128Hz, 3300Hz after ROI 100fps 200Hz 132fps (8bit/1024), 70fps (12bit/1024), 253fps (8bit/512), up to 1800fps after ROI 724fps 509fps

Detector

CMOS CMOS CMOS InGaAs InGaAs InGaAs InGaAs InGaAs

SNR (Peak)

500:1 600:1 600:1 600:1 600:1 600:1 600:1 300:1

Camera Output

USB3.0 USB3.0 USB3.0 USB3.0 Gigabit Ethernet USB3.0 Cameralink USB3.1

Camera Interface

C-Mount C-Mount C-Mount C-Mount C-Mount C-Mount C-Mount C-Mount

Parts

USB3.0 transmission cable USB3.0 transmission cable USB3.0 transmission cable Lens, USB cable, power supply Gigabit Ethernet transmission line Lens, USB cable, power supply Lens, data cable, power supply, data acquisition card Lens, USB cable, power supply

ROI

Single area Single area Multiple regions Multiple regions Single area Multiple regions Single area Canvas

Specification table



Parameter

Specification

Model Name FS-1X Series
Imaging Type Line-scan (Pushbroom)
Spectral Range 400–1000 nm (VNIR)
Spectral Bands Up to 300
Spectral Resolution ≤5 nm
Spatial Resolution Up to 1024 pixels (depends on optics)
Frame Rate Adjustable; real-time capable
Lens Compatibility Swappable lenses for different FOV
Interface USB 3.0 / GigE / Camera Link
Power Supply 12V DC or USB-powered
Software Proprietary HSI software, SDK available
Dimensions ~180 mm x 80 mm x 80 mm (approximate)
Weight ~1.5 kg

Includes

  • FS-1X Hyperspectral Camera Unit

  • Calibration Plate & Tools

  • Power Adapter

  • Data Interface Cables (USB 3.0 / GigE)

  • Software Installation CD/USB

  • SDK & API Documentation

  • User Manual

FAQS

Q1: What is the main advantage of a hyperspectral camera like the FS-1X?

A: It provides detailed spectral information at every pixel, enabling precise material identification and differentiation across many industries.

Q2: Is it suitable for real-time applications?

A: Yes, the line-scanning design allows fast data acquisition suitable for real-time industrial inspection.

Q3: Can it be mounted on drones or robots?

A: Yes, its lightweight and compact design make it ideal for UAVs and automated systems.

Q4: What kind of software support is available?

A: The FS-1X comes with proprietary analysis software and an SDK for integration into custom systems.

Q5: What environments is it best suited for?

A: The FS-1X excels in lab-based analysis, industrial conveyor systems, agricultural monitoring, and scientific research.
