Description

FS-12 Imaging Hyperspectral Camera With 400-1000nm Wavelength Colorimeter

The FS-12 Imaging Hyperspectral Camera is a high-performance line-scanning hyperspectral imaging system designed to capture detailed spectral data across the 400–1000 nm wavelength range. Manufactured by CHNSpec Technology, this advanced imaging solution is optimized for precise, non-destructive analysis in industries like agriculture, food processing, material sorting, pharmaceuticals, and scientific research.

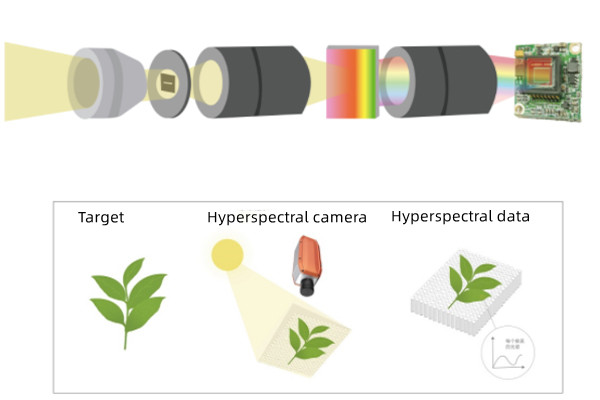

Using pushbroom (line-scanning) technology, the FS-12 captures spatial and spectral information simultaneously, delivering a high-resolution hyperspectral cube (x, y, λ) that reveals subtle variations invisible to traditional cameras or RGB imaging. The system includes integrated calibration modules and robust data acquisition software to ensure consistent performance in both laboratory and industrial environments.

Its compact structure, wide spectral coverage, and ease of integration with production lines or UAV platforms make it an excellent choice for real-time inspection and classification. Whether used for vegetation analysis, surface inspection, or mineral mapping, the FS-12 empowers researchers and engineers with high-fidelity spectral insights to make informed decisions and automate processes.

Feature

Description

Spectral Range 400–1000 nm (Visible to Near-Infrared)
Imaging Type Pushbroom (Line-scanning)
High Spectral Resolution Up to 5 nm for precise material discrimination
Compact & Lightweight Suitable for UAV, lab, or conveyor-based setups
Spectral Bands Captures 100–300+ discrete bands
Real-Time Capability Fast acquisition, ideal for online monitoring
Software Included Analysis software for spectral processing, visualization, and classification
SDK/API Available For integration into third-party systems and custom software
Non-Destructive Testing Safe and repeatable analysis for quality control and R&D
FS1X Series Hyperspectral camera (line scanning) images

Model

FS-10

FS-12

FS-13

FS-14

FS-15

FS-17

FS-18

FS-1A

Spectroscopic Mode

Transmission grating Transmission grating Transmission grating Transmission grating Transmission grating Transmission grating Transmission grating Transmission grating

Spectral Range

400-700nm 400-1000nm 400-1000nm 400-1700nm 900-1700nm 900-1700nm 900-1700nm 1400-2500nm

Spectral Band

600 1200 1200 680 254 1024 512 210

Spectral FWHM

2.5nm 2.5nm 2.5nm 13nm 8nm 6nm 6nm 12nm

Slit Width

25um 25um 25um 25um 25um 25um 25um 25um

Transmission Efficiency

>50% >60% >60% >60% >60% >60% >60% >60%

Stray Light

<0.5% <0.5% <0.5% <1% <0.5% <0.5% <0.5% <0.5%

Number of Spatial Pixels

1920 1920 1920 1280 320 1280 640 320

Pixel Size

5.86um 5.86um 5.86um 5um x 5um 30um 5um 15um 20um x 20um

Imaging Speed

Full band 41Hz, 390Hz after ROI Full band 41Hz, 390Hz after ROI Full band 128Hz, 3300Hz after ROI 100fps 200Hz 132fps (8bit/1024), 70fps (12bit/1024), 253fps (8bit/512), up to 1800fps after ROI 724fps 509fps

Detector

CMOS CMOS CMOS InGaAs InGaAs InGaAs InGaAs InGaAs

SNR (Peak)

500:1 600:1 600:1 600:1 600:1 600:1 600:1 300:1

Camera Output

USB3.0 USB3.0 USB3.0 USB3.0 Gigabit Ethernet USB3.0 Cameralink USB3.1

Camera Interface

C-Mount C-Mount C-Mount C-Mount C-Mount C-Mount C-Mount C-Mount

Parts

USB3.0 transmission cable USB3.0 transmission cable USB3.0 transmission cable Lens, USB cable, power supply Gigabit Ethernet transmission line Lens, USB cable, power supply Lens, data cable, power supply, data acquisition card Lens, USB cable, power supply

ROI

Single area Single area Multiple regions Multiple regions Single area Multiple regions Single area Canvas

Specification table

Parameter

Specification

Model FS-12 Imaging Hyperspectral Camera
Spectral Range 400–1000 nm (VNIR)
Spectral Resolution ~5 nm
Number of Bands Approx. 100–300 spectral bands
Spatial Resolution Up to 1024 pixels per line (dependent on optics)
Imaging Method Line-Scan (Pushbroom)
Sensor Type CMOS
Frame Rate Configurable; supports real-time scanning
Interface USB 3.0 / Gigabit Ethernet
Lens Mount Compatible with C/CS-mount lenses
Power Supply 12V DC or USB powered
Software Compatibility Windows-based analysis and visualization software
Dimensions Approx. 180 mm × 80 mm × 80 mm
Weight ~1.5 kg

Includes

  • FS-12 Hyperspectral Camera Unit

  • Standard C/CS Lens

  • USB 3.0 or GigE Cable

  • Power Adapter

  • Calibration Plate and Tools

  • Installation & Analysis Software

  • SDK Documentation (C++, Python)

  • User Guide / Quick Start Manual

  • Mounting Bracket or Tripod Adapter (optional)

FAQS

Q1: What makes hyperspectral imaging better than RGB imaging?

A: Hyperspectral imaging captures data across many spectral bands, enabling the identification of materials and subtle differences that RGB cameras can’t detect.

Q2: Can FS-12 be used outdoors or on drones?

A: Yes, its compact size and light weight make it suitable for drone-based surveys and field data collection, especially for agriculture and remote sensing.

Q3: What industries use the FS-12 camera?

A: It’s widely used in agriculture, pharmaceuticals, food safety, forensics, environmental monitoring, and scientific research.

Q4: How is calibration handled?

A: The FS-12 comes with a built-in calibration system and a physical calibration plate for radiometric and geometric corrections.

Q5: Is software included?

A: Yes, proprietary software for visualization, analysis, and classification is included, along with SDKs for advanced users.
