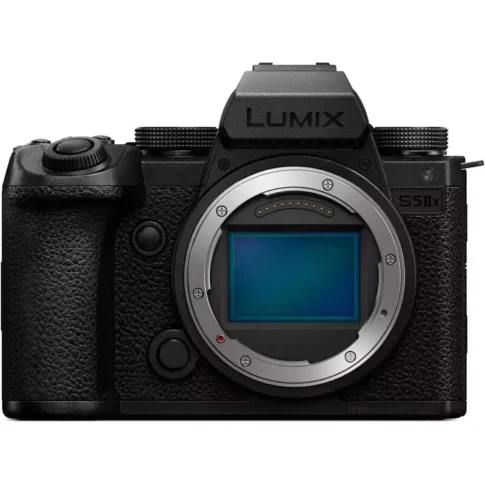

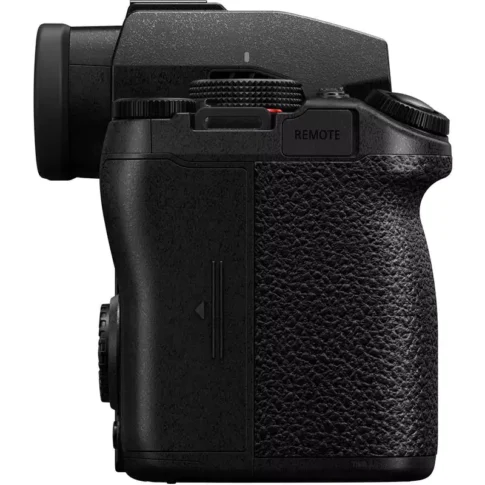

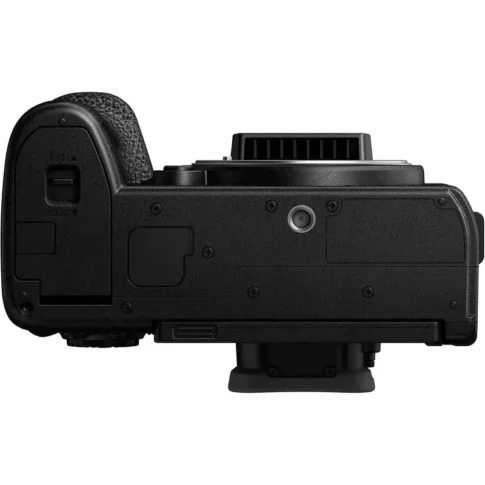

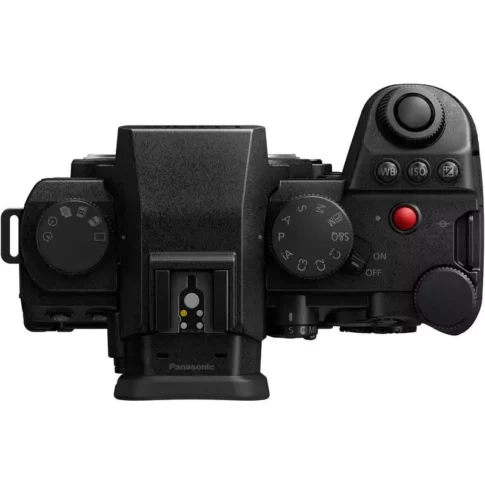

Panasonic Lumix S5 IIX Mirrorless Camera

  • Full-frame mirrorless camera from Panasonic’s “Lumix S II / II X” line

  • 24.2 MP CMOS sensor with a new imaging pipeline (joint Panasonic-Leica L² development)

  • Phase Hybrid Autofocus (PDAF + contrast-detect) with 779-area metering

  • Internal video recording: 6K (3:2) / 5.9K (16:9) 10-bit 4:2:0 up to 30 fps; 4K / C4K up to 60 fps in 4:2:2

  • Uncropped video from full sensor (“open gate”) capability

  • Unlimited recording times via an enhanced cooling / heat-management design

  • Full-size HDMI Type A output, USB-C, microphone, headphone ports

  • Dual card slots (UHS-II + UHS-I) with flexible recording modes (relay, backup, allocation)

  • In-body image stabilization (IBIS) plus active stabilization for video

  • Advanced video tools: LUT support, waveform, vectorscope, live crop, anamorphic desqueeze

  • Rugged, weather-sealed body designed for professional use

Description

Product Overview



Category Specification
Model / Alias Panasonic Lumix DC-S5 IIX (aka Lumix S5 II X)
Format Full-frame (35mm) mirrorless
Lens Mount L-Mount
Sensor CMOS, approx. 24.2 megapixels effective
Processor / Imager Pipeline New imaging engine co-developed (Panasonic + Leica L²)
Autofocus System Phase Hybrid AF combining PDAF + contrast-detect; 779-area metering
AF Sensitivity Down to approx. EV –6
Shutter & Drive Mechanical: up to 1/8000 sec, Electronic: up to 1/16000 sec (typical)
Burst / Continuous Shooting Mechanical: 9 fps; Electronic shutter: up to 30 fps (RAW / JPEG)
Video Recording 6K (3:2) / 5.9K (16:9) 10-bit 4:2:0 up to 30 fps; 4K / C4K up to 60 fps in 4:2:2
Video Features Uncropped (full sensor) video, live crop, LUT support, waveform, vectorscope, anamorphic desqueeze
Recording Constraints Unlimited recording (with efficient heat dissipation)
Stabilization In-body Image Stabilization (IBIS) + Active IS for video
Viewfinder OLED electronic viewfinder, approx. 3.68 million dots
Rear LCD / Monitor 3.0-inch free-angle / tilt touchscreen (~1.84 million dots)
Card Slots 2 × SD (Slot 1: UHS-II, Slot 2: UHS-I)
Connectivity / Ports USB-C (data / charging), full-size HDMI Type A, 3.5 mm mic input, 3.5 mm headphone jack, micro-HDMI / others
Wireless / Networking Wi-Fi, Bluetooth (for remote control, tethering, streaming)
Body / Build Weather-sealed, durable construction
Power / Battery Rechargeable battery pack (typical)
Dimensions (Body only) approx. size in mm (manufacturer specification)
Weight Approx. weight including battery & card (manufacturer specification)
Supported File Formats RAW, JPEG, various video codecs (depending on mode)
Other Features Dual-native ISO, multiple metering modes, zebra, focus assist, peaking, color bars, test tone, etc.

Panasonic Lumix S5 IIX Mirrorless Camera – Overview



The Panasonic Lumix S5 IIX is built for professional creators who demand exceptional still photography, advanced video performance, and seamless livestreaming. Featuring a new 24.2MP full-frame sensor with L² Technology processing engine, this second-generation Lumix delivers speed, precision, and flexibility. It’s also the first in the Lumix lineup to adopt Phase Hybrid Autofocus (779-point AF system), ensuring accurate subject tracking in any lighting.

Optimized for hybrid creators, the S5 IIX supports 6K video recording up to 30 minutes, unlimited 4K capture, advanced stabilization with Active I.S., and professional-grade features like RAW HDMI output, ALL-Intra recording, ProRes recording, and USB-SSD recording. Designed in a stealthy all-black body, it also adds wireless and wired IP livestreaming options for modern content workflows.

In the Box:



  • Panasonic Lumix S5 IIX Mirrorless Camera
  • Panasonic DMW-BLK22 Lithium-Ion Battery (7.2V, 2200mAh)
  • AC Adapter
  • USB-C to USB-A Cable
  • Shoulder Strap
  • Body Cap
  • Hot Shoe Cover
  • Battery Grip Connector Cover
