Anafi UKR

  • Dual sensor camera – 21MP zoom + FLIR thermal (640×512).
  • Long flight time – Up to 38 min (50 min with XLR battery).
  • Compact & rugged – Foldable, IP53-rated, works from –36°C to +50°C.
  • Anti-jamming & no NFZ – Encrypted multi-band comms, no flight zone limits.
  • Secure data – AES‑256 encryption, FIPS 140‑2 certified.
  • GPS-denied operation – Optical navigation for indoor or jammed areas.
  • Quick deploy – Ready in under 2 mins, hand-launch capable.
  • Durable controller – SkyController UKR with 4.5 hr runtime.

Description

Introduction to Parrot Anafi UKR

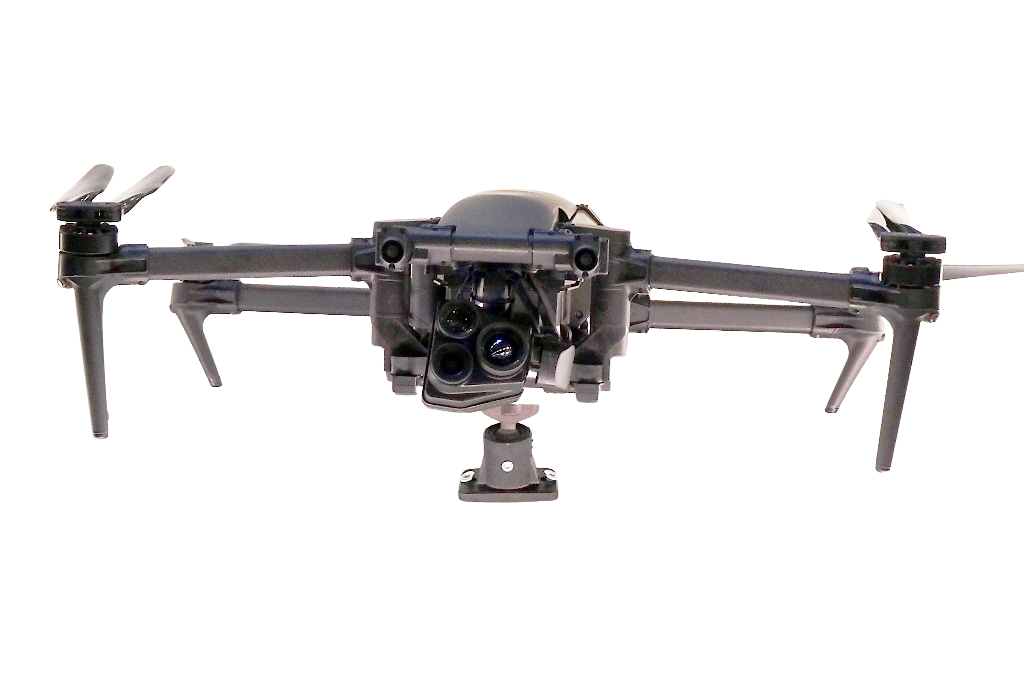

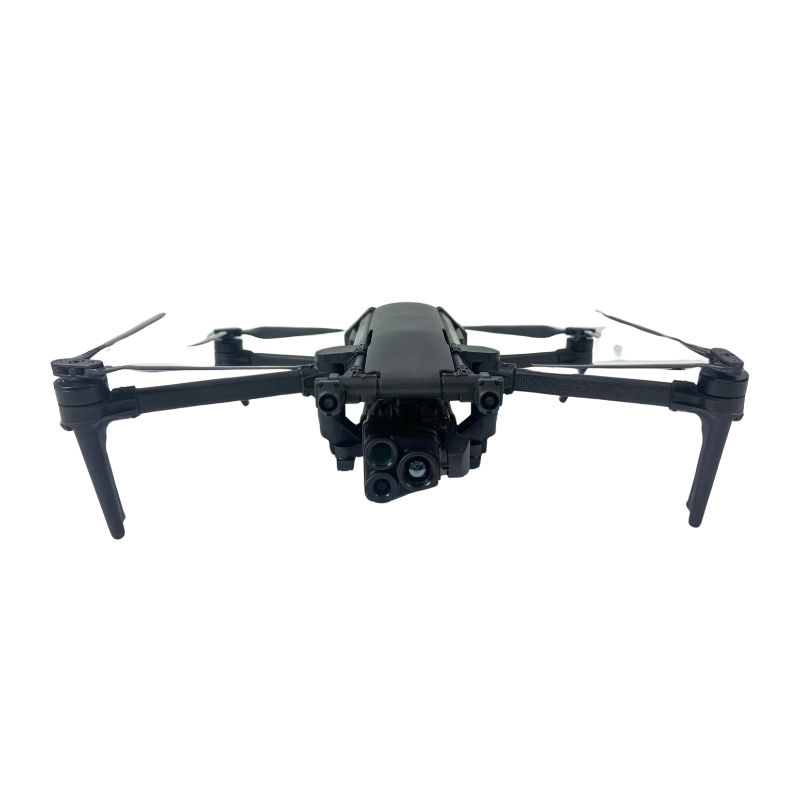

The Parrot Anafi UKR is a compact, tactical drone designed for high-performance surveillance and reconnaissance missions. Equipped with a powerful dual-sensor payload, it combines a 21MP zoom camera and a FLIR Boson thermal sensor for precise imaging in both day and night operations. With up to 38 minutes of flight time (extendable to 50 minutes), it offers extended mission capabilities. The drone is IP53-rated for rugged use, operates in extreme temperatures from –36°C to +50°C, and is resistant to GPS jamming and signal interference. Its secure, encrypted data transmission and fast deployment in under two minutes make it ideal for military, security, and critical operations in challenging environments.

Mission-Ready. GPS-Independent. Built for Adversity.

Anafi UKR

The Parrot Anafi UKR is a compact tactical drone, purpose-built for high-risk operations in GPS-denied and contested environments. Notably, it supports GNSS-independent navigation and offers multi-connectivity options such as MARS military radio, LoRa, 5G, Wi-Fi, and Starlink*, ensuring reliable communications across diverse terrains. Moreover, it is engineered with electronic warfare resilience, allowing it to resist both jamming and spoofing. Its advanced camera module, which includes a 35x zoom and a FLIR 640 thermal sensor, enables precise target detection in both day and night conditions. Additionally, with cursor-on-target tracking and MGRS support, the drone allows for accurate identification and real-time tracking. Operating at a quiet 77 dB, it further ensures stealth during surveillance missions, making it ideal for covert deployments.
(*Connectivity may vary by deployment.)

The Parrot Anafi UKR offers a robust digital ecosystem, specifically tailored for defense and tactical operations. To begin with, it comes equipped with FreeFlight 8 mission software, which provides intuitive flight planning, real-time tracking, and thermal visualization. In addition, the package includes the ANAFI UKR Simulator and map generation tools, both of which enhance mission training and support offline planning. Moreover, with a remote antenna (available via SkyController UKR), operators can extend range and ensure stable communication links. Importantly, the system is built with default cybersecurity protocols, which means it safeguards data at every level. Finally, the platform supports an open-source SDK, enabling seamless integration with third-party tools, AI workflows, and custom mission modules—thus empowering teams to adapt and scale the drone for a wide range of mission-critical needs.

Anafi UKR

Specifiactions of Anafi UKR

Aircraft

Parameter

Value

Size (Folded) 245 x 160 x 116 mm
Size (Unfolded) 350 x 665 x 116 mm
Mass 959 g
Max Take-off Mass (MTOM) 1,450 g
Max Transmission Range (5G) Unlimited*
Max Transmission Range (Wi-Fi) 5 km
Max Transmission Range (MARS Radio) 15 km
Max Transmission Range (LoRa) 20 km
Max Flight Time 38 min
Max Flight Distance 23.1 km
Max Horizontal Airspeed 17 m/s
Max Horizontal Groundspeed 12.6 m/s
Max Ascent Speed 8 m/s
Max Descent Speed 8 m/s
Max Wind Resistance (Flight) 15 m/s
Max Wind Resistance (Take-off/Land) 15 m/s
Max Propeller Speed 8,500 rpm
Sound Power Level at 1m 77 dBA
Service Ceiling 5,000 m above MSL
Operating Temperature -36 °C to +50 °C
Take-off Temp Limit -20 °C to +50 °C
Ingress Protection IP53 (Rain & Dust Resistant)
No-Fly Zone Limitation None
Take-off/Landing Method Hand Launch/Land
GNSS-denied Flight Support Yes
Indoor Flight Yes
MicroSD Slot Yes
Deployment Time Less than 2 minutes

Sensor

Parameter

Value

Satellite Navigation GPS, GLONASS, Galileo, BeiDou
Other Sensors Barometer, Magnetometer, Stereo Cameras (front and bottom), Range Sensor
IMUs 4 x 6-axis (3-axis accelerometers + 3-axis gyroscopes) – ICM-40609-D

Cybersecurity

Parameter

Value

Data Privacy No data shared without user consent
Data Sharing Private or anonymous on secure European servers
SD Card Encryption AES-XTS 512-bit
Firmware Digitally Signed
Compliance FIPS 140-2 Compliant

Radio Link

Parameter

Value

Radio Types 5G*, Wi-Fi*, MARS**, LoRa
Video Stream Resolution 1080p at 30 fps
Encryption AES 256-bit at packet and radio communication level

EO Image Chain (Visual Camera)

Parameter

Value

Sensors 2 sensors: 1/2.4″
Digital Zoom 35x
Shutter Speed 1/25 s to 1/10,000 s
ISO Range 100 – 3,200
Video Resolutions 4K / FHD / HD
Video Format MP4 (H.264 & H.265)
Photo Resolutions 21 MP (Wide), up to 16 MP (Rectilinear)
Photo Formats JPEG, DNG

IR Image Chain (Thermal Camera)

Parameter

Value

Sensor FLIR BOSON
Resolution 640 x 512 px
Temperature Range -40 °C to +250 °C
Thermal Sensitivity ≤60 mK
Wavelength Range 8 to 14 µm
Video Resolution UHD (2160p) at 8.6 fps
Video Format MP4 (H.264 / H.265)
Photo Format JPEG

Image Stabilization

Parameter

Value

Type 3-axis Hybrid (Mechanical + EIS)
Gimbal Tilt Range -90° to +90°

Smart Battery

Parameter

Value

Size 136 x 73 x 46 mm
Mass 344 g
Type High-density LiPo (227 Wh/kg)
Capacity 6,800 mAh
Voltage 11.55 V
Charging Port USB-C
Charging Time 2 h 30 min (USB-PD Charger)
Max Charging Power 45 W

Ground Control Station (SkyController UKR)

Parameter

Value

Size (Folded) 171 x 302 x 77 mm
Size (Unfolded) 171 x 302 x 215 mm
Mass 1,764 g
Battery Capacity 10,000 mAh
Battery Voltage 7.2 V
Charging Time 2 h (2 h 30 min with tablet)
Autonomy 4 h 30 min
Ports USB-C, USB-A, Ethernet, HDMI
Ingress Protection IP53
Tablet Compatibility Samsung (included), iPad Mini (compatible)

FAQ’s of Anafi UKR

What is the flight time of the Parrot Anafi UKR drone?

To begin with, the Parrot Anafi UKR delivers an impressive flight time of up to 38 minutes on a single charge. Moreover, when flown at an optimal speed, it can cover a distance of up to 23.1 kilometers. As a result, it’s a powerful choice for missions that demand longer durations—especially in defense, inspection, or industrial scenarios.

Can the Anafi UKR operate in GPS-denied environments?

Yes, absolutely. One of the standout features of the Anafi UKR is its ability to operate in GNSS-denied environments. Thanks to its advanced optical navigation system, it remains stable and reliable even when GPS signals are jammed or unavailable. Consequently, this makes it ideal for indoor operations, high-risk zones, or electronically contested battlefields.

What camera capabilities does the Anafi UKR offer?

When it comes to imaging, the Anafi UKR truly shines. It is equipped with a 35x digital zoom visual sensor and a high-performance FLIR Boson thermal camera (640 x 512). Furthermore, it supports 4K video, offers both thermal and visual data in real time, and enables precise tracking and detection—even in low light or obscured environments.

Is the Parrot Anafi UKR secure for sensitive operations?

Without a doubt, security is a top priority in the Anafi UKR’s design. To illustrate, it uses AES-256 encryption at both the packet and radio communication levels. Additionally, it features AES-XTS 512-bit SD card encryption, digitally signed firmware, and is FIPS 140-2 compliant. Therefore, users can conduct critical operations with complete confidence in their data privacy and cybersecurity.

What is the maximum transmission range of the Anafi UKR?

Interestingly, the Anafi UKR supports multiple connectivity options to suit different mission needs. For example, it can reach up to 5 km over Wi-Fi, 15 km using MARS military radio, and as much as 20 km via LoRa connectivity. In some configurations, 5G support offers virtually unlimited range, ensuring constant command-and-control across large areas.
