Description
Introducing the M10 Robotic Mower
Precision Mowing with RTK+AI Vision
The M10 Robotic Mower redefines precision with its RTK+AI Visual fusion solution. By combining GPS, AI vision, and inertial guidance, it achieves an extraordinary 1-2 cm accuracy without the need for boundary wires. This ensures your lawn is mowed with unmatched precision, even in areas with weak GPS signals.
-
1-2 cm pinpoint accuracy
-
No need for boundary wires
-
Combines GPS, AI vision, and inertial guidance for flawless navigation
Smart Virtual Boundaries
Say goodbye to the hassle of buried boundary wires. The M10 uses advanced virtual boundary technology to create a seamless, wire-free mowing experience. This innovation offers precision without the limitations of traditional boundary systems, ensuring easy setup and efficient mowing every time.
-
Wire-free mowing experience
-
Easy setup with virtual boundaries
-
Precise control without traditional boundary wires
Reliable Communication with LoRa Technology
Equipped with LoRa technology, the M10 boasts a strong communication range of up to 210 meters, covering an area of approximately 138,000 square meters. Even in large lawns with weak GPS signals, the M10 maintains precise positioning and uninterrupted communication, ensuring consistent and reliable operation.
-
Communication range up to 210 meters
-
Covers up to 138,000 square meters
-
Maintains precise positioning and continuous communication
Smart Obstacle Avoidance for Safe Navigation
Safety is a top priority with the M10. Featuring nine high-precision sensors, it detects obstacles from all angles, ensuring there are no blind spots. It smoothly navigates around objects, pets, and people while maintaining lawn perfection. Additionally, it smartly revisits missed spots to guarantee a complete and worry-free mowing session.
-
Nine high-precision sensors for obstacle detection
-
Navigates smoothly around obstacles, pets, and people
-
Automatically revisits missed spots for thorough coverage
With the UBHOME M10, lawn care becomes smarter, safer, and more efficient. Experience precision, reliability, and convenience with every mow. Explore Utility Robots on XBoom.
OTHER FEATURES of the M10 Robotic Mower
Efficient & Precise Mowing
Maximize mowing performance with smart, speed-driven technology for faster, neater lawns.
-
Smart path planning for optimal coverage
-
Fast, consistent mowing with wide blade disc
-
GlideGuard Plate ensures smooth movement
All-Terrain Capability
Conquer challenging lawns with ease.
-
Handles slopes up to 28.8° (55%)
-
Adapts to various terrains seamlessly

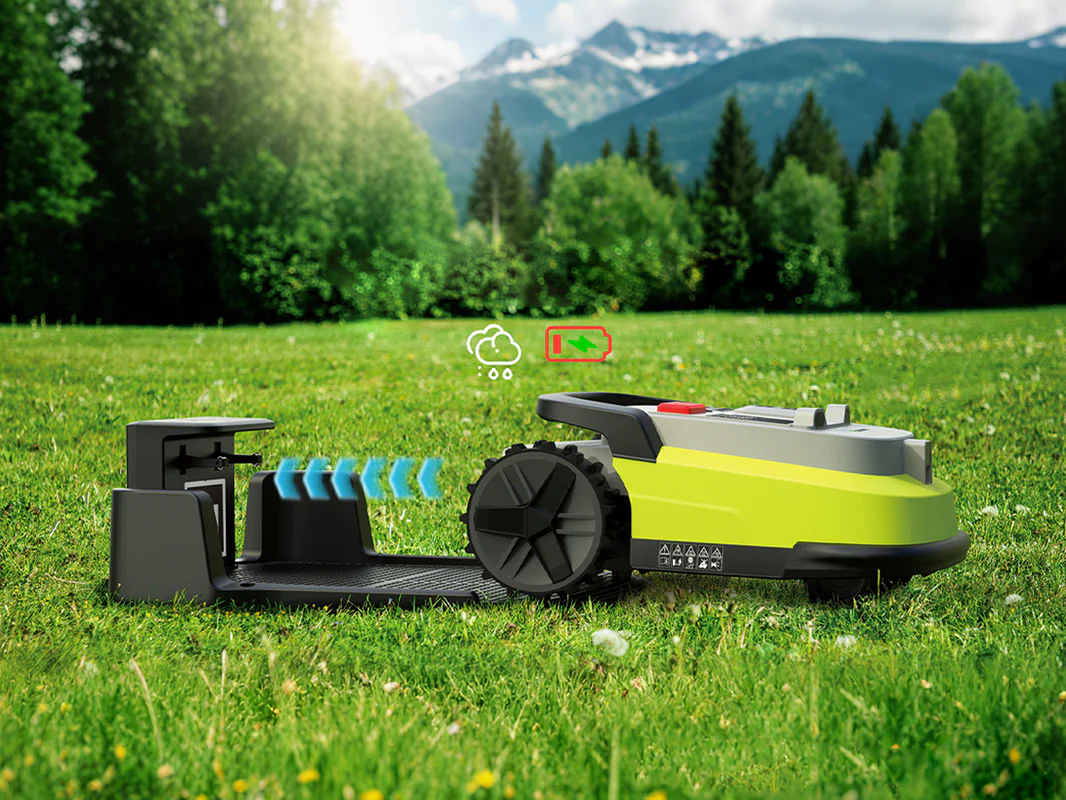

Automatic Recharge
Enjoy nonstop mowing without interruption.
-
Auto returns to dock, recharges, and resumes
-
Continues from where it stopped
Wire-Free Convenience
Start mowing from anywhere—no buried lines needed.
-
Virtual boundaries for easy setup
-
Tap to start, anywhere on your lawn
Manual & App Control
Full flexibility at your fingertips.
-
Manual control for detailed trimming
-
App control for scheduling, zone settings, and security
Specifications of M10 Robotic Mower
SPECIFICATIONS
| Specification | Details |
|---|---|
| Dimensions (L × W × H) | 602mm × 416mm × 255mm |
| Weight | ≈12.6 kg (27.8 lbs) |
| Maximum Cutting Efficiency | 1000 m²/day, 7000 m²/week |
| Average Work Time per Charge | 1.5 hours |
| Average Charging Time | 2.5 hours |
| Rated Power | 30V — 2.5A |
| Battery Capacity | 103 Wh |
| Cutting Width | 230mm (9.1″) |
| Cutting Height | 3–6 cm (1.2–2.4″) |
| Driving Speed | 0.2–0.6 m/s (0.66–1.97 ft/s) |
| Working Temperature | -10 |
| Charging Temperature | 5 |
| Storage Temperature | -20 |
| IP Level | Mower: IPX6 / Stations: IPX5 |
| Max Slope in Work Area | 55% (28.8°) |
| Connectivity | LoRa, Wi-Fi, Bluetooth |
FAQ's
1. Does the M10 require boundary wires?
No, the UBHOME M10 uses advanced RTK + AI Vision technology to set virtual boundaries, eliminating the need for buried perimeter wires.
2. How large of an area can the M10 mow?
The M10 can handle up to 1000m² per day and 7000m² per week, making it ideal for medium to large lawns.
3. Can the M10 handle slopes and uneven terrain?
Yes, the M10 is designed to tackle slopes up to 55% (28.8°) and adapts well to various terrains.
4. What happens when the battery runs low during mowing?
The M10 automatically returns to its charging station, recharges, and then resumes mowing exactly where it left off.
5. Is the M10 safe to use around pets and children?
Absolutely. It’s equipped with 9 high-precision sensors for obstacle detection and avoidance, ensuring safe operation around people and pets.
6. Can I control the M10 remotely?
Yes! You can fully control and customize mowing schedules, boundaries, and settings using the UBHOME mobile app via Wi-Fi, Bluetooth, or LoRa connectivity.
There are no reviews yet.
