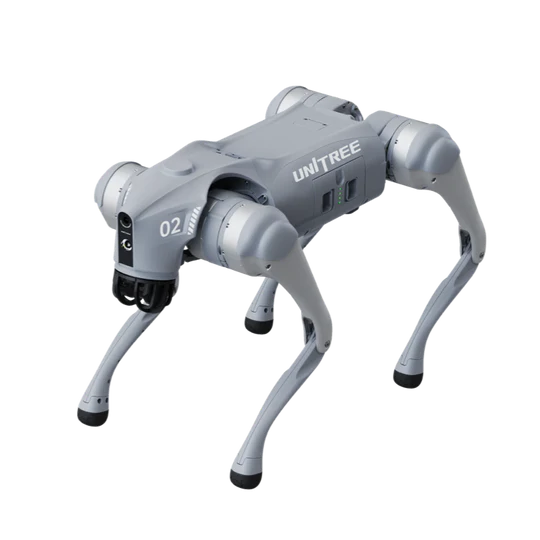

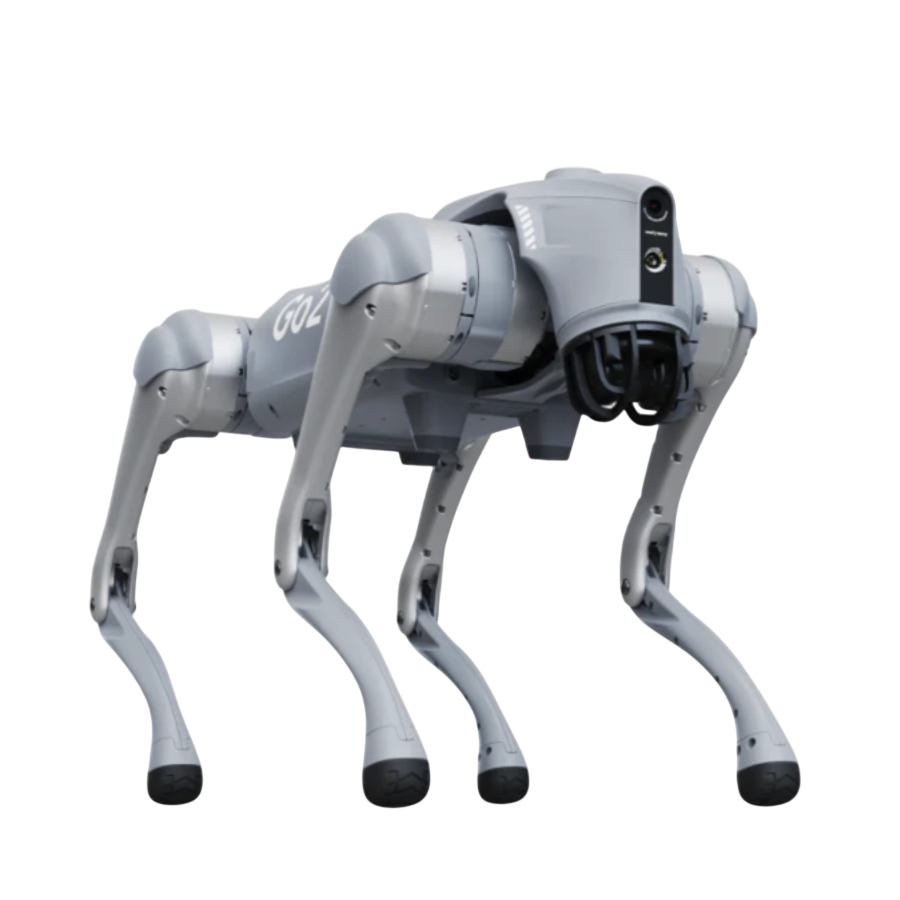

Unitree Go2 X Specifications
| Feature | Specification |
|---|---|
| Size (Folded) | 70 × 31 × 40 cm |
| Size (Unfolded) | 76 × 31 × 20 cm |
| Weight | About 15 kg |
| Material | Aluminium alloy + High strength engineering plastic |
| Operating Voltage | 28V ~ 33.6V |
| Peak Power | ≈ 3000W |
| Payload Capacity | ≈ 8 kg (Max: 12 kg) |
| Speed | 0 ~ 3.7 m/s (Max: 5 m/s) |
| Jump Height | ≈ 16 cm |
| Max Climb Angle | 40° |
| Processor | 8-core High-performance CPU |
| Joint Torque | ≈ 45 N·m |
| Number of Motors | 12 sets |
| Joint Motion Range | Body: -48° ~ +48° Thigh: -200° ~ +90° Shank: -156° ~ +48° |
