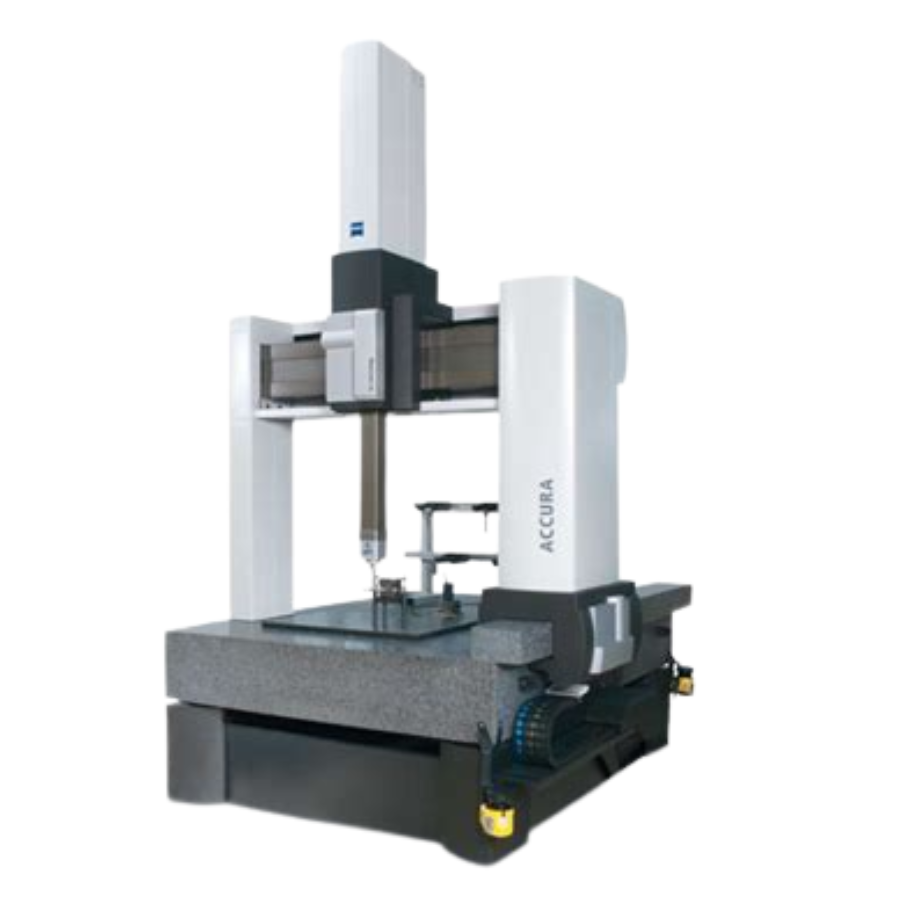

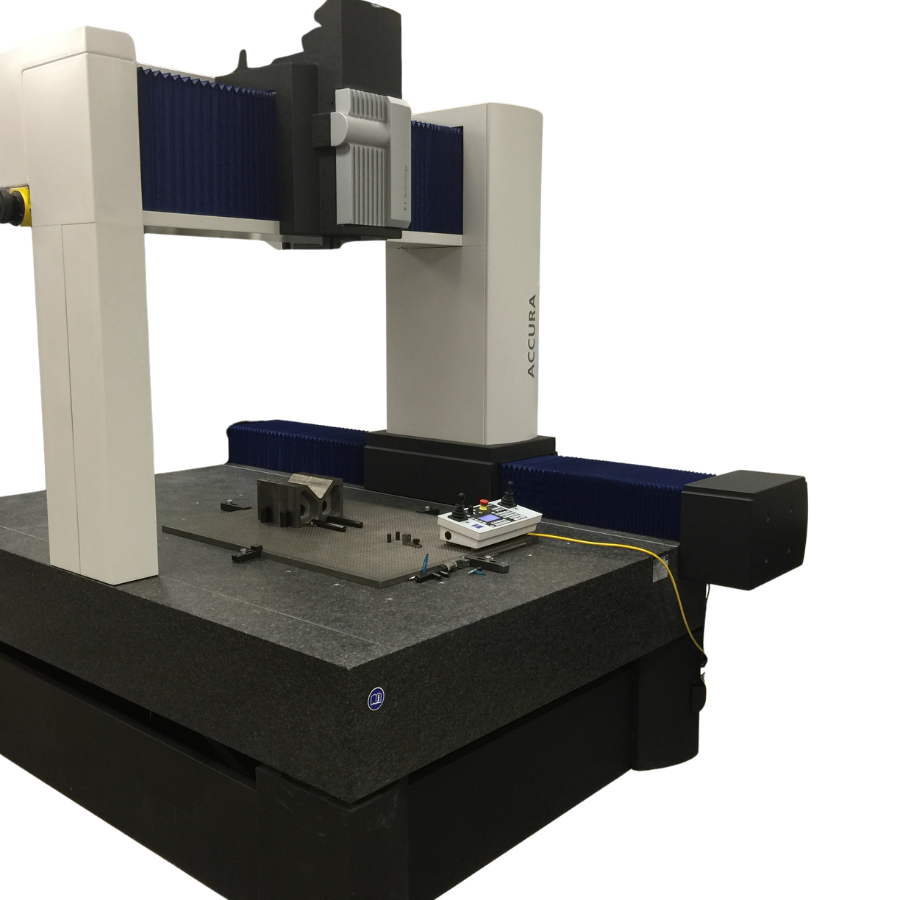

| Brand |
Carl Zeiss |
| Model |
ACCURA |
| Type |
Coordinate Measuring Machine (CMM) |
| Measuring Range (X × Y × Z) |
1200 × 1800 × 1000 mm (varies by configuration) |
| Accuracy (MPEE) |
(1.5 + L/333) µm |
| Resolution |
0.1 µm |
| Repeatability |
±0.7 µm |
| Temperature Range |
+18 °C to +24 °C |
| Structure Material |
Multi-material frame – steel, aluminum, and ceramic for stability and lightweight operation |
| Drive System |
CNC-controlled with air bearings on all axes |
| Probe System |
ZEISS VAST XT Gold / VAST Gold / RDS scanning probes |
| Software |
ZEISS CALYPSO / ZEISS PiWeb |
| Speed |
Up to 500 mm/s (axis speed) |
| Acceleration |
Up to 2000 mm/s² |
| Thermal Stability |
Integrated temperature compensation sensors |
| Workpiece Load Capacity |
Up to 1200 kg |
| Automation Capability |
Compatible with automatic probe changers and robotic integration |
| Construction Features |
Modular design for easy customization and maintenance |
| Connectivity |
Ethernet, USB, Automation Interfaces |
| Power Supply |
230 V AC, 50/60 Hz |
| Key Features |
Modular flexibility, high accuracy, fast scanning, thermally compensated, low vibration sensitivity |
| Applications |
Automotive, Aerospace, Tool & Die, Precision Engineering, Industrial Metrology |
| Country of Origin |
Germany |
