Description
Optical Fiber FPV Drone Kit
Seamless Control. Crystal Clear Transmission. Fly Beyond Limits

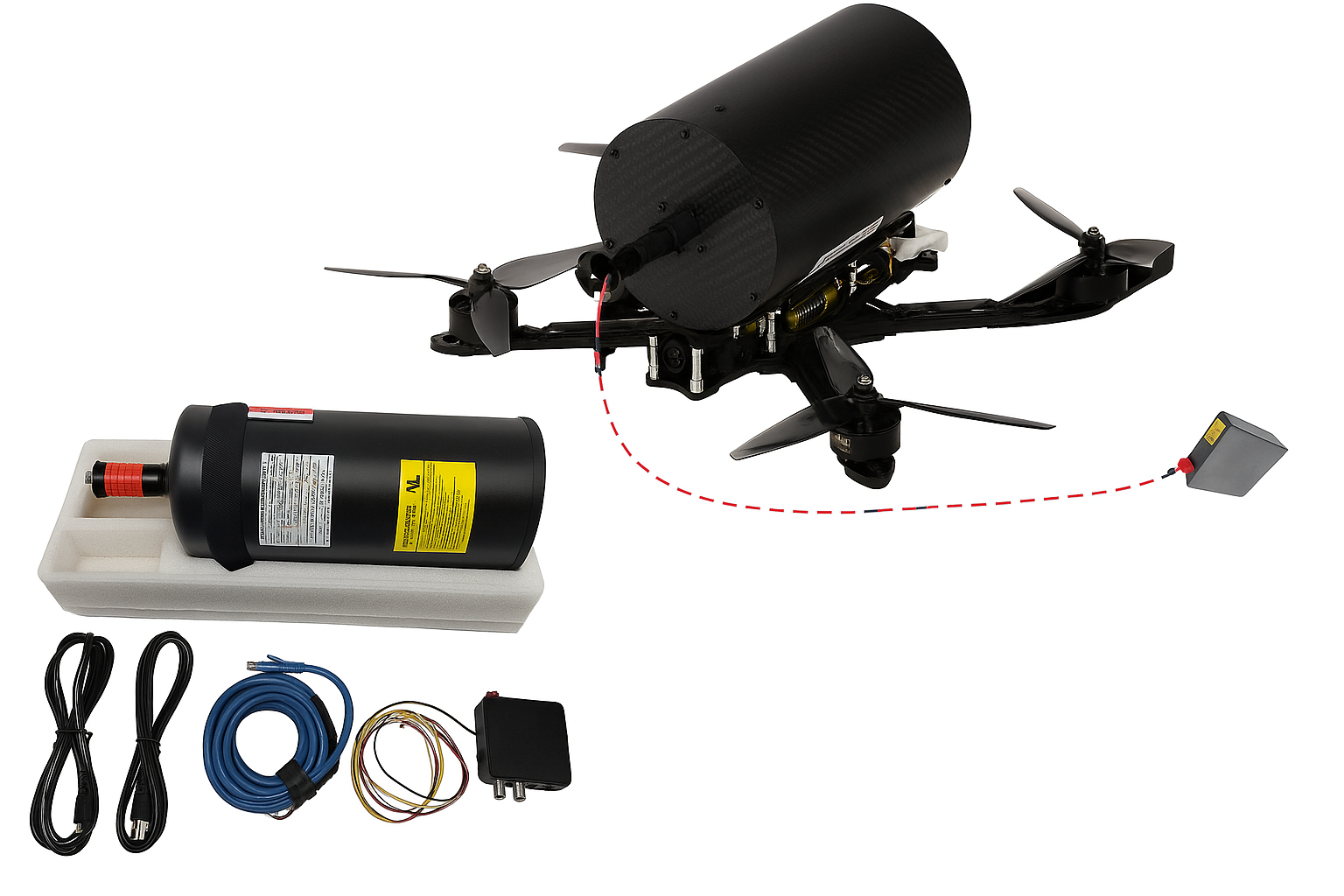

Introducing India’s first ready-to-fly Optical Fiber FPV Drone Kit, combining high-performance flight with optical fiber communication for ultra-low latency, secure, and interference-free transmission. This all-in-one kit includes a professionally tuned FPV drone and a plug-and- play fiber optic tether system. Designed for research, surveillance, tactical operations, and high-risk signal environments, it provides up to 10–30 km of reliable video/data link—free from jamming, GPS spoofing, or signal degradation. Perfect for developers, defense, universities, and advanced FPV pilots.
Ultra-reliable wired communication
Anti-GPS spoofing, anti-RF jamming
Power-efficient and heat-resistant fiber
Customizable for research or deployment
IN THE BOX
High-Performance FPV Drone
Pre-installed Flight Controller (F4/F7)
GPS Module (optional)
HD Camera & VTX (Analog/Digital)
4K Drone Frame (Carbon Fiber)

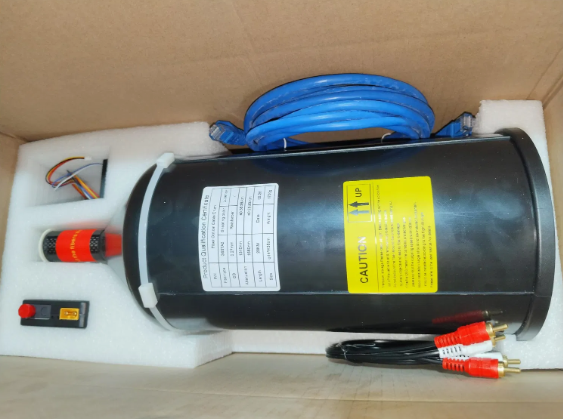

Optical Fiber Communication Kit
• 10–30 km Single-mode fiber reel
• Optical transmitter/receiver module
• BNC/RJ45/XT60 Interfaces
Ground Station Interface Box
Power Adapters and Cables
Setup Manual & Support
Specifications
| Component | Details |
|---|---|
| Drone Frame | Carbon fiber 7″ or 10″ FPV frame |
| Flight Controller | F4 / F7 with Betaflight / INAV / Ardupilot |
| Motors + ESC | 2306 or 2807 Motors + 50A 4-in-1 ESC |
| Camera | 1080p or 4K FPV camera (customizable) |
| Transmission | Optical Fiber link with 10–30 km range |
| Fiber Reel Type | 0.27 mm single-mode (G657A2) fiber |
| Connector Types | FC / ST / SC / LC + XT60 / BNC / RJ45 |
| Weight (with reel) | 1.5 – 2.2 kg (depending on fiber range) |
| Latency | <5 ms (near zero interference) |
| Primary Use Cases | Anti-jamming operations, R&D, Defense, Surveillance |
