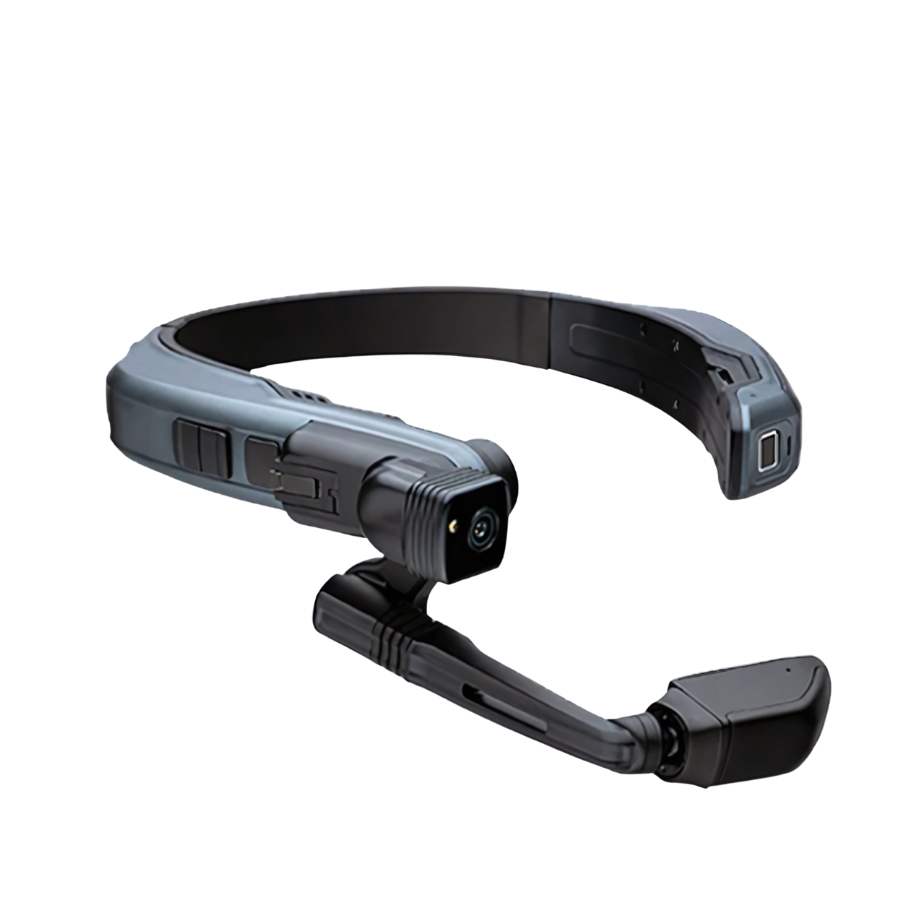

RealWear Navigator 500

Description

Category	Details
Operating system	Android (AOSP) + WearHF™ hands-free interface; current firmware supports Android 13 on Navigator 500 series
Chipset/GPU	Qualcomm® Snapdragon™ 662, 8-core 2.0 GHz; Adreno 610 (OpenGL ES 3.2, OpenCL 2.0)
Memory & storage	4 GB RAM; 64 GB internal storage; microSD slot (up to 512 GB)
Display	0.32-in LCD, WVGA 854×480, ~20° FOV, daylight-viewable
Camera	48 MP PDAF sensor with LED flashlight; image stabilization
Video capture	Up to 1080p @ 60 fps; >6× HD zoom; codecs: VP8/VP9/H.264/H.265
Microphones	4× digital mics with active noise cancellation; voice recognition up to ~100 dBA environments
Speaker	Internal loudspeaker up to ~94 dBA
Wireless	Wi-Fi 802.11 a/b/g/n/ac (2.4 & 5 GHz); Bluetooth® 5.1
Positioning	GNSS (GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS); NavIC; dual-frequency (L1+L5); sensor-assisted positioning
Sensors	Triple IMUs (accelerometers, gyros, e-compass) for head-movement tracking
Battery	2600 mAh / 10.0 Wh Li-polymer; rechargeable; hot-swappable
Buttons	Power button with integrated fingerprint sensor; programmable Action button; left/right buttons
Ports	USB Type-C; 3.5 mm audio jack
Ruggedness	IP66; MIL-STD-810H; drop tested to 2 m (6.5 ft)
Weight	~270 g (9.5 oz)
Operating range	−15 °C to 50 °C (5 °F to 122 °F), ≤95% RH (non-condensing)
PPE compatibility	Works with hardhats, bump caps, protective eyewear, masks
In the box	Workband; USB-C charging cable
Management	RealWear Cloud device management available
