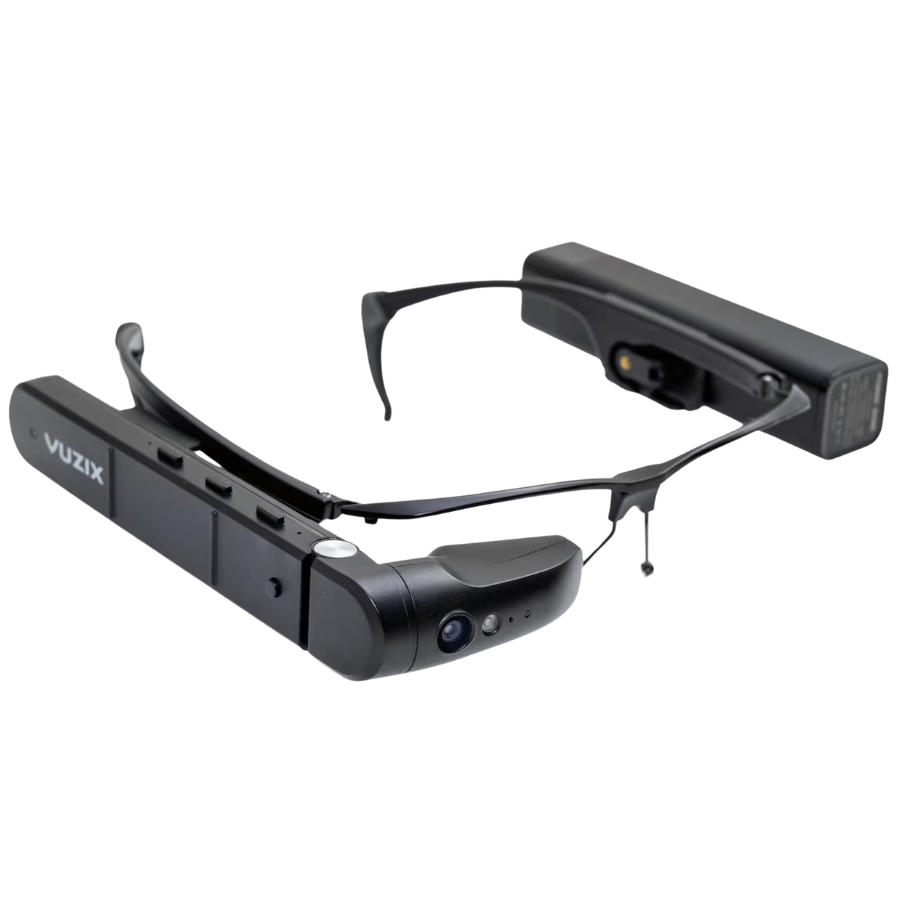

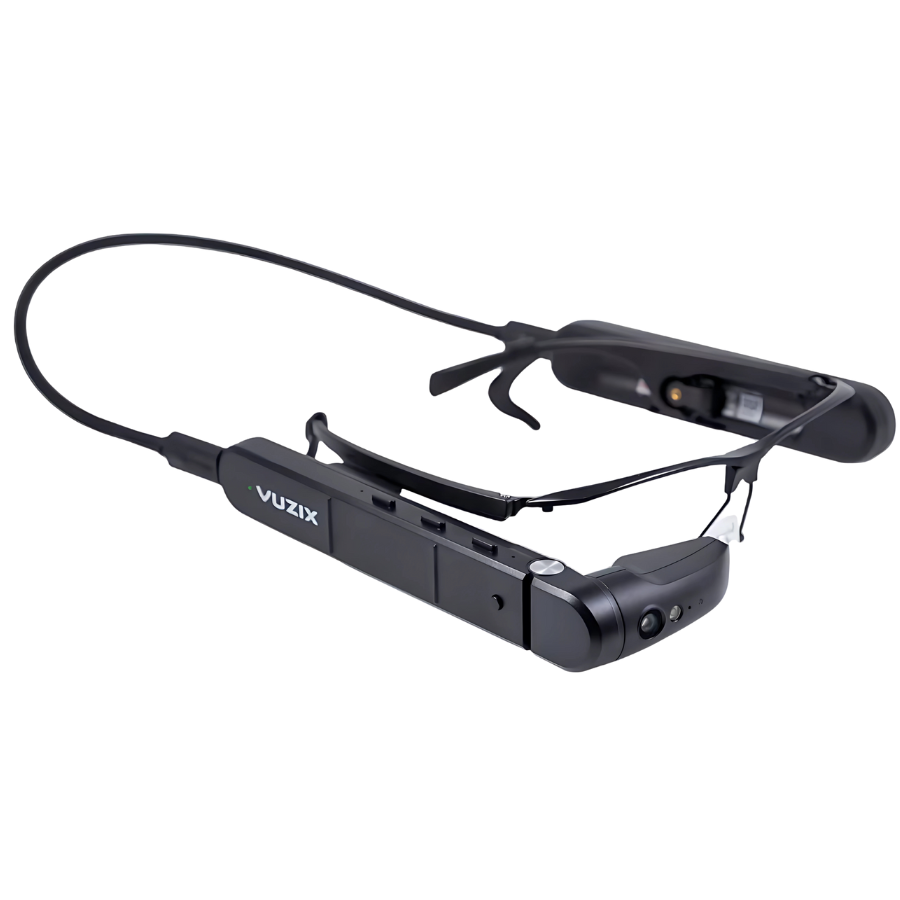

Vuzix M400 Smart Glasses

Rugged, IP67-rated assisted-reality smart glasses built for field, warehouse & clinical workflows.
Bright nHD OLED display (16.8° FOV) with >2000 nits for clear viewing indoors or out.
Qualcomm XR1 octa-core platform with 6 GB RAM & 64 GB storage; Android OS upgradeable.
Up to 13 MP camera with PDAF, LED illumination, and 1080p/60 fps streaming; built-in barcode scanning.
Triple noise-cancelling mics plus loud integrated speaker for noisy environments.
Hot-swap capable via on-board battery; optional 3200 mAh “Xtreme Weather” power bank for long shifts.
Voice, touchpad, and 4-button controls; GPS/GLONASS; Wi-Fi ac & Bluetooth 5.0.
Operates from −20 °C to 45 °C; drop-safe to 2 m; medical & clean-room certifications available.

Description

Product specification

Category	Details
Optics / Display	nHD color OLED; 16:9 aspect; 16.8° diagonal FOV (≈5″ screen at 17″); >2000 nits brightness; >10,000:1 contrast; 24-bit color; supports left or right eye use.
Processor & OS	8-core 2.52 GHz Qualcomm XR1; OS upgradeable (Android 13 available); OTA OS/app updates; MDM support.
Memory & Storage	6 GB LPDDR4 RAM; 64 GB internal flash.
Controls	4 hardware buttons; voice control; 2-axis touchpad with multi-finger support.
Connectivity	USB 3.1 Gen 2 (USB-C); Wi-Fi 2.4/5 GHz 802.11 a/b/g/n/ac; Bluetooth 5.0 BR/EDR/LE.
Audio	Integrated speaker (up to 97 dB); triple noise-cancelling microphones; Bluetooth audio HSP/A2DP.
Camera	Up to 13-MP stills; PDAF autofocus; streaming video up to 1080p @ 60 fps; LED flash/scene illumination; barcode scanning.
Head Tracking / Sensors	3-DoF head tracking; 3-axis gyro, accelerometer, and magnetometer/compass.
Positioning	GPS / GLONASS.
Power	On-board 135 mAh battery enables hot-swap (zero downtime); optional 3200 mAh Xtreme Weather Power Bank (IP67; −20 °C to 45 °C).
Environment / Durability	Operating temp −20 °C to 45 °C; operating humidity 0–95% RH; storage −30 °C to 70 °C (MIL-STD-810H); IP67 water/dust protection.
Certifications	Drop safe to 2 m; IEC60601-1-2:2014 Medical Device Safety & Performance; ISO 14644-1 Class 2 Clean Room.

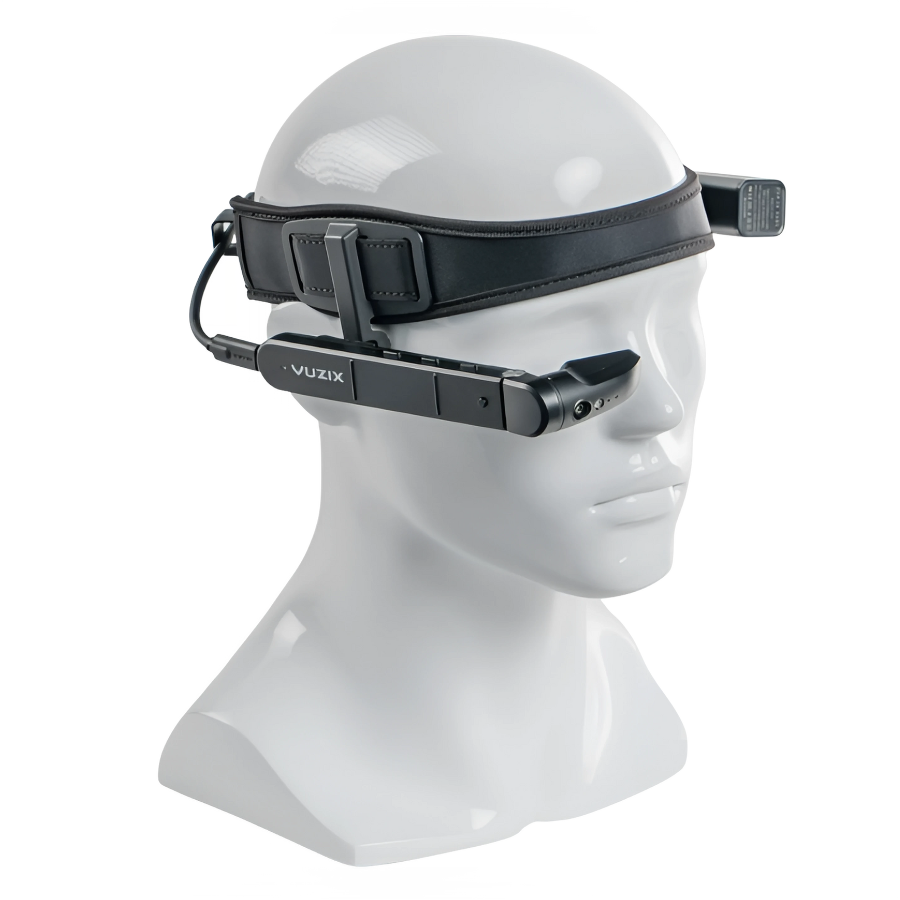

Mounting	Vuzix All-Day Comfort Headband with universal rail; multiple mounting options supported.
Languages	English, Spanish, French, German, Simplified & Traditional Chinese (Mandarin/Cantonese), Japanese, Arabic, Bulgarian, Czech, Danish, Dutch, Farsi, Finnish, Greek, Hebrew, Hindi, Hungarian, Italian, Indonesian, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Thai, Turkish.
