X-Mini (Anti-Drone)

  • 360° Passive Detection: Full-range RF detection with zero emissions for stealth operations.
  • Extensive Drone Library: Identifies 450+ drone and controller models, including FPV and DIY.
  • Swarm Detection: Tracks up to 30 drones at once with unique electronic fingerprints.
  • Auto Direction Finding: 8-sector DF without manual adjustments, even while in motion.
  • Flexible Deployment: Wearable, handheld, or mounted, with ATAK & tactical radio compatibility.

The X-Mini is a next-generation, wearable counter-drone solution designed for real-time drone detection, identification, and tracking using advanced passive RF technology. With 360° coverage, zero emissions, and support for over 450 UAV models, X-Mini delivers unmatched versatility and precision. Built for dynamic environments, it excels at multi-drone (swarm) detection, offers automatic direction finding (DF), and allows seamless integration with battle management systems like ATAK. Its compact, rugged design can be worn, mounted, or deployed anywhere—making it the perfect choice for tactical teams, critical infrastructure protection, and mobile surveillance operations.

Description

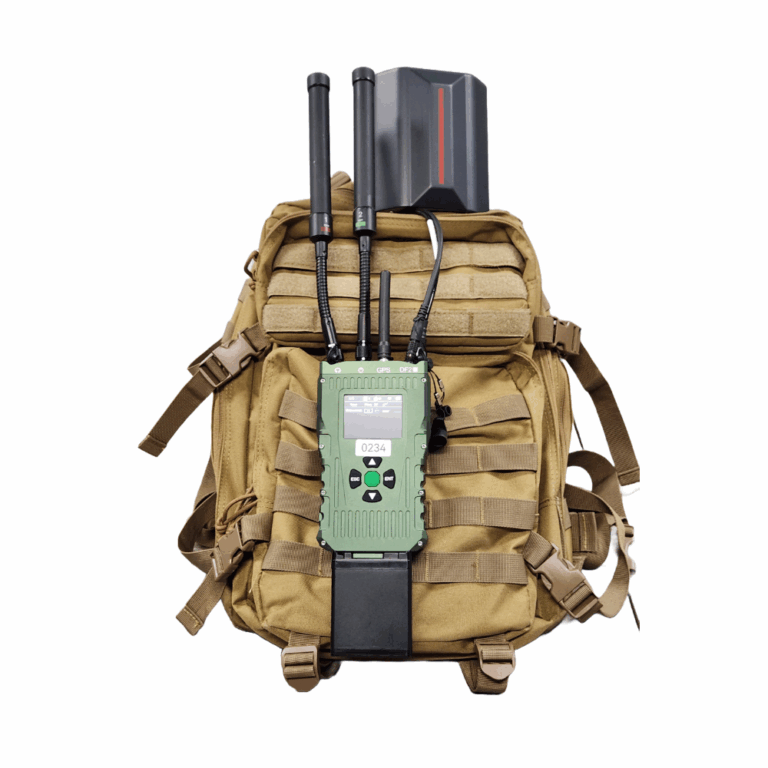

X-Mini – Wearable RF Drone Detection & Tracking System

The X-Mini is a cutting-edge, passive RF-based drone detection system designed for mobile, tactical, and field applications. With its stealth 360° coverage, advanced swarm detection, and automatic direction-finding capability, it brings powerful counter-UAS capabilities to the palm of your hand. Whether worn on a vest, mounted on a vehicle, or deployed from the ground, X-Mini delivers unmatched performance with zero emissions and high accuracy. Perfect for security forces, critical infrastructure protection, and defense personnel.

What’s in the Box

X-Mini main unit

Omni antennas

DF antenna

Headphones

MOLLE attachment

Rechargeable lithium-ion battery

Battery charger

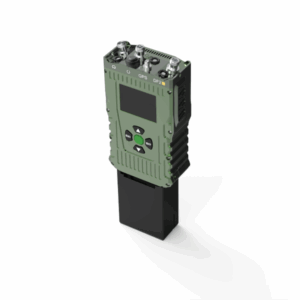

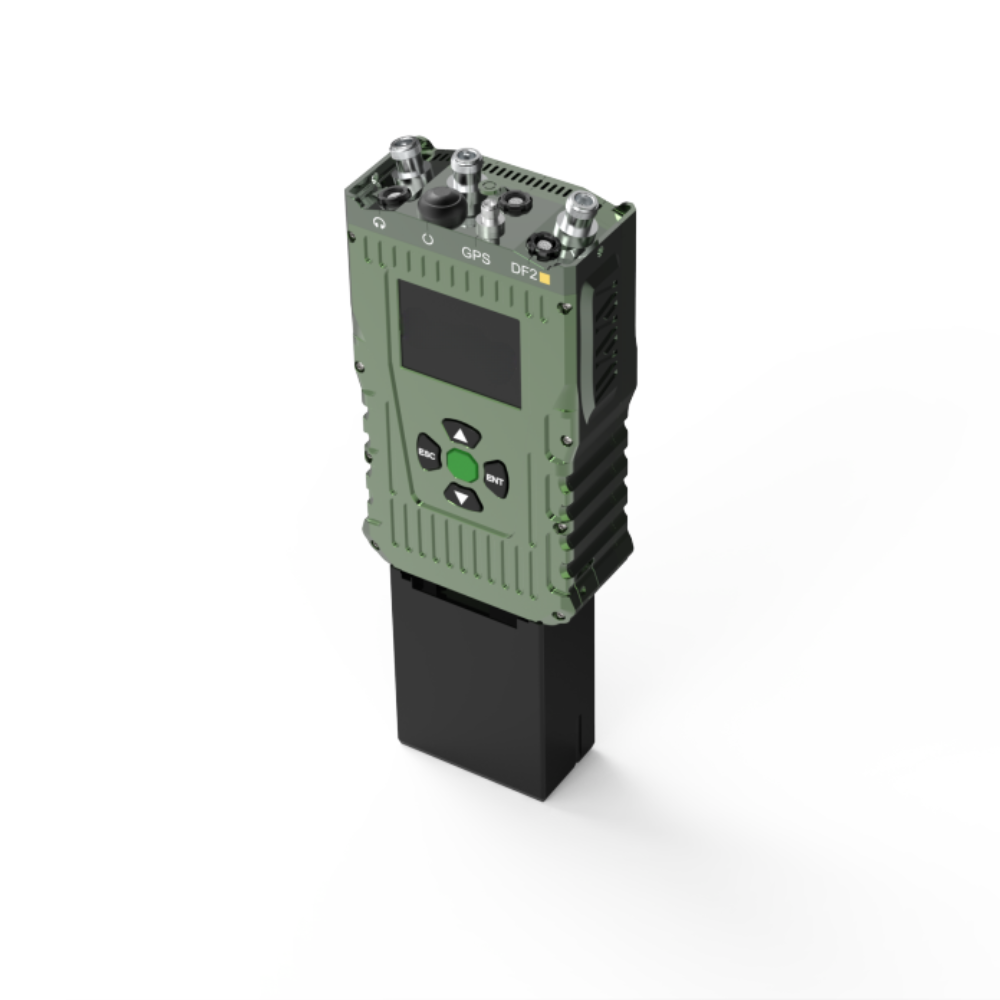

X-Mini Anti-drone

Specifications of X-Mini

General Specifications

Feature

Details

Detection Method Passive RF signal detection
Detection Range Up to 7 km
Coverage Angle Full 360°
Direction Finding 8-sector auto DF
Supported UAV Models 450+ drones and RCs
Battery Life Up to 6 hours
Deployment Options Wearable, handheld, mountable
Weight (Sensor Only) 800g
Dimensions 16cm × 9cm × 4.5cm
Protection Rating IP65
Operating Temp -22ºC to +55ºC

Detection Frequency Bands

Bands

Range

Band 1 400 MHz – 1800 MHz
Band 2 2.3 GHz – 2.6 GHz
Band 3 5 GHz – 6 GHz
Supported Protocols Ocusync (1–4), Autel SkyLink, WiFi, LTE, FPV, BLE, Zigbee, etc.
Supported Modulations OFDM, DSSS, FHSS, GFSK, OQPSK, 16QAM, etc.

FAQ’s On X-Mini

What is the X-Mini?

X-Mini is a compact, wearable RF-based drone detection system that passively detects, identifies, and tracks drones and their remote controllers using radio frequency signals.

How does the X-Mini detect drones?

X-Mini uses passive RF signal detection to identify drones and remote controllers within its coverage area. It listens for the unique frequencies and communication protocols emitted by drones—no signal transmission required.

What is the detection range of the X-Mini?

The X-Mini can detect drones and remote controllers at distances of up to 7 kilometers, depending on terrain, environmental conditions, and signal strength.

Is the X-Mini capable of detecting drone swarms?

Yes. It can detect and identify up to 30 drones simultaneously, including both DJI and non-DJI models, thanks to its electronic fingerprinting capability.

Where can I buy the X-Mini?

You can purchase the it directly from Xboom.in – your trusted supplier for advanced drone and counter-drone technologies in India.
