X3 P1 Pliabot Aerial Sprayer

879,489

  • Multi-Angle Total Coverage: Ensures comprehensive spraying on all target surfaces

  • Lightweight & Compact: Specifically designed for small-size drones with payloads under 5kg

  • High Compatibility: Fully compatible with DJI M350/300 and similar drone models

  • Versatile Application: Ideal for energy, electrical, construction, and other industrial sectors

  • Ultimate Safety: Engineered with Pliabot technology for safe and efficient aerial spraying

  • Innovative Design: AP3-P1 is the first aerial sprayer built for lightweight drone operations

Description

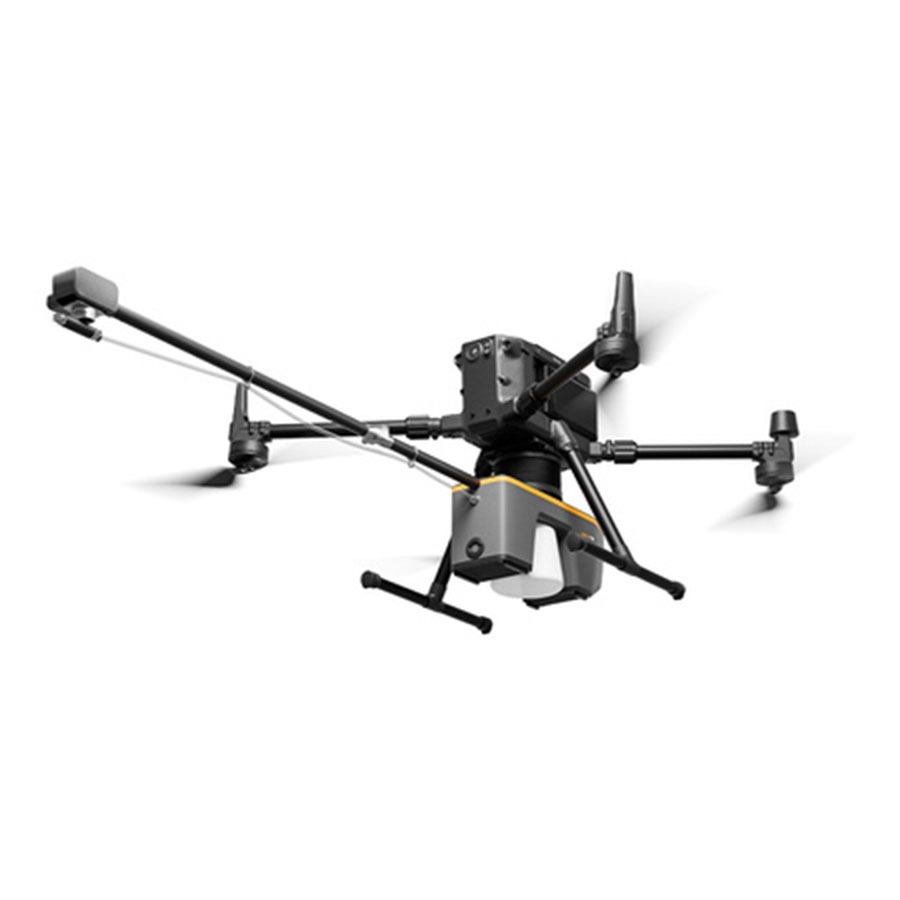

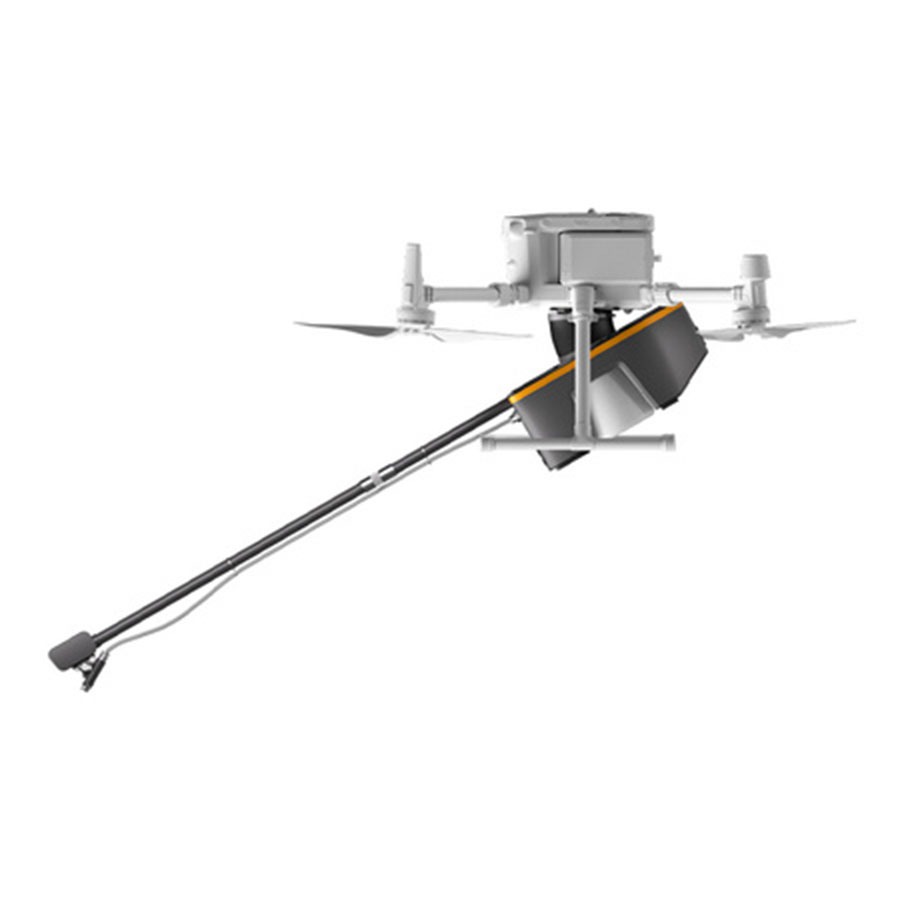

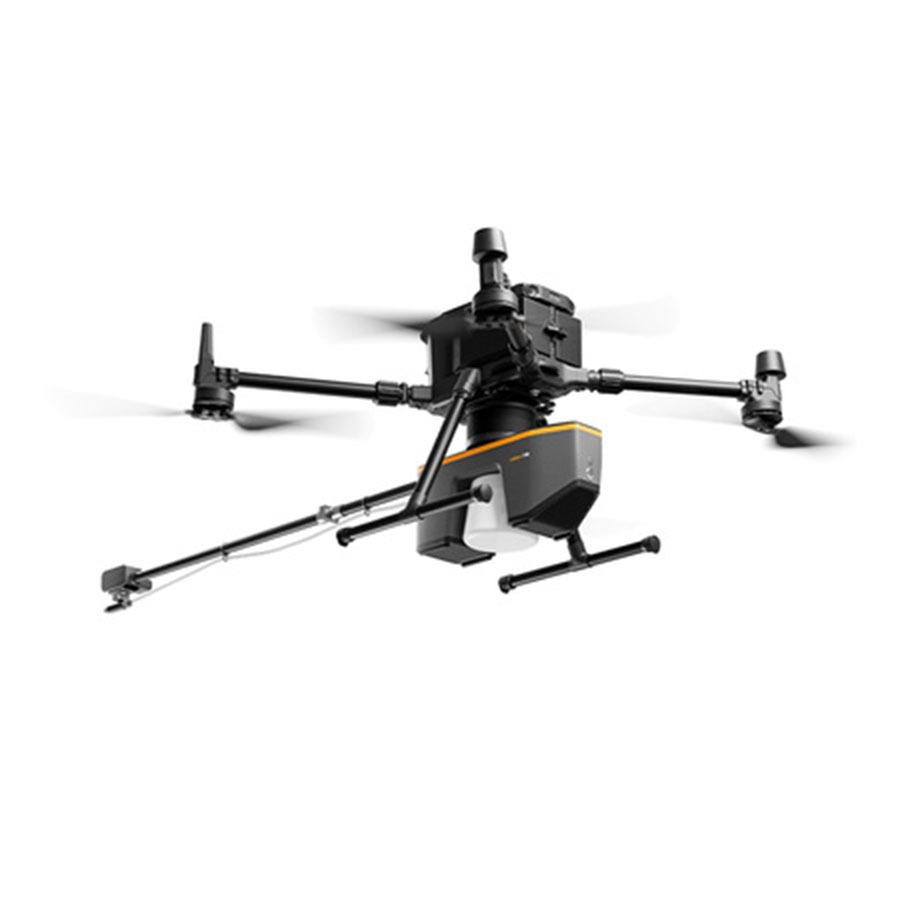

Introducing the X3 P1 Pliabot Aerial Sprayer

The X3 P1 Pliabot Aerial Sprayer is a cutting-edge unmanned aerial spraying system designed for efficient, large-area agricultural and industrial spraying tasks. Engineered with high-performance flight control, precise liquid dispensing, and intelligent obstacle avoidance, the X3 P1 empowers modern farmers and field operators to reduce labor, increase coverage efficiency, and maximize yield through smart automation.

Its lightweight, foldable design makes it field-deployable within minutes, while the tethered power or onboard battery options ensure long and uninterrupted missions. The sprayer uses multi-rotor UAV stability, automated flight paths, and real-time mapping to apply pesticides, fertilizers, or disinfectants with remarkable precision and consistency.

Whether for row crops, orchards, vineyards, or industrial sanitation, the X3 P1 Pliabot reduces drift, minimizes chemical usage, and drastically cuts operation time. It’s an ideal tool for smart agriculture, especially in areas with complex terrain or hard-to-reach zones.

Feature

Description

Aerial Precision Spraying Automated spraying with GPS-guided accuracy and uniform coverage
Multi-Rotor Stability Stable flight even under light wind conditions
Intelligent Flight Modes Auto-route planning, obstacle avoidance, and return-to-home functionality
Adjustable Spray Nozzles Customizable spray width and droplet size
High-Efficiency Pump System Consistent liquid pressure with low power consumption
Terrain Following Radar Maintains consistent height above crops or surfaces
Foldable Arm Design Compact transport and quick field deployment
Multi-Tank Compatibility Supports a variety of liquid tanks (5–15L optional)
Long Flight Time Up to 25 minutes per flight (depending on payload and battery)
Remote Monitoring & Control Ground station or app-based live control and telemetry
X3 P1 Pliabot Aerial Sprayer
  • Optimized for agriculture, orchards, greenhouses, and industrial disinfection

  • Reduces manual labor and time by up to 80%

  •  GPS-based flight routes ensure full field coverage

  •  Stable and accurate low-altitude spraying

  •  Real-time control and telemetry via mobile app or controller

  •  Multiple safety failsafes: low battery return, obstacle detection

The X3 P1 Pliabot Aerial Sprayer is a drone-based spraying system engineered for smart agricultural and industrial use. It allows for precise delivery of liquid agents such as pesticides, fertilizers, or disinfectants, especially in large or difficult-to-reach areas. With GPS-guided routes, terrain-adaptive flight, and consistent spraying pressure, it delivers uniform coverage while reducing chemical waste. It’s ideal for open fields, hills, orchards, and even closed environments like greenhouses. The robust, lightweight build supports fast field deployment and rugged conditions. Real-time monitoring via an app or ground station ensures full mission control. The system offers flexible spray parameters, long-range capability, and user-friendly maintenance. Whether you’re protecting crops or sanitizing zones, the X3 P1 maximizes efficiency from above.

  • Multi-rotor UAV frame (carbon fiber composite)

  • Precision spray module with adjustable nozzles

  • Electronic pump system

  • GPS and RTK positioning units

  • Terrain-following radar sensor

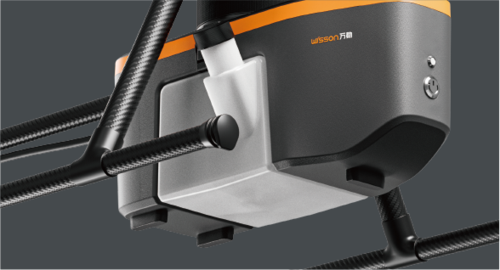

  • Removable chemical tank (custom size)

  • Flight controller with app connectivity

  • Ground control station (optional)

  • Battery or tether power module

X3 P1 Pliabot Aerial Sprayer

Specifications

Item

Specification

Dimensions 1576 × 255 × 255 mm / 62.05 × 10.04 × 10.04 in
Weight 1.8 kg / 3.97 lbs
Capacity 2 L

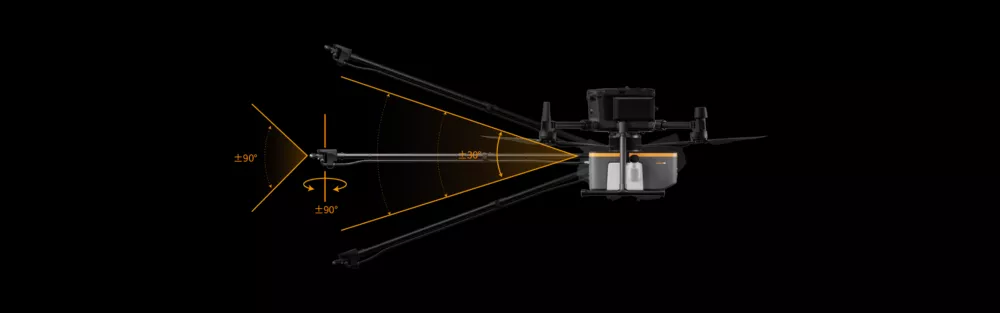

Number of Joints 3
Shoulder Joint Rotation ±30°
Wrist Joint Rotation ±90°
Spray Angle 25° (customizable)
Drones Compatible DJI Matrice 300 RTK / DJI Matrice 350 RTK

FAQ'S

1. What drones are compatible with this spraying system?
The system is compatible with DJI Matrice 300 RTK and DJI Matrice 350 RTK drones.

2. How much liquid can the system carry?
It has a capacity of 2 liters, suitable for various spraying tasks.

3. What are the system’s dimensions and weight?
The unit measures 1576 × 255 × 255 mm and weighs 1.8 kg (3.97 lbs).

4. What is the spray angle range?
The default spray angle is 25°, but it can be customized based on requirements.

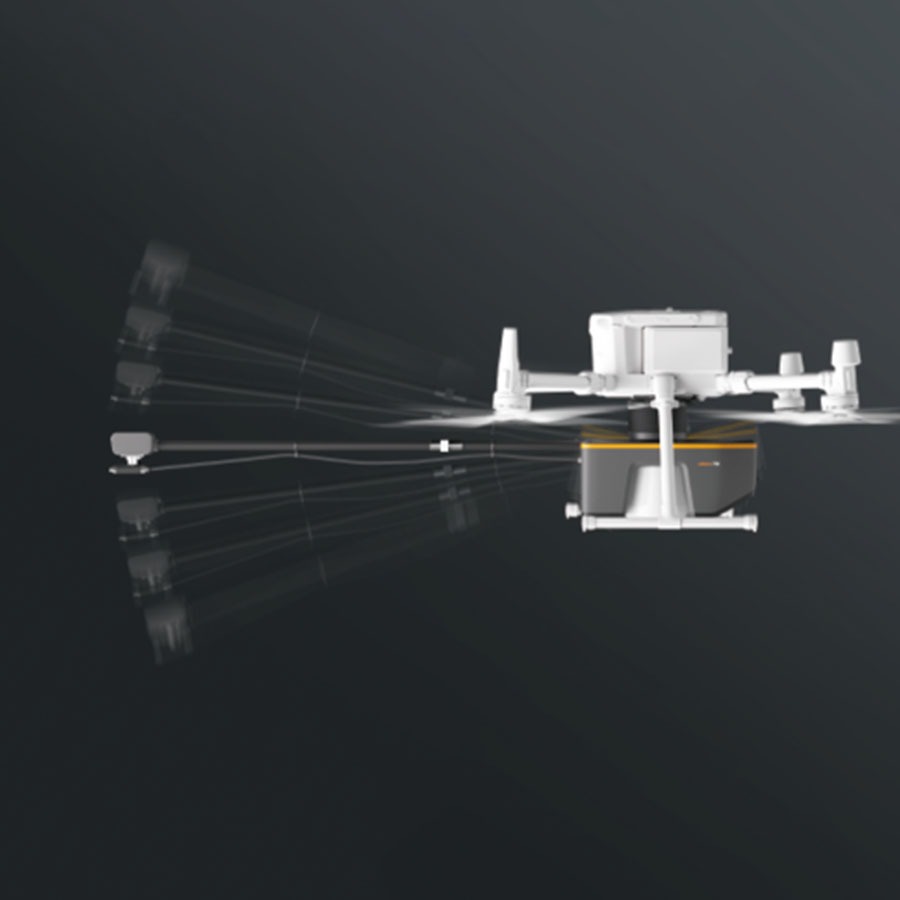

5. How flexible is the spraying arm?
It features 3 joints, with a shoulder rotation of ±30° and wrist rotation of ±90°, allowing flexible multi-angle spraying.
