| Brand |
Carl Zeiss |
| Model |

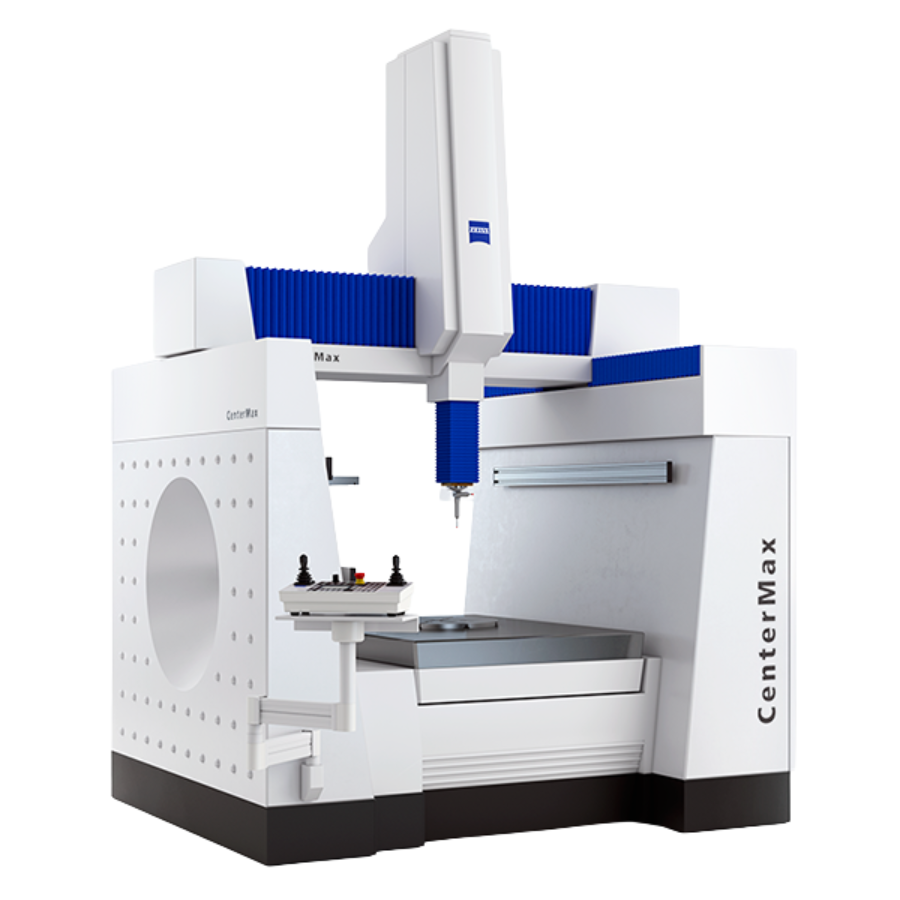

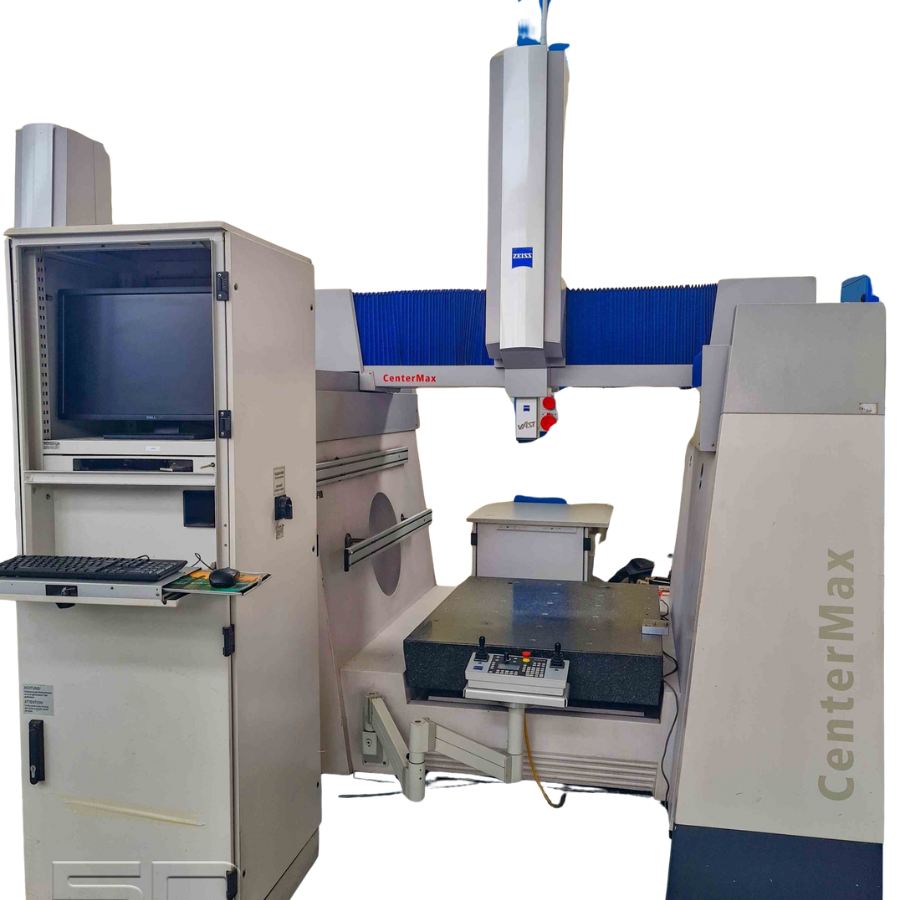

CenterMax |
| Type |
CNC Coordinate Measuring Machine (CMM) |
| Measuring Range (X × Y × Z) |
1200 × 1100 × 900 mm (varies by configuration) |
| Measuring Accuracy (MPEE) |
(1.2 + L/280) µm |
| Resolution |
0.1 µm |
| Repeatability |
±0.7 µm |
| Temperature Range |
+15 °C to +40 °C |
| Thermal Compensation |
Automatic Temperature Variable Accuracy (TVA) system |
| Workpiece Load Capacity |
Up to 1000 kg |
| Drive System |
CNC-controlled with air bearings |
| Probe System |
ZEISS VAST Gold / VAST XT scanning probe systems |
| Structure Material |
Mineral cast base with Invar and temperature-stable components |
| Vibration Damping |
Active pneumatic isolation for shop-floor stability |
| Software |
ZEISS CALYPSO / ZEISS PiWeb |
| Scanning Technology |
Navigator technology with adaptive scanning and dynamic probe calibration |
| Automation Capability |

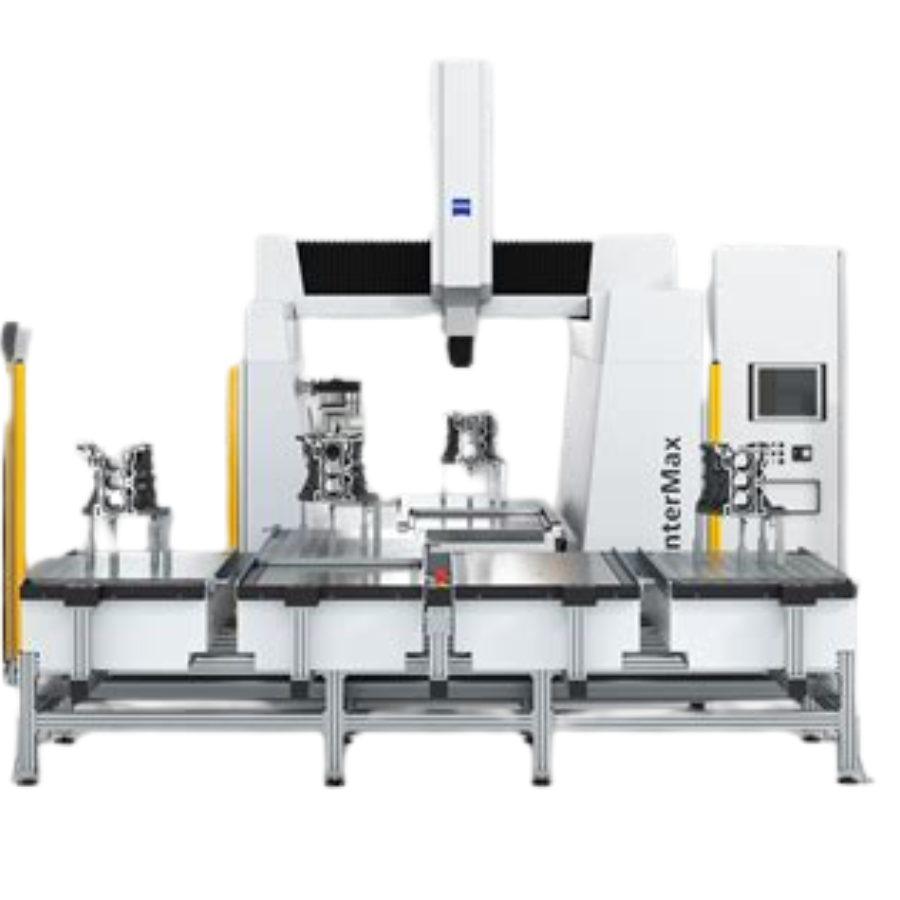

Compatible with pallet changers, robot loaders, and automated work cells |
| Access Design |
Three-sided open design for easy loading and unloading |
| Connectivity |
Ethernet, USB, and industrial automation interfaces |
| Power Supply |
230 V AC, 50/60 Hz |
| Display Interface |
Integrated operator panel with touch control |
| Key Features |
– Production-ready CMM for harsh environments- Exceptional thermal and vibration stability- High-speed, high-accuracy measurement- Fully automated integration with manufacturing systems |
| Applications |
Automotive, Aerospace, Tool & Die, Heavy Engineering, Manufacturing QC |
| Country of Origin |
Germany |
