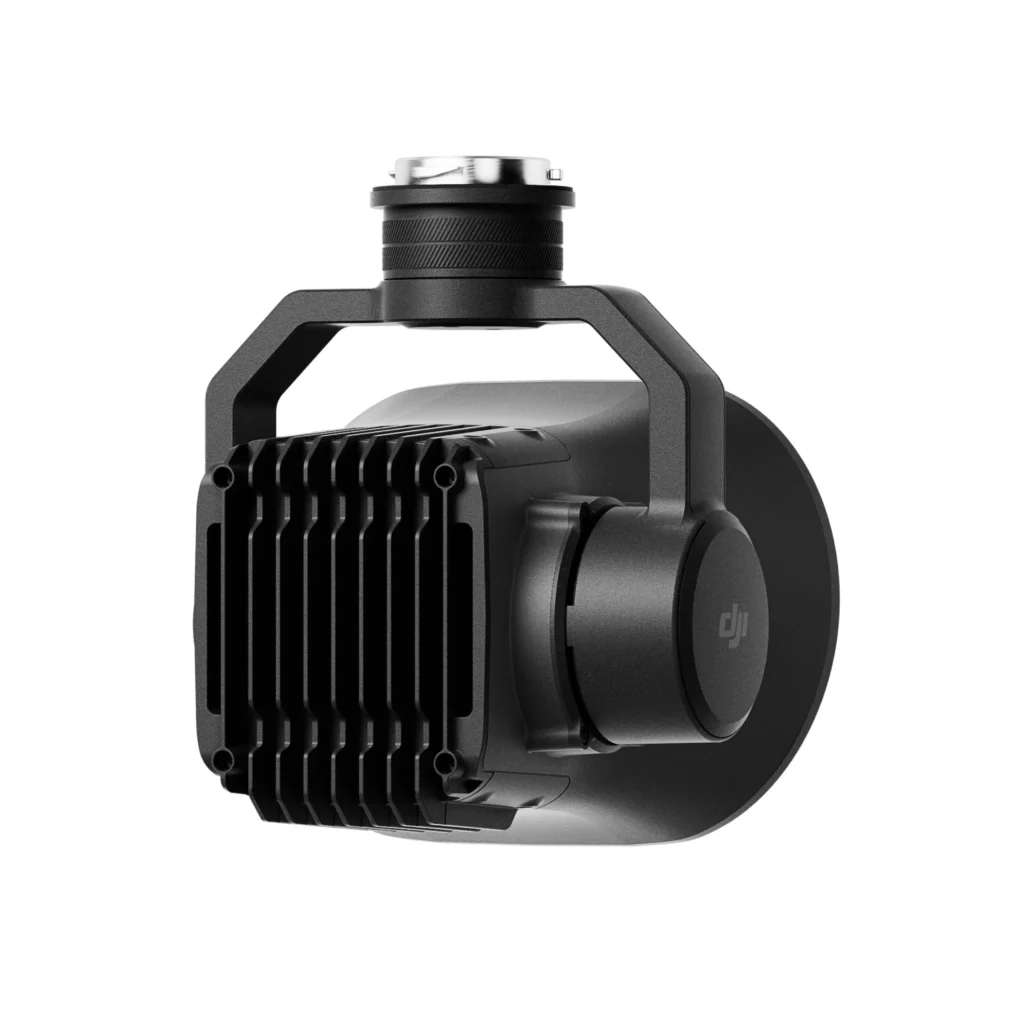

Zenmuse V1

Triple-Sensor Integration: Combines wide-angle visual, thermal, and laser rangefinder into one unit.
High-Res Thermal Imaging: 640×512 thermal camera with 30fps and multiple color palettes for clarity.
Powerful Visual Camera: Equipped with a large 1/1.8” CMOS sensor and 12MP resolution for crisp details.
Laser Rangefinder: Accurately measures distances up to 1200 meters for precise positioning.
Intelligent Features: Supports AI-based target tracking, temperature alerts, and real-time analysis.
Rugged & Weather-Resistant: Built with an IP54 rating to operate in harsh conditions.
Matrice Compatibility: Seamlessly integrates with DJI Matrice 300 RTK and 350 RTK for dependable use.

Description

Zenmuse V1

DJI’s First Speaker for Multi-Payload Drone Platforms

Reach Loud and Clear

The DJI Zenmuse V1 is a next-generation multi-sensor gimbal camera designed to enhance public safety, inspection, and search and rescue missions. Integrating a powerful visual camera, advanced thermal imaging, and a laser rangefinder into one rugged and compact payload, the Zenmuse V1 provides unmatched situational awareness in all environments. With precise stabilization, AI-powered features, and seamless compatibility with the DJI Matrice 300 and 350 RTK, it offers professionals a reliable, all-in-one tool for critical operations.

Multiple Broadcast Modes

Real-Time Broadcasting

When used with Matrice 400, Zenmuse V1 supports real-time broadcasting via the DJI Pilot 2 app, ensuring timely delivery of audio messages. It also features an integrated anti-howling algorithm to optimize clarity during broadcasts.

Real-Time Broadcasting

Text-to-Speech

Input text can be converted to speech via the DJI Pilot 2 app and transmitted to the speaker. This mode supports adjustments to tone and speech rate, as well as loop playback, ensuring that information is conveyed clearly and flexibly to the target audience.

Audio File Playback

The DJI Pilot 2 app supports the import of local audio files, which can then be transmitted to the speaker for playback. When paired with Matrice 400, Zenmuse V1 supports simultaneous file transfer and playback. These allow for the quick dissemination of preset content during operations, enhancing efficiency and smoothness.

Powerful Sound, Extended Reach

At 1 meter, Zenmuse V1’s maximum loudness can reach 129 decibels ^[1], on par with the sound level of a jet taking off. Powerful volume ensures clear communication. With an effective broadcast distance of up to 700 meters, ^[1] it ensures coverage even in vast areas.

Clear, Directional Recording

During recording, DJI RC Plus can directionally capture voices directly above the microphone. Combined with environmental noise cancelling technology, it effectively minimizes surrounding noise interference, ensuring clearer recordings.

Specifications

Specifications	Details
Thermal Camera Resolution	640 × 512 pixels
Thermal Frame Rate	30 fps
Thermal Lens FOV	40° × 30°
Thermal Sensitivity (NETD)	≤ 50 mK @ f/1.0
Visual Camera Sensor	1/1.8-inch CMOS, 12 MP
Lens (Visual Camera)	22 mm equivalent, f/2.8 aperture
Shutter Speed (Visual)	1/30 – 1/8000 s
ISO Range (Visual)	100 – 6400
Laser Rangefinder Range	Up to 1200 m
Rangefinder Accuracy	± (0.2 m + D × 0.15%)
Gimbal Stabilization	3-axis (Pitch, Roll, Yaw)
Max Control Speed	120°/s
Environmental Rating	IP54 (Dust and splash resistant)
Operating Temperature	-20°C to 50°C (-4°F to 122°F)
Dimensions	Approx. 155 × 137 × 123 mm
Weight	Approx. 500 g
Compatible Drones	DJI Matrice 300 RTK, DJI Matrice 350 RTK
