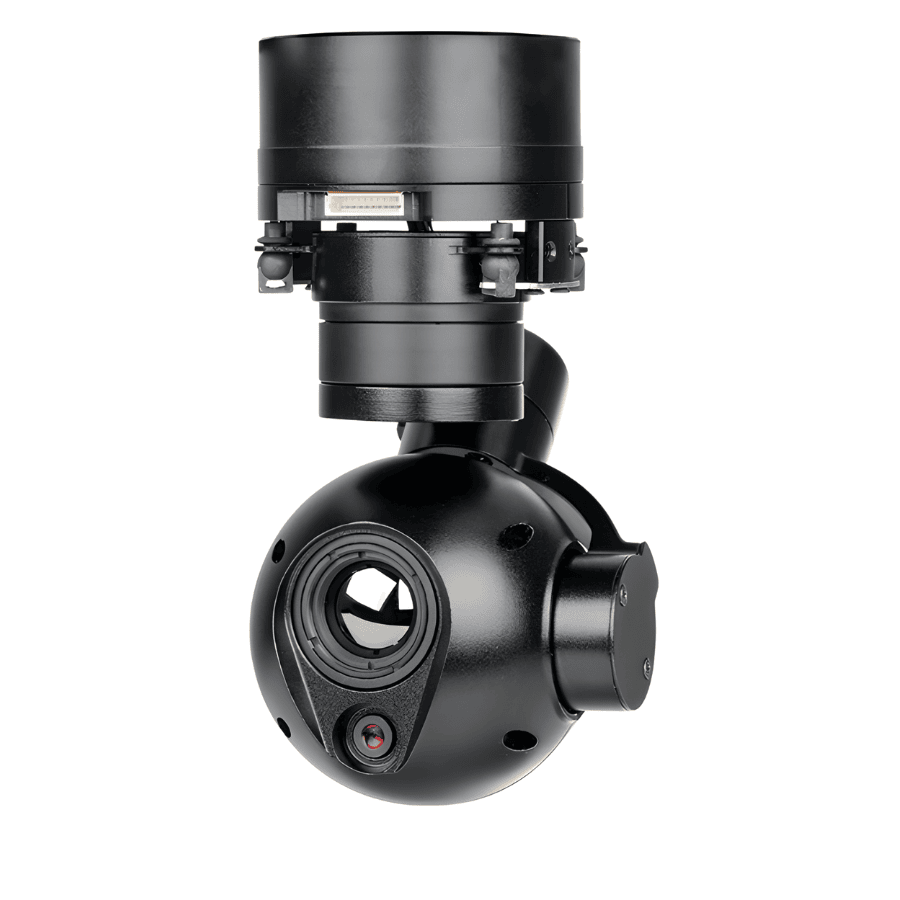

What Is the Q2R Thermal Camera?
The Viewpro Q2R is a micro gimbal thermal camera built specifically for UAVs (unmanned aerial vehicles). It packs professional infrared imaging capability into a compact, lightweight body—making it the go-to solution for drone operators who need real-time thermal data without sacrificing payload efficiency.
Made by Shenzhen Viewpro Technology Co., Ltd., the Q2R is part of the Q2 Series micro gimbal lineup and is notable for its video output over IP, ability to work with various voltage levels, and compatibility with different control systems — all in a size that fits lightweight commercial drones.
Q2R Thermal Camera: Full Technical Specifications
Understanding what the Q2R delivers on paper helps operators select the right payload for their mission. Here’s what the camera runs on:
| Specification | Detail |
|---|---|
| Working Voltage | 12V – 25.2V |
| Dynamic Current | 250–600mA @ 16V |
| Power Consumption | Average 4W / Max 9.6W |
| Video Output | Ethernet: IP (RTSP, 1080p @ 25fps, H.264/H.265) |
| Control Method | TTL or S.BUS (TTL by default) + TCP/IP |
| IP Rating | IP4X |
| Working Temperature | -20°C to +50°C |
This wide working voltage range (12–25.2V) allows operators to mount the Q2R on a broad range of drone platforms without complex power conditioning. The dual control method—TTL/S.BUS alongside TCP/IP—gives ground teams flexibility in how they command the gimbal during flight.
Why Drone Operators Choose the Q2R Thermal Camera
1. Micro Form Factor, Professional Output
The Q2R delivers 1080p thermal-enhanced video at 25fps over an IP/RTSP stream. This lets ground operators view, record, and analyze footage in real time without buffering or signal degradation. H.264/H.265 compression keeps bandwidth usage efficient—critical for extended-range UAV operations.
2. Operates Across Extreme Environments
With a rated operating range of -20°C to +50°C, the Q2R handles everything from subzero winter inspections to sun-scorched industrial surveillance. The IP4X rating protects the unit against dust and light splashes, adding operational durability across field conditions.
3. Flexible Integration for Multiple Drone Platforms
The Q2R supports TTL, S.BUS, and TCP/IP control simultaneously. This means operators can integrate it with custom flight controllers, standard RC systems, and ground control software without custom hardware modifications. Viewpro’s Viewlink software also supports the Q2 Series, enabling OSD configuration, angle control, joystick commands, and live 3D field-of-view visualization from a single interface.
4. Low Power Draw Extends Flight Time
Averaging just 4W of power consumption, the Q2R places minimal load on the drone’s battery system. This directly translates to longer operational windows—a vital advantage in search and rescue, border patrol, or infrastructure inspection where every minute of flight time matters.
Who Uses the Q2R Thermal Camera?
The Q2R targets professional operators across several high-stakes industries:
Search and Rescue Teams — Deploy the Q2R at night or through smoke to detect body heat signatures in disaster zones, collapsed buildings, or open water environments where optical cameras fail.
Industrial Inspection Engineers — Mount the Q2R on a drone to scan solar panels, power lines, substations, and pipelines for thermal anomalies indicating equipment failure — without taking assets offline.
Security and Surveillance Professionals — Use real-time thermal streaming to monitor large perimeters, construction sites, or restricted areas 24/7, regardless of lighting conditions.
Firefighting and Emergency Response Units — Identify hotspots and fire spread direction from above before ground teams move in, reducing risk and improving tactical decision-making.
Agricultural Analysts — Fly the Q2R over crop fields to detect water stress, pest damage, and irrigation irregularities through thermal differential imaging.
Q2R vs. Standard Optical Drone Cameras: What Changes?
Standard optical cameras depend on visible light. Clouds, darkness, smoke, and glare all degrade their performance. The Q2R detects infrared radiation—heat emitted by objects, making lighting conditions irrelevant to image quality.
This distinction drives the Q2R’s value in:
- Night operations where optical cameras go blind
- Smoke-filled environments where visibility drops to zero
- Monitoring equipment that looks normal visually but runs hot internally
- Detecting humans or animals hidden by foliage or terrain
How to Mount and Operate the Q2R on a UAV
Step 1: Check Platform Compatibility
Confirm your drone supports a 12–25.2V auxiliary power output and has a suitable payload mount point.
Step 2: Connect Power and Control Cables
Wire the Q2R to your drone’s power distribution board. Connect the TTL or S.BUS control cable to your flight controller or RC receiver.
Step 3: Configure Video Output
Set up your ground control station to receive the RTSP stream over Ethernet. The Q2R outputs H.264 or H.265 at 1080p/25fps—compatible with most modern GCS software.
Step 4: Install and Configure Viewlink Software
Download Viewpro’s Viewlink application. Configure OSD overlays, angle limits, and joystick mapping through the software interface before your first flight.
Step 5: Calibrate and Test
Run a pre-flight ground test to confirm thermal image quality, gimbal movement, and video stream integrity before committing to a mission.
Frequently Asked Questions About the Q2R Thermal Camera
Q: What drones does the Q2R thermal camera work with?
A: The Q2R works with most professional-grade UAV platforms that supply 12–25.2V auxiliary power. It integrates with flight controllers via TTL or S.BUS, making it compatible with a wide range of fixed-wing, multi-rotor, and VTOL platforms.
Q: Does the Q2R record video onboard?
A: The Q2R streams live 1080p video over an IP/RTSP connection. For local recording, operators connect it to a ground station or onboard recording device via the Ethernet output. Check the full Viewpro spec sheet for storage configuration options.
Q: How does the Q2R perform in low light or at night?
A: Thermal cameras like the Q2R detect heat — not light. They deliver consistent imaging performance in complete darkness, making them significantly more effective than optical cameras in nighttime or low-visibility conditions.
Q: What is the Q2RM variant?
A: The Q2RM is a variant within the same Q2 Series family. It shares the core Q2R architecture with additional or modified specifications suited to specific mission profiles. Consult Viewpro’s official spec page for a direct Q2R vs. Q2RM comparison.
Q: What software supports the Q2R?
A: Viewpro’s own Viewlink software fully supports the Q2 Series. It enables live streaming, OSD configuration, gimbal angle control, and joystick operation. The camera also communicates over TCP/IP for integration with third-party GCS platforms.
Q: Is the Q2R waterproof?
A: The Q2R carries an IP4X rating, which protects against solid particle intrusion and limited liquid splashing. It does not carry a full waterproofing certification, so operators should avoid direct exposure to heavy rain or immersion.
The Q2R in Context: Viewpro’s Micro Gimbal Ecosystem
Viewpro manufactures over 90 models of gimbal cameras. The Q2R occupies the micro segment—prioritizing weight and power efficiency for smaller drone platforms. For operators who need expanded capability, Viewpro’s wider ecosystem scales up to the following:
- Dual IR sensor systems combining 13mm and 52mm thermal lenses alongside 30x EO zoom for long-range detection
- AI-powered tracking cameras like the A30TR series, which integrate computer vision for real-time target identification and autonomous locking
- Triple-sensor gimbals pairing EO cameras, IR thermal, and laser rangefinders into a single integrated pod
The Q2R serves as the entry point into this professional-grade ecosystem—enabling operators to build familiarity with Viewpro’s control protocols, Viewlink software, and mounting systems before scaling to more advanced payloads.
Conclusion: Do the Q2R thermal cameras deliver?
Yes — for operators who need reliable thermal imaging on lightweight or mid-size UAV platforms, the Q2R delivers a practical, power-efficient, and professionally capable solution. Its 4W average draw preserves flight time. Its -20°C to +50°C operating range covers demanding field environments. Its IP/RTSP output at 1080p/25fps keeps ground teams informed in real time.
Whether the mission involves search and rescue, infrastructure inspection, security surveillance, or agricultural analysis, the Q2R thermal camera gives drone operators the thermal visibility they need to make faster, safer, and smarter decisions from the air.
