Line scan hyperspectral imaging camera FS-14 (400-1700nm)

Hurry! Deals Disappear In -

  • Covers a broad spectral range: 400–1700 nm (VNIR + SWIR)

  • Utilizes dual-sensor technology (CMOS + InGaAs) for full-range coverage

  • Employs line-scan (push-broom) imaging ideal for conveyor/motion-based analysis

  • High spectral resolution: ~5–10 nm for fine material differentiation

  • Delivers real-time hyperspectral data acquisition at high frame rates

  • Supports 512 configurable spectral bands

  • Comes with ENVI-compatible output formats: BIL, BSQ, TIFF

  • Includes white/dark calibration tools and motorized shutter

  • Thermoelectrically cooled SWIR sensor for stable performance

  • Compact, rugged build for lab, field, and industrial environments

  • Supplied with software suite for capture, analysis, and export

Description

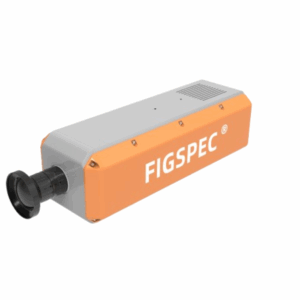

Line scan hyperspectral imaging camera FS-14 (400-1700nm)

The FS-14 Line Scan Hyperspectral Imaging Camera is an advanced spectral imaging system designed to capture detailed spectral information across a broad wavelength range of 400–1700 nm, covering both VNIR (Visible-Near Infrared) and SWIR (Short-Wave Infrared) bands. Utilizing push-broom (line-scan) technology, it is ideal for high-precision inspection and analysis of moving or conveyor-based samples in real-time.Built with dual-sensor integration (CMOS for VNIR and InGaAs for SWIR), the FS-14 provides seamless spectral fusion and superior spectral resolution (~5–10 nm), enabling detection of fine material differences not visible with traditional cameras. Its compact form factor makes it suitable for both lab setups and industrial integration, while the rugged build ensures durability in various environments.

The camera features thermoelectric cooling for stable SWIR performance, automated dark/white referencing, and supports high-speed data acquisition via USB 3.0 or Gigabit Ethernet. Accompanied by a powerful software suite and open SDK/API support, it allows users to calibrate, visualize, and analyze hyperspectral data efficiently.Whether in agriculture, food inspection, mining, medical diagnostics, or art conservation, the FS-14 offers unmatched versatility and spectral insight. It delivers spectral cubes (x, y, λ) in standard formats (ENVI, BIL, BSQ), making it ready for immediate integration into existing workflows.

Feature

Description

Spectral Range 400–1700 nm (covers VNIR + SWIR in one system)
Imaging Technology Line-scan (push-broom) hyperspectral imaging
Sensor Type Dual sensor: CMOS (VNIR) + InGaAs (SWIR)
Spectral Resolution Approx. 5–10 nm for accurate spectral distinction
Number of Spectral Bands Up to 512 bands, configurable
Spatial Resolution 640–1024 pixels per line (depends on sensor model)
Data Acquisition Speed High-speed scanning with up to 300 Hz (ROI-dependent)
Cooling System TEC-cooled SWIR sensor for thermal stability
Integration Support Conveyor, tripod, or gantry mount compatible
Software Compatibility Provided with acquisition + spectral processing software
Output Format ENVI-standard formats: BIL, BSQ, TIFF, CSV
Calibration Tools Built-in motorized shutter, white/dark reference plates
Connectivity USB 3.0 or Gigabit Ethernet (GigE) for fast data transfer
SDK/API Available for Python, C++, LabVIEW, etc.
Lighting Compatibility Supports broadband halogen or LED illumination
Spectral Fusion Seamless stitching of VNIR + SWIR spectra
FS1X Series Hyperspectral camera (line scanning) images

Model

FS-10

FS-12

FS-13

FS-14

FS-15

FS-17

FS-18

FS-1A

Spectroscopic Mode

Transmission grating Transmission grating Transmission grating Transmission grating Transmission grating Transmission grating Transmission grating Transmission grating

Spectral Range

400-700nm 400-1000nm 400-1000nm 400-1700nm 900-1700nm 900-1700nm 900-1700nm 1400-2500nm

Spectral Band

600 1200 1200 680 254 1024 512 210

Spectral FWHM

2.5nm 2.5nm 2.5nm 13nm 8nm 6nm 6nm 12nm

Slit Width

25um 25um 25um 25um 25um 25um 25um 25um

Transmission Efficiency

>50% >60% >60% >60% >60% >60% >60% >60%

Stray Light

<0.5% <0.5% <0.5% <1% <0.5% <0.5% <0.5% <0.5%

Number of Spatial Pixels

1920 1920 1920 1280 320 1280 640 320

Pixel Size

5.86um 5.86um 5.86um 5um x 5um 30um 5um 15um 20um x 20um

Imaging Speed

Full band 41Hz, 390Hz after ROI Full band 41Hz, 390Hz after ROI Full band 128Hz, 3300Hz after ROI 100fps 200Hz 132fps (8bit/1024), 70fps (12bit/1024), 253fps (8bit/512), up to 1800fps after ROI 724fps 509fps

Detector

CMOS CMOS CMOS InGaAs InGaAs InGaAs InGaAs InGaAs

SNR (Peak)

500:1 600:1 600:1 600:1 600:1 600:1 600:1 300:1

Camera Output

USB3.0 USB3.0 USB3.0 USB3.0 Gigabit Ethernet USB3.0 Cameralink USB3.1

Camera Interface

C-Mount C-Mount C-Mount C-Mount C-Mount C-Mount C-Mount C-Mount

Parts

USB3.0 transmission cable USB3.0 transmission cable USB3.0 transmission cable Lens, USB cable, power supply Gigabit Ethernet transmission line Lens, USB cable, power supply Lens, data cable, power supply, data acquisition card Lens, USB cable, power supply

ROI

Single area Single area Multiple regions Multiple regions Single area Multiple regions Single area Canvas

Specification table

Parameter

Specification

Spectral Range 400–1700 nm
Spectral Bands Up to 512
Spectral Resolution ~5–10 nm
Spatial Resolution 640–1024 pixels (per line)
Sensor Type VNIR: CMOS / SWIR: InGaAs
Cooling TEC for SWIR
Interface USB 3.0 / Gigabit Ethernet
Power 12V DC, <20W
Mounting Tripod, Conveyor, Custom brackets
Dimensions ~260 × 100 × 100 mm
Weight ~1.5 kg
Shutter Internal motorized
Software Acquisition & spectral processing suite
File Formats BIL, BSQ, ENVI, TIFF, CSV
Operating Temp 0°C to 40°C
Frame Rate Up to 300 Hz (ROI-dependent)
Calibration Tools White/dark reference plates included
Field of View 15°–25°, swappable lenses

Includes

  •  FS-14 Line Scan Hyperspectral Camera (400–1700 nm, VNIR + SWIR)

  •  Pre-calibrated lens (standard FOV)

  •  White and dark reference plates for radiometric calibration

  •  Power adapter (12V DC, regulated)

  •  USB 3.0 or Gigabit Ethernet data interface cable

  •  Tripod/conveyor-compatible mounting brackets

  •  Hyperspectral imaging software suite (capture + analysis)

  •  SDK/API for Python, C++, LabVIEW, etc.

  •  Full user manual (PDF + printed version)

  •  Warranty card (1–2 years depending on purchase)

  •  Optional rugged transport/carrying case

FAQS

  1. What spectral range does the FS-14 camera cover?➤ It captures hyperspectral data across 400–1700 nm, covering both VNIR and SWIR bands.
  2. Is the FS-14 suitable for real-time or inline imaging?➤ Yes, the line-scan (push-broom) design makes it ideal for real-time analysis on conveyor belts or moving samples.
  3. What lighting should I use with this camera?➤ Use broad-spectrum halogen or LED lights to cover the full wavelength range (400–1700 nm).
  4. Does it come with software for data acquisition and analysis?➤ Yes, it includes a complete software suite for imaging, calibration, and spectral data analysis.
  5. Can I develop custom applications with the FS-14?➤ Absolutely. It comes with SDKs and APIs for Python, C++, LabVIEW, and more.
  6. What output formats are supported?➤ It supports BIL, BSQ, TIFF, and CSV formats compatible with ENVI and other analysis platforms.
  7. Is calibration automatic or manual?➤ The system includes motorized shutters and reference plates for semi-automatic dark/white calibration.
  8. What is the spatial and spectral resolution?➤ Spatial resolution: up to 1024 pixels per line. Spectral resolution: approximately 5–10 nm
