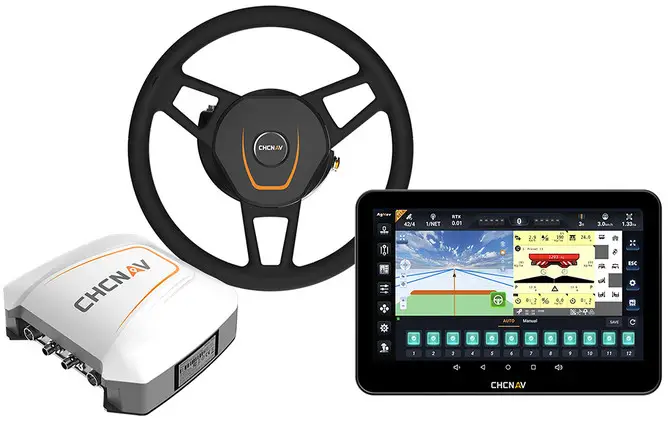

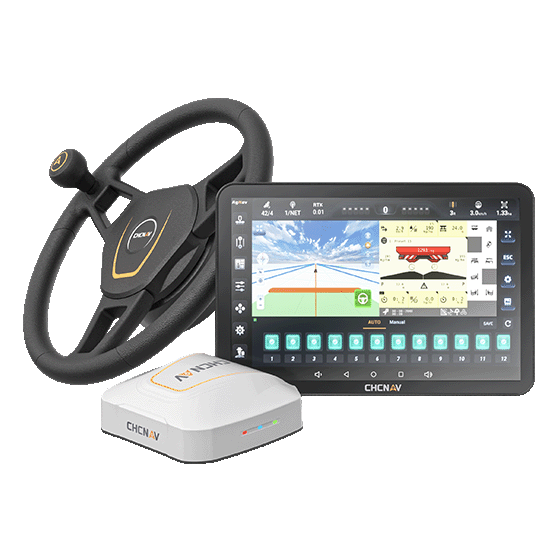

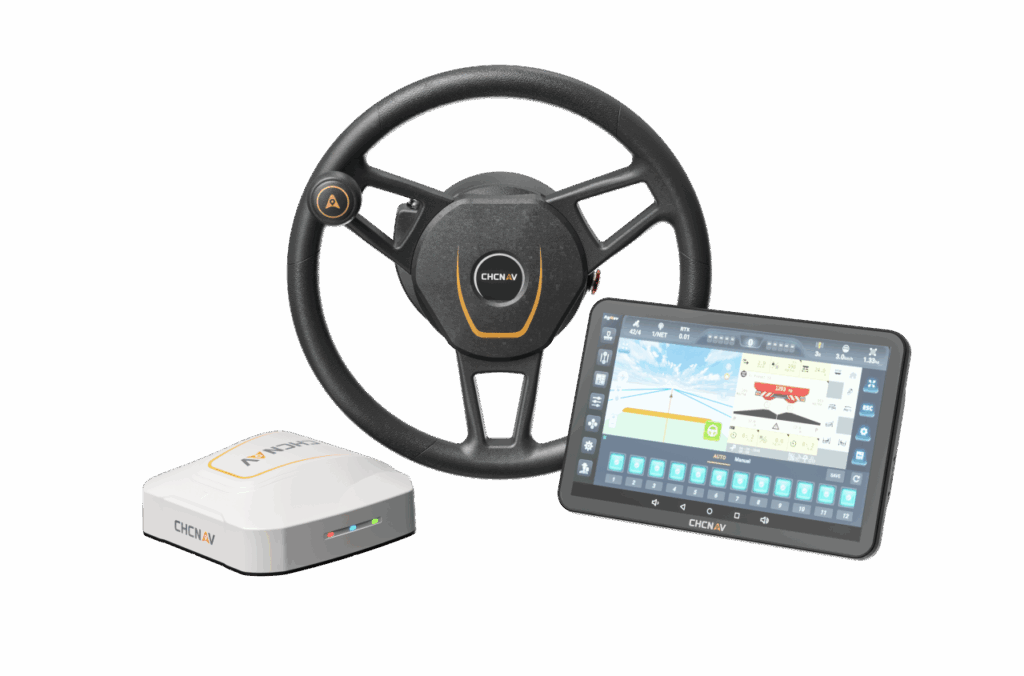

CHCNAV NX612

Automated steering system for tractors and self-propelled ag machines with ±2.5 cm pass-to-pass precision (GNSS RTK & SkyTrix PPP).
Works reliably from 0.1–30 km/h, ideal for seeding, spraying, tillage and land prep.

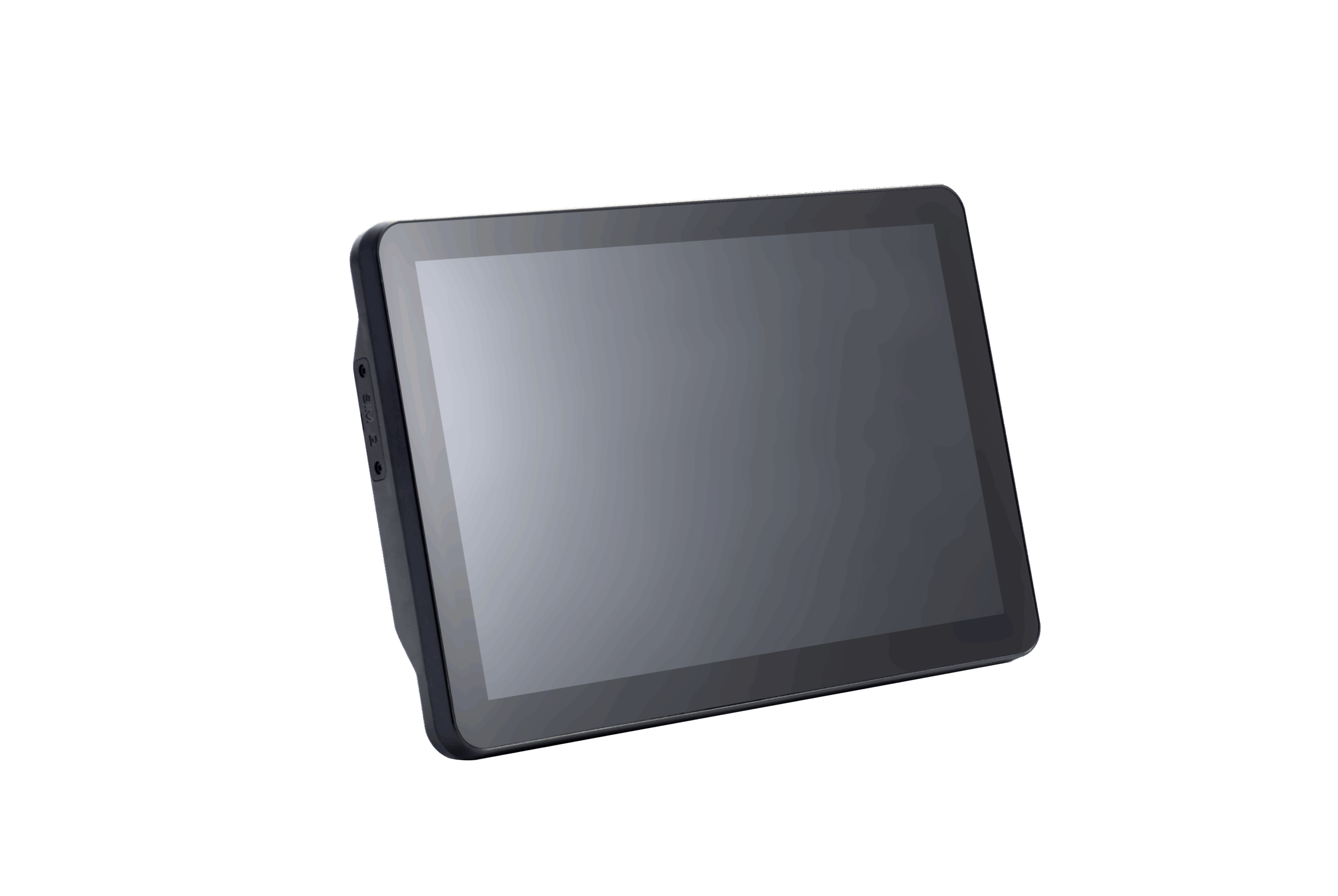

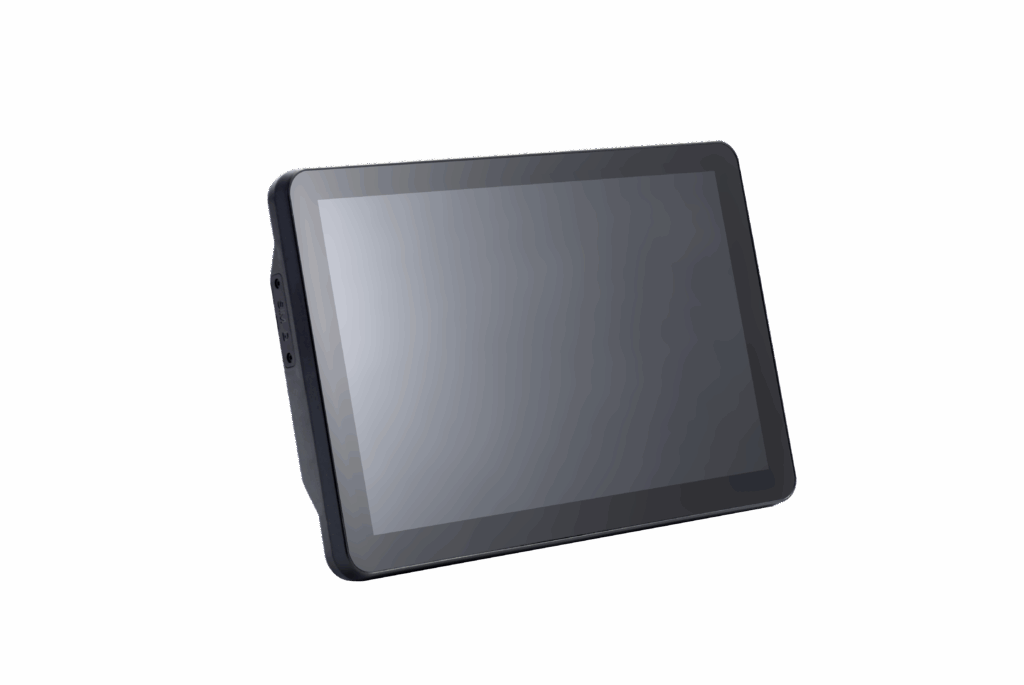

12.1″ industrial HD display (Android 11), large icons, 3D views, customizable UI for fast setup.
Multiple guidance patterns: AB / A+ / curve / circular / irregular / 90° / boxed / all-path / path-planning.
Broad vehicle compatibility: front/rear-wheel steer, articulated, tracked, rice transplanters, self-propelled sprayers.
ISOBUS VT/TC, U-turnX, implement guidance, panoramic view; cloud connectivity.

Description

Item	Spec
Screen size	12.1 in
Resolution	1280 × 800 px
Brightness	750 nits
Communications	Wi-Fi 2.4 GHz (2.400–2.4835 GHz), Wi-Fi 5 GHz (5.150–5.850 GHz), Bluetooth V4.2
Cellular bands	LTE-FDD B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28; LTE-TDD B38/39/40/41; UMTS B1/2/4/5/6/8/19; GSM B2/3/5/8
GNSS	GLONASS L1, L2
Operating system	Android 11
Power	9–36 V DC
Dimensions (W×H×D)	297.1 × 199.7 × 41 mm
Weight	1.5 kg
Working / Storage temp	−20 °C to +70 °C / −40 °C to +85 °C
Ingress protection	IP67

Receiver

Item	Spec
GNSS constellations	BDS: B1I, B2I, B3I, B1C, B2a, B2b • GPS: L1C/A, L2P(Y)/L2C, L5 • GLONASS: L1, L2 • Galileo: E1, E5a, E5b, E6 • QZSS: L1, L2, L5 • L-Band
Supported modes	SPP, DGPS, RTK, E-PPP, H-PPP (Galileo E6-HAS), SkyTrix
RTK accuracy	Horizontal: ±8 mm + 1 ppm RMS • Vertical: ±15 mm + 1 ppm RMS
PPP / SkyTrix accuracy	Horizontal: ±2.5 cm (CEP95) • Vertical: ±5 cm (RMS) • Convergence: < 5 min
Cellular (modem)	LTE-FDD B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28; LTE-TDD B38/39/40/41; UMTS B1/2/4/5/6/8/19; GSM B2/3/5/8
Radio protocols	CHC, TT450, Transparent, SATEL, CHC-AG
Power supply	9–36 V DC
Dimensions (W×H×D)	208 × 191 × 73 mm
Working / Storage temp	−20 °C to +70 °C / −40 °C to +85 °C
Ingress protection	IP67

Electric Steering Wheel

Item	Spec
Motor type	Torque motor
Rated torque	7 N·m
Max / rated RPM	180 RPM / 120 RPM
Current	15 A rated, 38 A peak
I/O	1× CAN / Tractor horn
Motor dimensions / weight	Ø165 × 58 mm, ≤ 3.8 kg
Steering wheel diameters	400 mm / 360 mm
Working / Storage temp	−40 °C to +85 °C / −40 °C to +85 °C
Ingress protection	IP65

Camera

Item	Spec
Resolution	1920 × 1080 px
Video output	AHD
White balance / exposure	Automatic / Automatic
Field of view	150°
Working temp	−20 °C to +70 °C
Ingress protection	IP67

Key Points

Reliable performance is provided by the CHCNAV NX612 Automated Steering System in a variety of agricultural environments. It is appropriate for precision farming anywhere since it easily links to GNSS RTK networks and CHCNAV SkyTrix satellite correction services, offering ±2.5 cm accuracy even in isolated locations without network coverage. The system’s small drive wheel motor increases operator comfort while conserving cab space. Operation is made easy and efficient by its industrial-grade 12-inch HD display, which features large icons, 3D views, and an intuitive interface.
