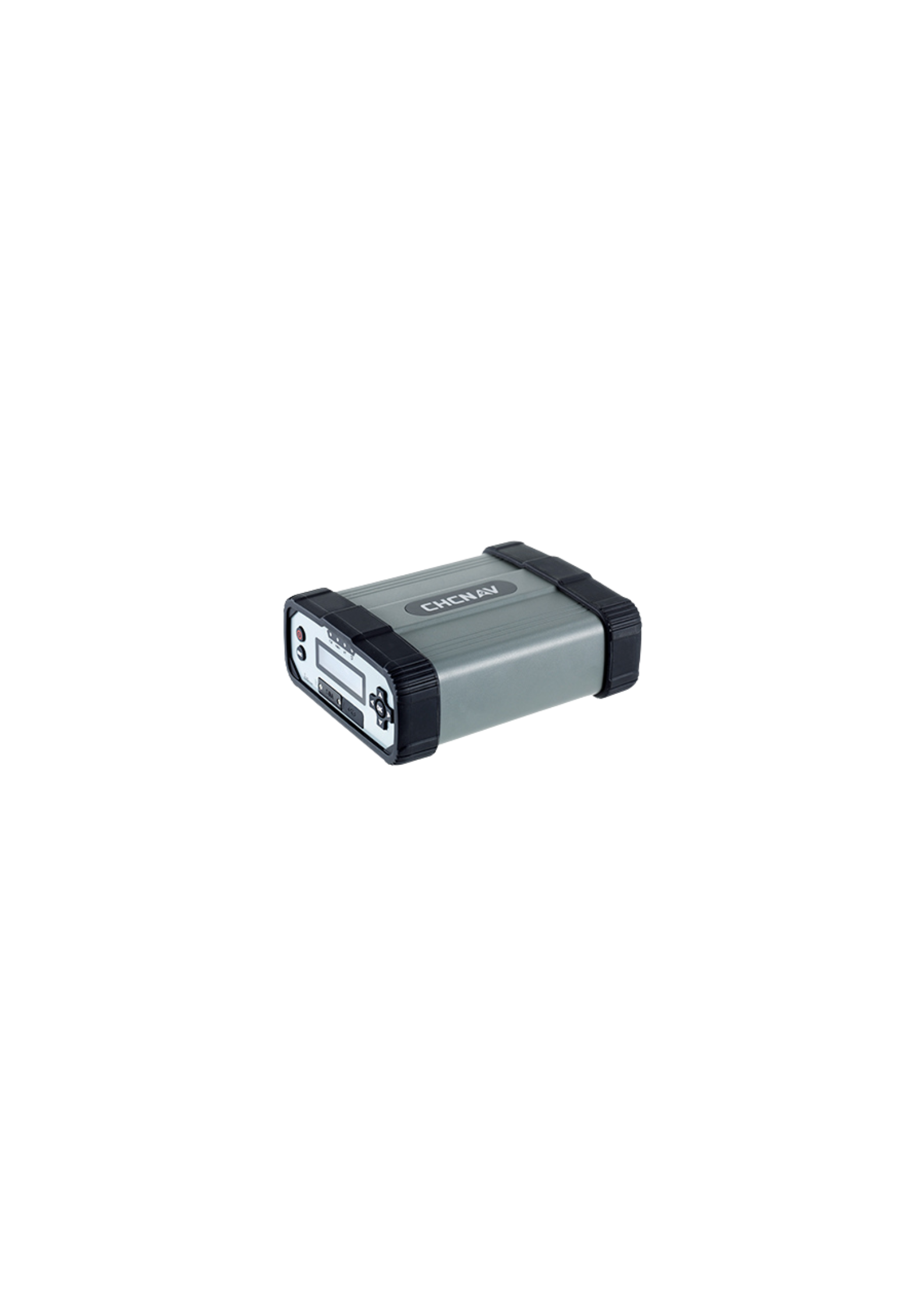

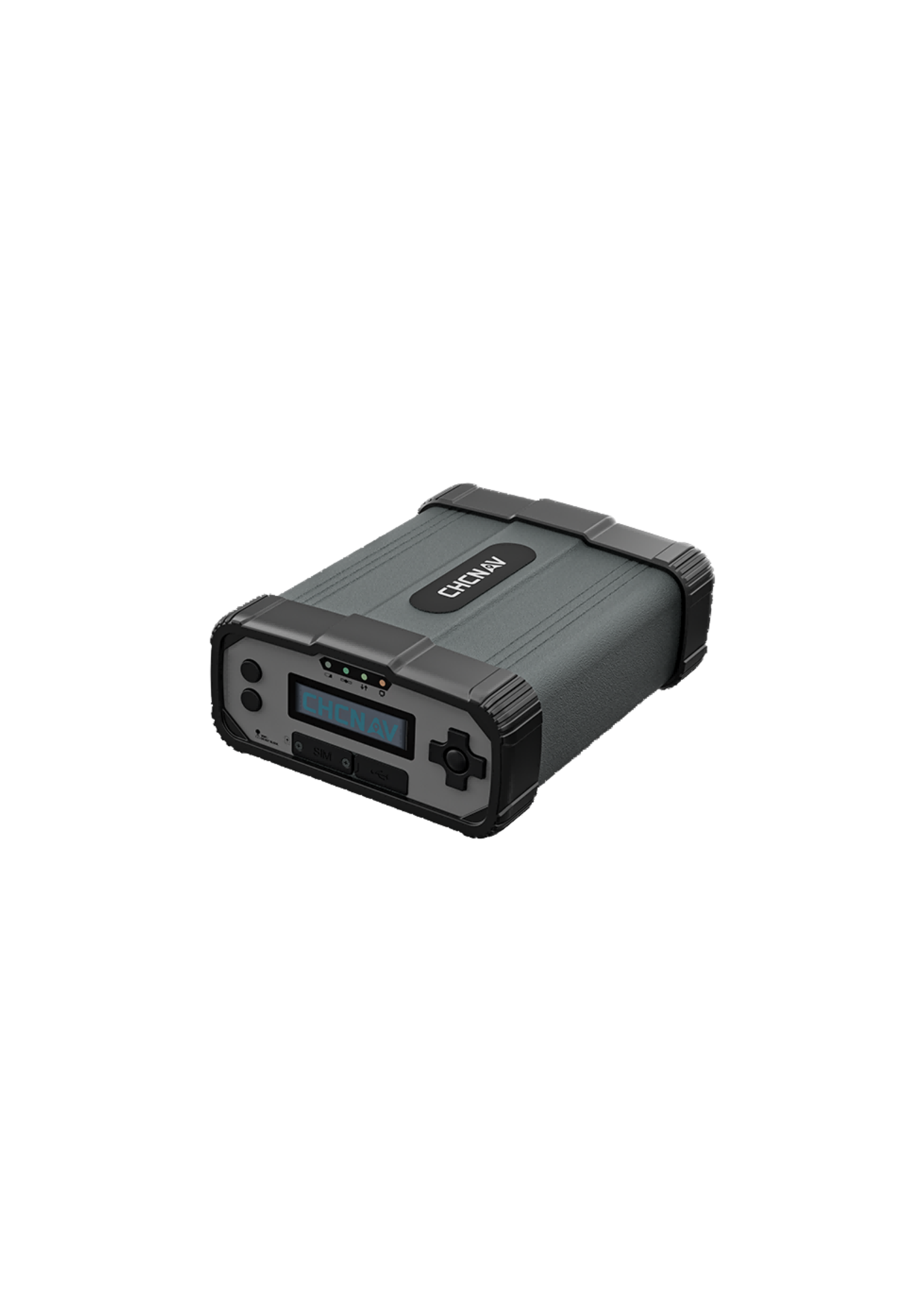

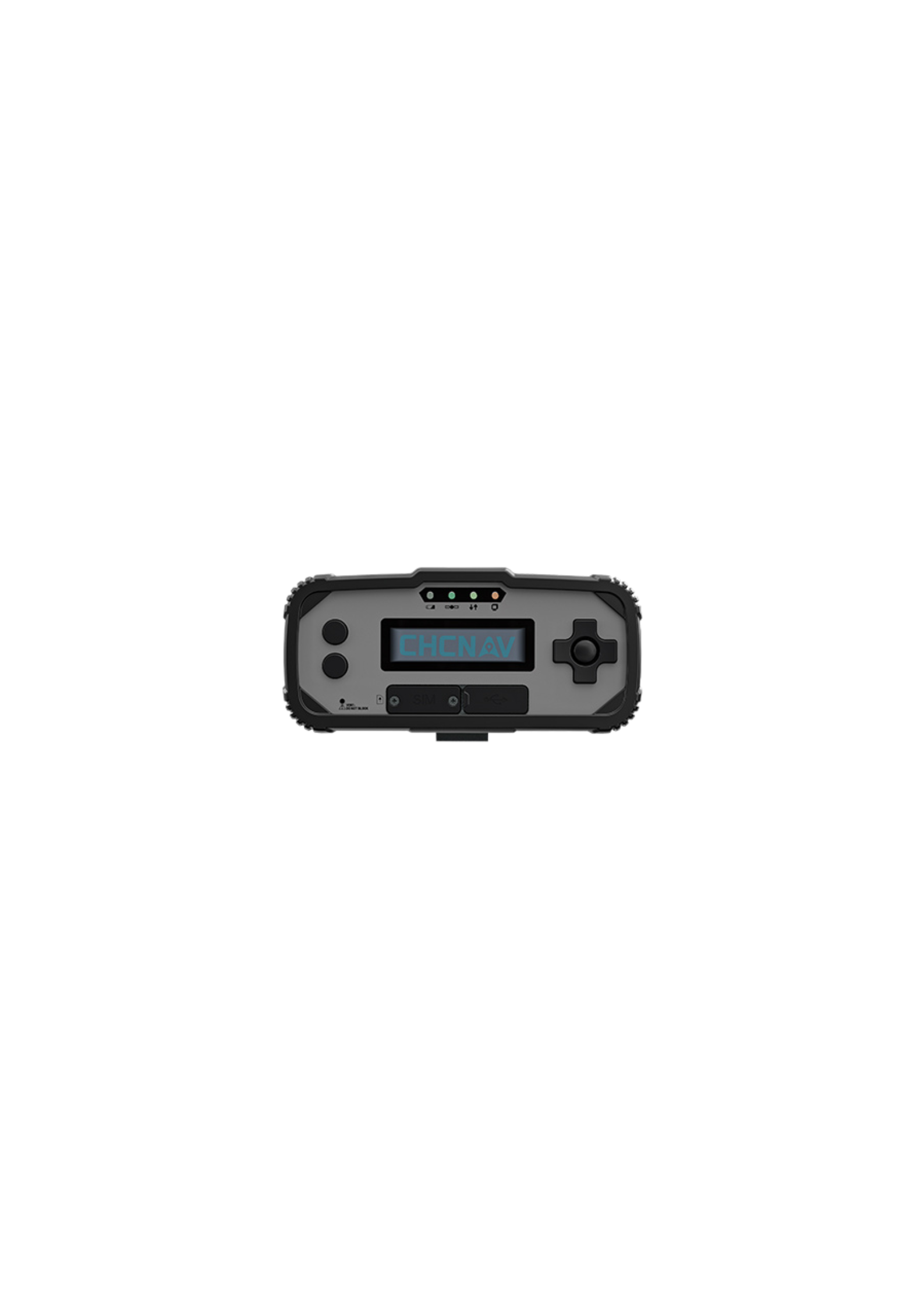

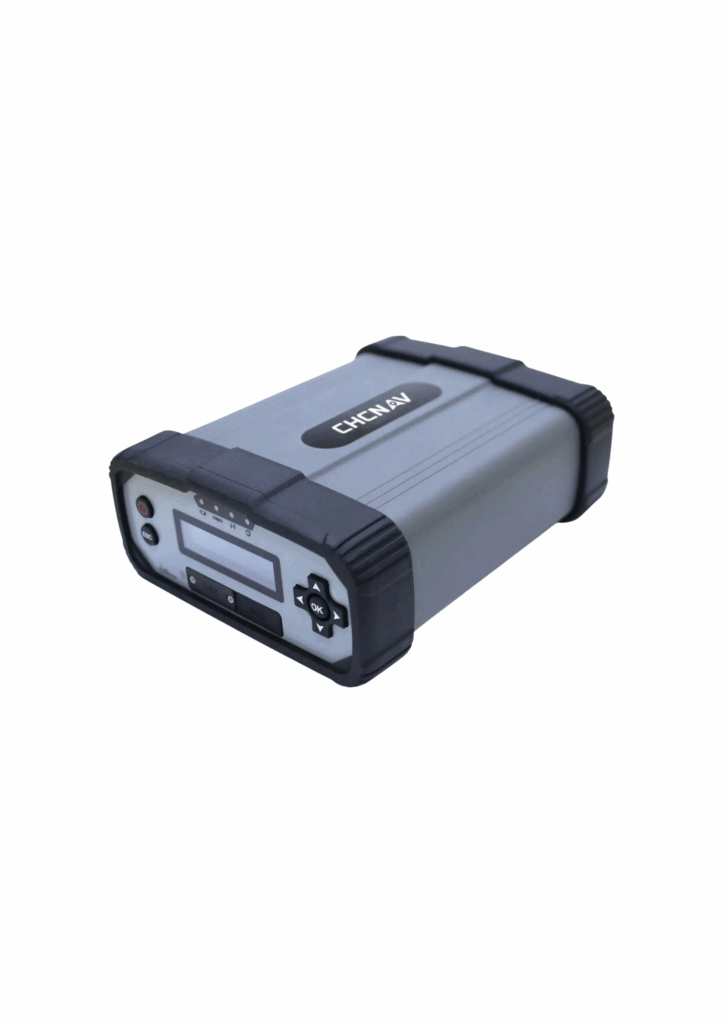

CHCNAV P5
-
High-performance GNSS reference station for geodetic and surveying applications
-
Supports all major constellations (GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS)
-
1408-channel tracking for robust positioning accuracy
-
Long-range RTK corrections with advanced reliability
-
Built-in 4G LTE, Ethernet, Bluetooth, and Wi-Fi connectivity
-
Rugged IP67-rated design for outdoor installations
-
Intelligent power management with backup battery support
-
Ideal for CORS networks, monitoring, and precision GNSS applications
- Trusted dealerDirect manufacturer partnership
- Pan-India deliveryInsured shipping, all states
- Post-sale supportTraining + service included
What makes it work
CHCNAV P5 Product Specifications
| Category | Details |
|---|---|
| GNSS Tracking | 1408 channels, GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS |
| Positioning Mode | CORS, RTK reference station, static observation |
| RTK Correction Range | Up to 50 km+ (network-based) |
| Update Rate | Up to 50 Hz |
| Data Formats | RTCM 3.x, RINEX, BINEX, NMEA |
| Connectivity | 4G LTE, Ethernet, Bluetooth, Wi-Fi, Serial |
| Ports | SIM card slot, multiple I/O ports, external antenna |
| Power Supply | AC/DC with intelligent power management |
| Backup Battery | Integrated for power failure protection |
| Environmental Protection | IP67-rated dustproof & waterproof |
| Operating Temperature | –40 °C to +65 °C |
| Storage Temperature | –45 °C to +85 °C |
| Dimensions | ~210 × 210 × 80 mm |
| Weight | ~1.5 kg |
| User Interface | Web interface, LED indicators |
| Applications | CORS networks, geodetic reference, surveying, monitoring |
