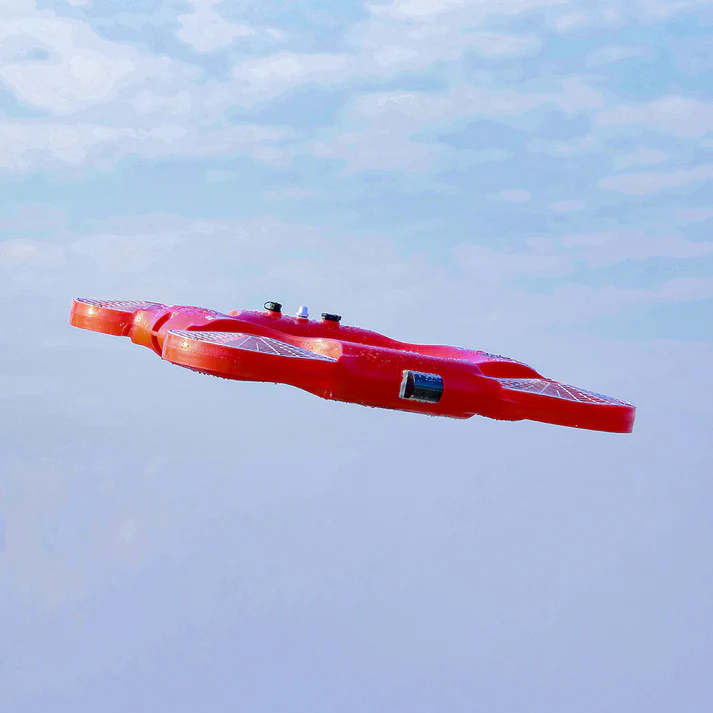

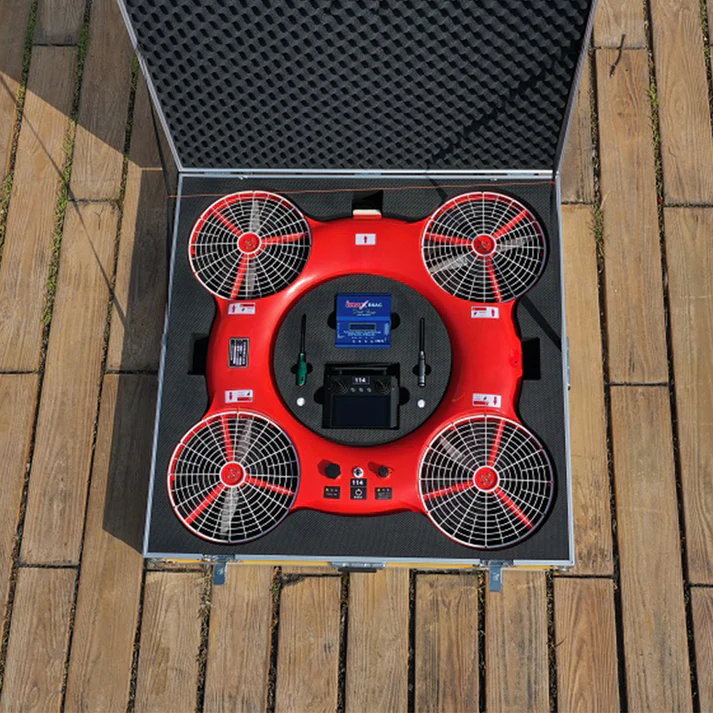

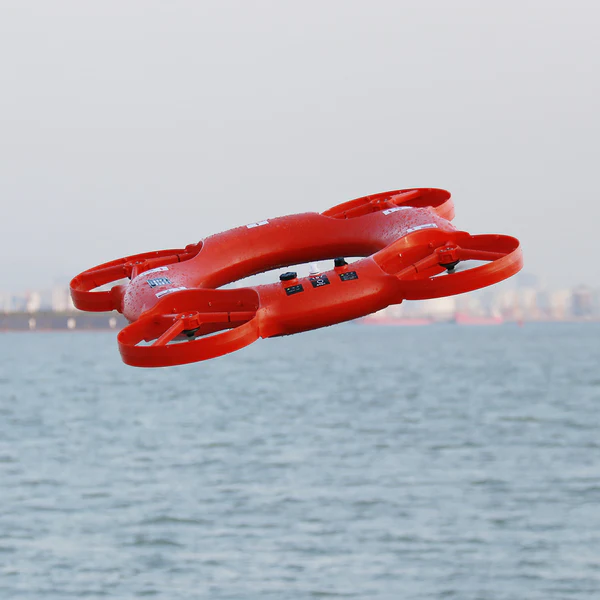

Emergency Rescue Equipment JX-6A Water Rescue Drone

Purpose-built for emergency water-rescue operations: combines drone flight with flotation aid delivery.
Integrated “flying lifebuoy” design: delivers buoyancy while remotely accessed, reducing risk to human rescuers.
Lightweight and portable (≈4.38 kg) for rapid deployment by one person.
Waterproof with IP68 rating; capable of take-off/landing on water and operation in challenging weather (e.g., wind-force level 6, sea state level 2).
Buoyancy of 190 N (~ supports ~19 kg) and long-range remote control, enabling rescue of drowning persons or rapid support in floods/coastal incidents.

Description

Product Specification

Specification Category	Detail
Dimensions	935 × 935 × 121 mm (±10.5 mm)
Weight	4.38 kg (approx)
Battery	22.2 V / 7 Ah Li-ion
Protection Rating	IP68 (waterproof)
Buoyancy	190 N (~ supports ~19.4 kg payload)
Max Flight Time	> 10 minutes
Max Speed	> 13 m/s
Max Altitude	4,200 m
Remote Control Range	> 1,100 m (surface); up to ~10-11 km (100 m altitude)
Hover Accuracy	< 1.6 m (GPS mode)
Wind Resistance	Level 6 wind conditions
Sea State Adaptability	Up to sea state level 2 in take-off/landing
Operating Temperature Range	–10 °C to 55 °C
Applications	Coastal rescue, flood response, rivers/lakes, maritime incidents
Key Features & Functions	One-touch take-off/return, water take-off/landing, real-time video camera (720p, tilt ±90°), lightweight design

JX-6A Water Rescue Drone Specifications

Component Specifications

The JX-6A Water Rescue Drone is engineered for power, reliability, and rapid deployment in life-saving situations. Its robust UAS housing unit measures 935 × 935 × 121 mm (±10.5 mm), ensuring a compact yet sturdy design built for challenging rescue environments.

Powered by a 22.2 V / 7 Ah Li-ion battery, the drone delivers extended performance with a maximum pulling force of 3.0 kg. It features 12-inch propeller blades with a 4.5-inch pitch, designed for high lift and stability over both land and water.

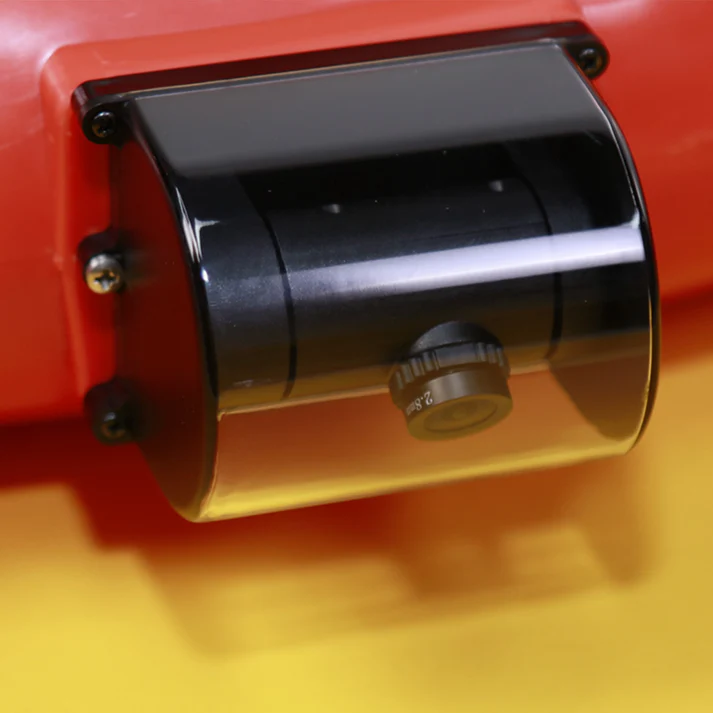

A built-in single-axis camera provides 720P resolution with a ±90° tilt range, enabling clear, real-time visuals of rescue zones. Communication between the flight controller and drone remains stable up to 1.0 km over water and 10 km at 100 m altitude, displayed on a 5-inch integrated screen for seamless monitoring.

Flight Performance

The JX-6A combines speed, precision, and control for reliable rescue operations. With a take-off weight under 5 kg, it offers a maximum flight time of over 10 minutes and a top speed exceeding 13 m/s. The drone can soar to altitudes up to 4,200 m, climb rapidly at over 9 m/s, and descend efficiently at more than 4 m/s.

Its advanced GPS technology ensures hovering accuracy within 1.6 m, maintaining exceptional stability in dynamic rescue conditions. The remote communication range exceeds 1,100 m, providing long-distance control and confidence in critical missions.

Overall Functionality & Performance

Built to perform when every second counts, the JX-6A Water Rescue Drone delivers 190 N of buoyancy for safe water landings and flotation. The IP68 protection rating guarantees waterproof integrity up to 1.5 meters for 1 hour, even in harsh marine environments.

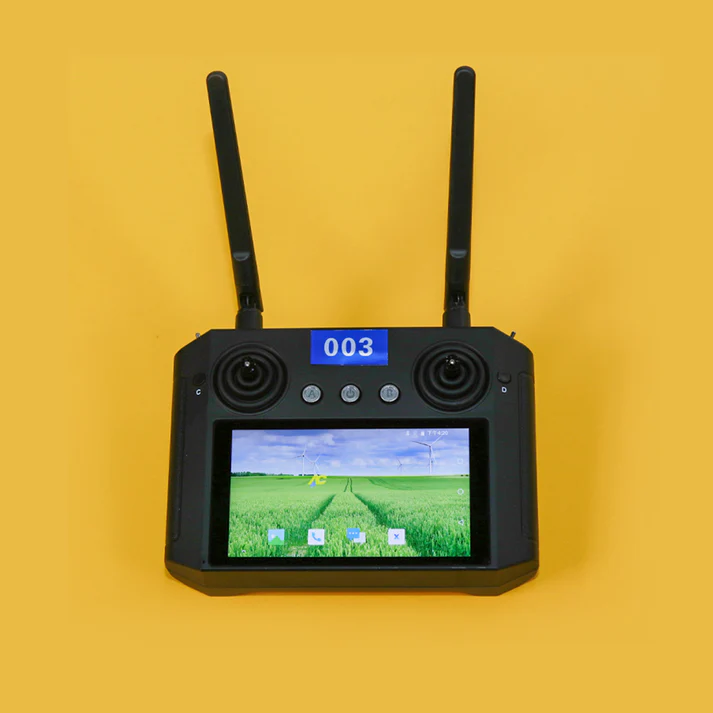

It operates reliably between –10 °C and 55 °C, across altitudes from sea level to 4,200 m. The remote controller displays real-time power levels and provides live camera view, ensuring full situational awareness.

The drone’s one-touch take-off and return functions simplify control, while its autonomous return-to-home feature activates automatically during signal loss. Engineered to withstand Level 6 wind and Sea State 2 conditions, the JX-6A maintains stable flight and performance during emergencies — making it an indispensable tool for coastal rescue, flood response, and maritime safety operations.
