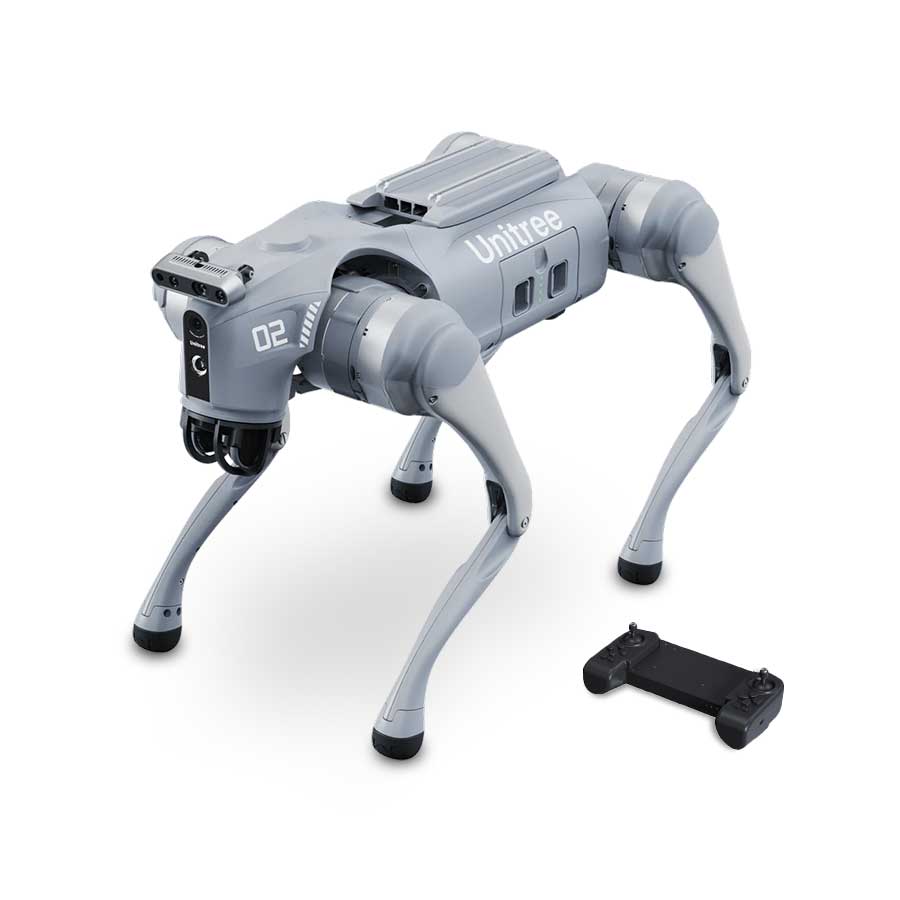

Unitree Go2 Edu-U1 Robot Dog (With Controller)

1,399,000

  • Advanced Mobility: Agile quadruped design for smooth movement across diverse terrains.
  • AI Integration: Intelligent navigation with real-time obstacle detection and environment mapping.
  • Payload Capability: Customizable to carry cameras, sensors, and other equipment for versatile tasks.
  • Durable and Portable: Lightweight build with robust performance for indoor and outdoor use.
  • Multi-Application Use: Perfect for surveillance, inspections, education, and robotics research.

Go2 Edu-U1 specific details:

1. The product size is 70cmx31cmx40cm; the weight of the whole machine is 15kg (including battery); the load is about 8kg (limit ~10kg); speed: 0~3.7m/s
2. Maximum climbing height: about 16cm; maximum climbing slope angle: 40°
3. Cables are routed inside the knee joint, and joint heat pipes assist in heat dissipation
4. Large joint movement space: body: -48~48°; thigh: -200~90°; calf: -156~-48°
5. The ultra-wide-angle 3D lidar has the function of object detection and obstacle avoidance, and the wide-angle high-definition camera
6. Equipped with 4G communication, built-in eSIM; equipped with smart OTA upgrade
7. APP high-definition image transmission, remote control, all data viewing; APP graphical programming
8. WIFI6 dual-band wireless 802.11ax; Bluetooth 5.2/4.2/2.1
9. Long life battery (15000mAh), battery life 2-4h,fast charging charger (33.6V/9A)
10. With handheld remote controller
11. Support foot sensor, support secondary development, support charging pile
12. Equipped with wireless vector positioning and control system to realize accompanying
13. Possess moon step (that is, space walk), side step, cross step, jump up, jump forward, front flip, happy, shake hands, throw people, sit down, stretch, bow, a variety of creative dances, etc.
14. Equipped with microphone, speaker, lighting (3W), with system status indication function, real-time feedback of robot status, and can be used for robot demonstration actions with music and lights
15. Built-in voice recognition module, with voice interaction function, millisecond-level voice interaction response, using industry-leading voice recognition technology, high recognition accuracy, fast literacy
16. Expansion dock with 40Tops computing power(Jetson Orin Nano 8GB), including AI algorithm and technical support
17. With realsense D435i depth camera
18. Optional servo arm

Description

Introducing Unitree Go 2 Edu Robotic The Driving All Terrain

Infinite Revolution with new creature of Embodied AI

The Unitree Go2 Edu-U1 Robot Dog is a next-generation quadruped robot built for advanced mobility and AI-driven performance. Moreover, it comes equipped with Unitree’s proprietary 4D LIDAR, offering ultra-wide 360°x90° recognition for precise terrain navigation with minimal blind spots. Thanks to large-scale AI simulation, the robot performs complex actions such as upside-down walking, climbing over obstacles, and adaptive rollover with impressive stability. Additionally, it supports flexible battery options that extend its operational time during demanding tasks. The Intelligent Side-follow System further enhances positioning accuracy, especially in dynamic environments. As a result, the Go2 excels in educational, research, and industrial settings. Compact yet powerful, it redefines robotic possibilities in a user-friendly, high-tech form.

Unitree Go2 Air- Robot Dog

Features of Unitree Go2 Edu-U1 Robot Dog Expanded

Advanced 4D Ultra-Wide LIDAR

The Unitree Go2 Edu-U1 Robot Dog incorporates advanced 4D LiDAR technology for ultra-wide, high-precision scanning, which significantly enhances its environmental awareness. As a result, the robot can detect and navigate obstacles with exceptional accuracy, even in challenging terrains. Furthermore, it minimizes blind spots, ensuring smooth operation across diverse environments. Consequently, this advanced sensing capability makes the Go2 ideal for complex tasks and precise navigation.

AI-Driven Mobility

Powered by cutting-edge AI algorithms, the Go2 moves autonomously with remarkable adaptability. It constantly evaluates its surroundings, making real-time decisions to optimize navigation. As a result, it performs consistently across diverse environments—urban, indoor, and rugged outdoor terrains. This intelligent system ensures the robot operates efficiently and safely in dynamic scenarios, adapting seamlessly to its surroundings.

Enhanced Battery Options

The Unitree Go2 offers customizable battery solutions, tailored for extended missions. Whether you’re conducting industrial inspections or academic research, it adapts to your specific operational needs. Additionally, its long-lasting battery guarantees continuous performance, even during demanding, long-duration tasks, ensuring reliability throughout.

ISS2.0 Intelligent Side-Follow System

The upgraded ISS2.0 system empowers the Go2 to follow a person or object with exceptional precision. Moreover, it ensures consistent tracking, even in busy or unpredictable environments. As a result, this functionality makes the Go2 perfect for tasks requiring close-proximity support or collaboration.

3D LiDAR Mapping

With real-time 3D LiDAR mapping, the Go2 constructs detailed spatial models of its environment. This capability is especially valuable in construction, surveying, and exploratory scenarios. As a result, the robot not only navigates effectively but also collects essential data throughout its operations.

Versatile Actions and Poses

Thanks to its flexible joints and advanced motor control, the Go2 performs dynamic actions effortlessly. It can execute complex poses for both educational demonstrations and industrial applications. As a result, it excels in delivering both technical precision and lifelike expression.



Advanced AI Mode

Trained through large-scale AI simulation, the Go2 robot masters advanced gaits like upside-down walking, adaptive rollovers, and obstacle climbing—demonstrating exceptional flexibility and stability throughout.

Various Actions and poses

The Go2 showcases a wide range of dynamic poses, including jumping, stretching, shaking hands, cheering, pouncing, and sitting, offering impressive versatility in movement.

Battery capacity and endurance upgraded by 150%

The Go2 is equipped with an enhanced 8,000mAh battery, with an optional 15,000mAh ultra-long-life battery. It also features a voltage boost to 28.8V, improving motor efficiency, power, and stability.

ISS2.0 Intelligent Side-follow System

With the adoption of new wireless vector positioning and control technology, positioning accuracy is improved by 50%. The remote control distance extends beyond 30m, and combined with the optimized obstacle avoidance strategy, the robot can better navigate complex terrain.

3D LiDAR Mapping

With L1 LiDAR and a dedicated app, you can create a point cloud map within a specific area and define a path for the Go2 to move autonomously.

OTA Updates

Constantly evolving and getting smarter, the robot connects seamlessly to a cloud-based OTA service with user permission, enabling automatic software updates and enhancing the overall user experience.

Unitree Go2 Edu-U1 Robot Dog – Standard Ultra-wide 4D LIDAR upgrades Recognition system by 200%

The Go2 features Unitree’s self-developed 4D LIDAR L1, offering 360°x90° hemispherical ultra-wide recognition with a super-small blind spot. With a minimum detection distance of just 0.05m, it enables the Go2 to recognize and navigate all terrains effortlessly.

Unitree Go2 Air- Robot Dog

Specifications Comparison for different Models

Mechanical Specifications

Specification AIR PRO EDU
Dimension of standing 70 x 31 x 40 cm 70 x 31 x 40 cm 70 x 31 x 40 cm
Dimension of crouching 76 x 31 x 20 cm 76 x 31 x 20 cm 76 x 31 x 20 cm
Weight (with battery) About 15 kg About 15 kg About 15 kg
Material Aluminium alloy + High strength engineering plastic Aluminium alloy + High strength engineering plastic Aluminium alloy + High strength engineering plastic

Electric Parameter

Specification AIR PRO EDU
Voltage 28V ~ 33.6V 28V ~ 33.6V 28V ~ 33.6V
Peaking capacity About 3000W About 3000W About 3000W
Payload ≈ 7 kg (MAX ~ 10 kg) ≈ 8 kg (MAX ~ 10 kg) ≈ 8 kg (MAX ~ 12 kg)

Performance Parameters

Specification AIR PRO EDU
Speed 0 ~ 2.5 m/s 0 ~ 3.5 m/s 0 ~ 3.7 m/s (MAX ~ 5 m/s)
Max Climb Drop Height About 15 cm About 16 cm About 16 cm
Max Climb Angle 30° 40° 40°
Basic Computing Power 8-core High-performance CPU 8-core High-performance CPU
Max Torque About 45 N.m About 45 N.m

Kinematic Parameters

Specification AIR PRO EDU
Aluminum knee joint motor 12 set 12 set 12 set
Range of Motion (body) -48° ~ 48° -48° ~ 48° -48° ~ 48°
Range of Motion (thigh) -200° ~ 90° -200° ~ 90° -200° ~ 90°
Range of Motion (shank) -156° ~ 48° -156° ~ 48° -156° ~ 48°

Force Sensor Parameters

Specification AIR PRO EDU
Intra-joint circuit (knee)
Joint Heat Pipe Cooler
Super-wide-angle 3D LiDAR
Wireless Vector Positioning Tracking Module
HD Wide-angle Camera
Foot-end force sensor

Feature List

Feature AIR PRO EDU
Basic Action
Auto-scaling strap
Upgraded Intelligent OTA
RTT 2.0 image transmission
Graphical programme
Front lamp
WiFi6 with Dual-band
Bluetooth 5.2/4.2/2.1
4G module (Only supports mainland China and Europe)
Voice Function
ISS 2.0 Intelligent side-follow system
Intelligent detection and avoidance
Charging Pile Compatibility
Secondary development

Accessories

Accessory AIR PRO EDU
Manual controller optional optional optional
High computing power module Nvidia Jetson Orin (optional)

(40~100 tops computing power)

Smart battery standard (8000mAh) standard (8000mAh) long endurance (15000mAh)
Battery life About 1-2h About 1-2h About 2-4h
Charger standard (33.6V 3.5A) standard (33.6V 3.5A) fast charge (33.6V 9A)

FAQs related to Unitree Go2 Edu-U1 Robot Dog

What is the difference between the Unitree Go2 AIR, PRO, and EDU models?

The primary differences among these models are found in their payload capacity, maximum speed, computing power, and available accessories. Notably, the EDU version is tailored for research and development, offering advanced computing options such as the Nvidia Jetson Orin and a higher battery capacity for extended operation.

How does the 4D LIDAR enhance the Go2’s navigation capabilities?

The 4D LIDAR offers ultra-wide 360°x90° hemispherical recognition with minimal blind spots. As a result, the robot can navigate complex terrains and detect obstacles as close as 0.05m, making it highly suitable for all-terrain applications.

Can the Go2 operate autonomously, and if so, how is it controlled?

Yes, the Go2 operates autonomously, utilizing 3D LiDAR mapping and the ISS 2.0 Intelligent Side-follow System. With the dedicated app, users can easily set paths and create point cloud maps, enabling seamless autonomous navigation.

What is the battery life of the Unitree Go2, and are there upgrade options?

The standard battery life is approximately 1-2 hours with the 8000mAh battery. However, the EDU model provides an optional 15000mAh battery, which extends operational time to around 2-4 hours, offering greater flexibility for extended use.

What type of computing power does the Go2 support, especially in the EDU model?

The AIR and PRO models feature 8-core high-performance CPUs, while the EDU model supports an optional Nvidia Jetson Orin. This option is perfect for handling higher AI and computing demands, making it ideal for complex processing tasks in research environments.

How does the Intelligent Side-follow System (ISS 2.0) work, and what are its benefits?

ISS 2.0 leverages wireless vector positioning, enhancing accuracy by 50% compared to previous systems. This allows Go2 to track users or objects more precisely, even in environments with obstacles.

Can the Unitree Go2 handle stairs or uneven terrain?

With a maximum climbing angle of 40° (PRO and EDU models) and AI-driven mobility, the Go2 easily navigates stairs and uneven surfaces.

Is it possible to program custom actions for the Go2?

Yes, the Go2 supports graphical programming, enabling users to create and customize actions. This feature is ideal for educational and research applications, allowing experimentation with various movement patterns.

Does the Go2 support real-time monitoring and control over WiFi or Bluetooth?

Yes, the Go2 features WiFi6 dual-band and Bluetooth 5.2/4.2/2.1, enabling real-time control, monitoring, and image transmission (RTT 2.0) via wireless connections.

What after-sales service and warranty options are available for the Unitree Go2?

The Go2 offers a 1-year warranty and after-sales support, covering repairs and maintenance according to specific terms.
