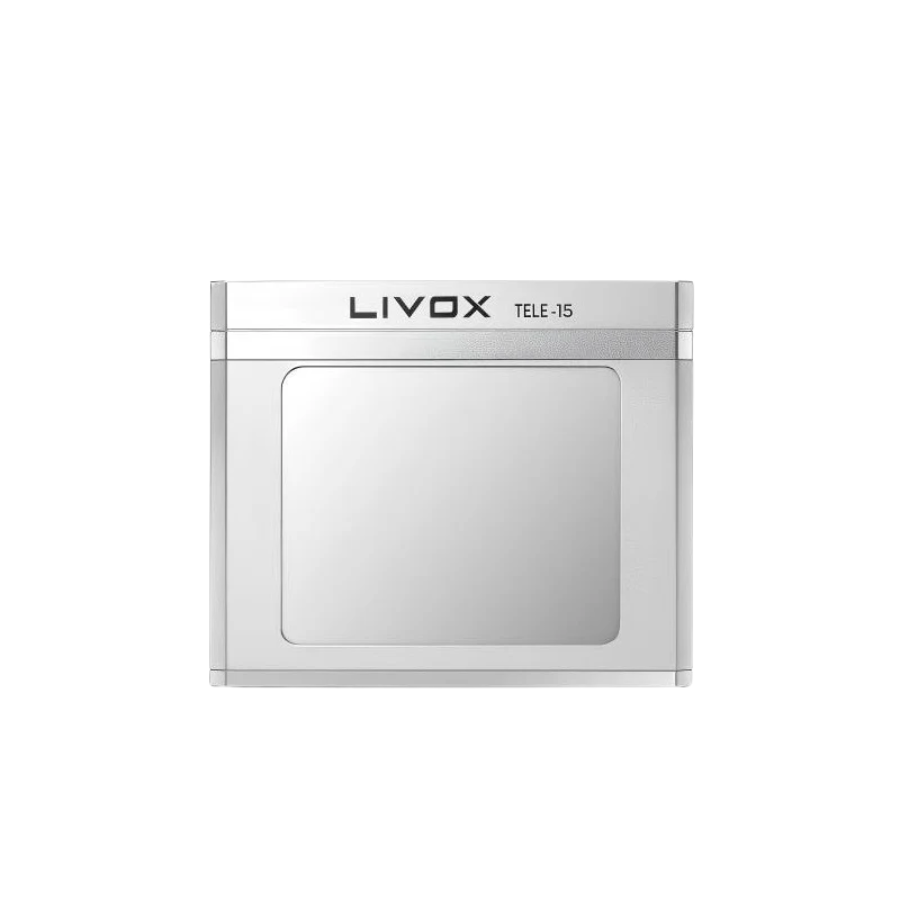

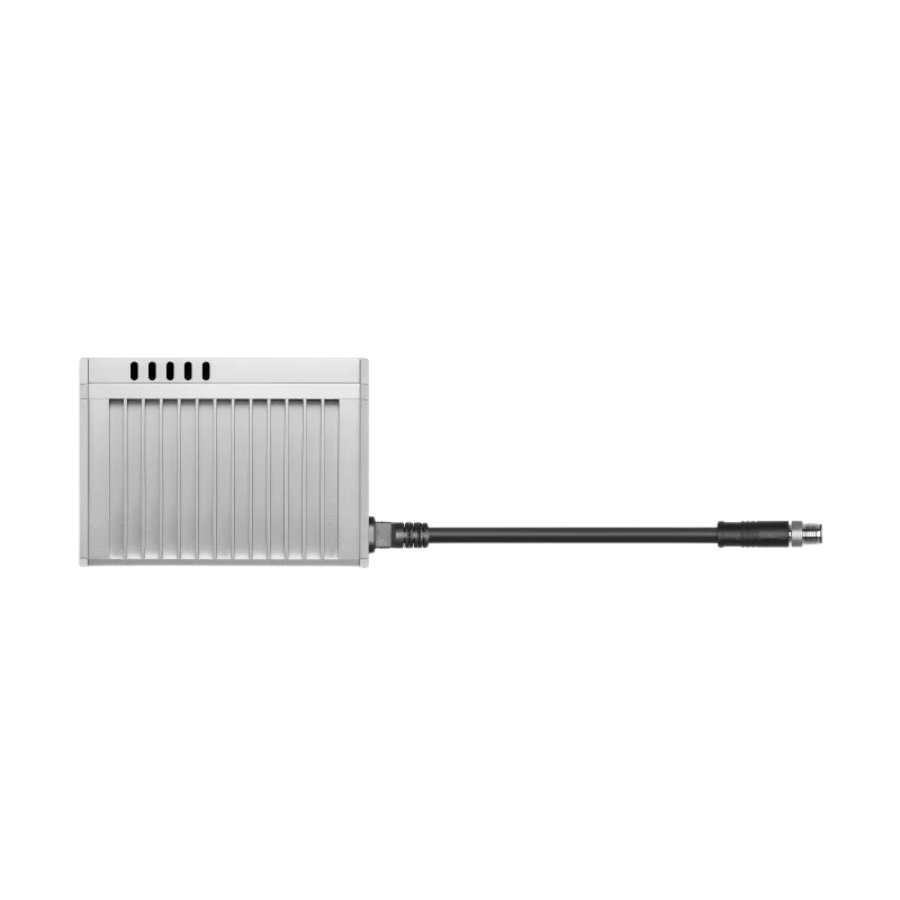

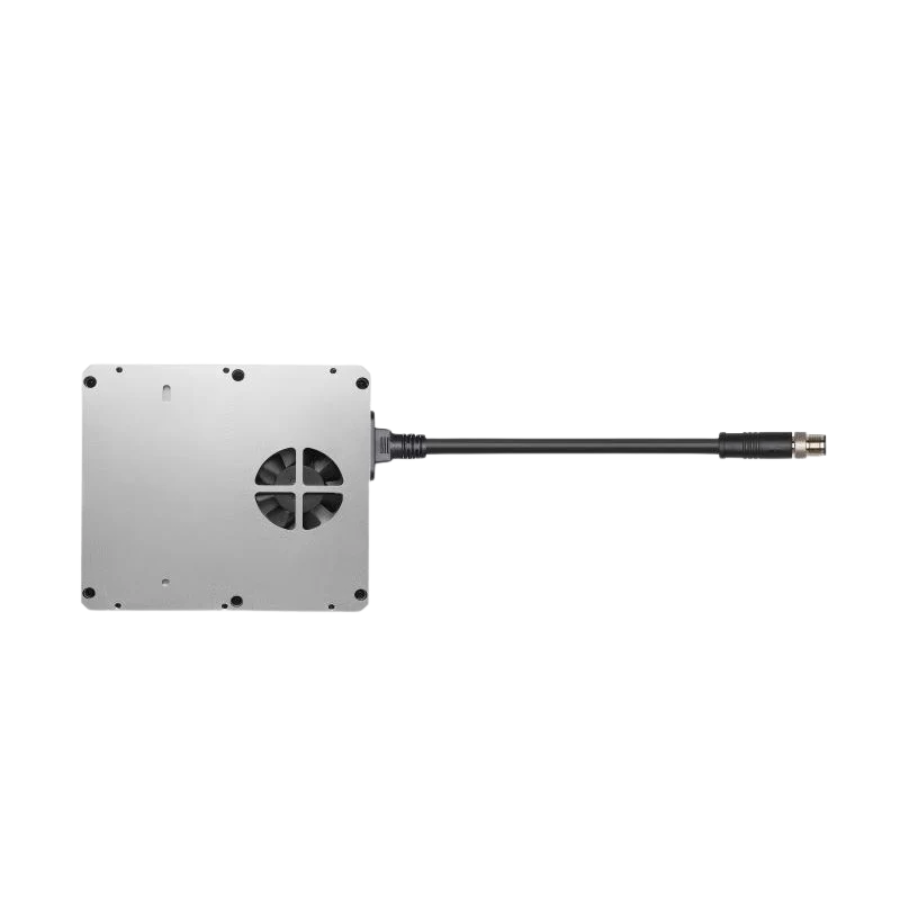

Livox TELE-15 LiDAR

Long-range, high-precision LiDAR sensor designed for professional mapping and autonomy
Optimized for ultra-long detection with excellent accuracy at distance
Narrow field of view ideal for forward-looking perception
Robust industrial-grade build for harsh outdoor environments
Suitable for drones, autonomous vehicles, and intelligent transportation systems

Overview

What makes it work

Category	Specification
Product Type	Long-Range LiDAR Sensor
Detection Range	Up to 500 m (typical target)
Accuracy	±2 cm
Angular Accuracy	≤ 0.03°
Field of View (FOV)	14.5° (Horizontal) × 16.2° (Vertical)
Scan Pattern	Non-repetitive scanning
Point Cloud Rate	Up to 240,000 points/sec
Wavelength	905 nm
Laser Safety	Class 1 (eye-safe)
Interface	Ethernet
Power Consumption	~18 W (typical)
Operating Voltage	10–30 V DC
Operating Temperature	−40°C to +85°C
Ingress Protection	IP67
Weight	Approx. 1.2 kg
Mounting	Multi-directional mounting support
Applications	Mapping, UAVs, autonomous driving, robotics
