Description
Introducing Unitree Go 2 Edu Robotic The Driving All Terrain
Infinite Revolution with new creature of Embodied AI

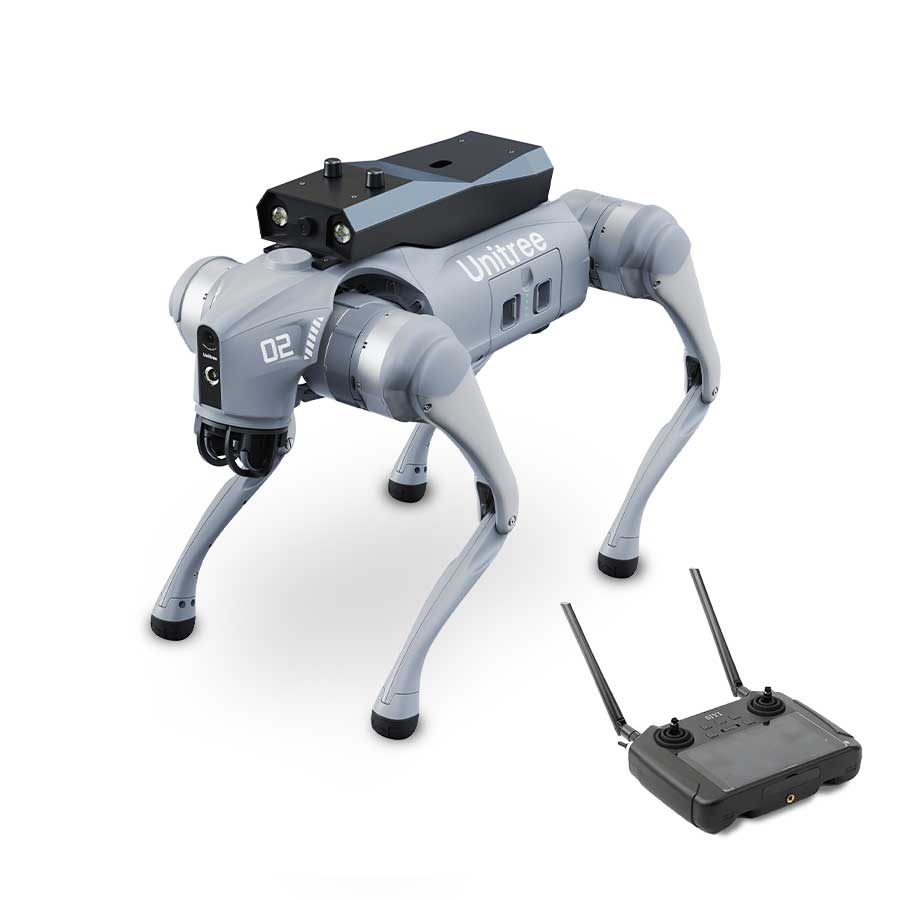

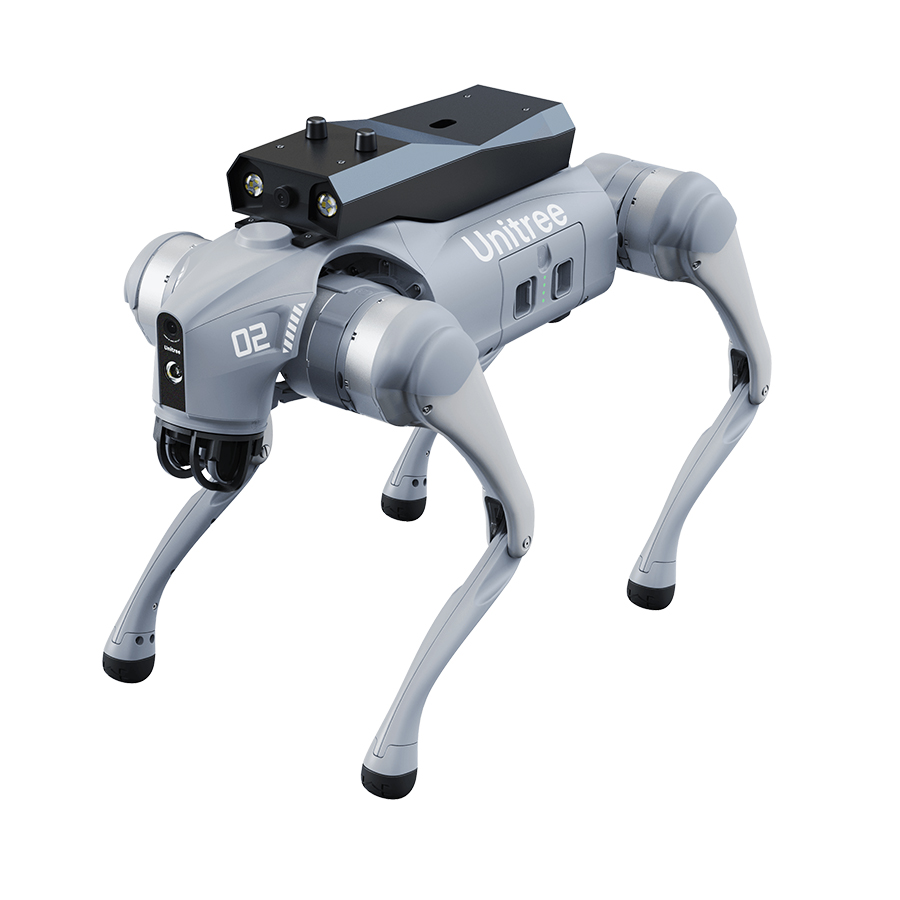

The Unitree Go2 Ent-U1 is a next-generation quadruped robot designed for enhanced mobility, adaptability, and AI-driven performance. Notably, it features Unitree’s proprietary 4D LIDAR technology, which provides ultra-wide 360°x90° recognition. As a result, it enables precise navigation across diverse terrains with minimal blind spots.
Additionally, advanced AI simulations empower the Go2 to execute complex movements such as upside-down walking, obstacle climbing, and adaptive rollover. These actions are performed with remarkable stability and balance, further enhancing its capabilities. Moreover, the Go2 offers flexible battery configurations, allowing for extended operational time across a variety of tasks.
Furthermore, the robot integrates an Intelligent Side-follow System, which significantly improves positioning accuracy and path tracking. Consequently, these features make the Go2 highly efficient and adaptable in dynamic environments. Ideal for education, research, and industrial applications, the Go2 combines intelligent design with robust features, setting a new benchmark in robotics.
Advanced AI Mode
Through large-scale AI simulation training, the Go2 robot has learned advanced gaits such as upside-down walking, adaptive roll-over, and climbing over obstacles, with excellent flexibility and stability at the same time.
Various Actions and poses
Unitree Go2 Ent-U1 boasts a variety of poses such as jumping, stretching, shaking hands, cheering, pouncing, and sitting down.
Battery capacity and endurance upgraded by 150%
Go2 is equipped with a battery capacity increased to 8,000mAh, as a 15,000mAh ultra-long life battery is optional, and a voltage increased to 28.8V to improve motor efficiency, power and stability.
ISS2.0 Intelligent Side-follow System
By adopting the new wireless vector positioning and control technology, the positioning accuracy is technically upgraded by 50%, the remote control distance is over 30m, and combined with the optimised obstacle avoidance strategy, it can make the robot better traverse complex terrain.
3D LiDAR Mapping
With L1 LiDAR and a dedicated App, you can construct point cloud map within a certain area, and specify a path for Go2 to move autonomously.
OTA Updates
Continuously advancing and becoming smarter. With user permission, the robot seamlessly connects to a cloud-based OTA service, allowing it to update its own software and enhance the overall user experience.
Standard Ultra-wide 4D LIDAR upgrades Recongnition system by 200%
Unitree Go2 Ent-U1 features with Unitree’s self-developed 4D LIDAR L1 with 360°x90°hemispherical ultra-wide recognition, super small blind spot and a minimum detection distance as low as 0.05m, which makes Go2 realise all-terrain recognizing.
Specifications Comparison for different Models
Mechanical Specifications
| Specification | AIR | PRO | EDU |
|---|---|---|---|
| Dimension of standing | 70 x 31 x 40 cm | 70 x 31 x 40 cm | 70 x 31 x 40 cm |
| Dimension of crouching | 76 x 31 x 20 cm | 76 x 31 x 20 cm | 76 x 31 x 20 cm |
| Weight (with battery) | About 15 kg | About 15 kg | About 15 kg |
| Material | Aluminium alloy + High strength engineering plastic | Aluminium alloy + High strength engineering plastic | Aluminium alloy + High strength engineering plastic |
Electric Parameter
| Specification | AIR | PRO | EDU |
|---|---|---|---|
| Voltage | 28V ~ 33.6V | 28V ~ 33.6V | 28V ~ 33.6V |
| Peaking capacity | About 3000W | About 3000W | About 3000W |
| Payload | ≈ 7 kg (MAX ~ 10 kg) | ≈ 8 kg (MAX ~ 10 kg) | ≈ 8 kg (MAX ~ 12 kg) |
Performance Parameters
| Specification | AIR | PRO | EDU |
|---|---|---|---|
| Speed | 0 ~ 2.5 m/s | 0 ~ 3.5 m/s | 0 ~ 3.7 m/s (MAX ~ 5 m/s) |
| Max Climb Drop Height | About 15 cm | About 16 cm | About 16 cm |
| Max Climb Angle | 30° | 40° | 40° |
| Basic Computing Power | – | 8-core High-performance CPU | 8-core High-performance CPU |
| Max Torque | – | About 45 N.m | About 45 N.m |
Kinematic Parameters
| Specification | AIR | PRO | EDU |
|---|---|---|---|
| Aluminum knee joint motor | 12 set | 12 set | 12 set |
| Range of Motion (body) | -48° ~ 48° | -48° ~ 48° | -48° ~ 48° |
| Range of Motion (thigh) | -200° ~ 90° | -200° ~ 90° | -200° ~ 90° |
| Range of Motion (shank) | -156° ~ 48° | -156° ~ 48° | -156° ~ 48° |
Force Sensor Parameters
| Specification | AIR | PRO | EDU |
|---|---|---|---|
| Intra-joint circuit (knee) | ● | ● | ● |
| Joint Heat Pipe Cooler | ● | ● | ● |
| Super-wide-angle 3D LiDAR | ● | ● | ● |
| Wireless Vector Positioning Tracking Module | ● | ● | ● |
| HD Wide-angle Camera | ● | ● | ● |
| Foot-end force sensor | ○ | ○ | ● |
Feature List
| Feature | AIR | PRO | EDU |
|---|---|---|---|
| Basic Action | ● | ● | ● |
| Auto-scaling strap | ○ | ○ | ● |
| Upgraded Intelligent OTA | ● | ● | ● |
| RTT 2.0 image transmission | ● | ● | ● |
| Graphical programme | ● | ● | ● |
| Front lamp | ● | ● | ● |
| WiFi6 with Dual-band | ● | ● | ● |
| Bluetooth 5.2/4.2/2.1 | ● | ● | ● |
| 4G module (Only supports mainland China and Europe) | ○ | ○ | ● |
| Voice Function | ○ | ○ | ● |
| ISS 2.0 Intelligent side-follow system | ○ | ○ | ● |
| Intelligent detection and avoidance | ○ | ○ | ● |
| Charging Pile Compatibility | ● | ● | ● |
| Secondary development | ● | ● | ● |
Accessories
| Accessory | AIR | PRO | EDU |
|---|---|---|---|
| Manual controller | optional | optional | optional |
| High computing power module | – | – | Nvidia Jetson Orin (optional)
(40~100 tops computing power) |
| Smart battery | standard (8000mAh) | standard (8000mAh) | long endurance (15000mAh) |
| Battery life | About 1-2h | About 1-2h | About 2-4h |
| Charger | standard (33.6V 3.5A) | standard (33.6V 3.5A) | fast charge (33.6V 9A) |
FAQs
What is the difference between the Unitree Go2 AIR, PRO, and EDU models?
The key differences among these models lie in payload capacity, maximum speed, computing power, and available accessories. Notably, the EDU version is specifically tailored for research and development. It comes equipped with advanced computing options, such as the Nvidia Jetson Orin, providing enhanced processing power. Additionally, it offers a higher battery capacity, allowing for extended operational time, making it ideal for longer, more intensive tasks.
How does the 4D LIDAR enhance the Go2’s navigation capabilities?
The 4D LIDAR provides ultra-wide 360°x90° hemispherical recognition with minimal blind spots. As a result, this capability enables the robot to navigate complex terrains and detect obstacles as close as 0.05m. Furthermore, it ensures the robot’s precision and reliability in various environments. Consequently, this makes the Go2 highly suitable for all-terrain applications, adapting seamlessly to different conditions and maintaining optimal performance.
Can the Go2 operate autonomously, and if so, how is it controlled?
Yes, the Go2 can operate autonomously, thanks to its advanced 3D LiDAR mapping and ISS 2.0 Intelligent Side-follow System. In addition, users can easily set paths and generate point cloud maps via the dedicated app. As a result, the robot can navigate smoothly and reliably, ensuring seamless autonomous operation in dynamic and complex environments.
What is the battery life of the Unitree Go2, and are there upgrade options?
The standard battery life with the 8000mAh battery lasts around 1-2 hours. However, for users seeking extended operational time, the EDU model offers an optional 15000mAh battery. As a result, this upgrade extends the operational time to approximately 2-4 hours. Consequently, it provides greater flexibility and endurance, especially for more demanding tasks or longer operations.
What type of computing power does the Go2 support, especially in the EDU model?
The AIR and PRO models feature 8-core high-performance CPUs. In contrast, the EDU model supports an optional Nvidia Jetson Orin, catering to higher AI and computing demands. This makes the EDU model ideal for complex processing tasks in research environments.
How does the Intelligent Side-follow System (ISS 2.0) work, and what are its benefits?
ISS 2.0 utilizes wireless vector positioning, improving accuracy by 50% over previous systems. It allows Go2 to follow users or objects more accurately, even in challenging environments with obstacles.
Can the Unitree Go2 handle stairs or uneven terrain?
Yes, with a maximum climbing angle of 40° (PRO and EDU models) and advanced AI-driven mobility, the Go2 is capable of navigating stairs and uneven surfaces effectively.
Is it possible to program custom actions for the Go2?
Yes, the Go2 supports graphical programming, allowing users to create and customize actions. This feature is particularly useful in educational and research applications for experimenting with different movement patterns.
Does the Go2 support real-time monitoring and control over WiFi or Bluetooth?
Yes, the Go2 is equipped with WiFi6 dual-band and Bluetooth 5.2/4.2/2.1. These advanced connectivity options enable real-time control, monitoring, and image transmission (RTT 2.0) over wireless connections.
What after-sales service and warranty options are available for the Unitree Go2?
Yes, the Go2 is equipped with WiFi6 dual-band and Bluetooth 5.2/4.2/2.1, allowing for real-time control, monitoring, and image transmission (RTT 2.0) over wireless connections.
