Autel Smart Controller

113,982

  • Controller with a large, built-in ultra-bright screen
  • Compatible with all EVO II (V2) Series drones
  • 7.9″ Built-In 2K Display
  • Maximum 2000nit brightness
  • 4.5hr Operating time (3hr at max brightness)

1-Year Warranty     7 days return policy     PAN India Fast Shipping

Description

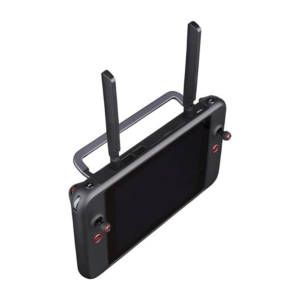

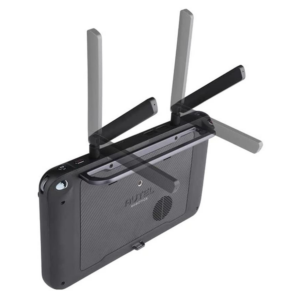

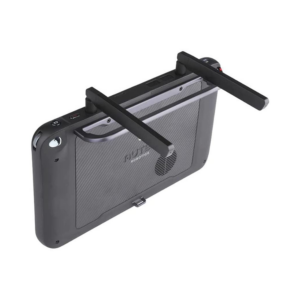

Autel Smart Controller

The Autel Smart Controller provides high-definition real-time image transmission for Autel EVO II Series drones. With the complete function buttons of the remote control, users can control and set up the aircraft and camera to 13km (8 miles) away. The Smart Controller has a built-in 7.9-inch 2K ultra-high-definition, ultra-bright screen with a maximum 2000nit brightness providing a clear image display under strong sunlight. With built-in 128G memory and additional SD Card support of up to 1TB, the Autel Smart Controller has enough storage to fit all of your photo and video needs.

Ultra-Bright Display: Equipped with a 7.9-inch, 2000-nit ultra-bright screen, the Autel Smart Controller ensures clear visibility even in direct sunlight, making it perfect for outdoor use.

High-Performance Processor: Powered by a high-performance processor, it delivers smooth and responsive control, enhancing your flying experience with minimal lag.

Extended Battery Life: With a long-lasting battery, the Smart Controller offers up to 4.5 hours of continuous operation, ensuring you can fly for extended periods without needing a recharge.

Customized Android System: Running on a customized Android system, it allows for flexibility and compatibility with various third-party apps, giving you more control and customization options.

Integrated HDMI Output: The integrated HDMI output supports 4K video output at 60fps, enabling you to display your drone’s footage on an external monitor or TV in real-time.

Ergonomic Design: Designed with user comfort in mind, the controller features an ergonomic design that provides a comfortable grip and intuitive control layout, reducing fatigue during long flights.

OcuSync 2.0 Transmission: With OcuSync 2.0 transmission technology, it offers a stable and robust connection with a range of up to 8 km, ensuring reliable communication between the drone and the controller.

Built-in Microphone and Speaker: The Smart Controller includes a built-in microphone and speaker, allowing for live audio playback and recording, which is useful for creating immersive flight experiences.

Portable and Durable: Built with durability in mind, it’s portable and designed to withstand harsh environments, making it a reliable companion for all your drone missions.

Quick and Easy Setup: The Smart Controller is easy to set up and pair with your Autel drones, allowing for quick deployment and minimal downtime between flights.

Portable, Efficient, and Easy to Use

Specifications

General

Image Transmission Max Signal Transmission Distance (No interference, No obstacles)
FCC: 13 km (8 miles)
CE: 7 km (4.3 miles)
MIC: 7 km (4.3 miles)
SRRC: 7 km (4.3 miles)
Wi-Fi Protocol Wi-Fi Direct, Wi-Fi Display, 802.11a/b/g/n/ac
Supports 2 x 2 MIMO Wi-Fi
Working Frequency 2.400-2.4835 GHz
5.150-5.250 GHz
5.650-5.755 GHz
5.725-5.850 GHz
902-928 MHz
Battery Capacity: 5800mAh
Voltage: 11.55V
Battery Type: Li-ion
Battery Energy: 67 Wh
Charging time: 120 minutes
Operating Time ~3h (Max Brightness)
~4.5h (50% Brightness)
Internal Storage 128GB
Video Output Port HDMI Port
USB-A Voltage/Current 5V/2A
Operating Environment Temp -4°F to 104 °F
Storage Temperature -4°F to 140°F (within a month)
-4°F to 113°F (between one to three months)
-4°F to 73°F (one year)
Charging Environment Temperature 32°F to 104°F
Supported Aircraft EVO II Series
EVO II Enterprise (coming soon to North America)
EVO II RTK Series (coming soon to North America)
Satellite Positioning Module GPS + GLONASS + Galileo
Dimensions 303×190×87mm (with antenna folded)
303×273×87mm (with antenna unfolded)
Weight 2.53 lbs (without protection case)
2.75 lbs (with protection case)

In The Box

  • 1x Autel Smart Controller
  • 1x Smart Controller Protective Case
  • 1x AC Power Adapter
  • 1x Type-C USB Cable
  • 1x Chest Harness Strap
  • 1x Pair of Spare Controller Sticks
  • 1x Quick Start Guide

FAQ's

  • What drones are compatible with the Autel Smart Controller?
    The Autel Smart Controller is compatible with Autel EVO II series drones, including EVO II, EVO II Pro, and EVO II Dual.
  • How bright is the display on the Autel Smart Controller?
    The Autel Smart Controller features a 7.9-inch ultra-bright screen with a 2000-nit brightness, providing excellent visibility even in direct sunlight.
  • What is the battery life of the Autel Smart Controller?
    The controller offers up to 4.5 hours of continuous operation on a full charge.
  • Can I install third-party apps on the Autel Smart Controller?
    Yes, the Smart Controller runs on a customized Android system, allowing you to install and use third-party apps for added functionality.
  • Does the Autel Smart Controller support HDMI output?
    Yes, it includes an integrated HDMI output that supports 4K video output at 60fps for real-time display on external monitors or TVs.
  • What is the range of the Autel Smart Controller?
    Utilizing OcuSync 2.0 transmission technology, the controller offers a stable connection with a range of up to 8 km (approximately 5 miles).
  • Is the Autel Smart Controller weather-resistant?
    While it is built to be durable and withstand various environments, it is recommended to avoid using it in extreme weather conditions.
  • How do I pair the Autel Smart Controller with my drone?
    Pairing the controller with your Autel drone is quick and easy, typically involving a few simple steps detailed in the user manual.
  • Can I use the Autel Smart Controller for live streaming?
    Yes, with its built-in microphone and speaker, the controller can support live audio playback and recording, which can be used for live streaming.
  • What makes the Autel Smart Controller ergonomic?
    The controller is designed with user comfort in mind, featuring an ergonomic grip and intuitive control layout to reduce fatigue during extended flight sessions.

Introducing Autel Smart Controller
