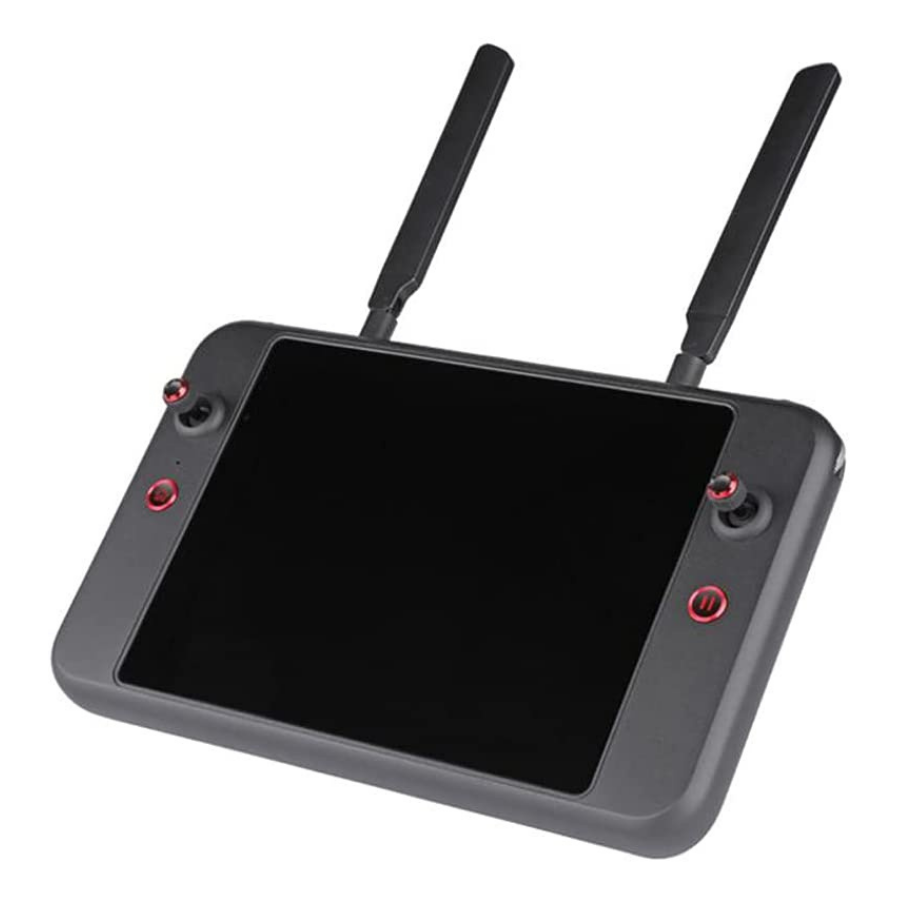

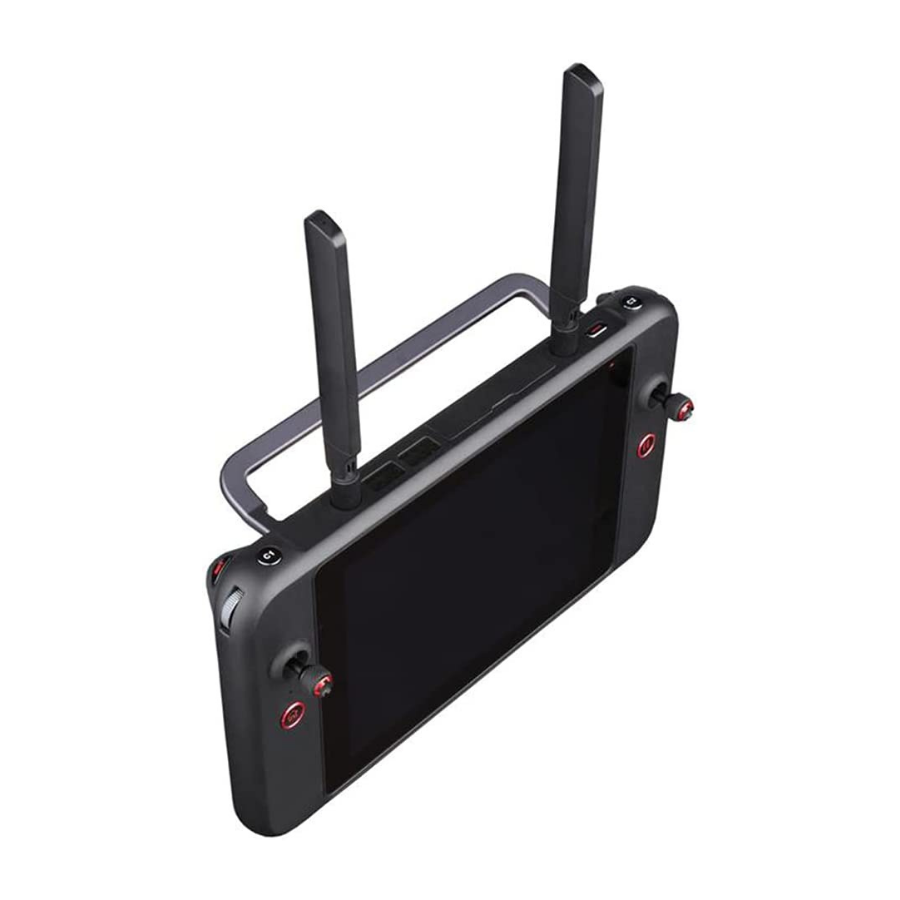

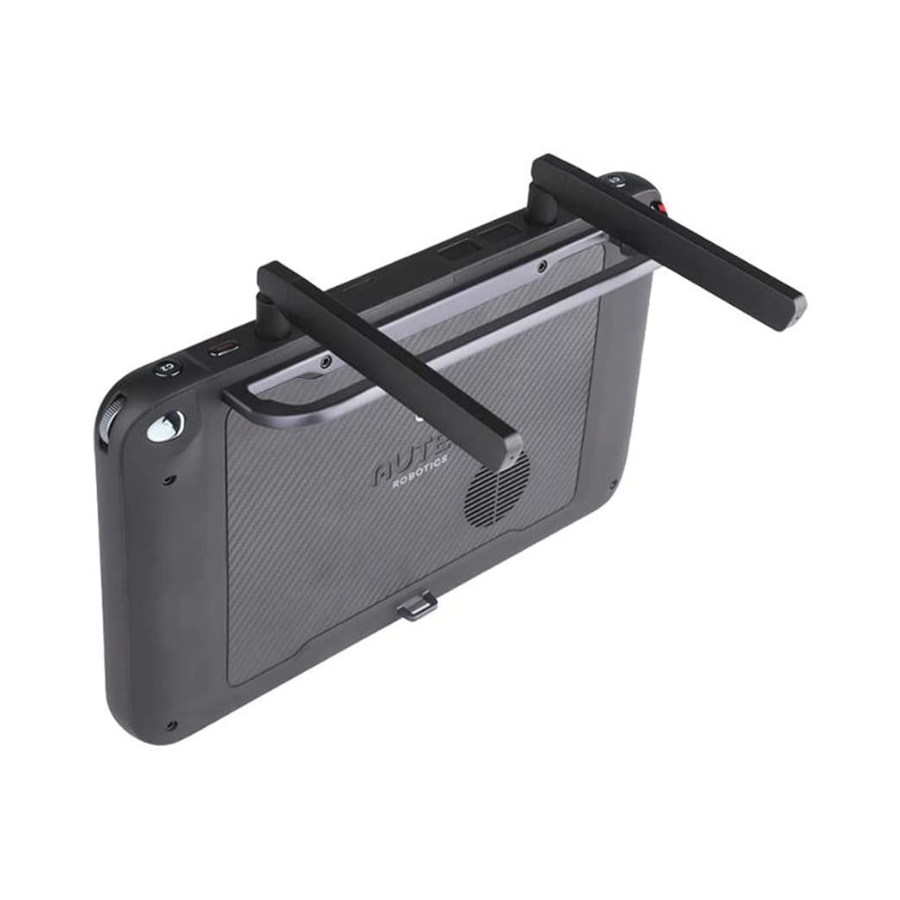

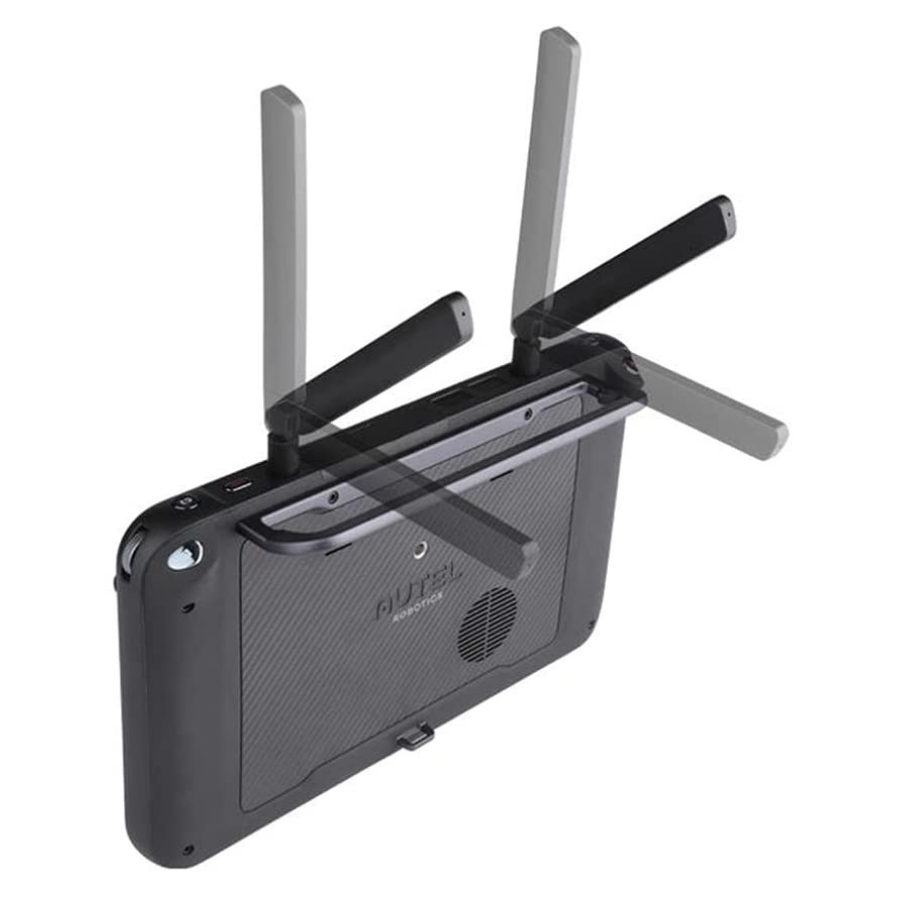

Autel Smart Controller


  • Controller with a large, built-in ultra-bright screen
  • Compatible with all EVO II (V2) Series drones
  • 7.9″ Built-In 2K Display
  • Maximum 2000nit brightness
  • 4.5hr Operating time (3hr at max brightness)

1-Year Warranty     7 days return policy     PAN India Fast Shipping


Autel Smart Controller

The Autel Smart Controller provides high-definition real-time image transmission for Autel EVO II Series drones. With the complete function buttons of the remote control, users can control and set up the aircraft and camera to 13km (8 miles) away. The Smart Controller has a built-in 7.9-inch 2K ultra-high-definition, ultra-bright screen with a maximum 2000nit brightness providing a clear image display under strong sunlight. With built-in 128G memory and additional SD Card support of up to 1TB, the Autel Smart Controller has enough storage to fit all of your photo and video needs.

Autel Smart Controller

Portable, Efficient, and Easy to Use

Autel Smart Controller

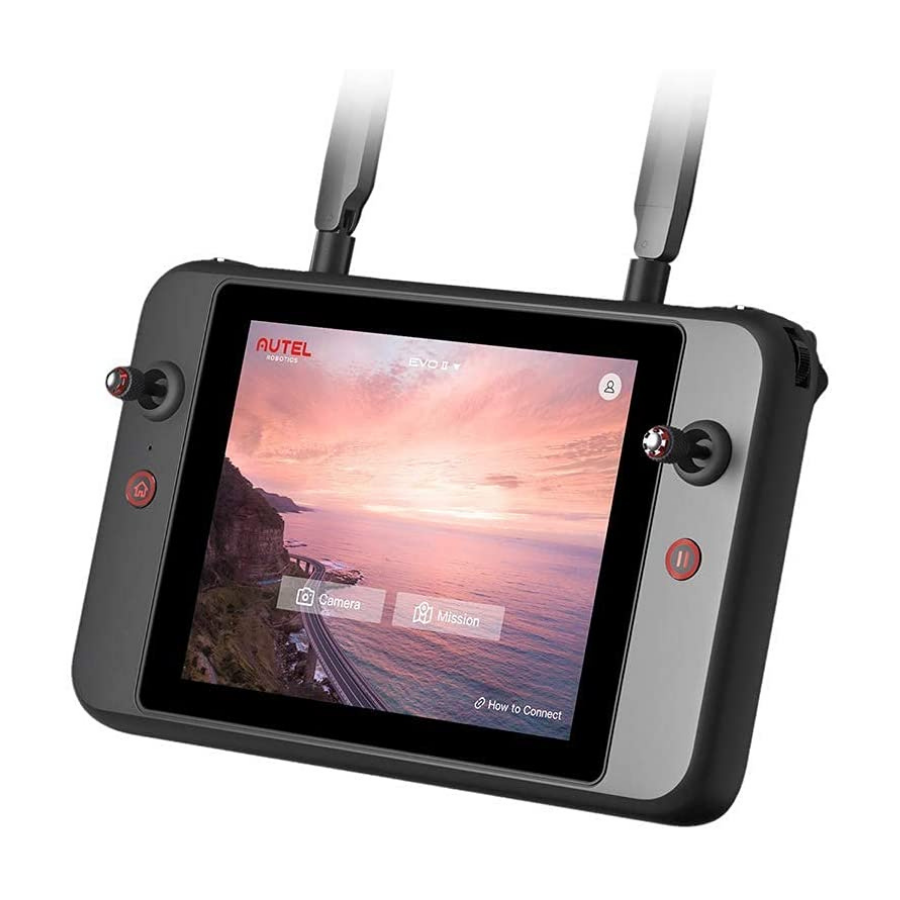

Supersharp, High Brightness Display

The Smart Controller’s built-in display is 4 times brighter than a conventional cellphone screen, and the 7.9-inch Ultra-HD touchscreen provides clear visibility under direct sunlight. Integrating true tone technology dynamically adjusts the white balance of the display, delivering the best viewing experience for any pilot in any lighting environment.

Autel Smart Controller

Long Distance HD Image Transmission

The latest iteration of Autel’s proprietary image transmission technology has allowed for HD 1080p video transmission as far as 8.1 miles (13 km) with low latency. Dual-band support and automatic frequency-changing ensure signal stability in high interference environments.


Image Transmission Distance

Autel Smart Controller
Autel Smart Controller
Autel Smart Controller
Autel Smart Controller


Image Transmission Max Signal Transmission Distance (No interference, No obstacles)
FCC: 13 km (8 miles)
CE: 7 km (4.3 miles)
MIC: 7 km (4.3 miles)
SRRC: 7 km (4.3 miles)
Wi-Fi Protocol Wi-Fi Direct, Wi-Fi Display, 802.11a/b/g/n/ac
Supports 2 x 2 MIMO Wi-Fi
Working Frequency 2.400-2.4835 GHz
5.150-5.250 GHz
5.650-5.755 GHz
5.725-5.850 GHz
902-928 MHz
Battery Capacity: 5800mAh
Voltage: 11.55V
Battery Type: Li-ion
Battery Energy: 67 Wh
Charging time: 120 minutes
Operating Time ~3h (Max Brightness)
~4.5h (50% Brightness)
Internal Storage 128GB
Video Output Port HDMI Port
USB-A Voltage/Current 5V/2A
Operating Environment Temp -4°F to 104 °F
Storage Temperature -4°F to 140°F (within a month)
-4°F to 113°F (between one to three months)
-4°F to 73°F (one year)
Charging Environment Temperature 32°F to 104°F
Supported Aircraft EVO II Series
EVO II Enterprise (coming soon to North America)
EVO II RTK Series (coming soon to North America)
Satellite Positioning Module GPS + GLONASS + Galileo
Dimensions 303×190×87mm (with antenna folded)
303×273×87mm (with antenna unfolded)
Weight 2.53 lbs (without protection case)
2.75 lbs (with protection case)

In The Box

  • 1x Autel Smart Controller
  • 1x Smart Controller Protective Case
  • 1x AC Power Adapter
  • 1x Type-C USB Cable
  • 1x Chest Harness Strap
  • 1x Pair of Spare Controller Sticks
  • 1x Quick Start Guide

Introducing Autel Smart Controller
