Introduction to Owl Drone Parachute for DJI M300 RTK
Ensure the safety and security of your DJI M300 RTK with the OWL Drone Parachute system. Designed by Flyfire, this cutting-edge system improves aviation safety by minimizing risks during forced landings. Additionally, the OWL parachute system offers ultra-high reliability and easy installation, making it essential for drone operators who prioritize safety.
Whether you’re conducting industrial inspections or capturing aerial footage, the OWL system provides peace of mind. Its rapid deployment and robust design ensure you stay secure in emergencies. Flyfire’s commitment to aviation safety shines through in every aspect of the OWL Drone Parachute system, making it a must-have accessory for professional users.
Key Features:
-
High-Power Buzzer: The built-in buzzer emits a 110dB warning during forced landings, alerting pedestrians and ensuring safety.
-
Quick Installation: Install the OWL parachute system in just 50 seconds by replacing M300 arm screws with OWL’s screws—no need to disassemble the bottom rack.
-
Dual IMU and Barometer: Equipped with dual IMU and barometer sensors, the system integrates DJI’s environmental data for quick response in emergencies.
-
Lightweight and Wind Resistant: Made from ABS and reinforced with carbon fiber, the OWL system weighs just 800g and minimizes wind resistance, reducing battery life by only 4 minutes and 15 seconds.
-
Manual and Automatic Modes: The OWL system offers manual and automatic parachute deployment. In emergencies, operators can manually deploy the parachute for added safety.
-
IPX5 Protection: The fully sealed parachute bin structure ensures the OWL system is dust and rain-resistant. It operates maintenance-free for up to 2 years, with built-in environmental monitoring.
-
Firmware Upgrades: Flyfire provides firmware updates, allowing users to optimize the OWL system via cloud-based downloads for the latest algorithm improvements.
Pioneering a New Era of Safe Flight

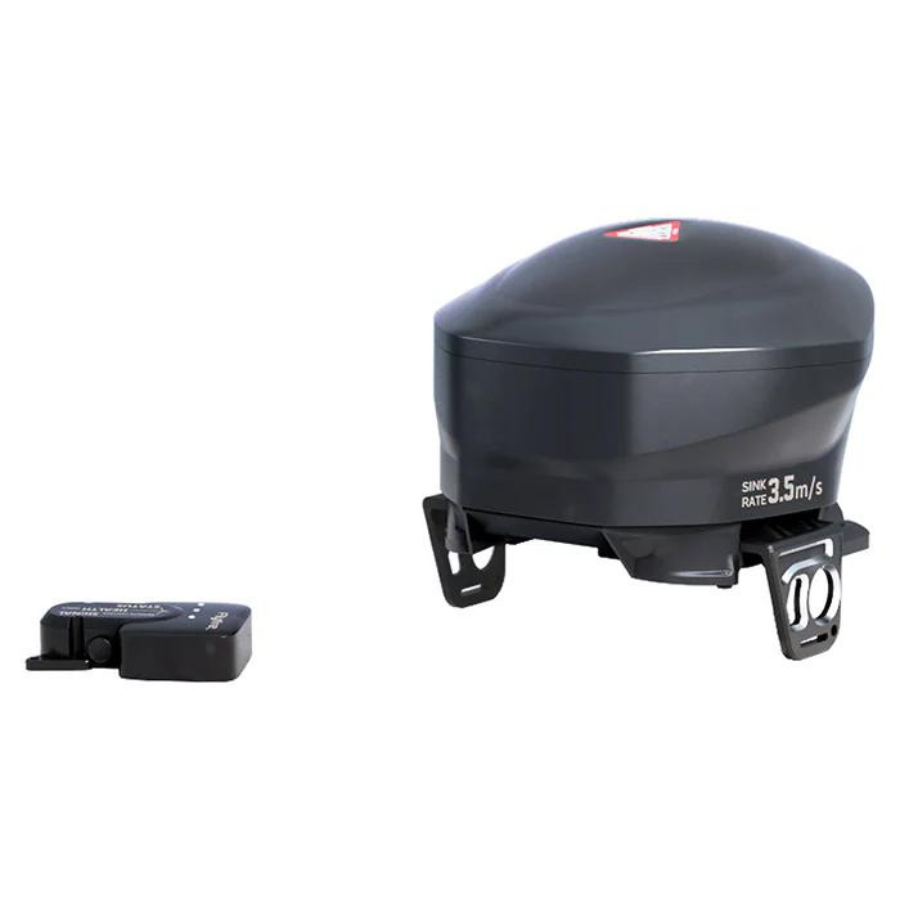

Flyfire is dedicated to advancing aviation safety through innovative technology, driving the secure development of industry-grade drones. The latest OWL UAV parachute system features a descent speed of just 3.5m/s, ensuring a safe and controlled descent in emergencies. Additionally, it boasts dual sensor redundancy for added reliability.
Moreover, the system seamlessly integrates with the DJI M300 OSDK, accessing real-time UAV sensor data. By utilizing dual data fusion, it ensures highly dependable parachute deployment, offering optimal safety for both personnel and property. This advanced system exemplifies Flyfire’s commitment to safety and technology, making it a crucial addition to any professional drone operation.
Strategic and Safe Operations
The OWL system integrates Flyfire’s advanced safety algorithm, reducing hazard response time to just 0.5 seconds. In emergencies, operators can manually deploy the parachute, ensuring prompt safety measures. The parachute maintains a descent speed of 3.5m/s, even with a 9 kg load.
Furthermore, during forced landings, the system activates a high-power buzzer, emitting a continuous 110dB warning sound. This alerts pedestrians on the ground, enhancing safety and minimizing risks. With these features, the OWL system ensures both reliable performance and comprehensive safety during drone operations.
Easy Installation

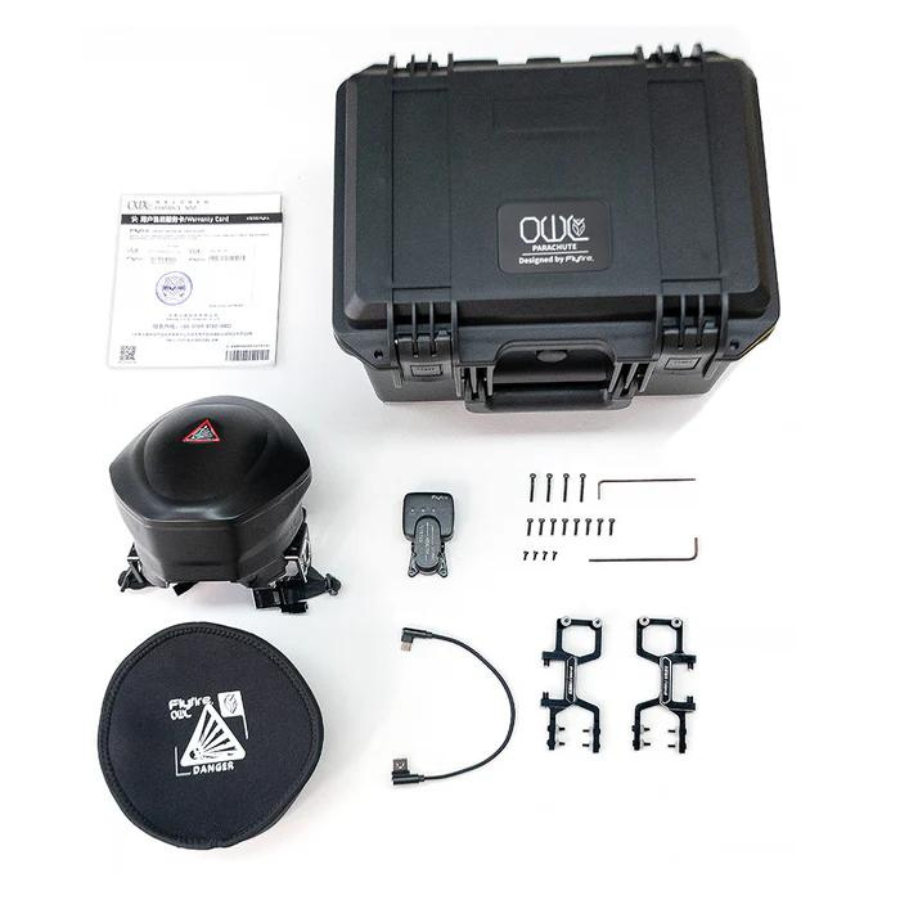

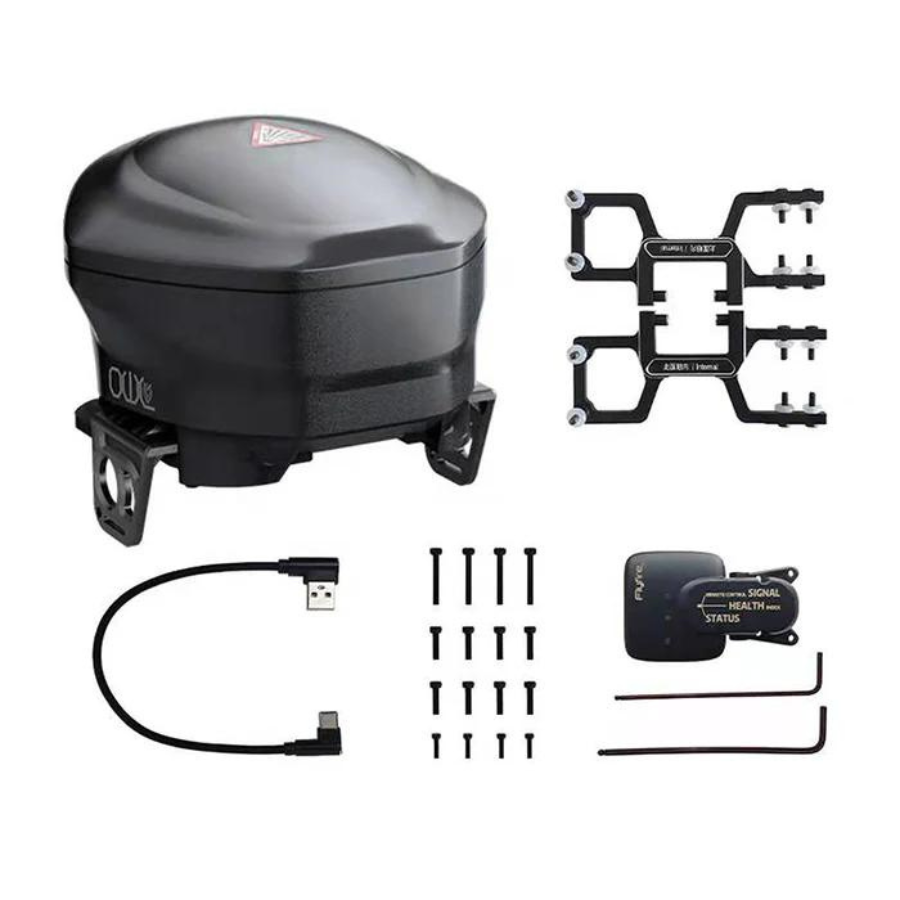

Installing the OWL system is straightforward and quick. Simply remove the M300 arm screws, use the provided OWL replacement screws, and attach the bottom rack in place. The parachute bin can be installed in three easy steps, allowing immediate use without affecting the drone’s folding capability.
Ultra High Reliability
The dual IMU and dual barometer setup of the OWL system, combined with Flyfire’s safety algorithm, integrates M300 flight sensor data to quickly identify dangers and deploy the parachute within 0.5 seconds, ensuring the safety of ground personnel and property.
Lightweight and Wind Resistance
Using ABS engineering materials and 7075-T6 metal, the OWL system is both lightweight and structurally strong. The carbon fiber-reinforced base reduces wind resistance, minimizing the impact on the M300’s battery life by only 4 minutes and 15 seconds.
Maintenance-Free for 2 Years
The OWL parachute bin is fully sealed and IPX5-rated, resistant to dust and rain. Its built-in environmental monitoring system ensures maintenance-free operation for up to 2 years, providing a reliable backup for your flights.
Parachute Control
The OWL system features both manual and automatic parachute deployment modes. In emergencies, operators have the option to override the system and manually deploy the parachute, ensuring the safety of personnel and property on the ground.
Software Upgrade
Flyfire is committed to providing robust support for every OWL customer. Our engineers continuously integrate new test data for algorithm optimization. These updates are uploaded to the cloud, allowing consumers to download and upgrade their system with a single click
Specifications
| Application | Matrice 300 RTK |
|---|---|
| NET wweight | 800g |
| Volume | 19dm² |
| Area of parachute fabric | 7.29m² |
| Minimum parachute opening height | 20m (Only when the height exceeds 20m will the parachute opening function be activated.） |
| Standard load | 9kg (The speed reduction is ensured at the load of 3-4m/s) |
| Maximum load | 9kg (Exceeding 9kg may cause structural damage to the parachute) |
| Protection grade | IP45 |
| Working temperature | -20℃~50℃ |
| Working altitude | ≤3500m |
| Reaction time | 500ms~700ms |
| Reaction distance | 8.59m~20.96m |
| Classification of wind resistance | Level 7 |
| The lowering speed | 3m/s-4.5m/s,It can effectively protect the landing safety of aircraft |
| Duration of flight | 1h,Even if the aircraft suddenly loses power, OWL can still fly for an hour |
| Motherboard battery capacity | 210mA |
| Motherboard TF card capacity | 16G,The high-capacity memory card can record one-hour flight for 100 times and record each flight in real time |
| Remote control date cable | OSDK |
Group
| Working Frequency | 430-432Mhz、433-434.79Mhz |
|---|---|
| Maximum Omni-Directional Signal Distance (No Interference, No Occlusion) | SRRC：320m |
| Transmit Power | 10mW |
| Input Interface | Type-C |
| Operating Voltage/ Current | 5V/1.5A(Instantaneous Maximum Current) |
