The DJI Digital FPV System features DJI HD Low Latency FPV Transmission. This redefined technology was designed to heighten your FPV experience. Pilots can race more smoothly with a latency within 28 ms while enjoying a crystal-clear view.
720p/120fps Video Transmission
Most analog transmissions provide a latency between 22-35 ms. The DJI HDL FPV Transmission features similar latency rates, but pairs that with a smooth 720p/120fps digital HD live view and a transmission range up to 4km.
Anti-Interference Digital Transmission
The DJI HDL FPV Transmission technology utilizes a two-way communication system to stabilize signal connections, granting pilots more flexibility while flying through challenging areas.
28ms Low Latency
The DJI HDL FPV Transmission technology delivers a minimum end-to-end latency within 28 ms and a stunning HD view.
Innovative Design

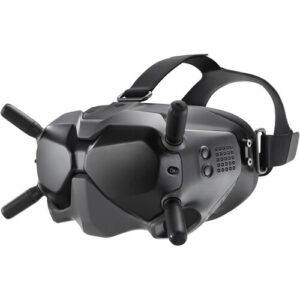

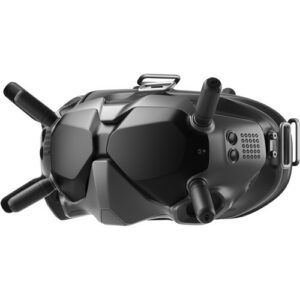

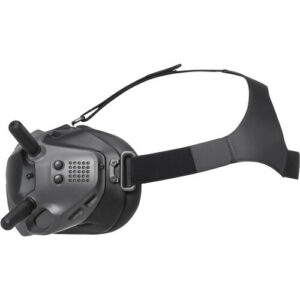

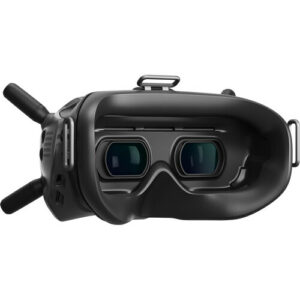

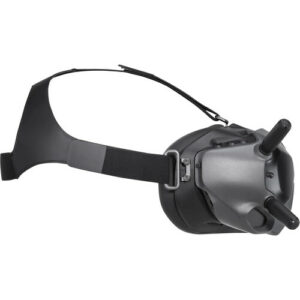

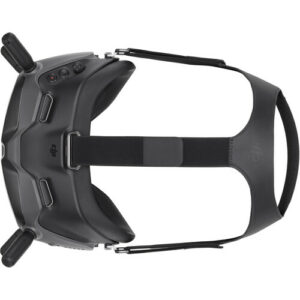

The DJI FPV Goggles are light, comfortable, and equipped with incredible features, such as multi-antenna technology for stable video transmission. It also includes two screens and two user-friendly channel adjustment buttons, creating an engaging FPV flying experience for the user.
Specifications

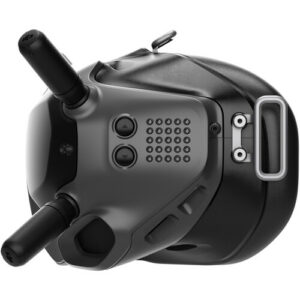

DJI FPV Goggles V2
Weight: Approx. 420 g (headband and antennas included)
Dimensions: 184×122×110 mm (antennas excluded)
202×126×110 mm (antennas included)
Screen Size: 2-inches (×2)
Screen Refresh Rate: 144 Hz
Communication Frequency: 2.400-2.4835 GHz
5.725-5.850 GHz
Transmitter Power (EIRP): 2.400-2.4835 GHz
FCC: ≤ 28.5 dBm
CE: ≤ 20 dBm
SRRC: ≤ 20 dBm
MIC: ≤ 20 dBm
5.725-5.850 GHz
FCC: ≤ 31.5 dBm
CE: ≤ 14 dBm
SRRC: ≤ 19 dBm
Communication Bandwidth: 40 MHz (Max.)
Live View Mode: Low-Latency Mode: 810p/120fps ≤ 28ms*
High-Quality Mode: 810p/60fps ≤ 40ms*
* A 150° FOV is available when shooting at 50 or 100 fps. For other frame rates, the FOV will be 142°.”
Max Video Bitrate: 50 Mbps
Transmission Range: 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
Video Format: MP4 (Video format: H.264)
Supported Video and Audio Playback Formats: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3）
Operating Temperature: 0° to 40° C (32° to 104° F)
Power Input: Dedicated DJI Goggles batteries or other 11.1.-25.2 V batteries.
FOV: 30° to 54°; Image size: 50-100%
Interpupillary Distance Range: 58-70 mm
Supported microSD: Cards microSD (up to 256 GB)

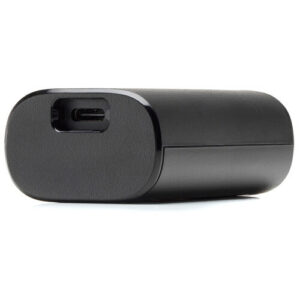

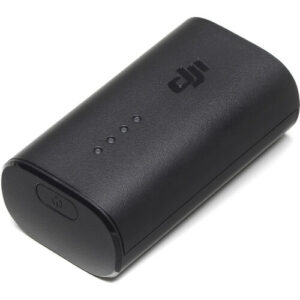

DJI FPV Goggles Battery
Capacity: 1800 mAh
Voltage: 9 V (Max.)
Type: LiPo 2S
Energy: 18 Wh
Charging Temperature: 0° to 45° C
Max Charging Power: 10 W
Battery Life: Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level)
