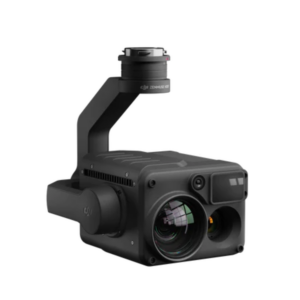

DJI Zenmuse H20T

The DJI Zenmuse H20T is DJI’s first hybrid sensor solution, the “T” model, compared to the regular Zenmuse H20 includes a fourth sensor which a 640×512 thermal sensor. In addition to the thermal sensor, the H20T model features the same sensors of the H20 model which consist of a 20 MP zoom camera with a 23X hybrid optical zoom, a 12 MP wide camera with a 1/2″ CMOS sensor, and a laser rangefinder with up to a 3/4 mile range. The H20 is the ultimate match for the DJI Matrices 300 RTK. This quadruple sensor solution brings a whole new meaning to efficiency and its fully integrated design provides unprecedented aerial capabilities to a wide range of unmanned applications.

“H” For Hybrid

Multi-sensor payloads bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.
Welcome to DJI’s first hybrid sensor solution – the Zenmuse H20 Series.

• Dimesions: 6.6 x 5.3 x 6.3 in
• Weight: 1.8lb
• Protection Rating:IP44
• Laser Safety:Class 1M (IEC 60825-1:2014)
• Supported Aircraft: Matrice 300 RTK

• Angular Vibration Range: ±0.01°
• Mount: Detachable

• Thermal Imager: Uncooled VOx Microbolometer
• DFOV: 40.6°
• Focal Length: 13.5 mm (equivalent: 58 mm)
• Aperture: f/1.0
• Focus: 5 m to ∞

• Sensor: 1/1.7″ CMOS, Effective Pixels: 20M
• Focal Length: 6.83-119.94mm (equivalent: 31.7-556.2mm)
• Aperture: f/2.8-f/11 (Normal), f1.6-f/11 (Night)
• Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)

• Sensor: 1/2.3“ CMOS, Effective Pixels: 12M
• Focal Length: 4.5mm (equivalent: 24mm)
• Aperture: f/2.8
• Focus: 1 m to ∞

• Supported SD Cards: Supports a microSD card with capacity of up to 128 GB. A UHS-I Speed Grade 3 rating microSD card is required.
• Supported File System: FAT32 (≤32 GB), exFAT (>32 GB)

• Wavelength: 905nm
• Measuring Range: 3-1200 m (20% reflectivity, full spot)
• Measuring Accuracy: ± (0.2 m + D×0.15%), D is the distance to a vertical surface

• Operating Temperature: -4°F to 122°F
• Storage Temperature: -4°F to 140°F
