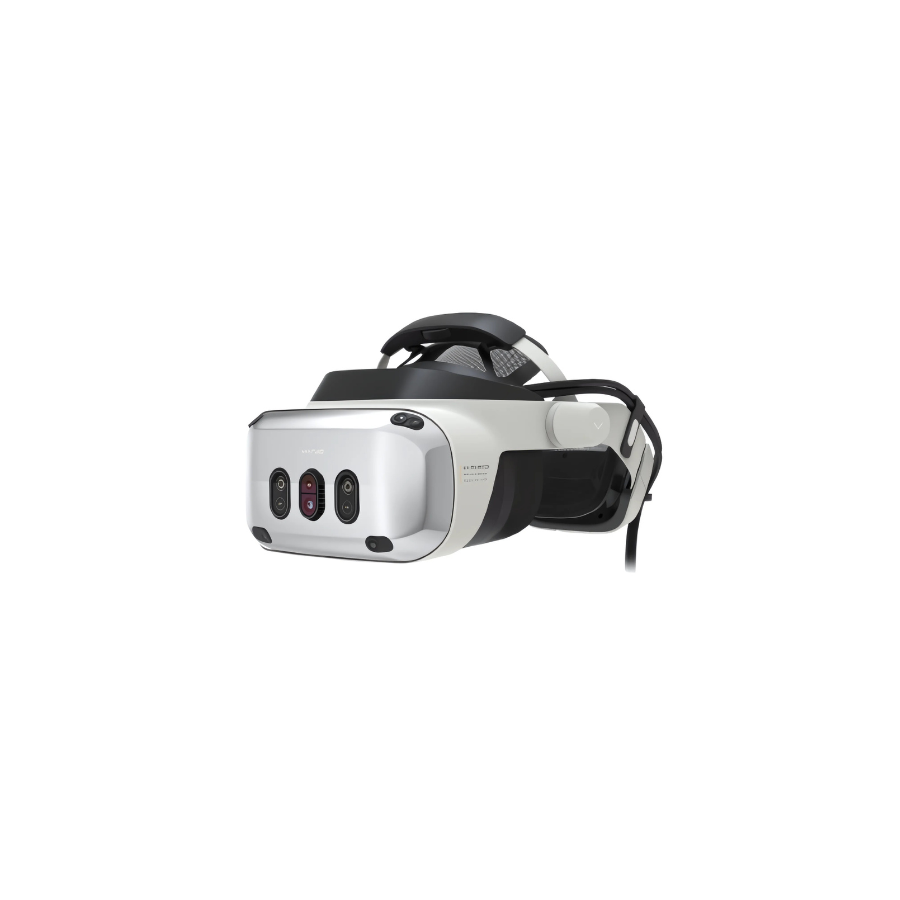

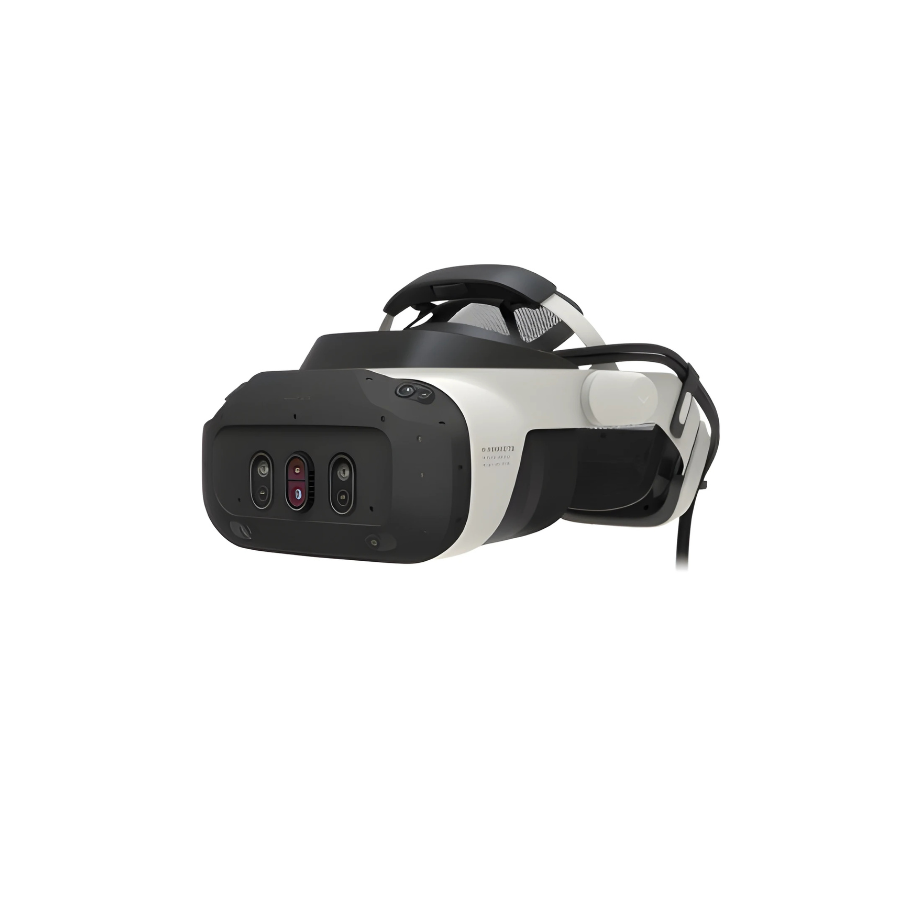

Varjo XR-4

    • Dual 4K-by-4K (3840×3744) mini-LED displays with local dimming and wide color (98% sRGB / 96% DCI-P3).

    • Ultra-wide optics: 120° × 105° field of view with up to 51 PPD image detail.

    • Industry-leading mixed-reality passthrough: dual 20 MP front cameras, LiDAR sensor fusion, ambient-light reconstruction.

    • Enterprise-ready tracking & I/O: inside-out tracking (SteamVR option at purchase), Varjo Controllers included, integrated DTS spatial audio & dual noise-cancelling mics.

Description

 Specifications



Category Spec Value
Displays Resolution (per eye) 3840 × 3744 (4K-by-4K) mini-LED, 3.59″ panels
Refresh rate 90 Hz
Brightness 200 nits
Contrast 1:10,000 with local dimming
Color 98% sRGB, 96% DCI-P3
Optics Lens type Custom full-dome aspheric optics
Peak angular resolution Up to 51 PPD (display)
Field of view 120° (H) × 105° (V)
Passthrough MR Cameras 2 × 20-megapixel front cameras
Passthrough detail ~33 PPD (XR-4 standard)*
Passthrough latency ~22 ms
LiDAR 300 kpix sensor, ~7 m range, 30 FPS
Ambient light cams Ambient-light reconstruction (for better real-world blending)
Tracking & I/O Head tracking Inside-out tracking built-in; SteamVR™ outside-in available as purchase option
Eye tracking 200 Hz integrated gaze tracking
IPD Automatic, ~56–72 mm

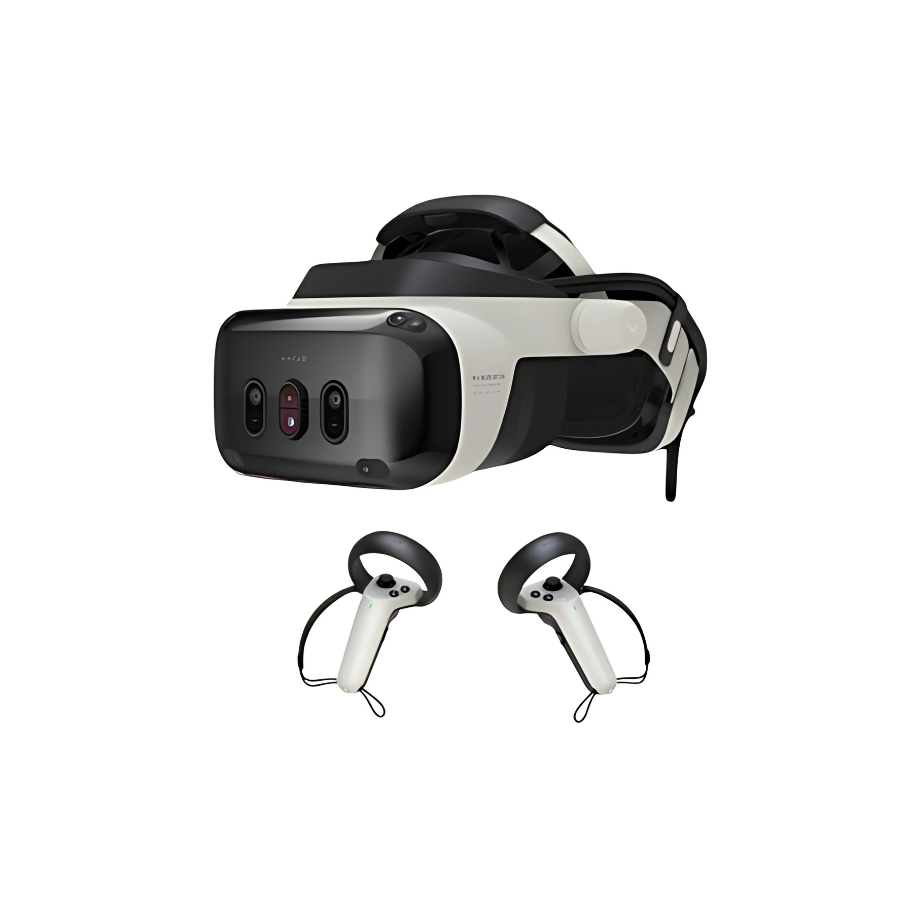

Controllers Varjo Controllers (by Razer) included
Audio Integrated speakers with DTS 3D spatial audio; 3.5 mm output
Microphones Dual integrated, noise-cancelling
Device connectivity 1 × DisplayPort + 1 × USB-C on link box/headset cable
Host video output PC requires DisplayPort 1.4
Host USB USB-C 10/20 Gbps (direct to chipset)
Compatibility Software OpenXR, Unreal Engine, Unity, NVIDIA Omniverse, Autodesk VRED, PREPAR3D, and more
Ergonomics Weight ~1021 g
Comfort “Zero-gravity” comfort fit headstrap
Expandability Hand tracking Optional Ultraleap Leap Motion Controller 2 kit
3rd-party tracking ART & OptiTrack via API
In-the-box What’s included Headset, Varjo Controllers, cables/link box (regional bundles may vary)

A major improvement in optical design.





Take your immersion to a new level. The renowned “full binocular vision” criterion is broken by a vastly increased field of view that measures 120° by 105° degrees, giving XR experiences an enthralling new depth.

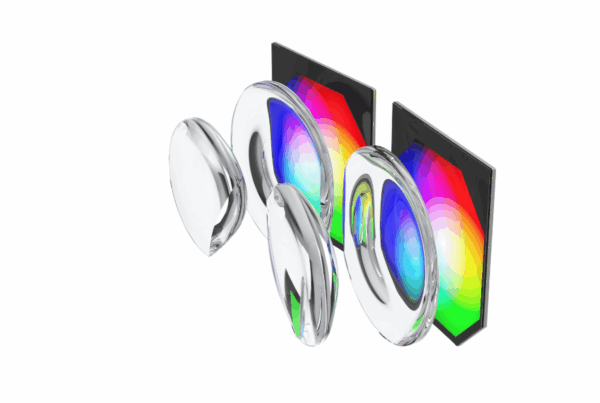

The highest-resolution mixed reality headset screens ever produced are found in the Varjo XR-4 Series. Custom full-dome aspheric lenses include 200 nits of brightness, local dimming for dramatic contrast, and 28 million pixels of pure visual purity with industrial-grade color accuracy.

Varjo XR-4
Varjo XR-4

Perfectly computerized human vision.



With the goal to replicate the environment around you on screens on which virtual content may be smoothly added, Varjo invented and refined the technology of using passthrough cameras to act like human eyes.

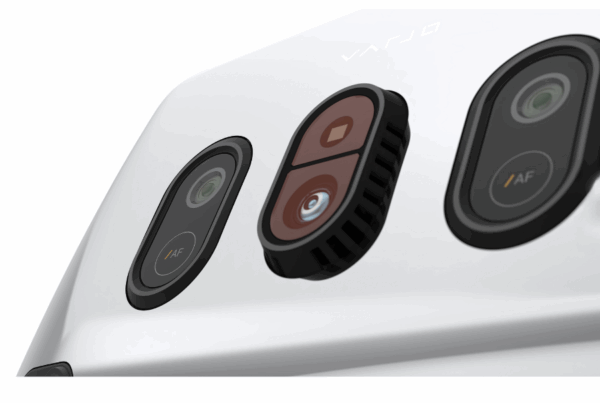

With the addition of dual, ultra-low-latency, 20-megapixel front-mounted cameras, the Varjo XR-4 Series mixed reality headsets have once again produced the best mixed reality experience in the industry. The XR-4 Focal Edition goes one step further. The world’s first XR gaze-driven autofocus camera technology, which emulates the functioning of the human eye, is introduced by the XR-4 Focal Edition, which achieves an amazing 51 PPD in passthrough.
