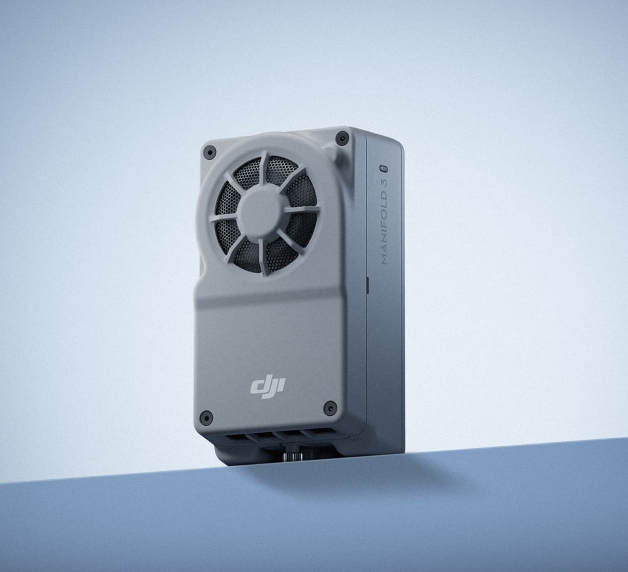

DJI Mainfold 3
High Performance Onboard Computing Power Box
Manifold 3 packs an impressive 100 TOPS of computing power into a compact unit, weighing about 120 g. When mounted onto the Matrice 400 drone platform, it provides enhanced computing power for flight, gimbal, and camera control, optimizing efficiency in various operations. With a user-friendly development environment, Manifold 3 empowers developers to build high-performance applications across diverse scenarios, from energy inspections to public safety and beyond.

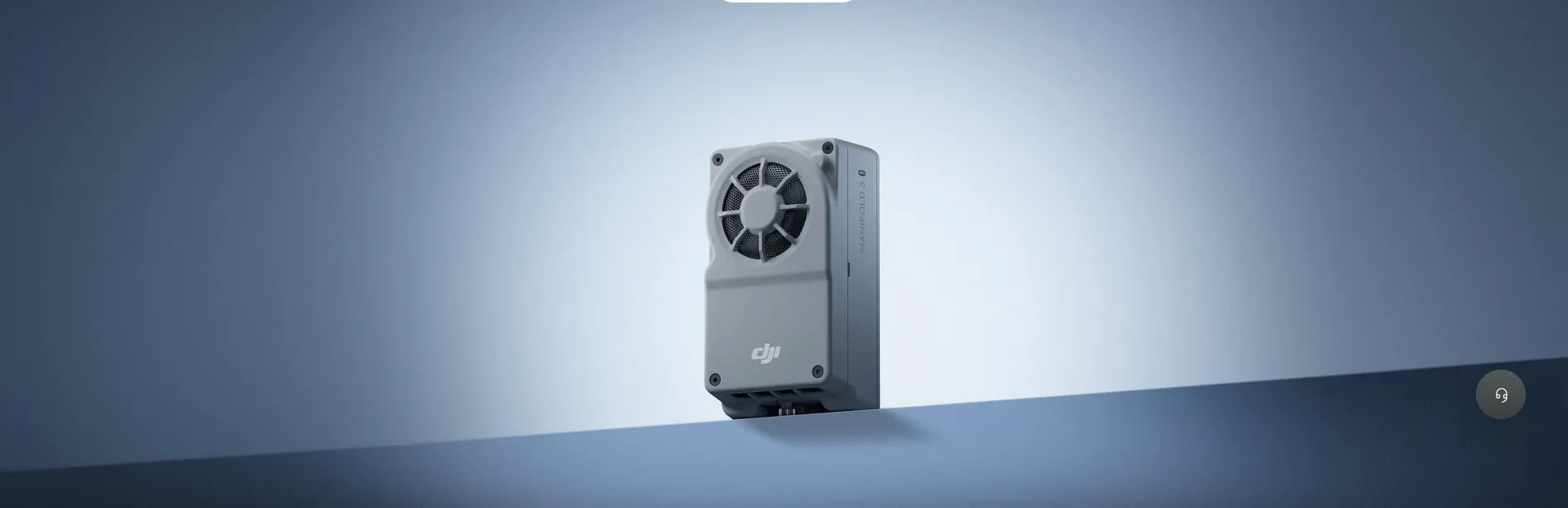

High Performance, Compact Design
Powerful and Lightweight
With a computing power of up to 100 TOPS, Manifold 3 utilizes components like GPU and DLA to perform and accelerate algorithm models. When mounted on a drone platform, its compact design ensures minimal impact on flight time.
Strong Environmental Adaptability
With an IP55 rating [1], Manifold 3 operates smoothly in temperatures ranging from -20° to 50° C (-4° to 122° F), enduring both cold and heat. Its excellent cooling performance supports operation at 25 W, even in environments reaching 40° C (104° F).
Computing Power Open Platform
Third-party developers can leverage the computing power of Manifold 3 along with the PSDK toolkit to create high-performance, automated solutions that cover the entire workflow from data collection to task execution.
Application Scenarios
Specifications
| Category | Details |
|---|---|
| CPU | NVIDIA Jetson Xavier NX SoC (6-core ARM v8.2 64-bit CPU, 384-core GPU) |
| GPU | 384-core NVIDIA Volta GPU with 48 Tensor Cores |
| Memory (RAM) | 8 GB 128-bit LPDDR4x @ 51.2 GB/s |
| Storage | 32 GB eMMC 5.1 |
| Operating System | Ubuntu 18.04 with Jetpack 4.6 |
| Expansion Interface | M.2 Key M (PCIe 3.0 x4), M.2 Key E (PCIe 1.0 x1 + USB 2.0) |
| I/O Ports | USB 3.2 Gen1 Type-C ×1, USB 2.0 Type-A ×2, HDMI 2.0 ×1 |
| Communication | Wi-Fi 802.11ac, Bluetooth 4.2, 1000BASE-T Ethernet |
| Power Supply | 5V/9V/12V via USB-C PD; 9V~36V via XT30 power port |
| Power Consumption | Max 30 W |
| Operating Temperature | -10°C to 55°C |
| Cooling System | Active cooling with internal fan |
| Dimensions | 138 × 88 × 32.2 mm |
| Weight | 265 g (±2 g) |
| Mounting | Compatible with DJI M300 RTK and DJI M350 RTK drones |
FAQ’s
FAQ's
Q1: What is the Manifold 3 used for?
The DJI Manifold 3 is an onboard computing platform for advanced drone applications like AI processing, data analysis, and custom payload development.
Q2: Which drones are compatible with the Manifold 3?
It is compatible with DJI Matrice 300 RTK and Matrice 350 RTK.
Q3: What operating system does the Manifold 3 support?
It runs Ubuntu 18.04 and supports Jetpack 4.6 SDK.
Q4: Can I develop custom applications with Manifold 3?
Yes, it supports custom development via DJI SDK and NVIDIA Jetson Xavier NX tools.
Q5: How is the Manifold 3 powered?
It supports power input via USB-C (5V/9V/12V) and XT30 port (9V–36V).
Q6: Does it support external device connections?
Yes, it features USB 3.2, USB 2.0, HDMI, Ethernet, and M.2 expansion interfaces.
Q7: What’s the difference between Manifold 2 and Manifold 3?
Manifold 3 is more compact, offers significantly higher AI performance, and uses a newer Jetson Xavier NX processor.
Q8: Is there active cooling on the Manifold 3?
Yes, it includes an internal fan for active cooling during operation.
